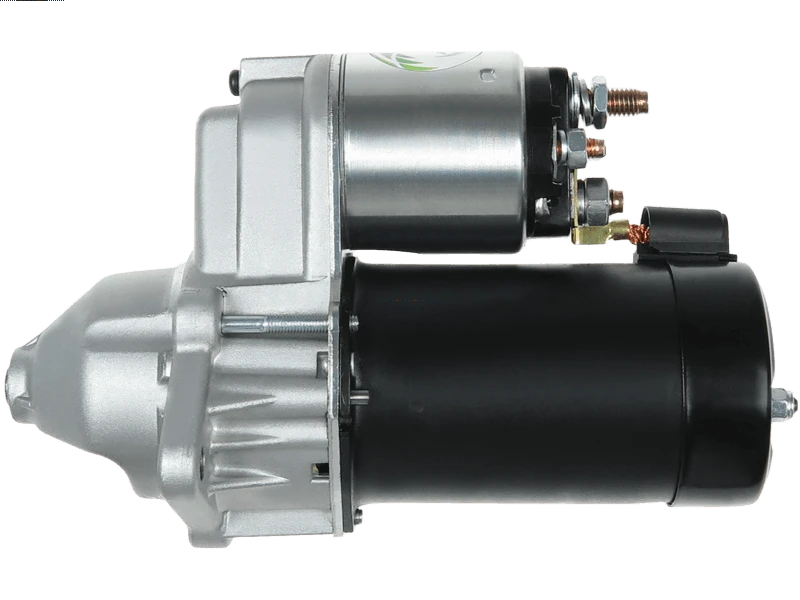

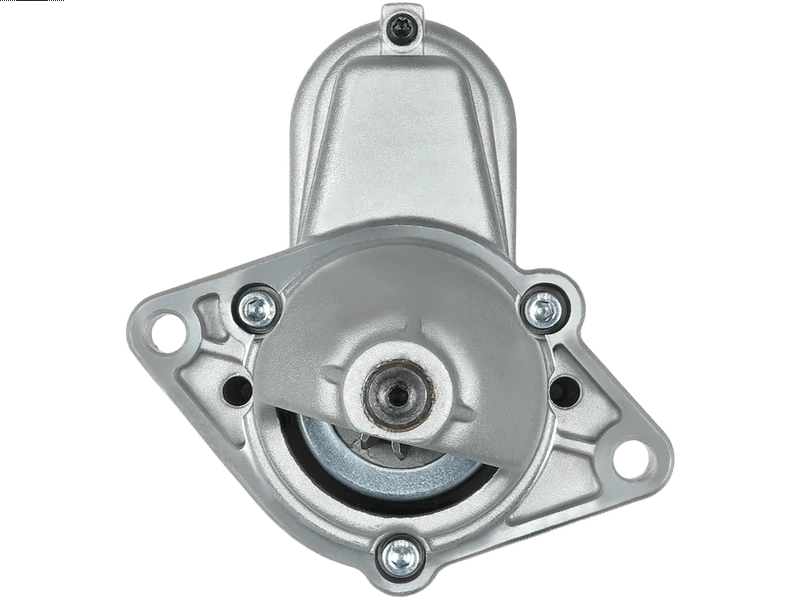

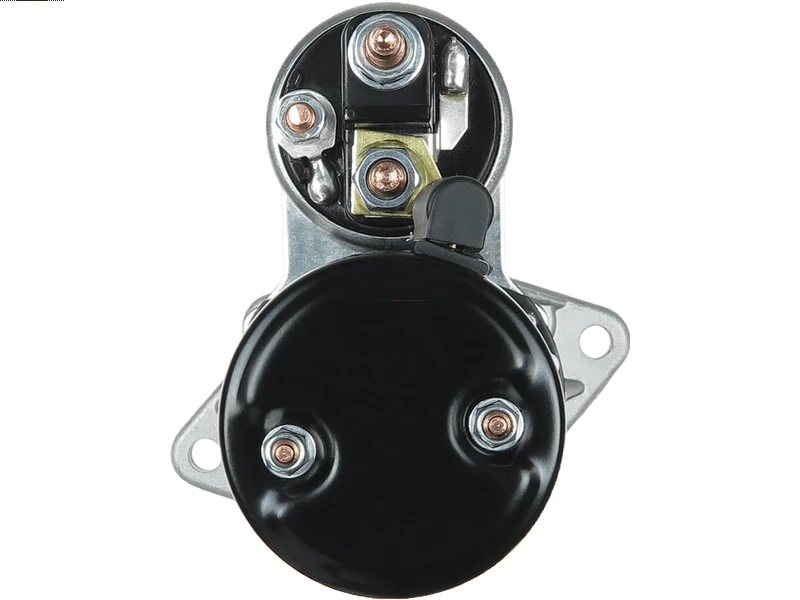

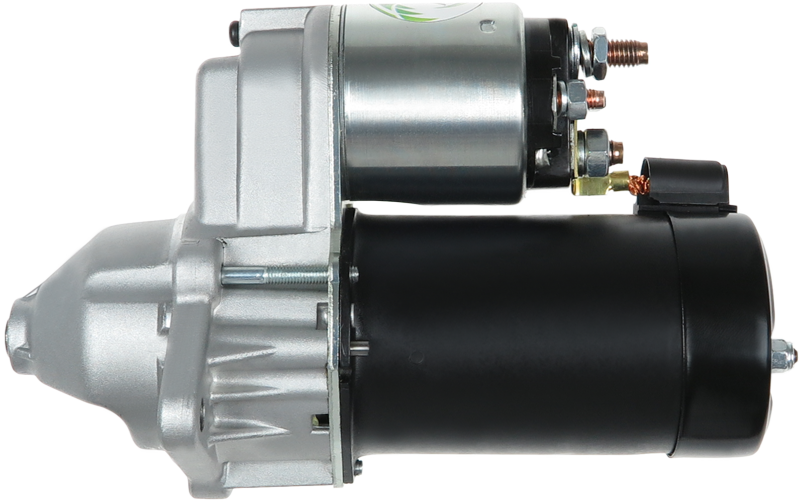

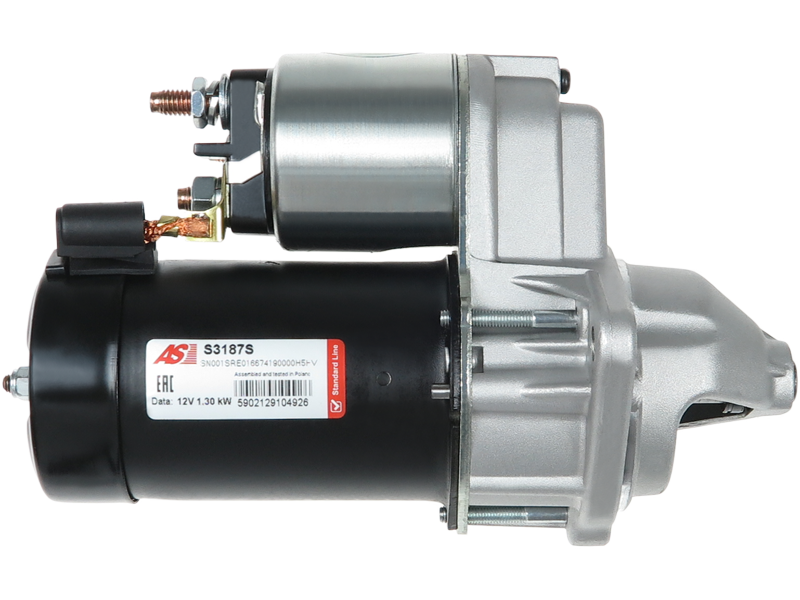

S3187S - Brand new AS-PL Starter motor

Associated Numbers

0001107413 063524160010 0986017120 101257 101257H 10519 10519H 10519V 111123 120-10214 130.519.102 20479491 20513050 25-3185 32648N 3320 359001400160 438183 458228 6015194 6202075 6202094 726002 88212504 8EA011610-411 8EA726164-001 91-20-3526 9115192 93189230 943251576010 944280803410 AES8198 CS519 CST15194 CST15194AS CST15194ES CST15194GS CST15194OS CST15194RS D6RA293 D6RA93 DRS0646 DS1756 DS1756N MO0016MA MRS80341 MSN2172 MSR914 NES8198 RAS31757 SG0398 STB0519 STD0519 STR54127 STV0519 UD20491S

Specifications

Kilowatt	1.30 kW
Length (L.1)	202.50 mm
Mount Hole Center - Center (O.1)	104.50 mm
Mount Hole Diameter (C.1)	8.50 mm
Mount Hole Diameter (C.2)	8.50 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	17.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	68 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BEDFORD	Blitz 2.0	[20N]	02.1985-10.1987
CHEVROLET	Aveo 1.2	[LMU]	01.2008-
CHEVROLET	Aveo 1.2	[LMU]	04.2008-
CHEVROLET	Aveo 1.2	[LY4]	03.2005-12.2007
CHEVROLET	Aveo 1.2 LPG	[LMU]	01.2009-
CHEVROLET	Aveo 1.2 LPG	[LMU]	04.2008-12.2011
CHEVROLET	Aveo 1.4	[LDT]	04.2008-
CHEVROLET	Aveo 1.4	[LDT]	09.2008-
CHEVROLET	Cruze 1.6	[LXT]	05.2009-
CHEVROLET	Kalos 1.2	[LMU]	01.2008-
CHEVROLET	Kalos 1.2	[LMU]	04.2008-
CHEVROLET	Kalos 1.2	[LY4]	03.2005-12.2007
CHEVROLET	Kalos 1.2 LPG	[LMU]	01.2009-
CHEVROLET	Kalos 1.2 LPG	[LMU]	04.2008-12.2011
CHEVROLET	Kalos 1.4	[LDT]	04.2008-
CHEVROLET	Kalos 1.4	[LDT]	09.2008-
CHEVROLET	Lacetti 1.6	[L44(96CUL4)]	03.2005-
CHEVROLET	Lacetti 1.6	[L44(96CUL4)]	03.2005-03.2013
CHEVROLET	Lacetti 1.6	[LXT]	03.2005-
CHEVROLET	Lacetti 1.6	[LXT]	03.2005-03.2013
CHEVROLET	Lacetti 2.0 D	[LMN]	01.2007-
CHEVROLET	Nubira 1.6	[L44(96CUL4)]	03.2005-12.2011
CHEVROLET	Nubira 1.6	[LXT]	03.2005-12.2011
CHEVROLET	Nubira 1.8	[LDA]	03.2005-12.2009
CHEVROLET	Nubira 1.8	[LDA]	08.2005-12.2011
CHEVROLET	Nubira 2.0 D	[LMN]	01.2005-12.2011
CHEVROLET	Nubira 2.0 D	[LMN]	01.2007-12.2011
CHEVROLET	Orlando 1.4	[LUJ]	06.2012-
CHEVROLET	Rezzo 1.6	[L44(96CUL4)]	03.2005-
CHEVROLET	Rezzo 1.6	[L44(96CUL4)]	08.2005-
DAEWOO	Cielo 1.5	[G15MF]	02.1995-08.1997
DAEWOO	Cielo 1.5 16V	[A15MF]	02.1995-08.1997
DAEWOO	Espero 1.5 16V	[A15MF]	02.1995-06.1999
DAEWOO	Espero 1.5 16V	[A15MF]	10.1993-09.1994
DAEWOO	Kalos 1.4	[F14S3]	09.2002-
DAEWOO	Kalos 1.4 16V	[F14D3]	04.2003-
DAEWOO	Lacetti 1.4	[F14D3]	02.2004-
DAEWOO	Lacetti 1.6	[F16D3]	02.2004-
DAEWOO	Lacetti 1.8	[T18SED]	02.2004-
DAEWOO	Lanos 1.3	[A13SMS]	05.1997-
DAEWOO	Lanos 1.5	[A15SMS]	05.1997-
DAEWOO	Lanos 1.6 16V	[A16DMS]	02.1997-
DAEWOO	Lanos 1.6 16V	[A16DMS]	05.1997-
DAEWOO	Nubira 1.6	[F16D3]	07.2003-
DAEWOO	Nubira 1.6 16V	[A16DMS]	05.1997-05.1999
DAEWOO	Nubira 1.6 16V	[A16DMS]	06.1997-
DAEWOO	Nubira 1.6 16V	[A16DMS]	07.2000-
DAEWOO	Nubira 1.6 16V	[A16DMS]	12.2000-
DAEWOO	Nubira 1.8	[T18SED]	07.2003-
DAEWOO	Rezzo 1.6	[A16DMS]	09.2000-
DAEWOO	Rezzo 1.8	[F18S2]	09.2000-
DAEWOO	Tico 0.8	[F8C]	02.1995-12.2000
FIAT	Stilo 1.6 16V	[192B3.000]	05.2005-11.2006
OPEL	Adam 1.2	[A12XEL]	10.2012-02.2019
OPEL	Adam 1.2	[B12XEL]	10.2012-02.2019
OPEL	Adam 1.2	[D12XEL]	10.2012-02.2019
OPEL	Adam 1.4	[A14XEL]	10.2012-02.2019
OPEL	Adam 1.4	[A14XER]	10.2012-02.2019
OPEL	Adam 1.4	[B14XEL]	10.2012-02.2019
OPEL	Adam 1.4	[B14XER]	10.2012-02.2019
OPEL	Adam 1.4	[D14XEL]	10.2012-02.2019
OPEL	Adam 1.4	[D14XER]	10.2012-02.2019
OPEL	Adam 1.4 LPG	[A14XEL]	07.2013-11.2018
OPEL	Adam 1.4 LPG	[B14XE]	07.2013-11.2018
OPEL	Adam 1.4 LPG	[D14XEL]	07.2013-11.2018
OPEL	Agila 1.0	[Z10XEP]	08.2003-12.2007
OPEL	Agila 1.0 12V	[Z10XE]	09.2000-12.2007
OPEL	Agila 1.2	[K12B]	04.2008-10.2012
OPEL	Agila 1.2 16V	[Z12XE]	09.2000-12.2007
OPEL	Agila 1.2 16V Twinport	[Z12XEP]	07.2004-12.2007
OPEL	Agila 1.2 LPG	[K12B]	04.2008-10.2010
OPEL	Ascona 1.6	[16SV]	09.1986-08.1988
OPEL	Ascona 1.6 i	[E16LZ]	09.1987-08.1988
OPEL	Ascona 1.6 i	[E16NZ]	09.1987-08.1988
OPEL	Ascona 1.6 i Cat	[C16LZ]	09.1986-08.1988
OPEL	Ascona 1.6 i Cat	[C16NZ]	09.1986-08.1988
OPEL	Astra 1.2	[Z12XEP]	08.2005-10.2010
OPEL	Astra 1.2 16V	[X12XE]	02.1998-09.2000
OPEL	Astra 1.2 16V	[X12XE]	09.1998-09.2000
OPEL	Astra 1.2 16V	[Z12XE]	09.2000-01.2005
OPEL	Astra 1.2 16V	[Z12XE]	09.2000-07.2004
OPEL	Astra 1.4	[14NV]	09.1991-09.1993
OPEL	Astra 1.4	[14SE]	09.1992-01.1998
OPEL	Astra 1.4	[14SE]	09.1992-09.1998
OPEL	Astra 1.4	[A14XEL]	12.2009-10.2015
OPEL	Astra 1.4	[A14XER]	06.2012-10.2015
OPEL	Astra 1.4	[A14XER]	12.2009-10.2015
OPEL	Astra 1.4	[B14XER]	06.2012-10.2015
OPEL	Astra 1.4	[B14XER]	12.2009-10.2015
OPEL	Astra 1.4	[Z14XEL]	04.2004-10.2004
OPEL	Astra 1.4	[Z14XEL]	08.2004-10.2010
OPEL	Astra 1.4	[Z14XEP]	02.2007-06.2010
OPEL	Astra 1.4	[Z14XEP]	03.2004-10.2010
OPEL	Astra 1.4	[Z14XEP]	08.2004-10.2010
OPEL	Astra 1.4	[Z14XEP]	09.2007-12.2009
OPEL	Astra 1.4 16V	[X14X]	06.1998-07.2004
OPEL	Astra 1.4 16V	[X14XE]	02.1998-01.2005
OPEL	Astra 1.4 16V	[X14XE]	09.1998-01.2005
OPEL	Astra 1.4 16V	[Z14XE]	02.1998-01.2005
OPEL	Astra 1.4 16V	[Z14XE]	06.1998-07.2004
OPEL	Astra 1.4 16V	[Z14XE]	09.1998-01.2005
OPEL	Astra 1.4 GTC	[A14NEL]	10.2011-04.2018
OPEL	Astra 1.4 GTC	[A14XER]	10.2011-11.2013
OPEL	Astra 1.4 GTC	[B14NEL]	10.2011-04.2018
OPEL	Astra 1.4 GTC	[Z14XEL]	03.2005-10.2010
OPEL	Astra 1.4 GTC	[Z14XEP]	03.2005-10.2010
OPEL	Astra 1.4 i	[C14NZ,]	09.1991-09.1998
OPEL	Astra 1.4 i	[C14NZ]	09.1991-01.1998
OPEL	Astra 1.4 i	[C14NZ]	10.1991-01.1999
OPEL	Astra 1.4 i	[X14NZ]	09.1991-01.1998
OPEL	Astra 1.4 i	[X14NZ]	09.1991-09.1998
OPEL	Astra 1.4 i 16V	[X14XE]	01.1996-03.2001
OPEL	Astra 1.4 i 16V	[X14XE]	02.1996-01.1998
OPEL	Astra 1.4 i 16V	[X14XE]	02.1996-09.1998
OPEL	Astra 1.4 i 16V	[X14XE]	09.1996-02.1998
OPEL	Astra 1.4 LPG	[A14NET]	01.2012-10.2015
OPEL	Astra 1.4 LPG	[A14NET]	07.2014-
OPEL	Astra 1.4 LPG	[Z14XEP]	08.2009-10.2010
OPEL	Astra 1.4 LPG Sports Tourer	[A14NET]	12.2011-10.2015
OPEL	Astra 1.4 Si	[C14SE]	03.1992-01.1998
OPEL	Astra 1.4 Si	[C14SE]	03.1992-09.1998
OPEL	Astra 1.4 Si	[C14SE]	05.1993-03.2001
OPEL	Astra 1.4 Sports Tourer	[A14XER]	10.2010-10.2015
OPEL	Astra 1.4 Sports Tourer	[B14XER]	10.2010-10.2015
OPEL	Astra 1.4 Turbo	[A14NEL]	06.2012-10.2015
OPEL	Astra 1.4 Turbo	[A14NEL]	10.2010-10.2015
OPEL	Astra 1.4 Turbo	[A14NET]	06.2012-
OPEL	Astra 1.4 Turbo	[A14NET]	12.2009-10.2015
OPEL	Astra 1.4 Turbo	[B14NEL]	06.2012-10.2015
OPEL	Astra 1.4 Turbo	[B14NEL]	10.2010-10.2015
OPEL	Astra 1.4 Turbo	[B14NET]	06.2012-
OPEL	Astra 1.4 Turbo	[B14NET]	12.2009-10.2015
OPEL	Astra 1.4 Turbo GTC	[A14NET]	10.2011-04.2018
OPEL	Astra 1.4 Turbo GTC	[B14NET]	10.2011-04.2018
OPEL	Astra 1.4 Turbo Sports Tourer	[A14NEL]	10.2010-10.2015
OPEL	Astra 1.4 Turbo Sports Tourer	[A14NET]	10.2010-10.2015
OPEL	Astra 1.4 Turbo Sports Tourer	[B14NEL]	10.2010-10.2015
OPEL	Astra 1.4 Turbo Sports Tourer	[B14NET]	10.2010-10.2015
OPEL	Astra 1.6	[16LZ2]	09.1995-09.1998
OPEL	Astra 1.6	[16NZR]	09.1995-09.1998
OPEL	Astra 1.6	[X16SZR]	01.1999-09.2000
OPEL	Astra 1.6	[X16SZR]	02.1998-09.2000
OPEL	Astra 1.6	[X16SZR]	09.1998-09.2000
OPEL	Astra 1.6	[Z16SE]	09.2000-01.2005
OPEL	Astra 1.6	[Z16SE]	09.2000-04.2005
OPEL	Astra 1.6	[Z16SE]	09.2000-07.2004
OPEL	Astra 1.6	[Z16XE1]	03.2004-10.2010
OPEL	Astra 1.6	[Z16XE1]	08.2004-10.2010
OPEL	Astra 1.6	[Z16XEP]	01.2003-10.2005
OPEL	Astra 1.6	[Z16XEP]	02.2007-06.2010
OPEL	Astra 1.6	[Z16XEP]	03.2004-10.2010
OPEL	Astra 1.6	[Z16XEP]	08.2004-10.2010
OPEL	Astra 1.6	[Z16XEP]	11.2002-01.2005
OPEL	Astra 1.6	[Z16XEP]	12.2002-05.2004
OPEL	Astra 1.6	[Z16XEP]	12.2002-12.2009
OPEL	Astra 1.6 16V	[X16XEL]	02.1998-01.2005
OPEL	Astra 1.6 16V	[X16XEL]	02.1998-07.2004
OPEL	Astra 1.6 16V	[X16XEL]	09.1998-01.2005
OPEL	Astra 1.6 16V	[Z16XE]	02.1998-01.2005
OPEL	Astra 1.6 16V	[Z16XE]	02.1998-07.2004
OPEL	Astra 1.6 16V	[Z16XE]	03.2000-05.2005
OPEL	Astra 1.6 16V	[Z16XE]	03.2001-10.2005
OPEL	Astra 1.6 16V	[Z16XE]	09.1998-01.2005
OPEL	Astra 1.6 16V	[Z16XEP]	03.2000-05.2005
OPEL	Astra 1.6 CNG	[Z16YNG]	03.2003-07.2004
OPEL	Astra 1.6 GTC	[Z16XE1]	03.2005-10.2010
OPEL	Astra 1.6 GTC	[Z16XEP]	03.2005-10.2010
OPEL	Astra 1.6 i	[C16NZ]	03.1992-09.1998
OPEL	Astra 1.6 i	[C16NZ]	09.1991-01.1998
OPEL	Astra 1.6 i	[C16NZ]	10.1991-02.1998
OPEL	Astra 1.6 i	[X16SZ]	02.1993-07.1996
OPEL	Astra 1.6 i	[X16SZ]	03.1993-08.1996
OPEL	Astra 1.6 i	[X16SZ]	05.1993-07.1996
OPEL	Astra 1.6 i	[X16SZR]	01.1996-03.2001
OPEL	Astra 1.6 i	[X16SZR]	03.1992-09.1998
OPEL	Astra 1.6 i	[X16SZR]	09.1991-01.1998
OPEL	Astra 1.6 i	[X16SZR]	10.1991-02.1998
OPEL	Astra 1.6 i 16V	[X16XEL]	08.1994-01.1998
OPEL	Astra 1.6 i 16V	[X16XEL]	08.1994-09.1998
OPEL	Astra 1.6 LPG	[X16XEL]	03.1998-01.2005
OPEL	Astra 1.6 LPG	[X16XEL]	06.2002-01.2005
OPEL	Astra 1.6 LPG	[Z16XE]	03.1998-01.2005
OPEL	Astra 1.6 LPG	[Z16XE]	06.2002-01.2005
OPEL	Astra 1.6 Si	[C16SE]	03.1992-12.1994
OPEL	Astra 1.6 Si	[C16SE]	05.1992-12.1994
OPEL	Astra 1.6 TwinTop	[Z16XE1]	09.2005-10.2010
OPEL	Astra 1.6 TwinTop	[Z16XEP]	09.2005-10.2010
OPEL	Astra 1.8	[A18XER]	01.2006-10.2010
OPEL	Astra 1.8	[A18XER]	02.2007-09.2012
OPEL	Astra 1.8	[Z18XE]	01.2004-10.2010
OPEL	Astra 1.8	[Z18XE]	08.2004-10.2010
OPEL	Astra 1.8	[Z18XER]	01.2006-10.2010
OPEL	Astra 1.8	[Z18XER]	02.2007-09.2012
OPEL	Astra 1.8 16V	[X18XE1]	02.1998-09.2000
OPEL	Astra 1.8 16V	[X18XE1]	03.2000-10.2000
OPEL	Astra 1.8 16V	[X18XE1]	09.1998-09.2000
OPEL	Astra 1.8 16V	[Z18XE]	03.2001-10.2005
OPEL	Astra 1.8 16V	[Z18XE]	06.2000-01.2005
OPEL	Astra 1.8 16V	[Z18XE]	09.2000-01.2005
OPEL	Astra 1.8 16V	[Z18XE]	09.2000-05.2005
OPEL	Astra 1.8 16V	[Z18XE]	09.2000-07.2004
OPEL	Astra 1.8 GTC	[Z18XE]	03.2005-10.2010
OPEL	Astra 1.8 TwinTop	[Z18XE]	09.2005-10.2010
OPEL	Astra 2.0 i	[C20NE]	03.1992-09.1998
OPEL	Astra 2.0 i	[C20NE]	03.1993-10.1994
OPEL	Astra 2.0 i	[C20NE]	09.1991-01.1998
OPEL	Astra 2.0 i	[C20NE]	09.1991-07.1994
OPEL	Astra Classic 1.4 16V	[Z14XE]	05.2004-07.2009
OPEL	Astra Classic 1.4 i	[X14NZ]	01.1998-01.2005
OPEL	Astra Classic 1.4 i	[X14NZ]	01.1998-08.2002
OPEL	Astra Classic 1.6 i	[X16SZR]	01.1998-01.2005
OPEL	Astra Classic 1.6 i	[X16SZR]	01.1998-08.2002
OPEL	Astra Classic 1.6 i 16V	[X16XEL]	01.1998-01.2005
OPEL	Astra Classic 1.6 i 16V	[X16XEL]	01.1998-08.2002
OPEL	Astra G 1.4	[Z14XEP]	09.2007-12.2009
OPEL	Astra G 1.4	[Z14XEP]	10.2004-12.2009
OPEL	Astra H 1.4	[Z14XEL]	03.2004-10.2010
OPEL	Astra H 1.4	[Z14XEL]	08.2004-10.2010
OPEL	Astra H 1.4	[Z14XEP]	03.2004-10.2010
OPEL	Astra H 1.4	[Z14XEP]	08.2004-10.2010
OPEL	Astra H 1.4 GTC	[Z14XEL]	03.2005-10.2010
OPEL	Astra H 1.4 LPG	[Z14XEP]	08.2009-10.2010
OPEL	Astra H 1.6	[Z16XE1]	03.2004-10.2010
OPEL	Astra H 1.6	[Z16XE1]	08.2004-10.2010
OPEL	Astra H 1.6	[Z16XEP]	03.2004-10.2010
OPEL	Astra H 1.6	[Z16XEP]	08.2004-10.2010
OPEL	Astra H 1.6 GTC	[Z16XE1]	03.2005-10.2010
OPEL	Astra H 1.6 GTC	[Z16XEP]	03.2005-10.2010
OPEL	Astra H 1.6 TwinTop	[Z16XE1]	09.2005-10.2010
OPEL	Astra H 1.6 TwinTop	[Z16XEP]	09.2005-10.2010
OPEL	Astra H 1.8	[A18XER]	01.2006-10.2010
OPEL	Astra H 1.8	[A18XER]	08.2005-05.2014
OPEL	Astra H 1.8	[Z18XE]	01.2004-10.2010
OPEL	Astra H 1.8	[Z18XE]	08.2004-10.2010
OPEL	Astra H 1.8	[Z18XER]	01.2006-10.2010
OPEL	Astra H 1.8	[Z18XER]	08.2005-05.2014
OPEL	Astra H 1.8 GTC	[Z18XE]	03.2005-10.2010
OPEL	Astra H 1.8 GTC	[Z18XER]	01.2006-10.2010
OPEL	Astra H 1.8 TwinTop	[A18XER]	09.2005-10.2010
OPEL	Astra H 1.8 TwinTop	[Z18XE]	09.2005-10.2010
OPEL	Astra H 1.8 TwinTop	[Z18XER]	09.2005-10.2010
OPEL	Cascada 1.4	[A14NEL]	04.2013-04.2018
OPEL	Cascada 1.4	[B14NEL]	04.2013-04.2018
OPEL	Cascada 1.4 Turbo	[A14NET]	03.2013-04.2018
OPEL	Cascada 1.4 Turbo	[B14NET]	03.2013-04.2018
OPEL	Combo 1.2	[C12NZ]	07.1994-10.2001
OPEL	Combo 1.2	[X12SZ]	07.1994-10.2001
OPEL	Combo 1.4	[C14NZ]	07.1994-10.2001
OPEL	Combo 1.4	[C14SE]	07.1994-10.2001
OPEL	Combo 1.4	[X14SZ]	07.1994-10.2001
OPEL	Combo 1.4 16V	[X14XE]	08.1999-10.2001
OPEL	Combo 1.4 16V	[Z14XEP]	08.2005-
OPEL	Combo 1.4 Tour	[Z14XEP]	10.2004-12.2011
OPEL	Combo 1.6	[Z16SE]	10.2001-
OPEL	Combo 1.6 CNG 16V	[Z16YNG]	04.2005-
OPEL	Combo 1.6 CNG 16V	[Z16YNG]	06.2006-
OPEL	Combo Tour 1.4	[Z14XEP]	10.2004-12.2011
OPEL	Combo Tour 1.6	[Z16SE]	10.2001-09.2006
OPEL	Combo Tour 1.6 CNG	[Z16YNG]	04.2005-01.2011
OPEL	Combo Tour 1.6 CNG	[Z16YNG]	06.2006-12.2011
OPEL	Corsa 1.0	[A10XEP]	01.2010-08.2014
OPEL	Corsa 1.0	[A10XEP]	08.2006-08.2014
OPEL	Corsa 1.0	[A10XEP]	12.2009-08.2014
OPEL	Corsa 1.0	[Z10XE]	09.2000-06.2003
OPEL	Corsa 1.0	[Z10XEP]	06.2003-12.2009
OPEL	Corsa 1.0	[Z10XEP]	07.2006-12.2010
OPEL	Corsa 1.0 i 12V	[X10XE]	11.1996-09.2000
OPEL	Corsa 1.2	[12NC]	02.1986-04.1989
OPEL	Corsa 1.2	[12NC]	09.1982-08.1990
OPEL	Corsa 1.2	[12ST]	02.1986-04.1989
OPEL	Corsa 1.2	[A12XEL]	01.2010-08.2014
OPEL	Corsa 1.2	[A12XEL]	12.2009-08.2014
OPEL	Corsa 1.2	[A12XER]	06.2010-08.2014
OPEL	Corsa 1.2	[A12XER]	12.2009-08.2014
OPEL	Corsa 1.2	[B12XEL]	01.2015-
OPEL	Corsa 1.2	[B12XEL]	09.2014-
OPEL	Corsa 1.2	[C12NZ]	08.1994-12.2001
OPEL	Corsa 1.2	[D12XEL]	09.2014-
OPEL	Corsa 1.2	[E12GV]	02.1986-04.1989
OPEL	Corsa 1.2	[E12GV]	09.1982-08.1990
OPEL	Corsa 1.2	[Z12XE]	09.2000-12.2009
OPEL	Corsa 1.2	[Z12XEP]	07.2005-06.2006
OPEL	Corsa 1.2	[Z12XEP]	07.2006-08.2014
OPEL	Corsa 1.2	[Z12XEP]	08.2006-08.2014
OPEL	Corsa 1.2 16V	[Z12XE]	09.2000-07.2003
OPEL	Corsa 1.2 i	[12NZ]	03.1993-09.2000
OPEL	Corsa 1.2 i	[C12NZ]	03.1993-09.2000
OPEL	Corsa 1.2 i	[C12NZ]	09.1989-03.1993
OPEL	Corsa 1.2 i	[X12SZ]	03.1993-09.2000
OPEL	Corsa 1.2 i 16V	[X12XE]	03.1998-09.2000
OPEL	Corsa 1.2 LPG	[A12XER]	06.2011-08.2014
OPEL	Corsa 1.2 LPG	[Z12XEP]	08.2006-08.2014
OPEL	Corsa 1.2 N	[12NV]	01.1990-03.1993
OPEL	Corsa 1.2 S	[12ST]	09.1982-02.1990
OPEL	Corsa 1.2 Twinport	[Z12XEP]	07.2004-12.2009
OPEL	Corsa 1.3	[13SB]	02.1986-04.1989
OPEL	Corsa 1.3 i	[C13N]	09.1986-09.1990
OPEL	Corsa 1.3 S	[13SB]	09.1982-10.1989
OPEL	Corsa 1.4	[A14NEL]	07.2012-08.2014
OPEL	Corsa 1.4	[A14XEL]	09.2009-08.2014
OPEL	Corsa 1.4	[A14XER]	12.2009-08.2014
OPEL	Corsa 1.4	[B14XEJ]	09.2014-
OPEL	Corsa 1.4	[B14XEL]	09.2014-
OPEL	Corsa 1.4	[D14XEJ]	09.2014-
OPEL	Corsa 1.4	[D14XEL]	09.2014-
OPEL	Corsa 1.4	[Z14XE]	09.2000-12.2009
OPEL	Corsa 1.4	[Z14XEP]	07.2006-08.2014
OPEL	Corsa 1.4 i	[C14NZ]	01.1990-03.1993
OPEL	Corsa 1.4 i	[C14NZ]	03.1993-09.2000
OPEL	Corsa 1.4 i	[C14NZ]	08.1999-09.2000
OPEL	Corsa 1.4 i	[X14SZ]	03.1993-09.2000
OPEL	Corsa 1.4 i	[X14SZ]	08.1999-09.2000
OPEL	Corsa 1.4 i 16V	[X14XE]	09.1994-09.2000
OPEL	Corsa 1.4 LPG	[B14XEL]	03.2015-
OPEL	Corsa 1.4 LPG	[B14XEL]	11.2015-
OPEL	Corsa 1.4 LPG	[Z14XEP]	08.2006-12.2011
OPEL	Corsa 1.4 S	[14NV]	01.1990-03.1993
OPEL	Corsa 1.4 Si	[C14SE]	03.1993-09.2000
OPEL	Corsa 1.4 Si	[C14SE]	09.1991-03.1993
OPEL	Corsa 1.4 Turbo	[B14NEH]	03.2015-
OPEL	Corsa 1.4 Turbo	[D14NEH]	03.2015-
OPEL	Corsa 1.4 Twinport	[Z14XEP]	06.2003-12.2009
OPEL	Corsa 1.6 GSi	[C16NZ]	08.1988-09.1992
OPEL	Corsa 1.6 GSi	[C16SEI]	09.1989-03.1993
OPEL	Corsa 1.6 GSi	[E16SE]	05.1988-03.1992
OPEL	Corsa 1.6 GSi 16V	[C16XE]	03.1993-09.2000
OPEL	Corsa 1.6 GSi Cat	[C16SE]	02.1992-03.1993
OPEL	Corsa 1.6 i 16V	[C16SEL]	08.1997-09.2000
OPEL	Corsa 1.6 i 16V	[X16XE]	09.1994-09.2000
OPEL	Corsa 1.8	[Z18XE]	09.2000-12.2009
OPEL	Corsa C 1.2	[Z12XE]	09.2000-12.2009
OPEL	Corsa C 1.2 16V	[Z12XE]	09.2000-07.2003
OPEL	Corsa C 1.2 Twinport	[Z12XEP]	07.2004-12.2009
OPEL	Corsa C 1.4 Twinport	[Z14XEP]	06.2003-12.2009
OPEL	Corsa TR 1.2 i	[C12NZ]	09.1989-03.1993
OPEL	Corsa TR 1.2 N	[12NC]	01.1985-10.1987
OPEL	Corsa TR 1.2 N	[E12GV]	01.1985-10.1987
OPEL	Corsa TR 1.2 S	[12ST]	09.1982-03.1993
OPEL	Corsa TR 1.3	[13NB]	09.1985-10.1987
OPEL	Corsa TR 1.3	[C13N]	09.1985-10.1987
OPEL	Corsa TR 1.3 S	[13SB]	09.1982-10.1987
OPEL	Corsa TR 1.4 i	[C14NZ]	10.1989-03.1993
OPEL	Corsa TR 1.4 S	[14NV]	09.1989-03.1993
OPEL	Insignia 1.4	[A14NET]	04.2011-03.2017
OPEL	Insignia 1.4	[B14NET]	04.2011-03.2017
OPEL	Insignia 1.4 LPG	[A14NET]	07.2012-03.2017
OPEL	Insignia 1.4 LPG	[B14NET]	07.2012-03.2017
OPEL	Insignia 1.4 LPG Sports Tourer	[A14NET]	09.2012-03.2017
OPEL	Insignia 1.4 LPG Sports Tourer	[B14NET]	09.2012-03.2017
OPEL	Insignia 1.4 Sports Tourer	[A14NET]	04.2011-03.2017
OPEL	Insignia 1.4 Sports Tourer	[B14NET]	04.2011-03.2017
OPEL	Kadett 1.2	[12S.C.]	09.1984-07.1986
OPEL	Kadett 1.2	[12ST]	08.1982-08.1984
OPEL	Kadett 1.2 S	[12S]	08.1979-08.1984
OPEL	Kadett 1.3 i Cat	[C13N]	09.1985-08.1991
OPEL	Kadett 1.3 N	[13N]	08.1979-08.1984
OPEL	Kadett 1.3 N	[13N]	09.1984-08.1989
OPEL	Kadett 1.3 N	[13N]	09.1984-08.1991
OPEL	Kadett 1.3 N	[13NB]	09.1984-08.1989
OPEL	Kadett 1.3 N	[13NB]	09.1984-08.1991
OPEL	Kadett 1.3 N	[C13N]	08.1979-08.1984
OPEL	Kadett 1.3 S	[13S]	03.1987-02.1993
OPEL	Kadett 1.3 S	[13S]	08.1979-08.1984
OPEL	Kadett 1.3 S	[13S]	09.1984-08.1987
OPEL	Kadett 1.4 i	[C14NZ]	01.1990-08.1991
OPEL	Kadett 1.4 S	[14NV]	01.1990-08.1991
OPEL	Kadett 1.4 S	[14NV]	08.1990-02.1993
OPEL	Kadett 1.6	[16SV]	09.1986-08.1991
OPEL	Kadett 1.6 i	[16SV]	07.1989-02.1993
OPEL	Kadett 1.6 i	[C16NZ]	08.1989-09.1993
OPEL	Kadett 1.6 i	[C16NZ]	10.1986-02.1993
OPEL	Kadett 1.6 i	[E16NZ]	09.1986-08.1991
OPEL	Kadett 1.6 i	[E16NZ]	10.1986-02.1993
OPEL	Kadett 1.6 i Cat	[C16LZ]	09.1986-08.1991
OPEL	Kadett 1.6 i Cat	[C16LZ]	10.1987-02.1993
OPEL	Kadett 1.6 i Cat	[C16NZ]	09.1986-08.1991
OPEL	Kadett 1.6 i Cat	[C16NZ]	10.1987-02.1993
OPEL	Kadett 1.6 S	[16SV]	09.1986-08.1991
OPEL	Kadett 2.0 GSi 16V	[20XEJ]	03.1988-08.1991
OPEL	Kadett 2.0 GSi 16V	[C20XE]	03.1988-08.1991
OPEL	Kadett 2.0 GSi 16V Cat	[C20XE]	03.1988-08.1991
OPEL	Kadett 2.0 GSi Cat	[C20NE]	09.1986-08.1991
OPEL	Kadett 2.0 i Cat	[20NE]	10.1986-02.1993
OPEL	Kadett 2.0 i Cat	[20SER]	10.1986-02.1993
OPEL	Kadett 2.0 i Cat	[C20NE]	03.1987-05.1992
OPEL	Kadett 2.0 i Cat	[C20NE]	09.1987-08.1991
OPEL	Kadett 2.0 i Cat	[C20NE]	10.1986-02.1993
OPEL	Kadett Combo 1.3 N	[13N]	01.1986-12.1989
OPEL	Kadett Combo 1.3 S	[13S]	01.1986-12.1989
OPEL	Kadett Combo 1.4 i	[C14NZ]	08.1991-07.1994
OPEL	Kadett Combo 1.4 S	[14NV]	07.1989-08.1991
OPEL	Kadett Combo 1.6	[16SV]	09.1986-12.1991
OPEL	Kadett Combo 1.6 i	[C16NZ]	08.1991-07.1994
OPEL	Meriva 1.4	[A14NEL]	06.2010-03.2017
OPEL	Meriva 1.4	[A14NET]	06.2010-03.2017
OPEL	Meriva 1.4	[A14XER]	06.2010-03.2017
OPEL	Meriva 1.4	[B14NEL]	06.2010-03.2017
OPEL	Meriva 1.4	[B14NET]	06.2010-03.2017
OPEL	Meriva 1.4	[B14XER]	06.2010-03.2017
OPEL	Meriva 1.4 16V Twinport	[Z14XEP]	07.2004-05.2010
OPEL	Meriva 1.4 16V Twinport LPG	[Z14XEP]	07.2004-05.2010
OPEL	Meriva 1.4 LPG	[A14NEL]	06.2011-03.2017
OPEL	Meriva 1.4 LPG	[B14NEL]	06.2011-03.2017
OPEL	Meriva 1.6	[Z16SE]	05.2003-05.2010
OPEL	Meriva 1.6 16V	[Z16XE]	05.2003-01.2006
OPEL	Meriva 1.8	[Z18XE]	05.2003-05.2010
OPEL	Mokka 1.4	[A14NET]	04.2013-
OPEL	Mokka 1.4	[B14NET]	04.2013-
OPEL	Mokka 1.4	[D14NET]	04.2013-
OPEL	Mokka 1.4 LPG	[A14NET]	04.2013-
OPEL	Mokka 1.4 LPG	[B14NET]	04.2013-
OPEL	Mokka 1.4 LPG	[D14NET]	04.2013-
OPEL	Mokka X 1.4	[A14NET]	04.2013-
OPEL	Mokka X 1.4	[B14NET]	04.2013-
OPEL	Mokka X 1.4	[D14NET]	04.2013-
OPEL	Mokka X 1.4 LPG	[A14NET]	04.2013-
OPEL	Mokka X 1.4 LPG	[B14NET]	04.2013-
OPEL	Mokka X 1.4 LPG	[D14NET]	04.2013-
OPEL	Omega 1.8	[E18NVR]	09.1987-03.1994
OPEL	Omega 2.0	[C20NEF]	09.1990-03.1994
OPEL	Omega 2.0	[C20NEJ]	09.1990-03.1994
OPEL	Signum 1.8	[Z18XE]	05.2003-07.2005
OPEL	Tigra 1.4 16V	[X14XE]	07.1994-12.2000
OPEL	Tigra 1.4 16V	[X14XE]	08.1997-12.2000
OPEL	Tigra 1.4 TwinTop	[Z14XEP]	06.2004-12.2010
OPEL	Tigra 1.6 16V	[C16SEL]	08.1997-08.1998
OPEL	Tigra 1.6 16V	[X16XE]	07.1994-08.1998
OPEL	Tigra 1.8 TwinTop	[Z18XE]	06.2004-12.2010
OPEL	Vectra 1.4 S	[14NV]	04.1988-06.1992
OPEL	Vectra 1.4 S	[14NV]	09.1988-06.1992
OPEL	Vectra 1.6	[16SV]	09.1988-05.1993
OPEL	Vectra 1.6	[Z16XEP]	08.2005-08.2008
OPEL	Vectra 1.6	[Z16XEP]	12.2005-08.2008
OPEL	Vectra 1.6 16V	[Z16XE]	04.2002-10.2005
OPEL	Vectra 1.6 GTS	[Z16XE]	08.2005-08.2008
OPEL	Vectra 1.6 GTS	[Z16XEP]	01.2006-08.2008
OPEL	Vectra 1.6 i	[16LZ2]	09.1993-11.1995
OPEL	Vectra 1.6 i	[C16LZ2]	09.1993-11.1995
OPEL	Vectra 1.6 i	[C16NZ]	09.1988-11.1995
OPEL	Vectra 1.6 i	[C16NZ2]	09.1988-11.1995
OPEL	Vectra 1.6 i	[E16NZ]	09.1988-11.1995
OPEL	Vectra 1.6 i	[X16SZ]	09.1993-11.1995
OPEL	Vectra 1.6 i	[X16SZR]	10.1995-04.2002
OPEL	Vectra 1.6 i	[X16SZR]	10.1995-07.2003
OPEL	Vectra 1.6 i	[X16SZR]	11.1996-06.2000
OPEL	Vectra 1.6 i 16V	[X16XEL]	10.1995-04.2002
OPEL	Vectra 1.6 i 16V	[X16XEL]	10.1995-07.2002
OPEL	Vectra 1.6 i 16V	[X16XEL]	11.1996-07.2002
OPEL	Vectra 1.6 i 16V	[Y16XE]	10.1995-04.2002
OPEL	Vectra 1.6 i 16V	[Y16XE]	10.1995-07.2002
OPEL	Vectra 1.6 i 16V	[Y16XE]	11.1996-07.2002
OPEL	Vectra 1.6 i 16V	[Z16XE]	10.1995-04.2002
OPEL	Vectra 1.6 i 16V	[Z16XE]	10.1995-07.2002
OPEL	Vectra 1.6 i 16V	[Z16XE]	11.1996-07.2002
OPEL	Vectra 1.6 i Cat	[C16NZ]	09.1988-11.1995
OPEL	Vectra 1.6 i Cat	[C16NZ2]	09.1988-11.1995
OPEL	Vectra 1.6 S	[16SV]	09.1988-05.1993
OPEL	Vectra 1.8	[Z18XE]	10.2003-09.2006
OPEL	Vectra 1.8	[Z18XEL]	04.2002-07.2008
OPEL	Vectra 1.8 16V	[Z18XE]	04.2002-09.2008
OPEL	Vectra 1.8 16V GTS	[Z18XE]	08.2002-09.2008
OPEL	Vectra 1.8 16V GTS	[Z18XEL]	08.2002-12.2006
OPEL	Vectra 1.8 i 16V	[Z18XE]	09.2000-04.2002
OPEL	Vectra 1.8 i 16V	[Z18XE]	09.2000-07.2003
OPEL	Vectra 2.0 16V Turbo	[Z20NET]	03.2003-08.2008
OPEL	Vectra 2.0 16V Turbo GTS	[Z20NET]	03.2003-08.2008
OPEL	Vectra 2.0 i Cat	[C20NE]	09.1988-11.1995
OPEL	Vectra 2.0 Turbo	[Z20NET]	10.2003-08.2008
OPEL	Zafira 1.6	[Z16XE]	10.2003-06.2005
OPEL	Zafira 1.6	[Z16XE1]	07.2005-09.2012
OPEL	Zafira 1.6	[Z16XEP]	07.2005-09.2012
OPEL	Zafira 1.6 16V	[X16XEL]	04.1999-06.2005
OPEL	Zafira 1.6 16V	[Z16XE]	04.1999-06.2005
OPEL	Zafira 1.6 CNG	[Z16YNG]	07.2005-04.2015
OPEL	Zafira 1.6 CNG	[Z16YNG]	09.2001-06.2005
OPEL	Zafira 1.8 16V	[X18XE1]	04.1999-09.2000
OPEL	Zafira 1.8 16V	[Z18XE]	09.2000-06.2005
OPEL	Zafira Family 1.6	[Z16XE1]	07.2005-09.2012
OPEL	Zafira Family 1.6	[Z16XEP]	07.2005-09.2012
OPEL	Zafira Family 1.6 CNG	[Z16YNG]	07.2005-04.2015
OPEL	Zafira Tourer 1.4	[A14NEL]	10.2011-
OPEL	Zafira Tourer 1.4	[A14NET]	10.2011-
OPEL	Zafira Tourer 1.4	[B14NEL]	10.2011-
OPEL	Zafira Tourer 1.4	[B14NET]	10.2011-
OPEL	Zafira Tourer 1.4 LPG	[A14NET]	10.2011-
OPEL	Zafira Tourer 1.4 LPG	[B14NET]	10.2011-
SAAB	9-3 1.8 i	[Z18XE]	01.2004-02.2015
SAAB	9-3 1.8 i	[Z18XE]	03.2005-02.2015
VAUXHALL	Astra Mk V 1.6	[A16XER]	08.2004-03.2009
VAUXHALL	Astra Mk V 1.6	[Z16XER]	01.2004-05.2009
VAUXHALL	Astra Mk V 1.6	[Z16XER]	08.2004-03.2009
VAUXHALL	Astra Mk V 1.8	[A18XER]	01.2004-05.2009
VAUXHALL	Astra Mk V 1.8	[A18XER]	12.2005-10.2010
VAUXHALL	Astra Mk V 1.8	[Z18XER]	01.2004-05.2009
VAUXHALL	Astra Mk V 1.8	[Z18XER]	12.2005-10.2010

Reference Information

09000801	DAEWOO
09163856	DAEWOO
09512051	DAEWOO
10455506	DAEWOO
11010100	KRAFTVOLL GERMANY
120-10214NOE	ROBERT'S
1202000	OPEL
1202002	OPEL
1202003	OPEL
1202011	OPEL
1202125	OPEL
1202127	OPEL
1202128	OPEL
1202130	OPEL
1202131	OPEL
1202137	OPEL
1202142	OPEL
1202172	OPEL
1202173	OPEL
1202174	OPEL
1202179	OPEL
1202217	OPEL
1202281	OPEL
1202959	OPEL
1202961	OPEL
1202962	OPEL
130.519.102.502	PSH
20479491OE	REAL
20479501BN	REAL
20479501OE	REAL
24406133	GM
24436877	GM
24437136	GM
25182244	DAEWOO
25186107	DAEWOO
25187957	DAEWOO
25192447	OPEL
25196021	OPEL
25198414	OPEL
25200067	OPEL
25-3185	ELSTOCK
25-3185CT	AINDE
32648N	WAI / TRANSPO
328057102	DRI
3320	CEVAM
3471169	VAUXHALL
3471170	VAUXHALL
3471173	VAUXHALL
3471174	VAUXHALL
3471850	VAUXHALL
3491190	VAUXHALL
3491342	VAUXHALL
432626	VALEO
432632	VALEO
438183	VALEO
55351608	VAUXHALL
55566800	VAUXHALL
55578921	VAUXHALL
6015105.0	SANDO
6015105.1	SANDO
6015194.1	SANDO
6202007	OPEL
6202011	OPEL
6202013	OPEL
6202016	OPEL
6202020	OPEL
6202042	OPEL
6202049	OPEL
6202050	OPEL
6202061	OPEL
6202064	OPEL
6202072	OPEL
6202075	OPEL
6202075	OPEL
6202077	OPEL
6202079	OPEL
6202080	OPEL
6202094	OPEL
6202094	OPEL
71739718	FIAT
8080341	FRIESEN
8550504852	MOTRIO
9000700	OPEL
9000756	OPEL
9000801	DAEWOO
90273370	VAUXHALL
90337028	OPEL
90341777	VAUXHALL
90348292	VAUXHALL
90421877	VAUXHALL
90508036	VAUXHALL
90535261	GM
90543871	VAUXHALL
90543872	VAUXHALL
9115191	OPEL
9115192	OPEL
9115192	VAUXHALL
9115197	VAUXHALL
9117031	VAUXHALL
9117691	VAUXHALL
91-20-3526	WILSON
9130838	VAUXHALL
9133598	VOLVO
9163856	DAEWOO
9163860	OPEL
9190838	OPEL
9198701	VOLVO
9199321	VAUXHALL
9200960	VAUXHALL
93171936	VAUXHALL
93171950	VAUXHALL
93174025	GM
93174027	VAUXHALL
93175884	VAUXHALL
93175885	VAUXHALL
93175902	GM
93175996	VAUXHALL
93176051	OPEL
93178167	VAUXHALL
93184533	OPEL
93184534	VAUXHALL
93184535	VAUXHALL
93184536	VAUXHALL
93189230	OPEL
93189230	VAUXHALL
93604828	OPEL
944280803410	MAGNETI MARELLI
9512051	DAEWOO
9512055	OPEL
9512766	GM
95524203	OPEL
95524893	OPEL
95524894	OPEL
96208781	DAEWOO
96208782	DAEWOO
96430344	OPEL
96469960	OPEL
96469963	DAEWOO
96550792	DAEWOO
96843578	DAEWOO
96952006	DAEWOO
ASM1563	APEC
CST15105AS	CASCO
CST15105GS	CASCO
CST15194GS	CASCO
D6RA293	VALEO
D6RA93	VALEO
LRS01648	LUCAS
LRS1648	LUCAS
MAV171940	SIOM
MAV4560A	SIOM
MRS80341	MAGNETI MARELLI
NPANSM1563	NAPA
QRS2339	QUINTON HAZELL
R1040004	VAUXHALL
R1040008	VAUXHALL
R1040010	VAUXHALL
R1540009	VAUXHALL
R1540011	VAUXHALL
R1540021	VAUXHALL
R1540023	VAUXHALL
R1540024	VAUXHALL
S12VA0807A2	SIDAT
S3187S	AS-PL
ST01256	TMI
STX200006	STARDAX
STX200006R	STARDAX
STX200009	STARDAX
STX200009R	STARDAX
STX200083	STARDAX
STX200083R	STARDAX
STX200129	STARDAX
STX200129R	STARDAX
STX200152	STARDAX
STX200173	STARDAX
STX200173R	STARDAX
STX200223	STARDAX
STX200223R	STARDAX
STX200441	STARDAX
STX200441R	STARDAX
STX200601	STARDAX
UD20491S	AS-PL

Video/Publications

S3187S
