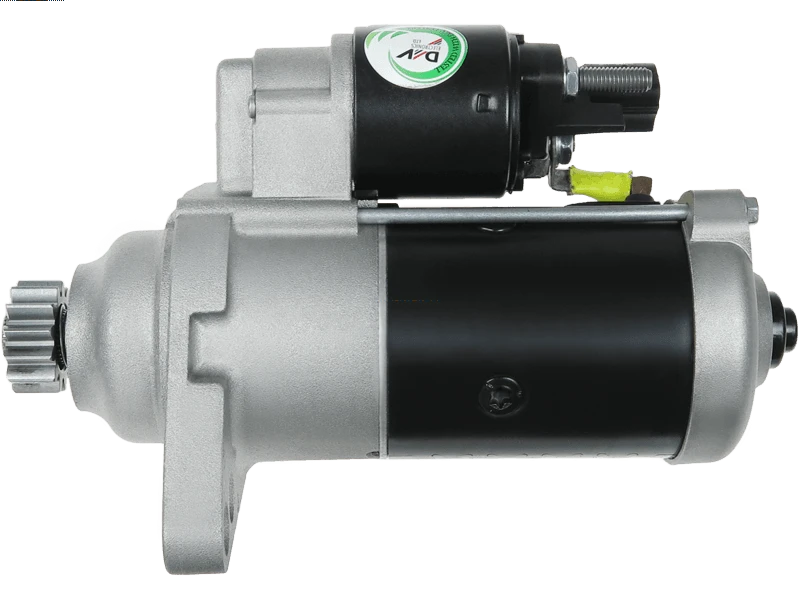

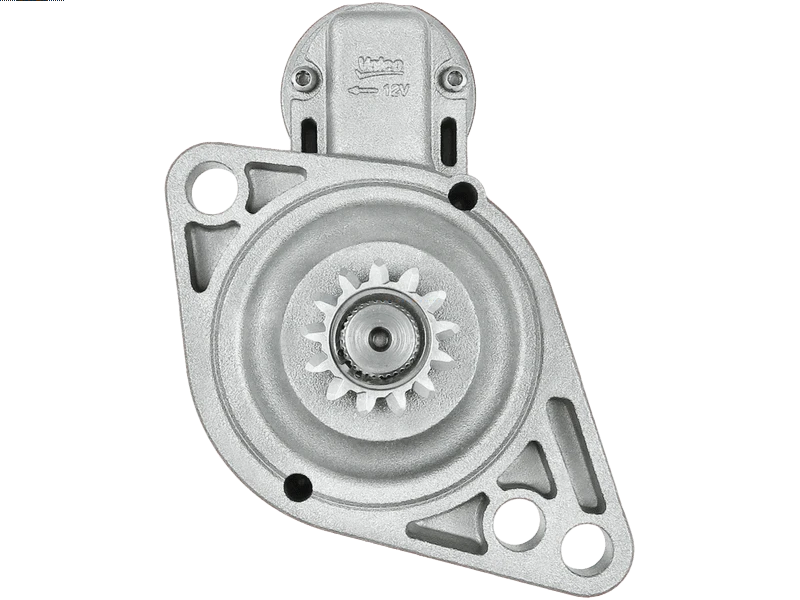

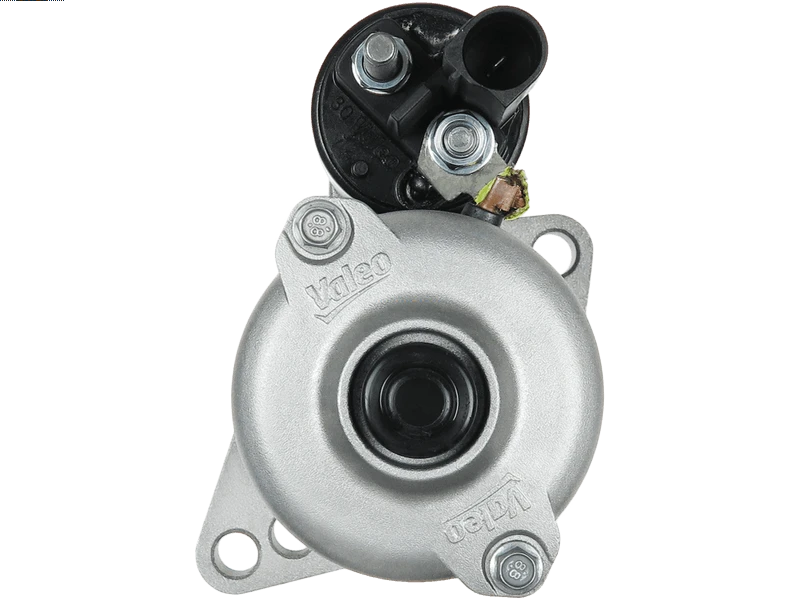

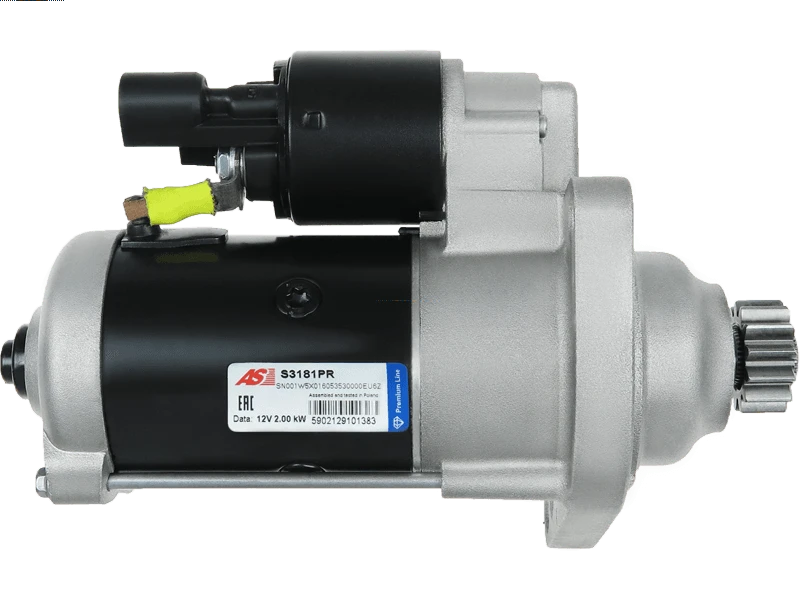

S3181PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	240 mm
Mount Hole Center - Center (O.1)	111.5 mm
Mount Hole Center - Center (O.2)	17.5 mm
Mount Hole Center - Center (O.3)	127.5 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
Mount Hole Diameter (C.3)	12.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
Pinion at Rest (B)	54 mm
Rotation	ACW
Spigot Diameter (A)	79 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A1 1.6 TDi	[CAYC]	05.2010-04.2015
AUDI	A3 1.6 TDi	[CAYB]	05.2009-08.2012
AUDI	A3 1.6 TDi	[CAYC]	05.2009-05.2013
AUDI	A3 1.6 TDi	[CAYC]	05.2009-08.2012
AUDI	A3 1.6 TDi Sportback	[CAYB]	05.2009-03.2013
AUDI	A3 1.6 TDi Sportback	[CAYC]	05.2009-03.2013
SKODA	Fabia 1.2 TDi	[CFWA]	05.2010-12.2014
SKODA	Fabia 1.6	[BTS]	10.2007-12.2014
SKODA	Fabia 1.6	[CFNA]	10.2007-12.2014
SKODA	Fabia 1.6 TDi	[CAYA]	04.2010-12.2014
SKODA	Fabia 1.6 TDi	[CAYB]	03.2010-12.2014
SKODA	Fabia 1.6 TDi	[CAYC]	03.2010-12.2014
SKODA	Roomster 1.2 TDi	[CFWA]	03.2010-05.2015
SKODA	Roomster 1.6 TDi	[CAYB]	03.2010-05.2015
SKODA	Roomster 1.6 TDi	[CAYC]	03.2010-05.2015
SKODA	Superb 1.6 TDi	[CAYC]	09.2010-05.2015
VW	Caddy 1.6 TDi	[CAYD]	08.2010-05.2015
VW	Caddy 1.6 TDi	[CAYE]	08.2010-05.2015
VW	Golf VI 1.6 TDi	[CAYB]	02.2009-11.2012
VW	Golf VI 1.6 TDi	[CAYB]	12.2009-07.2013
VW	Golf VI 1.6 TDi	[CAYC]	02.2009-11.2012
VW	Golf VI 1.6 TDi	[CAYC]	07.2009-07.2013
VW	Passat 1.6 TDi	[CAYC]	08.2009-07.2010
VW	Passat 1.6 TDi	[CAYC]	08.2009-11.2010
VW	Polo 1.2 TDi	[CFWA]	10.2009-
VW	Polo 1.6 TDi	[CAYA]	06.2009-
VW	Polo 1.6 TDi	[CAYB]	06.2009-
VW	Polo 1.6 TDi	[CAYC]	06.2009-
VW	Polo 1.6 TDi	[CLNA]	06.2009-
VW	Touran 1.6 TDi	[CAYB]	05.2010-05.2015
VW	Touran 1.6 TDi	[CAYC]	04.2010-05.2010

Reference Information

H5010365 2Z911023S 2Z911023T 2Z911024HX 1153007 ESW20ER121 DENDSN1462 1153008 332102 0001153007 0001153008 STB5307 DSN1462 STRL183 CST15250ES 25-4017 IR9657 311249132 438000-0231 438000-0232 438000-0230 011-001-000124R 88214278 254558B 6040479.1 220583 11090182 20479052OE STV8715 RE83650N 6015250.1 STX201122 SVA250 RSW20R-12 300.927.133.058 200.541.133.019 2X0911023 200.541.133.210 200.541.133.213 02Z911021C VALESW20ER121 MSN2194 02Z911021K 02Z911024LX CST15250OS SG0692 1145001 1145002 CST15250GS 300.596.133.505 RNL153007 STM1225 S1345B 2Z911024R 300.596.133.000 02Z911023SX CS1505 EAA-151076 300.596.133 EAA-122414 200.541.133.280 6015250 2Z911023SX 2Z911024A 2Z911024H 12144 DRS0222 2Z911024L 120-20205 RNL145001 LRS2345 STR54145 144ST21 AEY2345 220673 CST15250AS 02Z911021CX 300.927.133.260 8EA738259-341 2Z911024LX 300.927.133.265 WG2013147 WG2013146 02Z911024AX DS1332 ST01545 PRSL183 255637R S12BH0095A2 3116978 02Z911024BX 3116977 3116976 LRS02345 3116975 3116974 20479052 0001145001 0001145002 8EA012528-531 2-0053 438254 986025070 200.541.133.215 42025070 WG1920118 200.541.133.010 115336 428000-6020 CST40479GS 3063 255637D BOS0001145001 254558V 2Z911021C EZ0117 02Z911024R BST2645 CST15250RS 20432974OE 458414 02Z911024H STR0476 A79200 63521450010 02Z911024A 02Z911024B 2Z911021CX 10439628 S-6313 2Z911024AX 02Z911021KX 02Z911024L 460455 260-20107 254558 02Z911023T CST15250 02Z911023S ANM12442X 02Z911024HX STR50668 33328N S12BH0095 000986025070

Video/Publications

0001145001 0001145002 0001153007 0001153008 02Z911021C 02Z911021CX 02Z911021K 02Z911021KX 02Z911023S 02Z911023SX 02Z911023T 02Z911024A 02Z911024AX 02Z911024B 02Z911024BX 02Z911024H 02Z911024HX 02Z911024L 02Z911024LX 02Z911024R 0986025070 115336 120-20205 12144 20479052 220583 25-4017 254558 254558B 254558V 255637D 255637R 260-20107 300.596.133 3063 33328N 438000-0230 438000-0231 438000-0232 438254 458414 6015250 88214278 8EA012528-531 8EA738259-341 AEY2345 CS1505 CST15250 CST15250AS CST15250ES CST15250GS CST15250OS CST15250RS DRS0222 DS1332 DSN1462 ESW20ER121 LRS02345 LRS2345 RSW20R-12 S-6313 SG0692 STM1225 STRL183 STV8715 VALESW20ER121 220673
