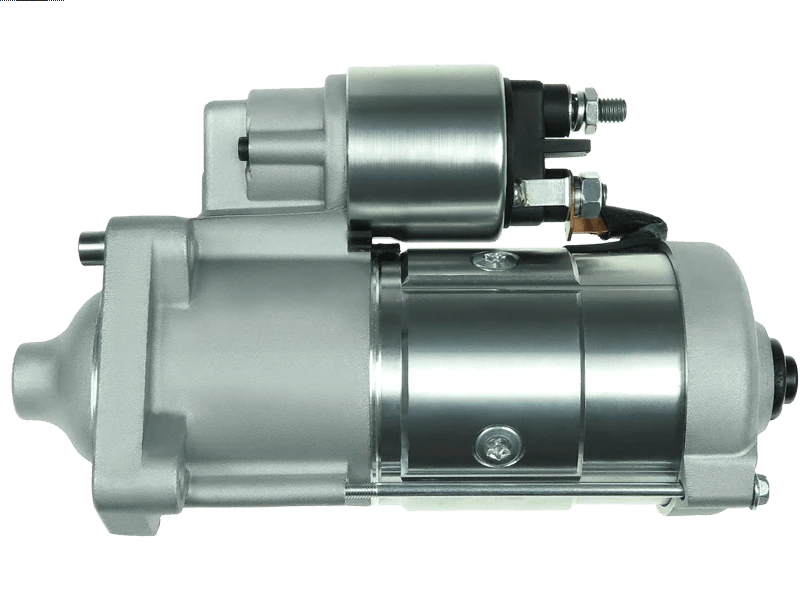

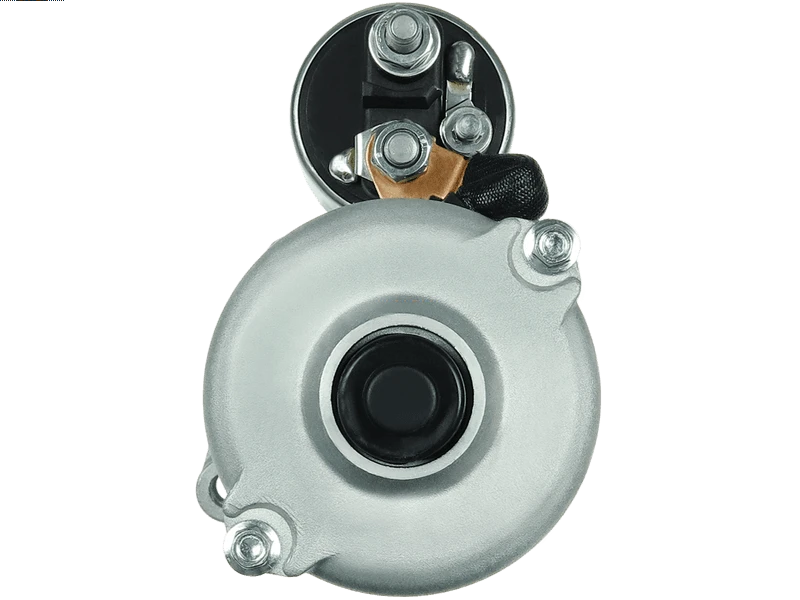

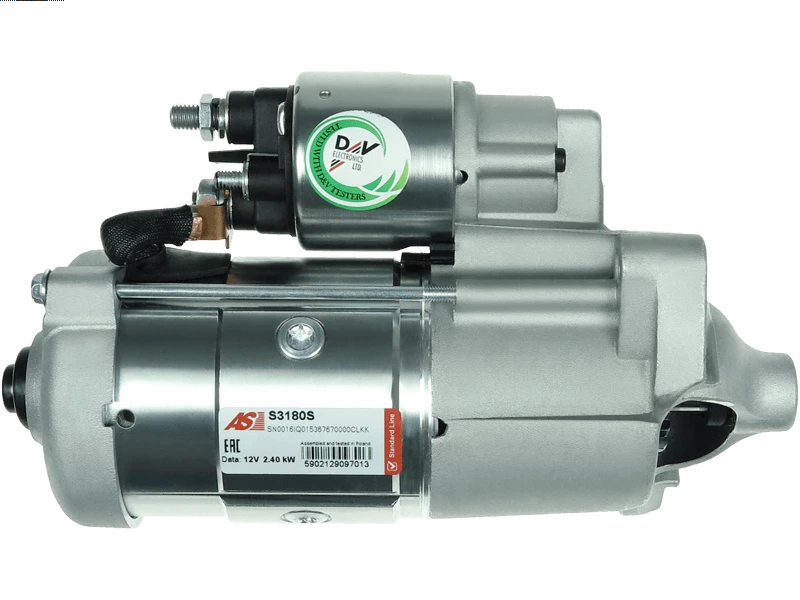

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 440.02 including GST
NZ$ 382.63 excluding GST
or four payments of $110.01
with
Learn More
UOM:
each
Product Code:
S3180S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
ESW24E50Associated Numbers
12418 20479182 25-4459 255396R 255396V 30601705 30644780 30644954 30659475 3240 36001705 36002868 36013580 438308 6015281 810.540.143 88214671 AEY3786 CST15281 CST15281AS CST15281ES CST15281GS CST15281OS CST15281RS DRS1172 DS2282 ESW24E5 ESW24E50 LRS03786 STV5240 UD14915S VAL438308 VALESW24E50Specifications
| Kilowatt | 2.40 kW |
| Length (L.1) | 235.50 mm |
| Mount Hole Center - Center (O.1) | 105.50 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 14 qty |
| OEM Product | No |
| Pinion at Rest (B) | -5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.4 D5 | [D5244T23] | 01.2014- |
| VOLVO | S60 2.4 D5 AWD | [D5244T23] | 01.2014- |
| VOLVO | S60 II (134) D5 | D5244T15 | 04.2014-12.2015 |
| VOLVO | S60 II (134) D5 AWD | D5244T15 | 04.2014-12.2015 |
| VOLVO | V40 2.0 D3 | [D5204T6] | 01.2012- |
| VOLVO | V40 2.0 D3 | [D5204T6] | 01.2013- |
| VOLVO | V40 2.0 D4 | [D5204T4] | 01.2012- |
| VOLVO | V40 2.0 D4 | [D5204T4] | 01.2013- |
| VOLVO | V40 Cross Country (526) 2.0 D3 | D5204T6 | 09.2013-12.2015 |
| VOLVO | V40 Cross Country (526) 2.0 D4 | D5204T4 | 09.2013-12.2014 |
| VOLVO | V40 Hatchback (525) D3 | D5204T6 | 03.2012-03.2015 |
| VOLVO | V40 Hatchback (525) D4 | D5204T4 | 03.2012-12.2014 |
| VOLVO | V40 Hatchback Van (525) 2.0 D3 | D5204T6 | 09.2013-12.2015 |
| VOLVO | V60 2.0 D3 | [D5204T2] | 01.2010-12.2011 |
| VOLVO | V60 2.0 D3 | [D5204T7] | 01.2012- |
| VOLVO | V60 2.0 D4 | [D5204T3] | 01.2011- |
| VOLVO | V60 2.4 D4 AWD | [D5244T12] | 01.2013- |
| VOLVO | V60 2.4 D4 AWD | [D5244T17] | 01.2012- |
| VOLVO | V60 2.4 D5 | [D5244T10] | 01.2010- |
| VOLVO | V60 2.4 D5 AWD | [D5244T10] | 01.2010- |
| VOLVO | V60 I (155) D3 | D5204T7 | 05.2012-12.2015 |
| VOLVO | V60 I (155) D3 / D4 | D5204T2 | 07.2010-12.2014 |
| VOLVO | V60 I (155) D3 / D4 | D5204T3 | 07.2010-12.2014 |
| VOLVO | V60 I (155) D4 AWD | D5244T12 | 10.2013-12.2015 |
| VOLVO | V60 I (155) D4 AWD | D5244T17 | 05.2012-12.2015 |
| VOLVO | V60 I (155) D5 | D5244T10 | 07.2010-12.2011 |
| VOLVO | V60 I (155) D5 | D5244T11 | 04.2011-12.2015 |
| VOLVO | V60 I (155) D5 | D5244T15 | 04.2011-12.2015 |
| VOLVO | V60 I (155) D5 | D5244T23 | 04.2014-12.2015 |
| VOLVO | V60 I (155) D5 AWD | D5244T10 | 07.2010-12.2011 |
| VOLVO | V60 I (155) D5 AWD | D5244T15 | 04.2011-12.2015 |
| VOLVO | V60 I (155) D5 AWD | D5244T15 | 04.2014-12.2015 |
| VOLVO | V70 2.0 D3 | [D5204T2] | 01.2010-12.2011 |
| VOLVO | V70 2.0 D3 | [D5204T7] | 01.2012- |
| VOLVO | V70 2.4 D | [D5244T14] | 01.2009-12.2010 |
| VOLVO | V70 2.4 D | [D5244T5] | 01.2007-12.2009 |
| VOLVO | V70 2.4 D4 AWD | [D5244T12] | 01.2013- |
| VOLVO | V70 2.4 D4 AWD | [D5244T17] | 01.2013- |
| VOLVO | V70 2.4 D5 | [D5244T10] | 01.2009-12.2011 |
| VOLVO | V70 2.4 D5 | [D5244T11] | 01.2011- |
| VOLVO | V70 2.4 D5 | [D5244T15] | 01.2011- |
| VOLVO | V70 2.4 D5 | [D5244T4] | 01.2007-12.2009 |
| VOLVO | V70 2.4 D5 AWD | [D5244T10] | 01.2009-12.2011 |
| VOLVO | V70 2.4 D5 AWD | [D5244T15] | 01.2011- |
| VOLVO | V70 2.4 D5 AWD | [D5244T4] | 01.2007-12.2009 |
| VOLVO | V70 III (135) 2.4 D | D5244T14 | 04.2009-12.2010 |
| VOLVO | V70 III (135) 2.4 D | D5244T19 | 04.2007-12.2010 |
| VOLVO | V70 III (135) 2.4 D | D5244T5 | 04.2007-12.2010 |
| VOLVO | V70 III (135) D3 | D5204T7 | 10.2007-12.2015 |
| VOLVO | V70 III (135) D3 / D4 | D5204T2 | 03.2010-12.2015 |
| VOLVO | V70 III (135) D3 / D4 | D5204T3 | 03.2010-12.2015 |
| VOLVO | V70 III (135) D4 AWD | D5244T12 | 10.2013-04.2016 |
| VOLVO | V70 III (135) D4 AWD | D5244T17 | 10.2007-12.2015 |
| VOLVO | V70 III (135) D5 | D5244T10 | 10.2008-12.2011 |
| VOLVO | V70 III (135) D5 | D5244T11 | 04.2011-12.2015 |
| VOLVO | V70 III (135) D5 | D5244T15 | 04.2011-12.2015 |
| VOLVO | V70 III (135) D5 | D5244T4 | 04.2007-12.2009 |
| VOLVO | V70 III (135) D5 AWD | D5244T10 | 12.2009-12.2011 |
| VOLVO | V70 III (135) D5 AWD | D5244T15 | 04.2011-12.2015 |
| VOLVO | V70 III (135) D5 AWD | D5244T4 | 04.2007-12.2009 |
| VOLVO | XC60 2.0 D3 | [D5204T7] | 01.2012- |
| VOLVO | XC60 2.0 D3 DRIVEe | [D5204T2] | 01.2010-12.2012 |
| VOLVO | XC60 2.0 D3 DRIVEe | [D5204T3] | 01.2010-12.2012 |
| VOLVO | XC60 2.0 D4 | [B5204T3] | 01.2012- |
| VOLVO | XC60 2.4 D4 AWD | [D5244T12] | 01.2011- |
| VOLVO | XC60 2.4 D4 AWD | [D5244T17] | 01.2011- |
| VOLVO | XC60 2.4 D5 AWD | [D5244T4] | 01.2009- |
| VOLVO | XC60 2.4 D AWD | [D5244T16] | 01.2009-12.2011 |
| VOLVO | XC60 2.4 D AWD | [D5244T5] | 01.2009-12.2011 |
| VOLVO | XC60 2.4 D DRIVe | [D5244T14] | 01.2009-12.2010 |
| VOLVO | XC60 I SUV (156) 2.4 D | D5244T14 | 04.2009-12.2010 |
| VOLVO | XC60 I SUV (156) 2.4 D / D3 / D4 AWD | D5244T16 | 05.2008-02.2017 |
| VOLVO | XC60 I SUV (156) 2.4 D / D3 / D4 AWD | D5244T17 | 05.2008-02.2017 |
| VOLVO | XC60 I SUV (156) 2.4 D / D3 / D4 AWD | D5244T5 | 05.2008-02.2017 |
| VOLVO | XC60 I SUV (156) D3 | D5204T7 | 04.2012-12.2015 |
| VOLVO | XC60 I SUV (156) D3 / D4 | D5204T2 | 03.2010-12.2014 |
| VOLVO | XC60 I SUV (156) D3 / D4 | D5204T3 | 03.2010-12.2014 |
| VOLVO | XC60 I SUV (156) D4 AWD | D5244T12 | 10.2013-12.2015 |
| VOLVO | XC60 I SUV (156) D4 AWD | D5244T21 | 03.2015-02.2017 |
| VOLVO | XC60 I SUV (156) D5 | D5244T11 | 06.2011-02.2017 |
| VOLVO | XC60 I SUV (156) D5 | D5244T15 | 06.2011-02.2017 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T10 | 07.2009-06.2011 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T11 | 02.2011-12.2015 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T15 | 02.2011-12.2015 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T20 | 03.2015-02.2017 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T22 | 03.2015-02.2017 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T23 | 04.2014-12.2015 |
| VOLVO | XC60 I SUV (156) D5 AWD | D5244T4 | 05.2008-12.2009 |
| VOLVO | XC70 2.0 D3 | [D5204T2] | 01.2011- |
| VOLVO | XC70 2.0 D3 | [D5204T3] | 01.2011- |
| VOLVO | XC70 2.4 D | [D5244T14] | 01.2007-12.2011 |
| VOLVO | XC70 2.4 D | [D5244T5] | 01.2007-12.2011 |
| VOLVO | XC70 2.4 D4 | [D5244T12] | 01.2011- |
| VOLVO | XC70 2.4 D4 | [D5244T5] | 01.2011- |
| VOLVO | XC70 2.4 D5 | [D5244T10] | 01.2007-12.2011 |
| VOLVO | XC70 2.4 D5 | [D5244T11] | 01.2011- |
| VOLVO | XC70 2.4 D5 | [D5244T15] | 01.2011- |
| VOLVO | XC70 2.4 D5 | [D5244T20] | 01.2015- |
| VOLVO | XC70 2.4 D5 | [D5244T4] | 01.2007-12.2011 |
| VOLVO | XC70 II (136) 2.4 D / D4 AWD | D5244T16 | 08.2007-04.2016 |
| VOLVO | XC70 II (136) 2.4 D / D4 AWD | D5244T17 | 08.2007-04.2016 |
| VOLVO | XC70 II (136) 2.4 D / D4 AWD | D5244T5 | 08.2007-04.2016 |
| VOLVO | XC70 II (136) D3 | D5204T2 | 04.2010-12.2015 |
| VOLVO | XC70 II (136) D3 | D5204T3 | 04.2010-12.2015 |
| VOLVO | XC70 II (136) D4 AWD | D5244T12 | 10.2013-04.2016 |
| VOLVO | XC70 II (136) D5 AWD | D5244T10 | 04.2009-12.2011 |
| VOLVO | XC70 II (136) D5 AWD | D5244T11 | 04.2011-12.2015 |
| VOLVO | XC70 II (136) D5 AWD | D5244T15 | 04.2011-12.2015 |
| VOLVO | XC70 II (136) D5 AWD | D5244T20 | 03.2015-04.2016 |
| VOLVO | XC70 II (136) D5 AWD | D5244T4 | 04.2007-12.2009 |
Reference Information
| 12418 | EAI |
| 20479182 | REAL |
| 25-4459 | ELSTOCK |
| 255396R | KUHNER |
| 255396V | KUHNER |
| 30601705 | VOLVO |
| 30644780 | VOLVO |
| 30644954 | VOLVO |
| 30659475 | VOLVO |
| 3240 | CEVAM |
| 36001705 | VOLVO |
| 36002868 | VOLVO |
| 36013580 | VOLVO |
| 42026260 | HERTH+BUSS |
| 438308 | VALEO |
| 6015281 | SANDO |
| 8080453 | FRIESEN |
| 810.540.143 | WAI |
| 88214671 | POWERMAX |
| AEY3786 | AUTOELECTRO |
| AM-1034 | AUTO MAGNETO |
| CST15281 | CASCO |
| CST15281AS | CASCO |
| CST15281ES | CASCO |
| CST15281GS | CASCO |
| CST15281OS | CASCO |
| CST15281RS | CASCO |
| DRS1172 | DELCO |
| DS2282 | DELCO |
| ESW24E5 | VALEO |
| ESW24E50 | VALEO |
| LRS03786 | LUCAS |
| LRS3786 | LUCAS |
| S135.533 | WAI |
| S3180S | AS-PL |
| STR00344 | ELECTROLOG |
| STRE431 | 3EFFE |
| STV5240 | KRAUF |
| STX210326 | STARDAX |
| STX210326R | STARDAX |
| UD14915S | AS-PL |
| VAL438308 | WOODAUTO |
| VALESW24E50 | WOODAUTO |
Video/Publications
