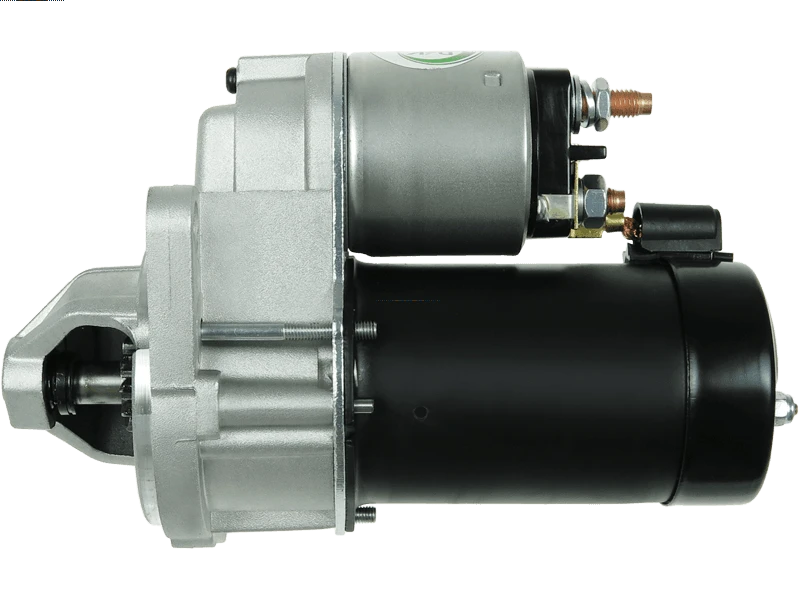

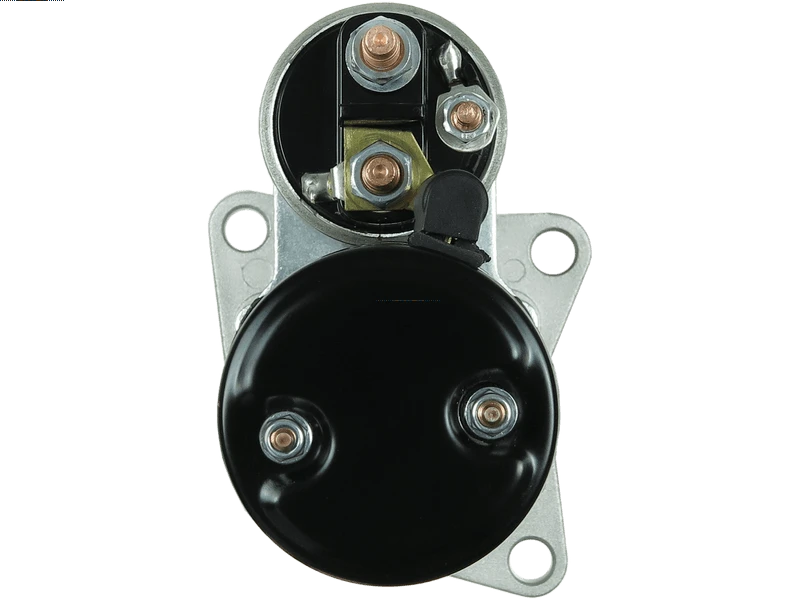

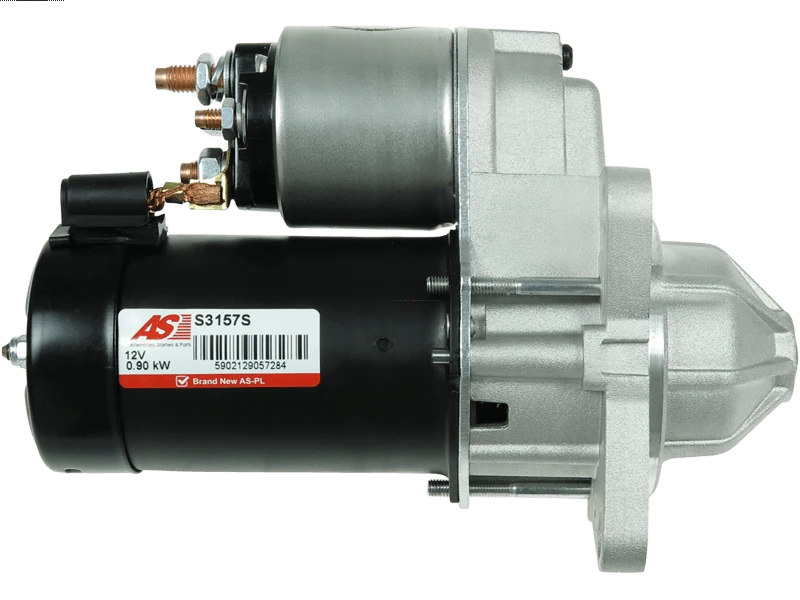

S3157S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	209 mm
Mount Hole Center - Center (O.1)	115 mm
Mount Hole Center - Center (O.2)	82 mm
Mount Hole Center - Center (O.3)	82 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	12.5 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Granada 2.0	[N9D]	01.1989-12.1994
FORD	Sierra 2.0 i	[N4A]	01.1989-12.1990
FORD	Sierra 2.0 i	[N4B]	01.1989-12.1990
FORD	Sierra 2.0 i	[N4I]	01.1989-12.1990
FORD	Sierra 2.0 i	[N9E]	01.1989-12.1990
FORD	Sierra 2.0 i	[NE5]	01.1989-12.1990
FORD	Sierra 2.0 i	[NEJ]	01.1989-12.1990

Reference Information

128000-3730 000986015190 DRS5190 10609 26699 LRS707 26616 330761 590.528.093 DRS3468 0001112020 DRS3403 88212534 CS609 ANM15688X 26681D 66925384 11721 LRS00707 87BB-11000-DA S3157S 986015190 26616D 87BB-11000-FA 27016 26616B 26681 25-0265 AES7159 455839 1112020 CS330 STF0609 STRF372 111030 STR50041 UD13779S

Video/Publications

0001112020 0986015190 10609 111030 11721 128000-3730 25-0265 26616 26616B 26616D 26681 26681D 26699 27016 455839 590.528.093 66925384 87BB-11000-DA 87BB-11000-FA 88212534 AES7159 CS330 CS609 DRS3403 DRS3468 DRS5190 LRS00707 LRS707 STF0609 STR50041 STRF372 UD13779S
