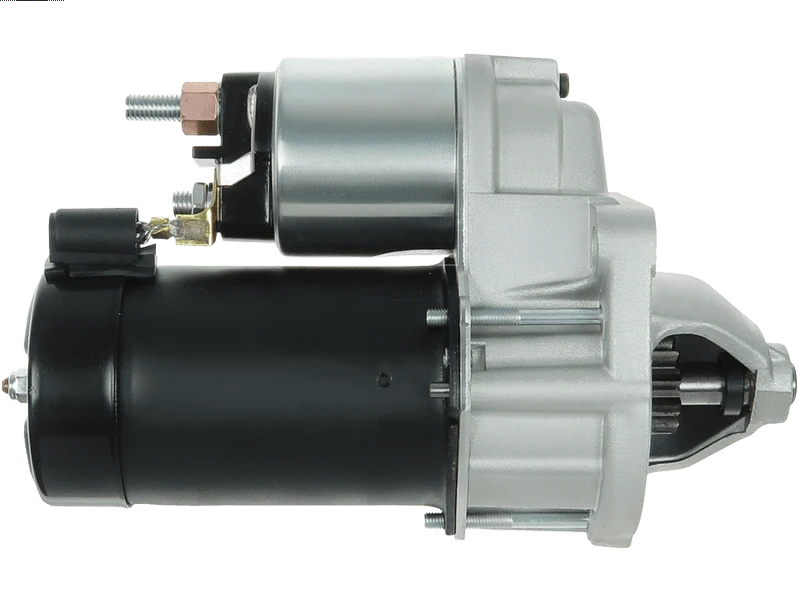

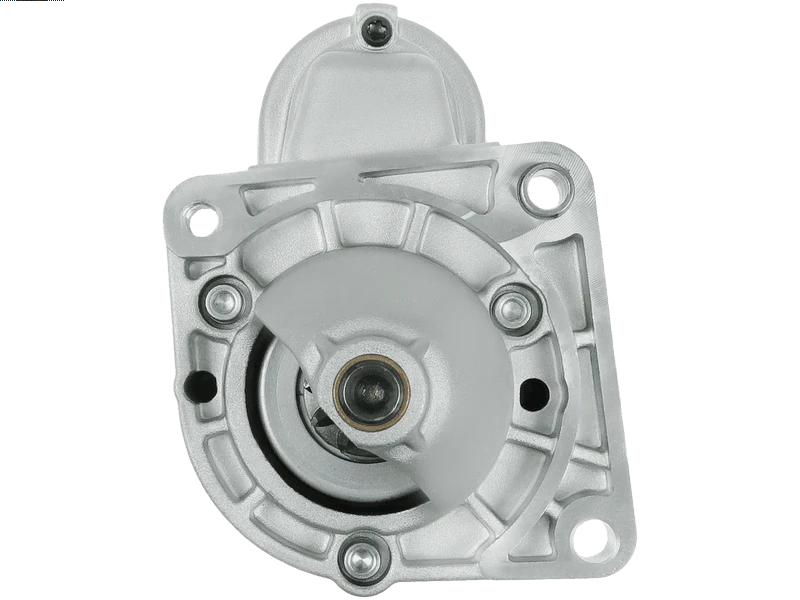

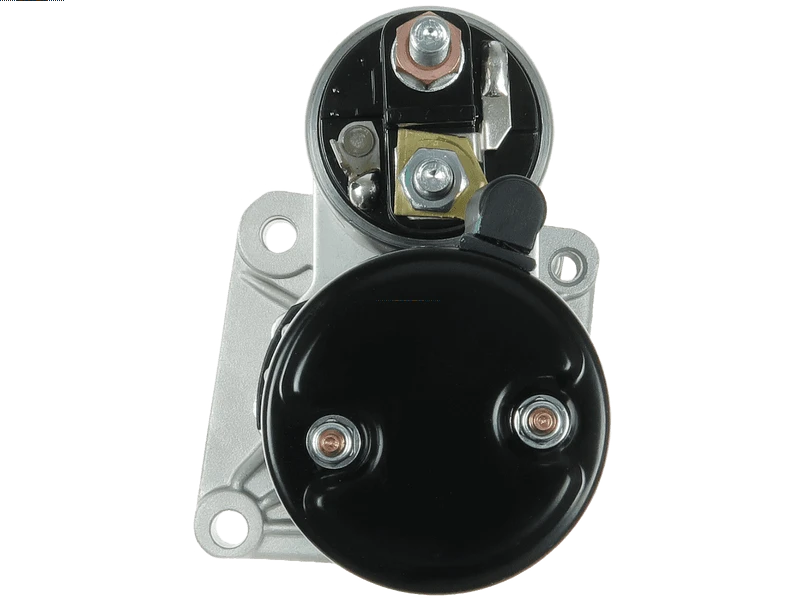

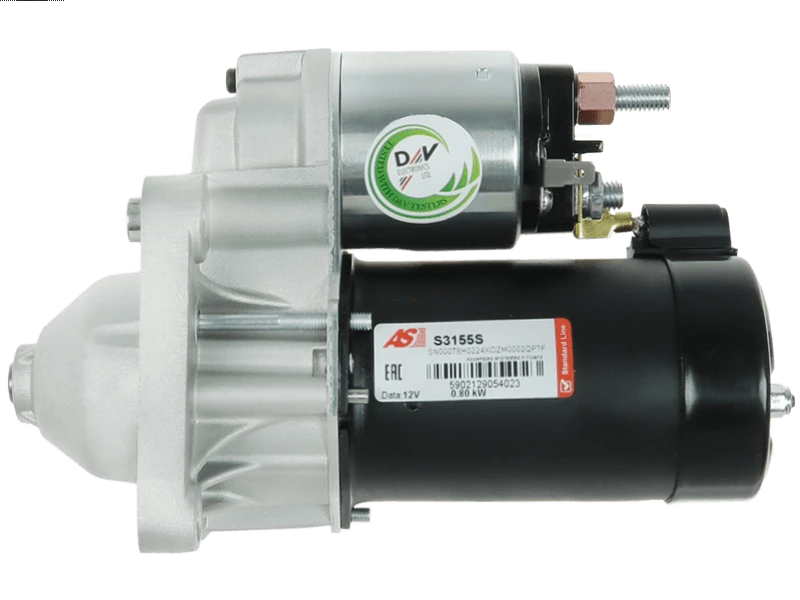

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 162.69 including GST
NZ$ 141.47 excluding GST
or four payments of $40.67
with
Learn More
UOM:
each
Alternative Item:
S4022
Product Code:
S3155S
Quantity In Stock Nationally
1 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
D6RA59Associated Numbers
0001113006 0001116005 063521130060 0986017030 0986017031 10796 10796H 10796V 11.130.421 111422 11679 11883 20500989 20513002 22.0796 22.0796M 220182 25-1480 25-2419 25-3055 25-3096 30989N 30989R 3829 42017030 42114903 432643 455553 46429594 46476785 46518059 500.514.093 55196400 6010331 6015125 6030162 63101002 63101015 63102007 63201002 63222880 63222888 63222889 63222890 63222936 63223200 71721252 71721253 71721308 71782353 726020 7772456 7772459 7785449 7796598 8017030 8212205 88212205 8EA012526-931 8EA732651-001 943201015010 944280170300 AES1298 AES9189 AEU1192 AZE1202 AZE1511 CS796 CST10331 CST10331AS CST10331ES CST10331GS CST10331OS CST10331RS CST15125 CST15125AS CST15125ES CST15125GS CST15125OS CST15125RS CST30162 CST30162AS CST30162ES CST30162GS CST30162OS CST30162RS D6RA59 DRS2555 DRS3274 DRS3555 EAA-121181 F000AL0319 GS223200-A IS0763 LRS00989 LRS01586 LRS02095 LRS02104 LRT00198 ND159 RNL1703 S3155S SG0139 SS221 STE0796 STR52007 UD13970S VALD6RA59 VS287Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 209 mm |
| Mount Hole Center - Center (O.1) | 75.50 mm |
| Mount Hole Center - Center (O.2) | 108 mm |
| Mount Hole Center - Center (O.3) | 73 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 61.20 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUTOBIANCHI | Y10 1.1 i.e. Cat | [156C.046] | 09.1990-10.1995 |
| FIAT | Albea 1.3 | [178B5.000] | 09.1998-12.2002 |
| FIAT | Albea 1.3 | [178C4.066] | 09.2001-12.2012 |
| FIAT | Albea 1.3 | [188A4.000] | 09.2001-12.2012 |
| FIAT | Brava 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Brava 1.2 16V | [188A5.000] | 12.1998- |
| FIAT | Brava 1.2 16V 80 | [182B2.000] | 12.1998-12.2002 |
| FIAT | Brava 1.2 16V 80 | [188A5.000] | 10.2000-10.2001 |
| FIAT | BRAVA (182_) 1.2 16V 80 | 182B2.000 | 12.1998-12.2002 |
| FIAT | BRAVA (182_) 1.2 16V 80 | 188A5.000 | 10.2000-10.2001 |
| FIAT | Bravo 1.2 16V | [182B2.000] | 12.1998-10.2000 |
| FIAT | Bravo 1.2 16V | [188A5.000] | 12.1998- |
| FIAT | Bravo 1.2 16V 80 | [182B2.000] | 12.1998-10.2000 |
| FIAT | Bravo 1.2 16V 80 | [188A5.000] | 10.2000-10.2001 |
| FIAT | BRAVO I (182_) 1.2 16V 80 | 182B2.000 | 12.1998-10.2000 |
| FIAT | BRAVO I (182_) 1.2 16V 80 | 188A5.000 | 10.2000-10.2001 |
| FIAT | Cinquecento 1.1 Sporting | [176B2.000] | 10.1994-01.1998 |
| FIAT | CINQUECENTO (170_) 1.1 Sporting (170AH) | 176B2.000 | 10.1994-01.1998 |
| FIAT | CINQUECENTO VAN (170_) 1.1 iE (170AH) | 176B2.000 | 10.1994-02.1998 |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998- |
| FIAT | Marea 1.2 16V | [182B2.000] | 10.1998-05.2002 |
| FIAT | MAREA (185_) 1.2 16V | 182B2.000 | 10.1998-05.2002 |
| FIAT | Marea Weekend 1.2 16V | [182B2.000] | 10.1998-05.2002 |
| FIAT | MAREA Weekend (185_) 1.2 16V | 182B2.000 | 10.1998-05.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.6 16V | 178B3.000 | 04.1996-10.2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A) | 178B3.000 | 06.1996-02.2001 |
| FIAT | Punto 1.1 | [176B2.000] | 01.1995-08.1999 |
| FIAT | Punto 1.1 | [176B2.000] | 04.1996-02.2000 |
| FIAT | Punto 1.1 i.e. | [176A6.000] | 09.1993-09.1999 |
| FIAT | Punto 1.1 i.e. | [176B2.000] | 05.1997-09.1999 |
| FIAT | Punto 1.2 | [176A7.000] | 01.1994- |
| FIAT | Punto 1.2 | [176A8.000] | 01.1994-09.1999 |
| FIAT | Punto 1.2 | [176B1.000] | 05.1995- |
| FIAT | Punto 1.2 | [176B4.000] | 06.1995-09.1999 |
| FIAT | Punto 1.2 | [188A4.000] | 07.1999- |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997- |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-09.1999 |
| FIAT | Punto 1.2 16V | [188A5.000] | 09.1999- |
| FIAT | Punto 1.2 16V 80 | [188A5.000] | 09.1999-04.2006 |
| FIAT | Punto 1.2 60 | [188A4.000] | 09.1999-12.2010 |
| FIAT | Punto 1.2 Bifuel | [188A4.000] | 08.2007-03.2012 |
| FIAT | Punto 1.2 Natural Power | [188A4.000] | 09.2003- |
| FIAT | Punto 1.4 GT Turbo | [176B6.000] | 09.1996-07.1999 |
| FIAT | PUNTO (176_) 1.2 16V | 176B9.000 | 04.1997-09.1999 |
| FIAT | PUNTO (176_) 55 1.1 | 176A6.000 | 09.1993-09.1999 |
| FIAT | PUNTO (176_) 55 1.1 | 176B2.000 | 09.1993-09.1999 |
| FIAT | PUNTO (176_) 60 1.2 | 176A7.000 | 01.1994-09.1999 |
| FIAT | PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB) | 176B1.000 | 09.1993-09.1999 |
| FIAT | PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB) | 176B4.000 | 09.1993-09.1999 |
| FIAT | PUNTO (176_) 75 1.2 | 176A8.000 | 10.1993-09.1999 |
| FIAT | PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | 188A5.000 | 09.1999-04.2006 |
| FIAT | PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250) | 188A4.000 | 09.1999-12.2010 |
| FIAT | PUNTO (188_) 1.2 Bifuel | 188A4.000 | 08.2007-03.2012 |
| FIAT | PUNTO (188_) 1.2 Bipower (188BXA1A) | 188A4.000 | 08.2001-05.2003 |
| FIAT | PUNTO (188_) 1.2 Natural Power | 188A4.000 | 09.2003-03.2012 |
| FIAT | Punto 55 1.1 | [176A6.000] | 09.1993-09.1999 |
| FIAT | Punto 55 1.1 | [176B2.000] | 09.1993-09.1999 |
| FIAT | Punto 60 1.2 | [176A7.000] | 01.1994-09.1999 |
| FIAT | Punto 60 1.2 | [176A7.000] | 04.1994-06.2000 |
| FIAT | Punto 60 1.2 | [176B1.000] | 05.1995-06.2000 |
| FIAT | Punto 60 1.2 | [176B1.000] | 09.1993-09.1999 |
| FIAT | Punto 60 1.2 | [176B4.000] | 05.1995-06.2000 |
| FIAT | Punto 60 1.2 | [176B4.000] | 09.1993-09.1999 |
| FIAT | Punto 75 1.2 | [176A8.000] | 10.1993-09.1999 |
| FIAT | Punto 85 16V 1.2 | [176B9.000] | 04.1997-06.2000 |
| FIAT | PUNTO Convertible (176_) 60 1.2 | 176A7.000 | 04.1994-06.2000 |
| FIAT | PUNTO Convertible (176_) 60 1.2 (176AR_, 176BR_) | 176B1.000 | 05.1995-06.2000 |
| FIAT | PUNTO Convertible (176_) 60 1.2 (176AR_, 176BR_) | 176B4.000 | 05.1995-06.2000 |
| FIAT | PUNTO Convertible (176_) 85 16V 1.2 | 176B9.000 | 04.1997-06.2000 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 60 | 188A4.000 | 02.2000-10.2009 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 Natural Power (188CXA1A) | 188A4.000 | 01.2003-12.2010 |
| FIAT | PUNTO Van (176_) 1.1 | 176B2.000 | 04.1996-02.2000 |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998- |
| FIAT | Seicento 600 1.1 | [176B2.000] | 01.1998-01.2010 |
| FIAT | Seicento 600 1.1 | [187A1.000] | 01.1998-01.2010 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 176B2.000 | 01.1998-01.2010 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 187A1.000 | 01.1998-01.2010 |
| FIAT | SEICENTO / 600 Hatchback Van (287_) 1.1 (187CXB/C) | 176B2.000 | 01.1998-01.2010 |
| FIAT | Siena 1.2 | [178B5.000] | 09.1998- |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | 178B5.000 | 09.1998-12.2002 |
| FIAT | Uno 1.0 | [156A2.000] | 06.1989-02.1992 |
| FIAT | Uno 1.1 | [160A3.000] | 01.1989-09.1995 |
| FIAT | Uno 45 i.e. 1.0 | [156A2.000] | 10.1984-10.1995 |
| FIAT | Uno 45 i.e. 1.0 | [156A2.246] | 10.1984-10.1995 |
| LANCIA | Y10 1.1 Avenue | [176B2.000] | 09.1995-12.1995 |
| LANCIA | Y10 1.1 Avenue 4WD | [176B2.000] | 09.1995-12.1995 |
| LANCIA | Y10 1.1 Fire | [176B2.000] | 01.1995-12.1995 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 07.1989-09.1995 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 09.1992-12.1995 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 10.1992- |
| LANCIA | Y10 1.1 i.e. Fire 4WD | [156C.046] | 09.1992-12.1995 |
| LANCIA | Y10 1.3 i.e. | [146A5.046] | 02.1989-12.1995 |
| LANCIA | Y10 1.3 i.e. | [156B.000] | 02.1989-12.1995 |
| LANCIA | Y10 (156_) 1.1 Fire (156AG) | 176B2.000 | 01.1995-12.1995 |
| LANCIA | Y10 (156_) 1.1 Fire All-wheel Drive (156AG) | 176B2.000 | 01.1995-12.1995 |
| LANCIA | Y10 (156_) 1.1 i.e. Fire (156AG) | 156C.046 | 07.1989-09.1995 |
| LANCIA | Y10 (156_) 1.1 i.e. Fire All-wheel Drive (156AG) | 156C.046 | 09.1992-12.1995 |
| LANCIA | Y 1.1 | [176B2.000] | 11.1995-06.2000 |
| LANCIA | Y 1.1 | [176B2.000] | 11.1995-09.2003 |
| LANCIA | Y 1.2 | [188A4.000] | 03.1996-09.2003 |
| LANCIA | Y 1.2 | [188A4.000] | 03.2000-06.2000 |
| LANCIA | Y 1.2 | [840A3.000] | 03.1996-09.2003 |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-06.2000 |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-09.2003 |
| LANCIA | Y 1.2 16V | [188A5.000] | 10.2000-09.2003 |
| LANCIA | Y (840_) 1.1 (840AE) | 176B2.000 | 11.1995-09.2003 |
| LANCIA | Y (840_) 1.2 16V (840AD) | 176B9.000 | 04.1997-09.2003 |
| LANCIA | Y (840_) 1.2 16V (840AG1A) | 188A5.000 | 10.2000-09.2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 188A4.000 | 03.1996-09.2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 840A3.000 | 03.1996-09.2003 |
Reference Information
| 0001113006 | BOSCH |
| 0001116005 | BOSCH |
| 020402 | DA SILVA |
| 063521130060 | MAGNETI MARELLI |
| 0986017030 | BOSCH |
| 0986017031 | BOSCH |
| 103555 | FARCOM |
| 10796 | KUHNER |
| 10796H | KUHNER |
| 10796V | KUHNER |
| 11.130.421 | ISKRA / LETRIKA |
| 111422 | CARGO |
| 11679 | EAI |
| 11883 | EAI |
| 20404261BN | REAL |
| 20404261RC | REAL |
| 20404261RE | REAL |
| 20479521BN | REAL |
| 20479521OE | REAL |
| 20500989 | PRESTOLITE |
| 220024 | ERA |
| 220182 | ERA |
| 220182A | ERA |
| 22.0796 | CQ |
| 22.0796M | CQ |
| 25-1480 | ELSTOCK |
| 25-3055 | ELSTOCK |
| 30989N | WAI |
| 30989R | WAI |
| 318203102 | DRI |
| 331115 | LOGISTIK |
| 331344 | LOGISTIK |
| 3829 | CEVAM |
| 42017030 | HERTH+BUSS |
| 42114903 | HERTH+BUSS |
| 455553 | VALEO |
| 46231531 | FIAT |
| 46429594 | FIAT |
| 46430785 | FIAT |
| 46473785 | FIAT |
| 46476785 | FIAT |
| 46518059 | FIAT |
| 46548653 | FIAT |
| 500.514.093.000 | WAI |
| 500.514.093.008 | WAI |
| 500.514.093.050 | WAI |
| 500.514.093.058 | WAI |
| 500.514.093.215 | WAI |
| 500.514.093.265 | WAI |
| 500.514.093.266 | WAI |
| 500.514.093.311 | WAI |
| 500.514.093.396 | WAI |
| 500.514.093.500 | WAI |
| 500.514.093.505 | WAI |
| 500.514.093.605 | WAI |
| 55196400 | FIAT |
| 6015125.0 | SANDO |
| 6015125.1 | SANDO |
| 6030162.0 | SANDO |
| 6030162.2 | SANDO |
| 6030162.4 | SANDO |
| 63101002 | MAGNETI MARELLI |
| 63102007 | MAGNETI MARELLI |
| 63103015 | MAGNETI MARELLI |
| 63201002 | MAGNETI MARELLI |
| 63222880 | MAGNETI MARELLI |
| 63222888 | MAGNETI MARELLI |
| 63222889 | MAGNETI MARELLI |
| 63222890 | MAGNETI MARELLI |
| 63222936 | MAGNETI MARELLI |
| 63223200 | MAGNETI MARELLI |
| 71721252 | FIAT |
| 71721253 | FIAT |
| 71721308 | FIAT |
| 71752055 | FIAT |
| 71782353 | FIAT |
| 726020 | VALEO |
| 726820 | VALEO |
| 7735162 | FIAT |
| 7772456 | FIAT |
| 7772459 | FIAT |
| 7785449 | FIAT |
| 7796598 | FIAT |
| 8017030 | FRIESEN |
| 807000.0 | ELMOT |
| 8212205 | POWERMAX |
| 88212205 | POWERMAX |
| 8EA012526-931 | HELLA |
| 8EA732651-001 | HELLA |
| 943201015010 | MAGNETI MARELLI |
| 944280170300 | MAGNETI MARELLI |
| AC-CBS0796 | ACAUTO |
| AES1298 | AUTOELECTRO |
| AES9189 | AUTOELECTRO |
| ANM15494X | ANDEL |
| AZE1202 | ISKRA / LETRIKA |
| AZE1511 | ISKRA / LETRIKA |
| AZMT-53-010-1109 | A.Z. MEISTERTEILE |
| BOL-C011090 | BOLK |
| CS796 | HC PARTS |
| CST15125AS | CASCO |
| CST15125GS | CASCO |
| D6RA59 | VALEO |
| DRS2555 | DELCO |
| DRS3274 | DELCO |
| DRS3555 | DELCO |
| DS4384 | DELCO |
| F000AL0319 | BOSCH |
| F032111422 | CARGO |
| GS223200-A | GPARTS |
| IS0763 | ISKRA / LETRIKA |
| LES0342 | LE PART |
| LRS00989 | LUCAS |
| LRS02104 | LUCAS |
| LRS2104 | LUCAS |
| LRS989 | LUCAS |
| MAV171250 | SIOM |
| MAV321620 | SIOM |
| ND159 | VALEO |
| PRSL014 | 3EFFE |
| PRSS169 | 3EFFE |
| RNL1703 | RNL |
| RNLD6RA59 | RNL |
| S12MA0044A2 | SIDAT |
| S12VA0044 | SIDAT |
| S132.635 | WAI |
| S143.934 | WAI |
| S3155S | AS-PL |
| SG0139 | GHIBAUDI |
| SS221 | SOVEREIGN |
| STA0005R | BOVEZ |
| STE0796 | KRAUF |
| STR00100 | ELECTROLOG |
| STR52007 | WOODAUTO |
| STR90057 | ELECTROLOG |
| STRL014 | 3EFFE |
| STRL126 | 3EFFE |
| STRS169 | 3EFFE |
| STRS233 | 3EFFE |
| UD13970S | AS-PL |
| VALD6RA59 | WOODAUTO |
| VS287 | VALEO |
Video/Publications
S3155SView your shopping basket or Browse other items in Starter Motors.
