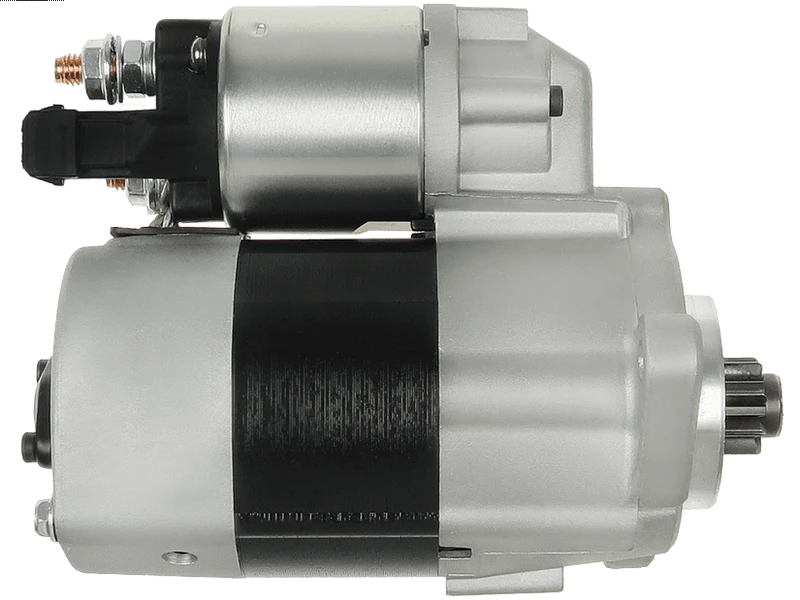

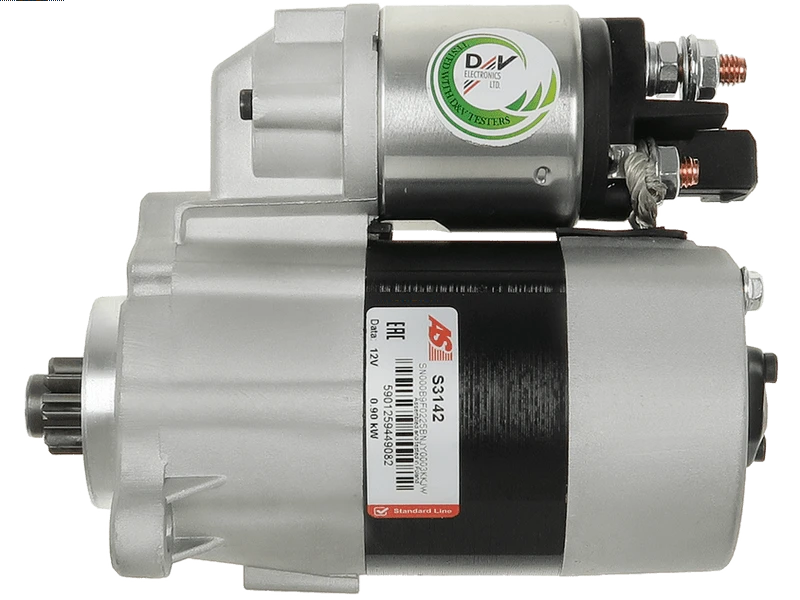

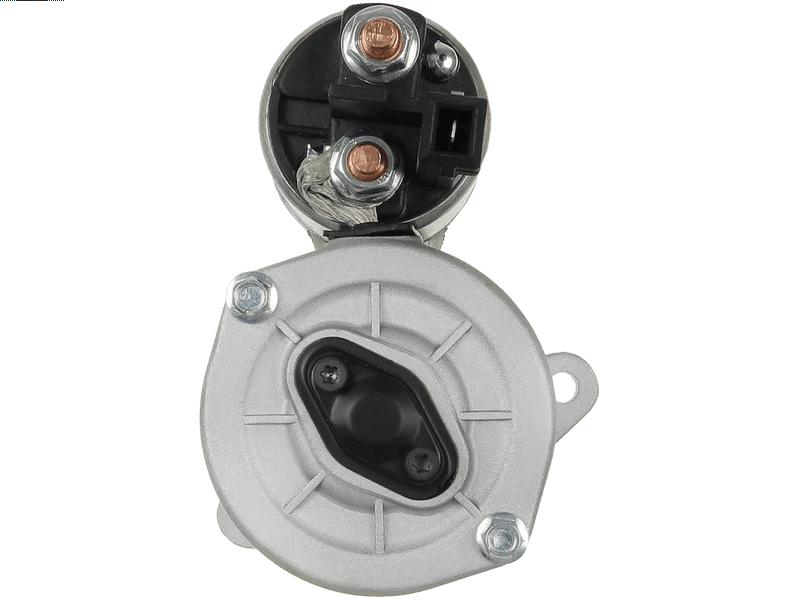

S3142 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	172 mm
Mount Hole Center - Center (O.1)	81 mm
Mount Hole Center - Center (O.2)	94 mm
Mount Hole Center - Center (O.3)	60 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	8.5 mm
Mount Hole Diameter (C.3)	8.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	1 qty
No./Teeth	8 qty
Pinion at Rest (B)	20 mm
Rotation	ACW
Spigot Diameter (A)	50 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SEAT	Arosa 1.0	[AHT]	01.1997-12.2000
VW	Lupo 1.0	[AHT]	01.1998-12.1999

Reference Information

047911023B CST15166AS 331218 MAV6800 GS438073-A S3142 9.44281E+11 220892 5015168 047911023G CS1211 CST15166GS 047911023C CST15166ES 047911023BX DRS3824 11967 CST15166OS 6015166 986022571 MAV3500 101204 32599R EAA-153147 CST15166 986023490 ANM16044X 101211K D7ES2 3033 D7ES4 EAA-141333 LRS01599 CST15166RS 101211V 25-3118 438073 455934 47911023 20479661RC 8EA737900-001 LRS1599 S12VA0043A2 STRL239 UD11978S

Video/Publications

047911023 047911023B 047911023BX 047911023C 047911023G 0986022571 0986023490 101204 101211K 101211V 11967 20479661RC 25-3118 3033 32599R 438073 455934 6015166 8EA737900-001 944280800510 CS1211 CST15166 CST15166AS CST15166ES CST15166GS CST15166OS CST15166RS D7ES2 D7ES4 DRS3824 EAA-141333 EAA-153147 GS438073-A LRS01599 LRS1599 MAV3500 MAV6800 S3142 STRL239 UD11978S 220892
