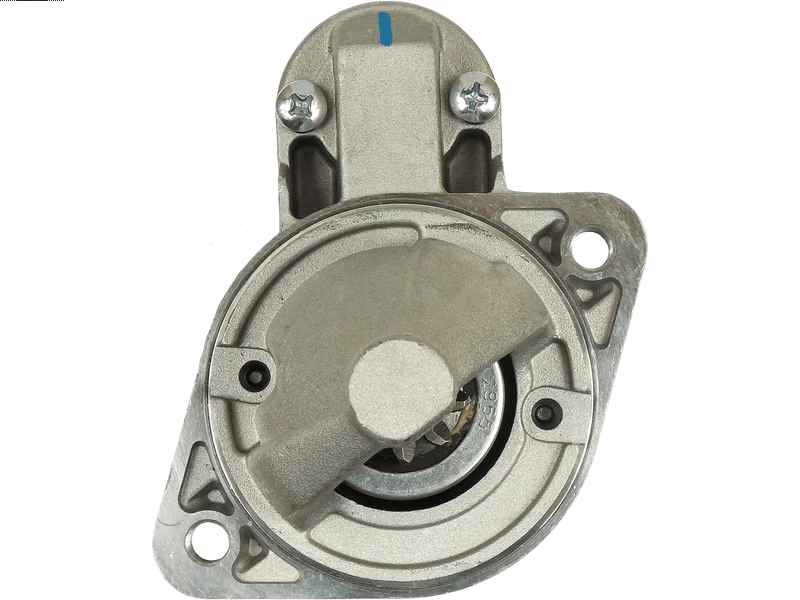

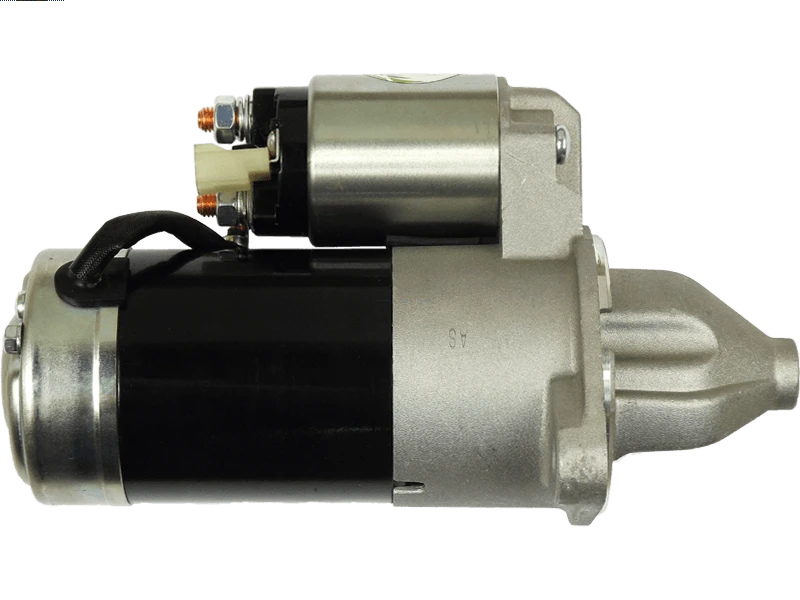

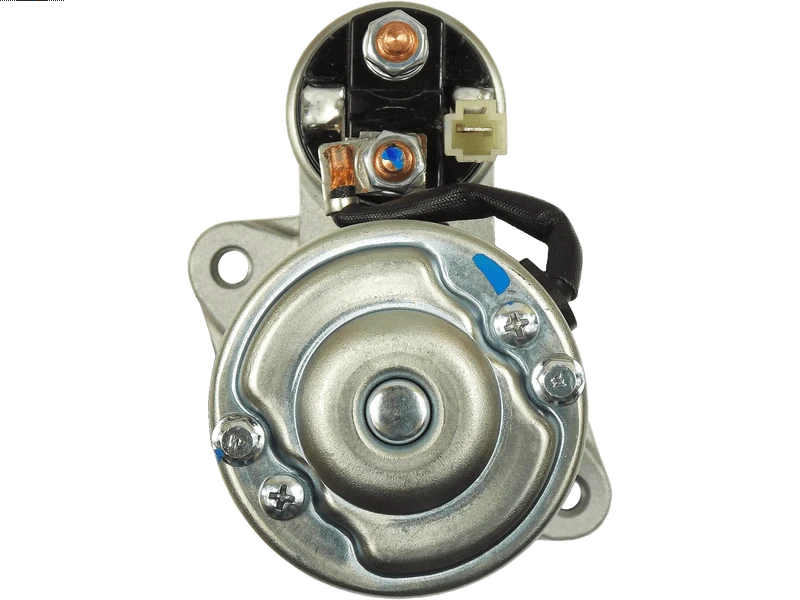

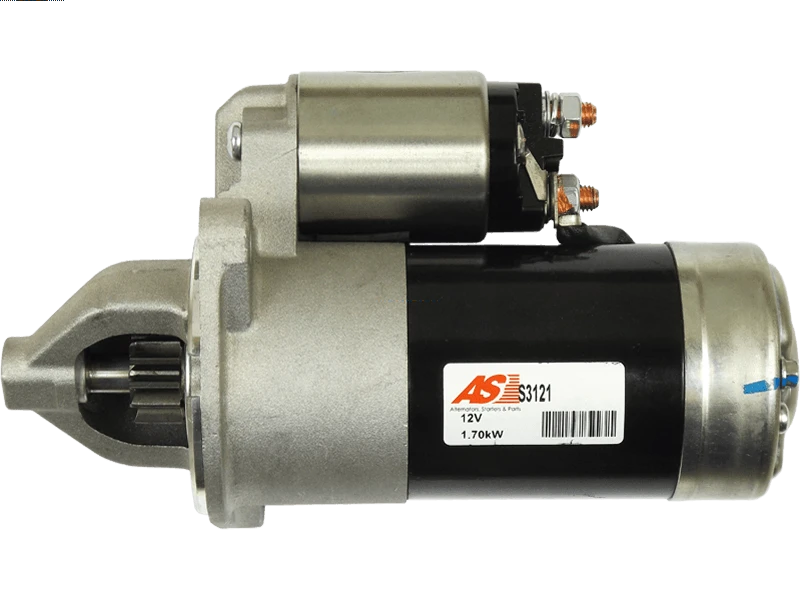

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 288.56 including GST
NZ$ 250.92 excluding GST
or four payments of $72.14
with
Learn More
each
S3121
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
36100-27510Associated Numbers
0986023370 113796 12017 150.539.082 201349 201349V 20493801OE 22.1349 25-3358 33186N 36100-27050 36100-27510 6032108 8080283 8213009 88213009 8EA738239-001 9771 AET1349 CST32108 CST32108AS CST32108ES CST32108GS CST32108OS CST32108RS DRS0071 EAA-121125 GS027510-A JS1349 LRS02186 S3121 SS581 STR54131 TM000A31201 UD30024SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 230 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Accent 1.5 CRDi | [D3-EA] | 01.2001-12.2005 |
| HYUNDAI | Getz 1.5 CRDi | [D3-EA] | 01.2003-12.2005 |
| HYUNDAI | Matrix 1.5 CRDi | [D3-EA] | 01.2001-12.2006 |
Reference Information
| 003-C145 | ASHIKA |
| 0986023370 | BOSCH |
| 113796 | CARGO |
| 12017 | EAI |
| 150.539.092.000 | PSH |
| 150.539.092.340 | PSH |
| 150.539.092.360 | PSH |
| 150.539.092.440 | PSH |
| 150.539.092.500 | PSH |
| 201349 | KUHNER |
| 201349V | KUHNER |
| 20493801BN | REAL |
| 20493801OE | REAL |
| 220398 | ERA |
| 22.1349 | CQ |
| 231517 | CARGO |
| 25-3358 | ELSTOCK |
| 331862 | LOGISTIK |
| 33186N | WAI / TRANSPO |
| 33186R | WAI / TRANSPO |
| 36100-27050 | HYUNDAI / KIA |
| 36100-27510 | HYUNDAI / KIA |
| 3C145 | JAPKO |
| 5035236 | MEAT & DORIA |
| 600198 | VALEO |
| 600714 | VALEO |
| 6032108.0 | SANDO |
| 6032108.1 | SANDO |
| 639127 | VALEO |
| 8080283 | FRIESEN |
| 8213009 | POWERMAX |
| 88213009 | POWERMAX |
| 8EA738239-001 | HELLA |
| 944280802830 | MAGNETI MARELLI |
| 9771 | CEVAM |
| AET1349 | AUTOELECTRO |
| ANM12291X | ANDEL |
| CGB-27510 | AINDE |
| CST32108AS | CASCO |
| CST32108GS | CASCO |
| DRS0071 | DELCO |
| DRS0071N | DELCO |
| DS1181 | DELCO |
| DS1181N | DELCO |
| F032113796 | CARGO |
| F042S0H062 | BOSCH |
| GS027510-A | GPARTS |
| HJS1349 | HC PARTS |
| JS1349 | HC PARTS |
| LRS02186 | LUCAS |
| LRS2186 | LUCAS |
| MAV341080 | SIOM |
| MTC145 | JAPANPARTS |
| PRSL219 | 3EFFE |
| RNL3610027510 | RNL |
| RNL36100-27510 | RNL |
| RNL3610027510T | RNL |
| S12VA0212A2 | SIDAT |
| S3121 | AS-PL |
| SM0004 | VISNOVA |
| SS581 | SOVEREIGN |
| STA0548R | BOVEZ |
| STM1094 | ROLLCO |
| STR0109 | ELECTROLOG |
| STR54131 | WOODAUTO |
| STRH062 | UNIPOINT |
| STRL219 | 3EFFE |
| STX200142 | STARDAX |
| STX200142R | STARDAX |
| TM000A31201 | VALEO |
| TM000A31201RR | RNL |
| TM000V31201 | VALEO |
| TT15689PRO | TESLA TECHNICS |
| UD30024S | AS-PL |
| VAL600198 | WOODAUTO |
| VALTM000A31201 | WOODAUTO |
| WOOSTR54131 | WOODAUTO |
Video/Publications
