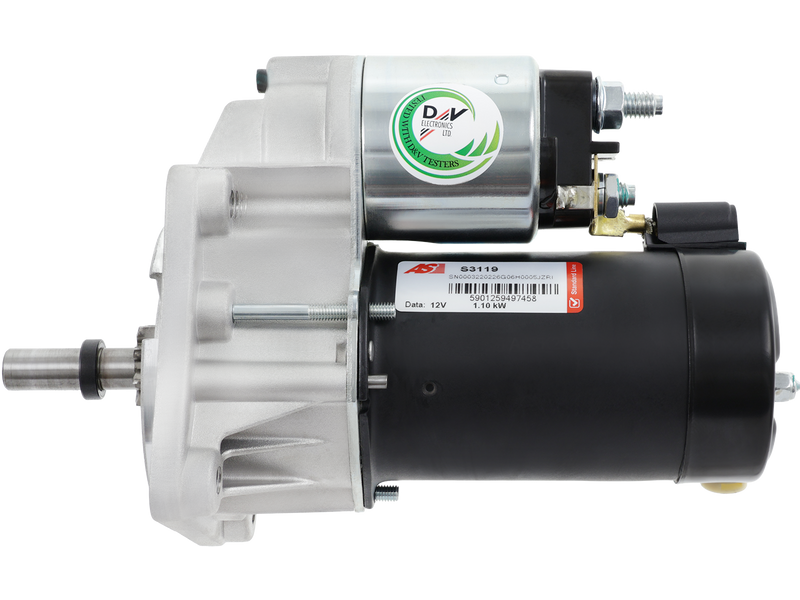

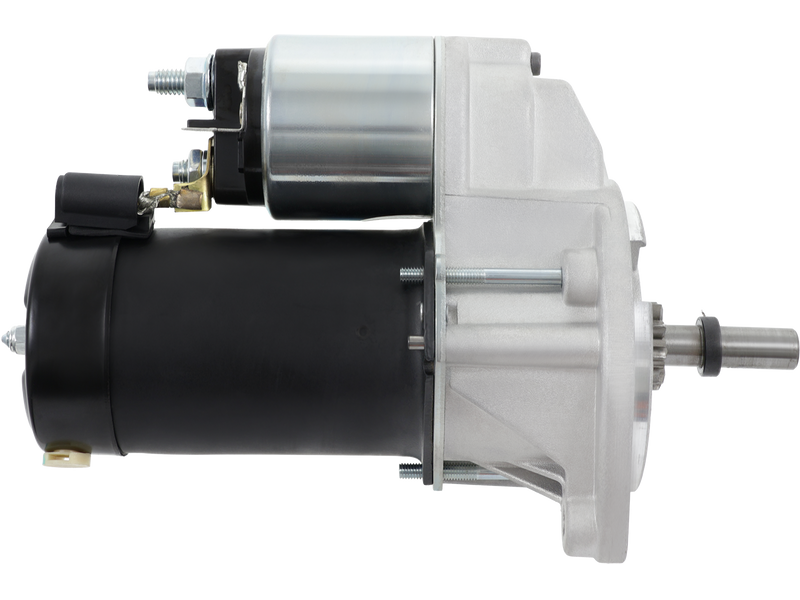

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 191.30 including GST
NZ$ 166.35 excluding GST
or four payments of $47.83
with
Learn More
each
S3119
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
D6RA49Associated Numbers
2-2478-VA D6RA49 EAA-132398 UD02158SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 218 mm |
| Mount Hole Center - Center (O.1) | 74 mm |
| Mount Hole Center - Center (O.2) | 74 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |

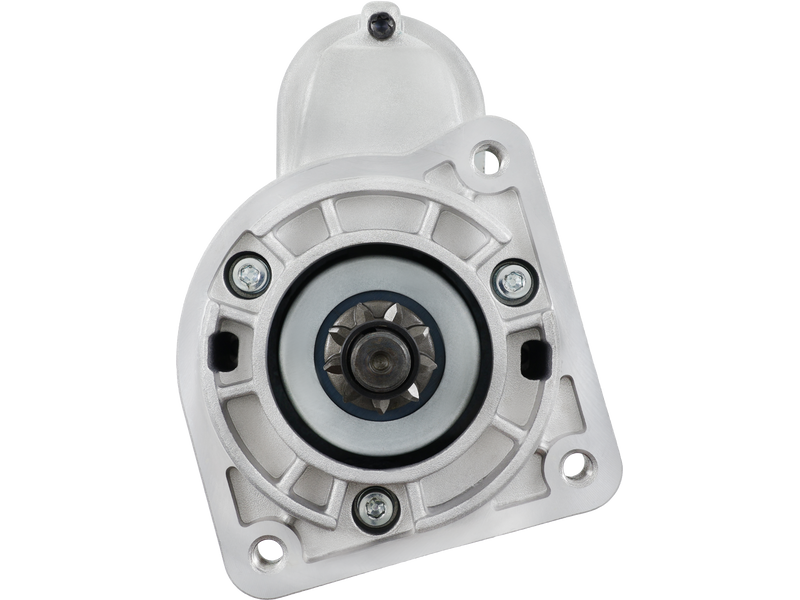

| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Iltis 1.7 | [WL] | 03.1979-12.1988 |
| VW | Iltis 1.7 | [YX] | 03.1979-12.1988 |
| VW | Passat 1.3 | [ZA] | 05.1973-01.1978 |
| VW | Passat 1.5 | [YJ] | 07.1973-12.1975 |
| VW | Passat 1.5 | [ZB] | 07.1973-12.1975 |
| VW | Passat 1.5 | [ZC] | 07.1973-12.1975 |
| VW | Santana 2000 |
Reference Information
| 2-2478-VA | WAI / TRANSPO |
| D6RA49 | VALEO |
| UD02158S | AS-PL |
Video/Publications
S3119View your shopping basket or Browse other items in Starter Motors.
