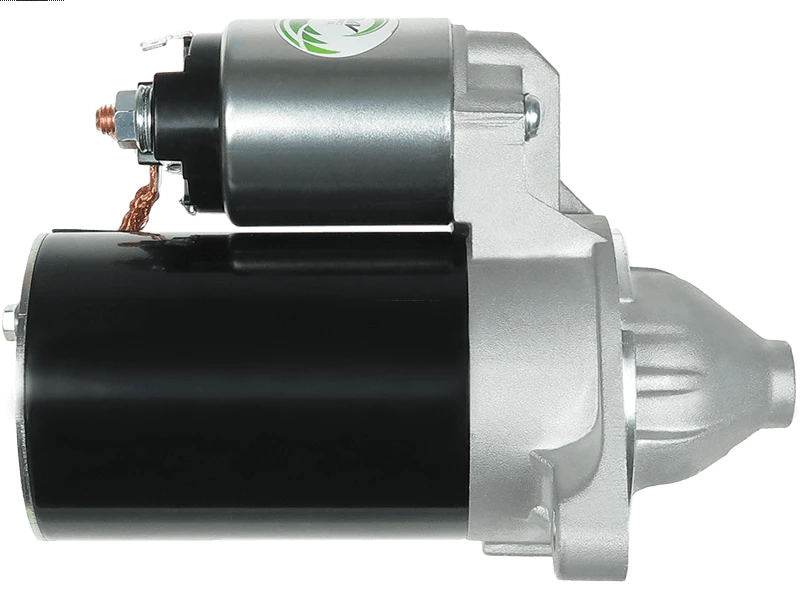

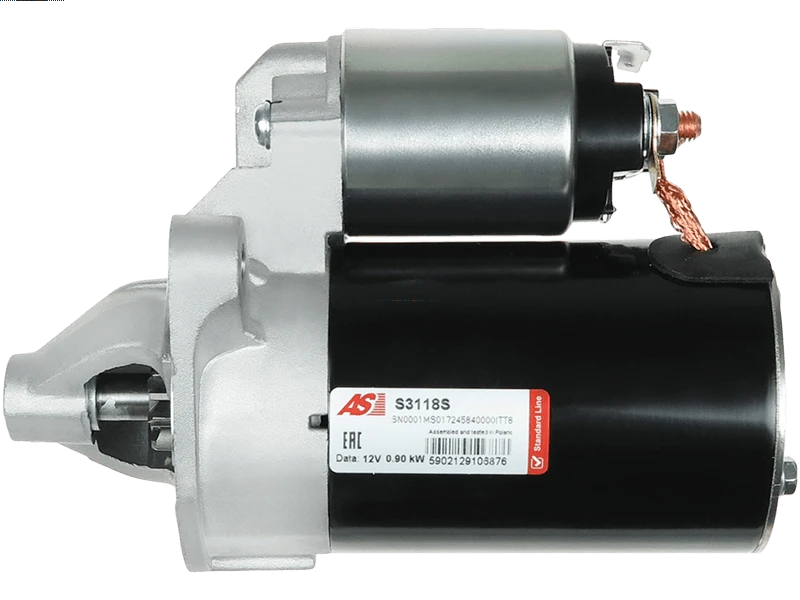

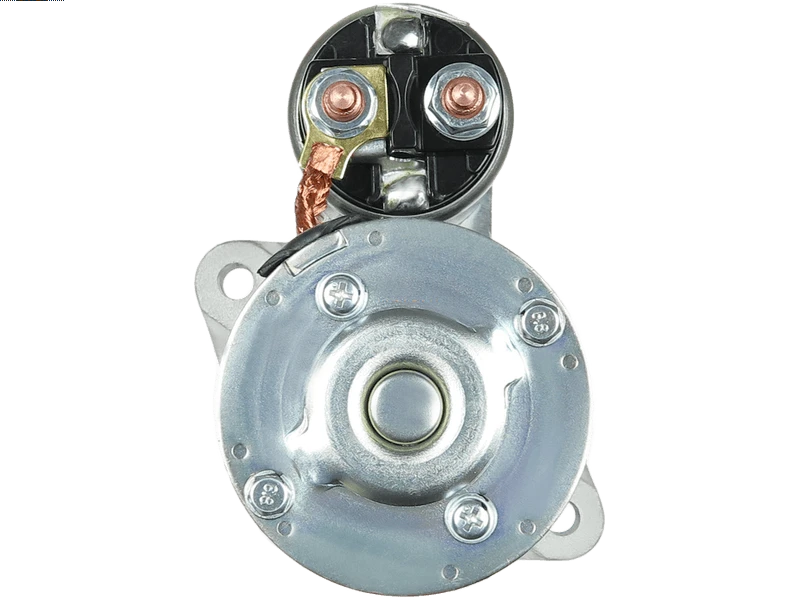

S3118S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	190 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
Pinion at Rest (B)	10 mm
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Accent 1.3	[G4EA]	01.2000-11.2005
HYUNDAI	Accent 1.3	[G4EH]	08.2002-11.2005
HYUNDAI	Accent 1.4 GL	[G4EE]	11.2005-11.2010
HYUNDAI	Accent 1.5	[G4EB]	01.2000-11.2005
HYUNDAI	Accent 1.5	[G4EC-G]	09.2000-11.2005
HYUNDAI	Accent 1.5 CRDi GLS	[D4FA]	11.2005-11.2010
HYUNDAI	Accent 1.6	[G4ED-G]	12.2002-11.2005
HYUNDAI	Accent 1.6 GLS	[G4ED]	11.2005-11.2010
HYUNDAI	Elantra 1.6	[G4ED-G]	05.2003-05.2006
HYUNDAI	Elantra 1.6	[G4ED-G]	05.2003-07.2006
HYUNDAI	Getz 1.3	[G4EA]	09.2003-09.2005
HYUNDAI	Getz 1.3 i	[G4EA]	09.2002-03.2004
HYUNDAI	Getz 1.4 i	[G4EE]	08.2005-12.2010
HYUNDAI	Getz 1.6	[G4ED-G]	06.2005-12.2006
HYUNDAI	Getz 1.6	[G4ED-G]	09.2002-09.2005
HYUNDAI	Matrix 1.6	[G4ED-G]	06.2001-08.2010
KIA	Cerato 1.6	[G4ED]	04.2004-12.2009
KIA	Cerato 1.6	[G4ED]	07.2004-

Reference Information

CST32122AS M3T42781 8EA012527-521 CST32122RS 201312 S12VA0554A2 M003T43481 STRW370 336035 ANM12227X 36100-22855 M2T48081 TM000A27601 36100-22850 M003T42781ZC LRS01743 220504 6032122 DRS0007 88212847 5015290 CST32122OS MD162838 9504 20493221 CGB-22850 CST32122GS M002T48081 MD192228 MD667539 000986023630 JM000A04601 MD180239 25-3304 UD01229S 63280902 150.552.082 36100-22875 LRS1743 M3T42781ZC 220504A CST32122 VAL600206 M3T43481 STR0110 986023630 M003T42781 110958 TM000A37301 S12VA0554 JS643 M0A01901 CST32122ES S1119M S3118S 36100-21770 36100-22860

Video/Publications

110958 150.552.082 201312 20493221 220504 220504A 25-3304 36100-22850 36100-22855 36100-22860 36100-22875 6032122 63280902 88212847 8EA012527-521 9504 986023630 CGB-22850 CST32122 CST32122AS CST32122ES CST32122GS CST32122OS CST32122RS DRS0007 JM000A04601 JS643 LRS01743 LRS1743 S1119M STRW370 TM000A27601 TM000A37301 UD01229S VAL600206
