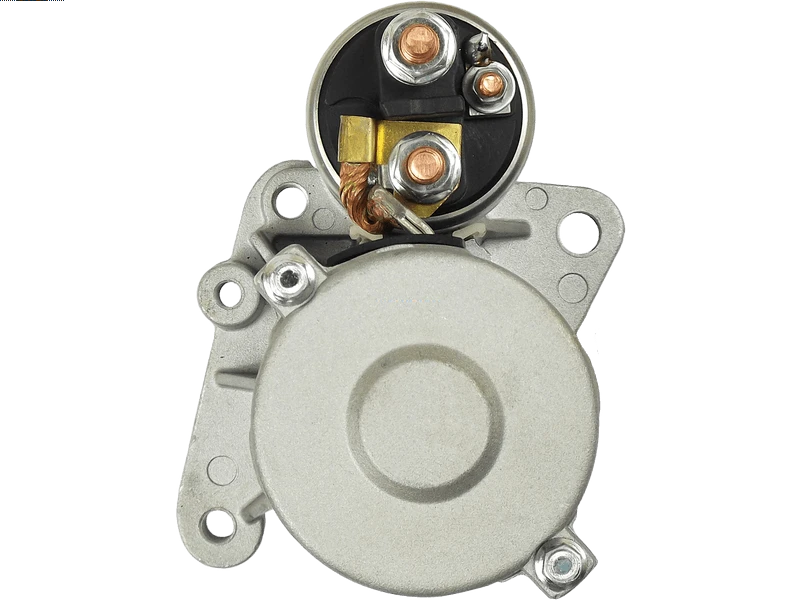

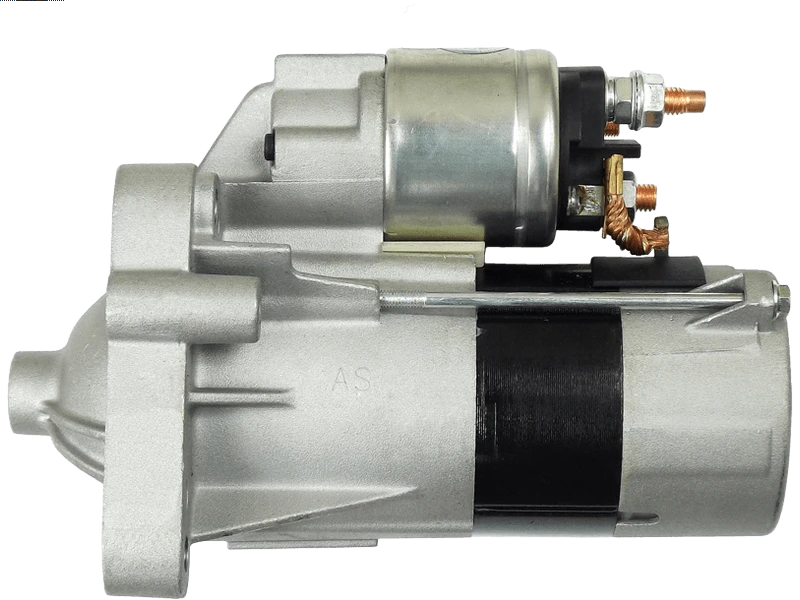

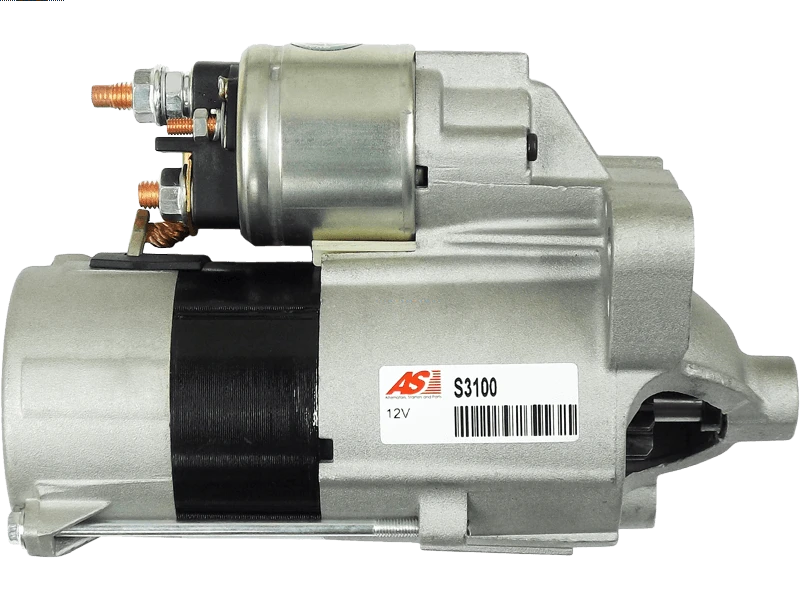

S3100 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	211 mm
Mount Hole Center - Center (O.1)	28 mm
Mount Hole Center - Center (O.2)	64 mm
Mount Hole Center - Center (O.3)	124.5 mm
Mount Hole Center - Center (O.4)	77.5 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
Mount Hole Diameter (C.4)	11 mm
No./Mount holes	4 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	-5 mm
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	Interstar 2.2 dCI 90	[G9T722]	07.2002-
NISSAN	Interstar 2.4 dCi 100	[G9U650]	04.2006-
NISSAN	Interstar 2.4 dCi 100	[G9U720]	04.2006-
NISSAN	Interstar 2.4 dCi 100	[G9U754]	04.2006-
NISSAN	Interstar 2.4 dCi 120	[G9U650]	09.2006-
NISSAN	Interstar 2.4 dCi 120	[G9U720]	08.2003-
NISSAN	Interstar 2.4 dCi 120	[G9U724]	08.2003-
NISSAN	Interstar 2.4 dCi 120	[G9U750]	08.2003-
NISSAN	Interstar 2.4 dCi 150	[G9U632]	09.2006-
NISSAN	Primastar 2.4 dCi 140	[G9U730]	07.2003-
NISSAN	Primastar 2.5 dCi 140	[G9U730]	07.2003-
NISSAN	Primastar 2.5 dCi 150	[G9U632]	09.2006-
OPEL	Movano 2.2 DTi	[G9T720]	09.2000-
OPEL	Movano 2.2 DTi	[G9T722]	09.2000-
OPEL	Movano 2.2 DTi	[G9T750]	09.2000-
OPEL	Movano 2.5 CDTi	[G9U632]	08.2006-
OPEL	Movano 2.5 CDTi	[G9U650]	09.2007-
OPEL	Movano 2.5 CDTi	[G9U754]	10.2003-12.2006
OPEL	Movano 2.5 DTi	[G9U720]	10.2001-
OPEL	Movano 2.5 DTi	[G9U724]	10.2001-
OPEL	Movano 2.5 DTi	[G9U750]	10.2001-
OPEL	Movano 2.5 DTi	[G9U754]	10.2003-
OPEL	Vivaro A 2.5 CDTi	[G9MB6]	08.2006-
OPEL	Vivaro A 2.5 CDTi	[G9U630]	08.2006-
OPEL	Vivaro A 2.5 DTi	[G9U730]	08.2003-
RENAULT	Avantime 2.2 dCi	[G9T712]	05.2002-05.2003
RENAULT	Espace 2.2 D	[G8T716]	11.1997-01.2000
RENAULT	Espace 2.2 dCi	[G9T642]	10.2000-10.2002
RENAULT	Espace 2.2 dCi	[G9T710]	10.2000-10.2002
RENAULT	Laguna 2.2 dCi	[G9T600]	04.2004-10.2005
RENAULT	Laguna 2.2 dCi	[G9T700]	10.2001-
RENAULT	Laguna 2.2 dCi	[G9T702]	10.2001-
RENAULT	Laguna 2.2 dCi Grandtour	[G9T600]	04.2004-10.2005
RENAULT	Laguna 2.2 dCi Grandtour	[G9T702]	10.2001-
RENAULT	Master 2.2 dCI 90	[G9T720]	09.2000-
RENAULT	Master 2.2 dCI 90	[G9T722]	09.2000-
RENAULT	Master 2.2 dCI 90	[G9T750]	09.2000-
RENAULT	Master 2.5 dCi	[G9U632]	08.2006-
RENAULT	Master 2.5 dCi	[G9U650]	08.2006-
RENAULT	Master 2.5 dCi	[G9U754]	08.2006-
RENAULT	Master 2.5 dCi		01.2004-
RENAULT	Master 2.5 dCi 100	[G9U754]	10.2003-
RENAULT	Master 2.5 dCi 120	[G9U720]	10.2001-
RENAULT	Master 2.5 dCi 120	[G9U724]	10.2001-
RENAULT	Master 2.5 dCi 120	[G9U750]	10.2001-
RENAULT	Master 2.5 dCi 120	[G9U754]	10.2001-
RENAULT	Trafic 2.5 dCi 135	[G9U730]	05.2003-
RENAULT	Trafic 2.5 dCi 145	[G9U630]	08.2006-
RENAULT	Vel Satis 2.2 dCi	[G9T600]	09.2004-
RENAULT	Vel Satis 2.2 dCi	[G9T606]	09.2004-
RENAULT	Vel Satis 2.2 dCi	[G9T607]	09.2004-
RENAULT	Vel Satis 2.2 dCi	[G9T700]	09.2004-
RENAULT	Vel Satis 2.2 dCi	[G9T702]	09.2004-
RENAULT	Vel Satis 2.2 dCi	[G9T703]	06.2002-
VAUXHALL	Movano MK I 2.2 DTi	[G9T720]	09.2000-05.2010
VAUXHALL	Movano MK I 2.2 DTi	[G9T722]	09.2000-05.2010
VAUXHALL	Movano MK I 2.2 DTi	[G9T750]	09.2000-05.2010
VAUXHALL	Movano MK I 2.5 CDTi	[G9U632]	08.2006-05.2010
VAUXHALL	Movano MK I 2.5 CDTi	[G9U650]	10.2006-12.2010
VAUXHALL	Movano MK I 2.5 CDTi	[G9U754]	10.2006-12.2010
VAUXHALL	Movano MK I 2.5 DTi	[G9T720]	09.2000-05.2010
VAUXHALL	Movano MK I 2.5 DTi	[G9T722]	09.2000-05.2010
VAUXHALL	Movano MK I 2.5 DTi	[G9T750]	09.2000-05.2010
VAUXHALL	Movano MK I 2.5 DTi	[G9U720]	10.2001-08.2009
VAUXHALL	Movano MK I 2.5 DTi	[G9U724]	10.2001-08.2009
VAUXHALL	Movano MK I 2.5 DTi	[G9U750]	10.2001-08.2009
VAUXHALL	Movano MK I 2.5 DTi	[G9U754]	10.2001-08.2009
VAUXHALL	Vivaro 2.0 CDTi	[M9R630]	01.2006-07.2014
VAUXHALL	Vivaro 2.0 CDTi	[M9R780]	01.2006-07.2014
VAUXHALL	Vivaro 2.0 CDTi	[M9R782]	01.2006-07.2014
VAUXHALL	Vivaro 2.0 CDTi	[M9R786]	01.2006-07.2014
VAUXHALL	Vivaro 2.5 CDTi	[G9U630]	08.2006-07.2014
VAUXHALL	Vivaro 2.5 CDTi	[G9U730]	04.2003-07.2006
VAUXHALL	Vivaro 2.5 DTi	[G9U730]	07.2003-07.2014

Reference Information

CST15120ES C194252A AEY2101 MAV511010 93181256 RNLD7G11 838045 D7G11 CST15120AS STRL020 WS34840 CST15120 DRS0978 RAS31089 11989 7711134330 255040V S3100 88213229 7711368323 063721207010 SG0419 UD02348S 944280801080 726882 570.552.104 CS1207 112475 STV9207 3011 MAV171690 STV1207 STR00107 MRS80108 438170 LRS02101 42455954 MQS1207 ANM50302X 8200106788 6.0083.9 726082 CST15120RS GS438158-A RNLD7R53 4415443 CST15120GS D7R53 8200225336 8EA011610-121 220136 255040 438085 STR00258 0986020141 6015120 CGB-23838 30893R 91167635 458210 30893N CST15120OS 101207 D7G11B 220526 EAA-123023 8200634603 8200634602 101207V 448158 93190996 DRS3739X DRS3739 VAL438170 25-3010 LRS2101 23300-00Q0B DS2088
