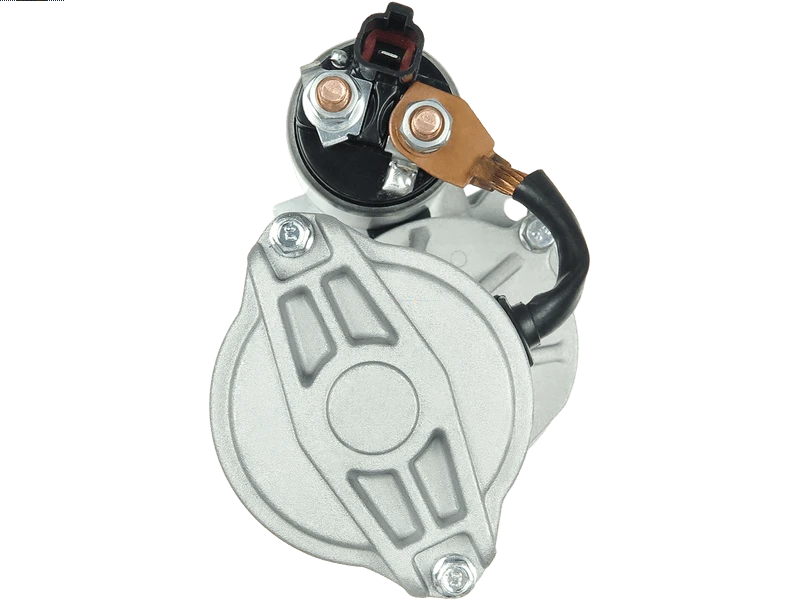

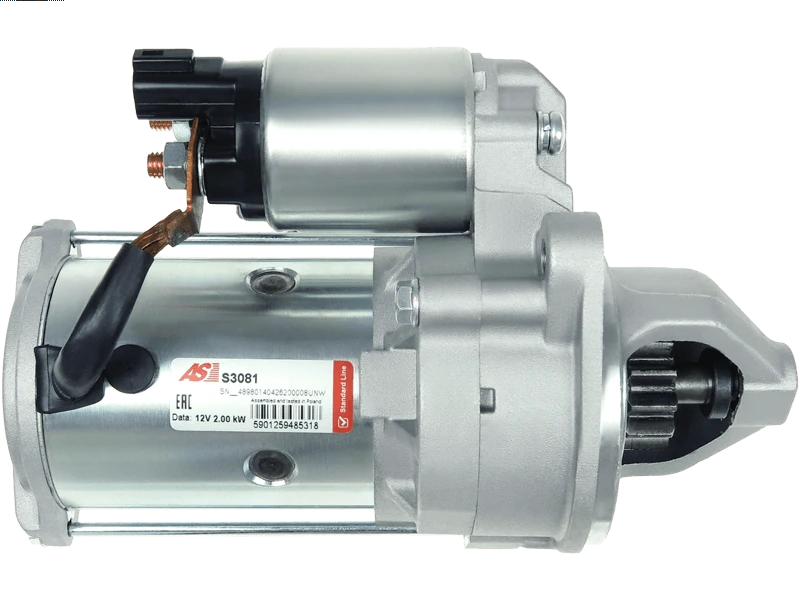

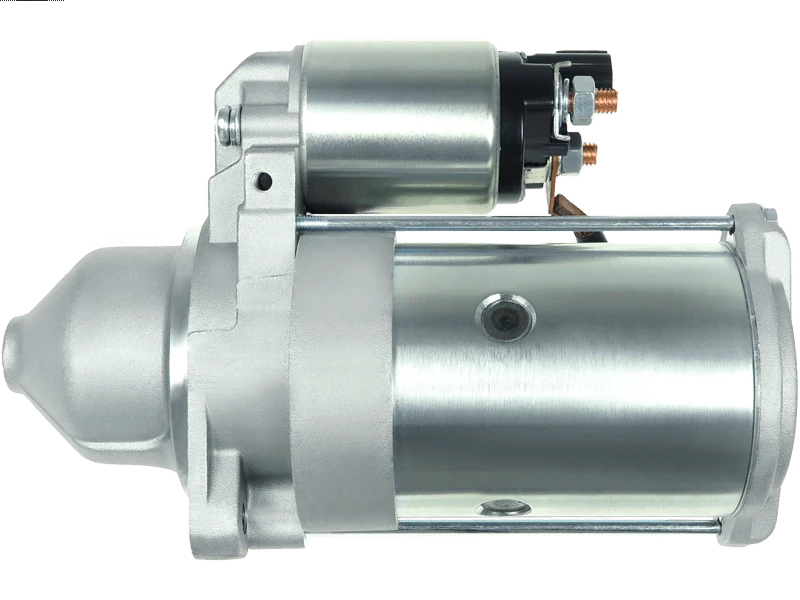

S3081 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	224 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	12 qty
No./Teeth (Replaces)	12 qty
Pinion at Rest (B)	25 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	i30 2.0 CRDi	[D4EA]	10.2007-11.2011
HYUNDAI	i30 2.0 CRDi	[D4EA]	10.2008-06.2012
KIA	Cee'd 2.0 CRDi	[D4EA-F]	09.2007-
KIA	Cee\'d 2.0 CRDi	[D4EA-F]	09.2007-
KIA	Pro Cee'd 2.0 CRDi	[D4EA-F]	02.2008-
KIA	Pro Cee\'d 2.0 CRDi	[D4EA-F]	02.2008-
KIA	Sportage 2.0 CRDi	[D4EA]	08.2008-
KIA	Sportage 2.0 CRDi		09.2008-
KIA	Sportage 2.0 CRDi 4WD		09.2008-

Reference Information

LRS2434 S3081 RNL36100-27700 6032137 STRL913 9786 5015863 20493731OE DRS0486N 220511 STA0390R M000T30475 LRS02434 1250449 150.568.122 CST32137GS STR75011 6035239 36100-27700 S12VA0412A2 CGB-23114 30053N SS724 23300AA560 30053R M0T30475 22.1441 101441 AEU1441 114778 CS1441 8212771 ANM12706X STR0118 101441V PRSL913 CST35239AS 336020 25-4106 DRS0486

Video/Publications

101441 101441V 114778 1250449 150.568.122 20493731OE 22.1441 25-4106 30053R 36100-27700 6032137 6035239 8212771 9786 AEU1441 CGB-23114 CS1441 CST32137GS CST35239AS DRS0486 DRS0486N LRS02434 LRS2434 RNL36100-27700 S3081 SS724 STR75011 STRL913 220511
