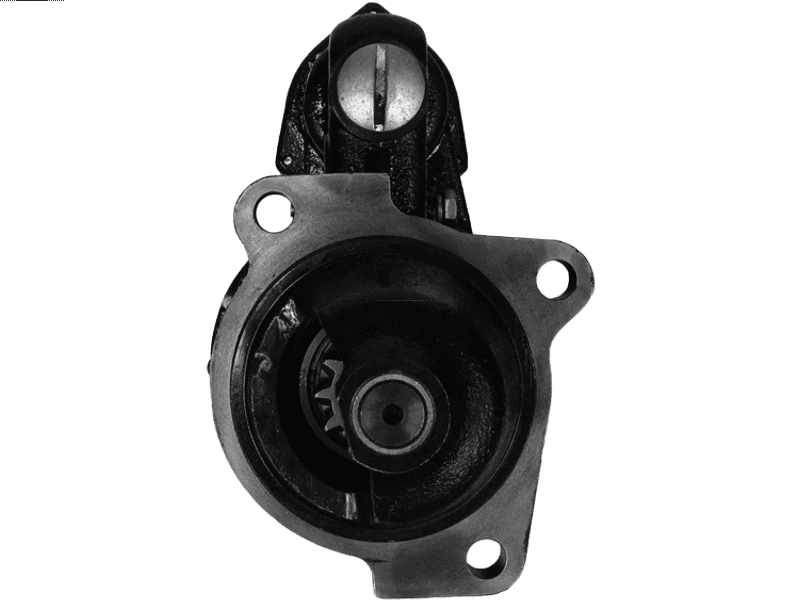

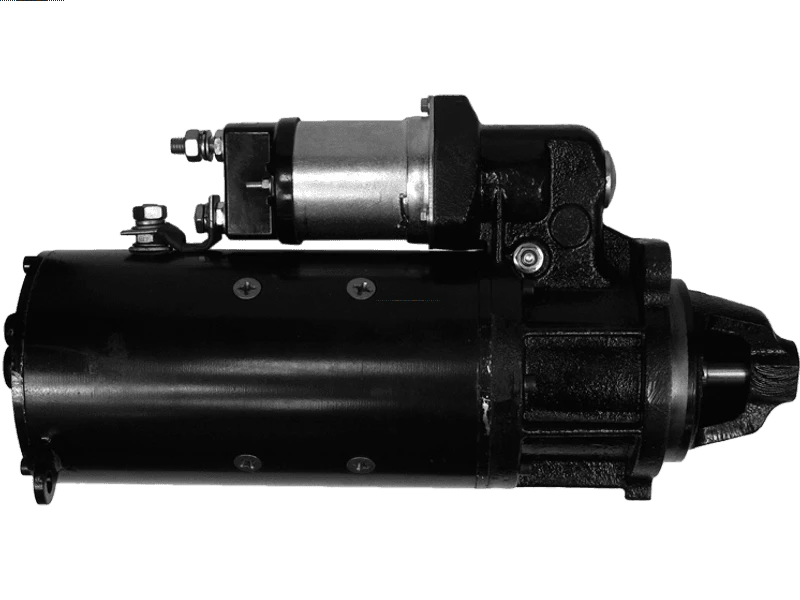

S3046 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 1,006.26 including GST

NZ$ 875.01 excluding GST
each
S3046
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

101278 20401356EL 20479606BN 28.1278 33574 45-3461 455704 5001822908 5001822955 5010217010 6010653 6015606 8732 8EA738091-001 CS1278 CST10653ES CST15606AS CST15606GS D13HP702 DRS3813 LRS01902 M105R3032SE STR33004
Kilowatt7.7 kW
Length (L.1)448 mm
Mount Hole Center - Center (O.1)140 mm
Mount Hole Center - Center (O.2)99 mm
Mount Hole Center - Center (O.3)99 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
Mount Hole Diameter (C.3)13.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth12 qty
No./Teeth (Replaces)12 qty
Pinion at Rest (B)24 mm
RotationCW
Spigot Diameter (A)102 mm
Unit TypeVALEO
Voltage24 V
Make Model Type Year
RENAULT V.I. AE 385 12.0 [MIDR06.35.40N/3] 02.1992-10.1996
RENAULT V.I. R 350.17 12.0 [MIDR06.35.40G] 01.1990-05.1991
RENAULT V.I. R 350.17 12.0 [MIDR06.35.40G] 05.1990-12.1992
RENAULT V.I. R 350.18 12.0 [MIDR06.35.40G] 01.1990-05.1991
RENAULT V.I. R 350.18 12.0 [MIDR06.35.40G] 05.1990-12.1992
RENAULT V.I. R 350.19 12.0 [MIDR06.35.40G] 01.1990-05.1991
RENAULT V.I. R 350.19 12.0 [MIDR06.35.40G] 05.1990-12.1992
RENAULT V.I. R 350.24 12.0 [MIDR06.35.40G] 01.1990-05.1996
RENAULT V.I. R 350.24 12.0 [MIDR06.35.40H] 01.1990-05.1996
RENAULT V.I. R 350.26 12.0 [MIDR06.35.40G] 01.1990-05.1996
RENAULT V.I. R 350.26 12.0 [MIDR06.35.40G] 05.1990-12.1992
RENAULT V.I. R 380.17 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.17 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 380.18 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.18 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 380.19 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.19 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 380.22 12.0 [MIDR06.35.40H] 01.1990-01.1992
RENAULT V.I. R 380.22 12.0 [MIDR06.35.40H] 01.1990-05.1991
RENAULT V.I. R 380.24 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.24 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 380.25 12.0 [MIDR06.35.40H] 01.1990-01.1992
RENAULT V.I. R 380.25 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.25 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 380.26 12.0 [MIDR06.35.40H] 01.1990-10.1996
RENAULT V.I. R 380.26 12.0 [MIDR06.35.40L1] 05.1991-10.1996
RENAULT V.I. R 385TI.17 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.18 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.19 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.22 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.24 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.25 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 385TI.26 12.0 [MIDR06.35.40N/3] 05.1991-10.1996
RENAULT V.I. R 420TI.18 12.0 [MIDR06.35.40J/3] 10.1992-10.1996
RENAULT V.I. R 420TI.19 12.0 [MIDR06.35.40J/3] 10.1992-10.1996
RENAULT V.I. R 420TI.22 12.0 [MIDR06.35.40J/3] 10.1992-10.1996
RENAULT V.I. R 420TI.24 12.0 [MIDR06.35.40J/3] 04.1992-10.1996
RENAULT V.I. R 420TI.26 12.0 [MIDR06.35.40J/3] 04.1992-10.1996
RENAULT V.I. R 420TI.35 12.0 [MIDR06.35.40J/3] 04.1992-10.1996
STR0489 5010058981 STR33004 STRL616 8732 20479606BN 5001014218 5001825905 ANM16033X 5001831090 5001822955 CST10653ES 442100118 28.1278 CS1278 D13HP702 5010217956 33574 455704 LRS1902 6010653 6015606 8EA738091-001 LRS01902 5010217010 5001014200 5001822908 220266 45-3461 MAV126530 DRS3813 101278 M105R3032SE 5001825908 CST15606AS CST15606GS 20401356EL
101278 20401356EL 20479606BN 28.1278 33574 45-3461 455704 5001822908 5001822955 5010217010 6010653 6015606 8732 8EA738091-001 CS1278 CST10653ES CST15606AS CST15606GS D13HP702 DRS3813 LRS01902 LRS1902 M105R3032SE MAV126530 STR33004 STRL616 220266
