Associated Numbers
104-10244 119233-77010 136960 201356 201356H 20445761 25-3144 2506960 6020167 980.536.082 CST20167 CST20167AS CST20167ES CST20167GS CST20167OS CST20167RS DRS0064 DS1174 LRS01619 S114-813 S114-816 S114-816A UD15043SSpecifications

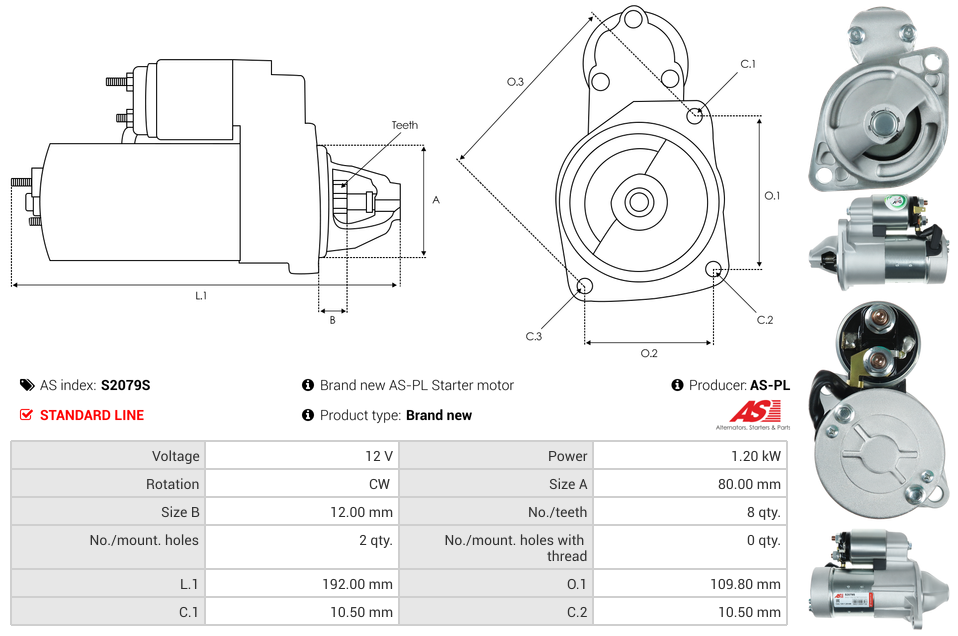

Kilowatt | 1.2 kW |
Length (L.1) | 192 mm |
Mount Hole Center - Center (O.1) | 109.8 mm |
Mount Hole Diameter (C.1) | 10.5 mm |
Mount Hole Diameter (C.2) | 10.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 8 qty |
Pinion at Rest (B) | 12 mm |
Rotation | CW |
Spigot Diameter (A) | 80 mm |
Unit Type | HITACHI |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
YANMAR | Engine | [3TNE68-L] | 01.1996-12.1998 |
Reference Information
CST20167OS CST20167ES CST20167GS 201356 20445761 S114-813 201356H 980.536.082 25-3144 CST20167 S114-816 5020688 119233-77010 136960 S114613 S114-816A CST20167RS LRS01619 CGB-23096 6020167 2506960 HST114816A S12HT0399A2 104-10244 CST20167AS LRS1619 S2079S ANM12284X UD15043S DRS0064 DS1174Video/Publications
104-10244 119233-77010 136960 201356 201356H 20445761 25-3144 2506960 6020167 980.536.082 CGB-23096 CST20167 CST20167AS CST20167ES CST20167GS CST20167OS CST20167RS DRS0064 DS1174 LRS01619 LRS1619 S114-813 S114-816 S114-816A UD15043SAdd Your Number
