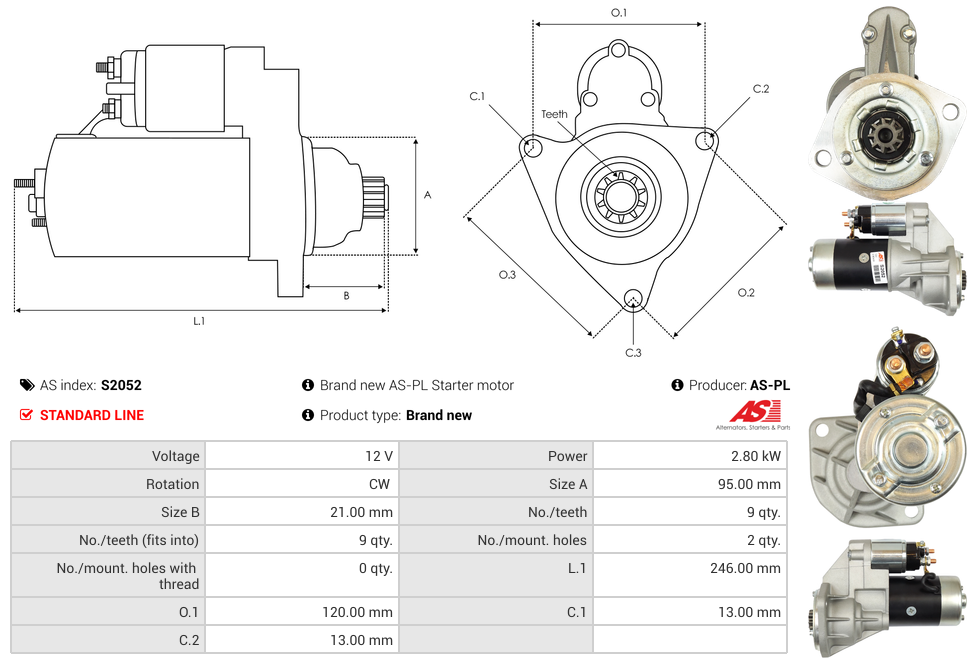

S2052 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.8 kW
Length (L.1)	246 mm
Mount Hole Center - Center (O.1)	120 mm
Mount Hole Diameter (C.1)	13 mm
Mount Hole Diameter (C.2)	13 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	95 mm
Unit Type	HITACHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MUSTANG	552 Mini Loader 2.7	[4JB1]	01.1985-12.1988
MUSTANG	960 2.7	[4JB1]	01.1994-12.1998

Reference Information

20445332BN LRS1163 S13-06A 18299 S2052 254055 6020233 MAV5190 220577 S13-33 LRS01163 JS679 S13-136 STR3010 8944104090 254824 DRS3144 UD02163S S13-111 8941365070 MAV5000 S13-27A 110412 CST20233AS 18299N 251151 S13-33B 336359 MTU111 S13-33A 5811000800 S13-27 8970848770 S13-06 S13-28 S13-25 5811000801 5811001111 5811001331 3U111 003-U111 S13-123 25-1151 5811001112

Video/Publications

003-U111 110412 18299 18299N 20445332BN 25-1151 251151 254055 254824 3U111 6020233 8944104090 CST20233AS DRS3144 JS679 LRS01163 LRS1163 MAV5000 MAV5190 MTU111 S13-111 S13-136 S2052 UD02163S 220577
