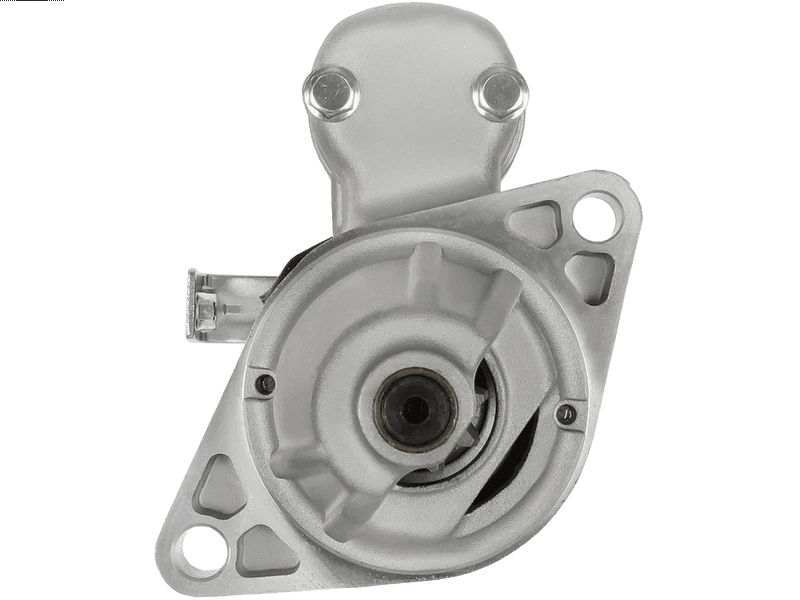

S2033 - Brand new AS-PL Starter motor

Associated Numbers

110249 128000-0290 128000-0670 128000-5230 128000-9540 16993R 17285N 20311 20445422BN 22.3111 22.5311M 25-2425 31200-P06-L03 31200-PE0-003 31200-PE0-013 31200-PE0-015 31200-PE0-901 31200-PE0-902 31200-PM5-L02 6020224 66925388 AET1215 CST20224AS DFLEA DRS3086 LRS01482 S114-396 S114-396D S114-566 S114-606 S114-606A S114-606C S114-614 SS372 STR70021

Specifications

Kilowatt	0.80 kW
Length (L.1)	211 mm
Mount Hole Center - Center (O.1)	114 mm
Mount Hole Diameter (C.1)	10.50 mm
Mount Hole Diameter (C.2)	10.50 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	33 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	75 mm
Unit Type	HITACHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HONDA	Civic 1.3 DX	[D13A2]	01.1987-01.1987
HONDA	Civic 1.3 DX	[EV1]	01.1984-01.1984
HONDA	Civic 1.3 DX	[EV1]	01.1985-01.1986
HONDA	Civic 1.5		01.1988-01.1991
HONDA	Civic 1.5 1500		01.1985-01.1987
HONDA	Civic 1.5 1500 DX		01.1984-01.1987
HONDA	Civic 1.5 1500 DX		01.1988-01.1988
HONDA	Civic 1.5 1500 GL		01.1984-01.1984
HONDA	Civic 1.5 1500 S		01.1984-01.1986
HONDA	Civic 1.5 1500 S		01.1987-01.1987
HONDA	Civic 1.5 CX	[D15B8]	01.1992-01.1995
HONDA	Civic 1.5 CX		01.1989-01.1991
HONDA	Civic 1.5 Del Sol S	[D15B7]	01.1993-01.1995
HONDA	Civic 1.5 DX	[D15B2]	01.1988-01.1991
HONDA	Civic 1.5 DX	[D15B7]	01.1992-01.1995
HONDA	Civic 1.5 GL	[EW1]	01.1986-01.1986
HONDA	Civic 1.5 GL	[EW2]	10.1983-10.1987
HONDA	Civic 1.5 GT	[EW3]	01.1985-10.1987
HONDA	Civic 1.5 GTi	[EW4]	03.1986-10.1987
HONDA	Civic 1.5 LX	[D15B2]	01.1988-01.1991
HONDA	Civic 1.5 LX	[D15B7]	01.1992-01.1995
HONDA	Civic 1.5 SE		01.1988-01.1988
HONDA	Civic 1.5 VX	[D15Z1]	01.1992-01.1995
HONDA	CRX 1.5	[D15B2]	01.1991-01.1991
HONDA	CRX 1.5 1500		01.1984-01.1987
HONDA	CRX 1.5 1500 HF		01.1985-01.1987
HONDA	CRX 1.5 1500 HF		01.1988-01.1989
HONDA	CRX 1.5 DX	[D15B2]	01.1988-01.1990
HONDA	CRX 1.5 HF	[D15B6]	01.1990-01.1991
HONDA	CRX 1.5 i	[EW3]	10.1983-11.1986
HONDA	Integra 1.5	[D15A1]	10.1985-08.1989
HONDA	Integra 1.6	[D16A3]	03.1986-08.1989
HONDA	Wagovan 1.5	[D15A2]	01.1987-01.1987
HONDA	Wagovan 1.5	[EW1]	01.1984-01.1985
HONDA	Wagovan 1.5		01.1986-01.1986
NISSAN	Van 2.4	[Z24I]	01.1987-01.1988
ROVER	213 1.3	[EV2]	09.1985-09.1989

Reference Information

003-H156	ASHIKA
110249	CARGO
128000-0290	DENSO
128000-0670	DENSO
128000-5230	DENSO
128000-9540	DENSO
16993R	WAI / TRANSPO
17285N	WAI / TRANSPO
20311	KUHNER
20445422BN	REAL
220965	ERA
22.3111	LAUBER
22.5311M	LAUBER
228000-4890	DENSO
228000-4891	DENSO
25-2425	ELSTOCK
31200P010031	HONDA
31200-P06-L03	HONDA
31200-P2A-003	HONDA
31200-P2A-0030	HONDA
31200-P7A-G01	HONDA
31200-PC0-884	HONDA
31200-PCO-884	HONDA
31200-PE0-003	HONDA
31200-PE0-013	HONDA
31200-PE0-015	HONDA
31200PE0661	HONDA
31200PE0664	HONDA
31200-PE0-901	HONDA
31200-PE0-902	HONDA
31200PEO015	HONDA
31200-PEO-662	HONDA
31200PEO9020	HONDA
31200-PLRA-52	HONDA
31200PM1005	HONDA
31200-PM3-J03	HONDA
31200PM5L01	HONDA
31200-PM5-L02	HONDA
31200PM7306	HONDA
3H156	JAPKO
6020224	SANDO
66925388	PRESTOLITE
AET1215	AUTOELECTRO
ANM15306X	ANDEL
CGB-24062	AINDE
CST20224AS	CASCO
DDLD9	HONDA
DDVD3	HONDA
DFLEA	HONDA
DRS3086	DELCO
F032110249	CARGO
JS311	HC PARTS
LRS01482	LUCAS
LRS1482	LUCAS
MAV422000	SIOM
MTH156	JAPANPARTS
S114-396	HITACHI
S114-396D	HITACHI
S114-566	HITACHI
S114-606	HITACHI
S114-606A	HITACHI
S114-606C	HITACHI
S114-614	HITACHI
S12HT0518A2	SIDAT
SS372	SOVEREIGN
STR3056	ELECTROLOG
STR70021	WOODAUTO
STX200709	STARDAX
STX200709R	STARDAX
STX200986	STARDAX
STX200986R	STARDAX
STX201313	STARDAX

Video/Publications

S2033
