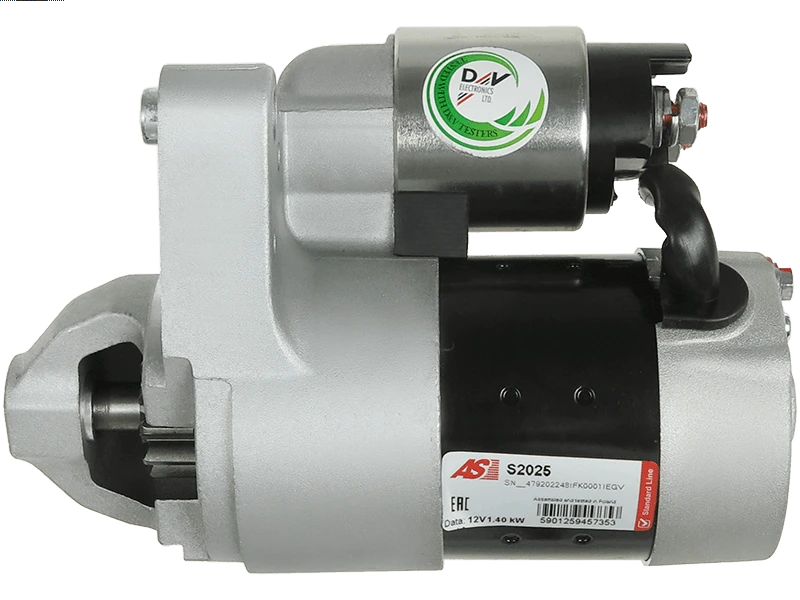

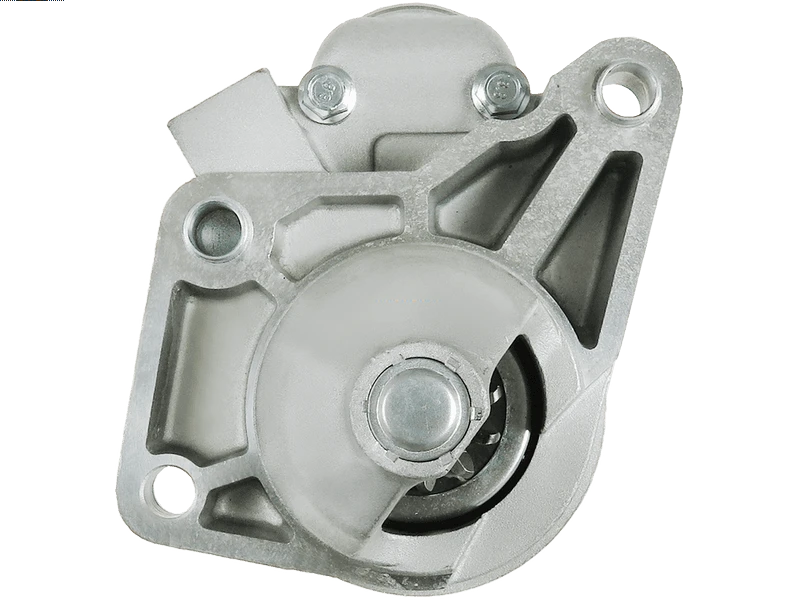

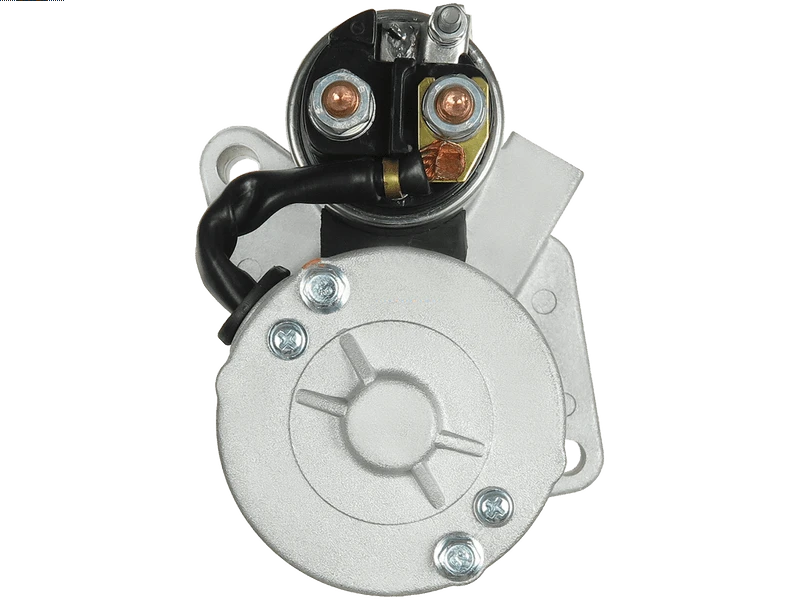

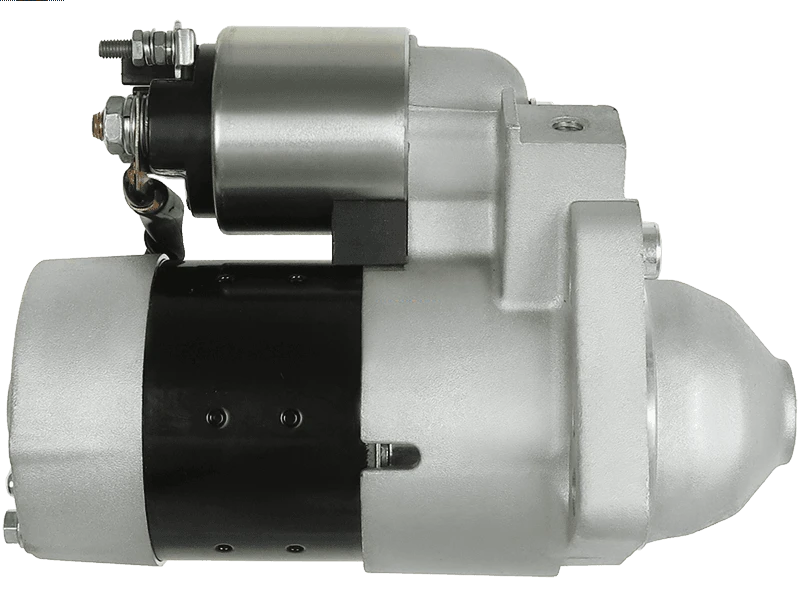

S2025 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	192 mm
Mount Hole Center - Center (O.1)	125 mm
Mount Hole Center - Center (O.2)	55 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	9 mm
Rotation	CW
Spigot Diameter (A)	68 mm
Unit Type	HITACHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
RENAULT	Espace 3.5	[V4Y]	09.2002-05.2006
RENAULT	Espace 3.5 V6	[V4Y711]	11.2002-
RENAULT	Espace 3.5 V6	[V4Y715]	11.2002-
RENAULT	Grand Espace 3.5 V6	[V4Y711]	11.2002-
RENAULT	Grand Espace 3.5 V6	[V4Y715]	11.2002-
RENAULT	Vel Satis 3.5	[V4Y]	05.2005-12.2009
RENAULT	Vel Satis 3.5	[V4Y715]	10.2004-
RENAULT	Vel Satis 3.5 V6	[V4Y701]	06.2002-
RENAULT	Vel Satis 3.5 V6	[V4Y711]	06.2002-
RENAULT	Vel Satis 3.5 V6	[V4Y715]	06.2002-

Reference Information

570.559.113.265 570.559.113.088 8200688839 STH3877 LRS2617 EAA-121550 20445951OE S114-877 DRS0739 PRSS449 8200730813 11924 STR72206 115686 570.559.113.270 LRS02617 88214535 7711497355 CGB-54290 3092 STR3203 25-4290 CST20159GS 8200126298A 8200395438 STRS449 6020159.1 S114-877D 336320 254355 570.559.113.080 S114-877C S114-877B MAV221590 S114-877A 8200126298

Video/Publications

20445951OE 254355 6020159 8200126298 CST20159GS S114-877 S114-877C
