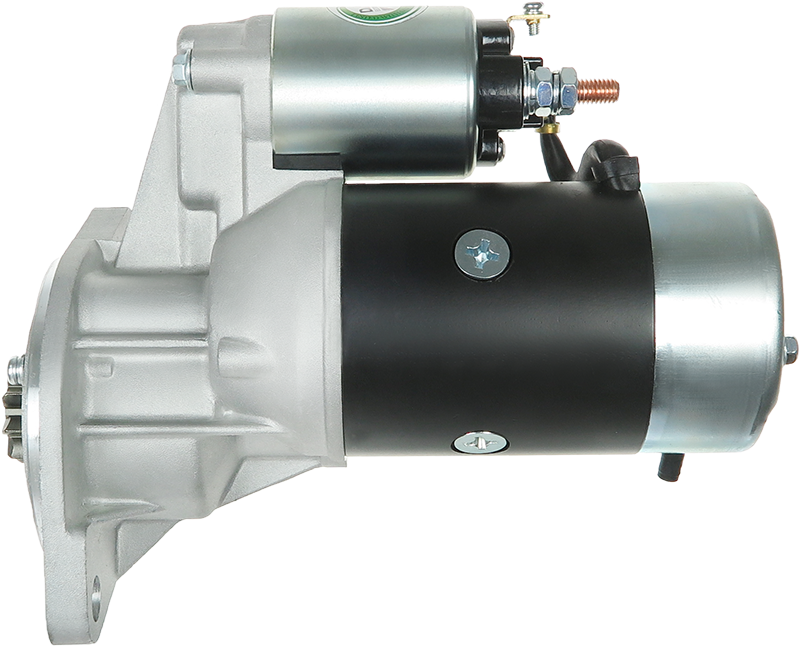

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 395.43 including GST
NZ$ 343.85 excluding GST
or four payments of $98.86
with
Learn More
each
S2006
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
S13289Associated Numbers
110820 18067N 20445311BN 20445311OE 20513052 20776 22.0776 25-1250 33765 6020113 6020154 8413 88213280 8880280 8941475492 8944299772 8971185420 8971839130 8EA732661-001 CST20113 CST20113AS CST20113ES CST20113GS CST20113OS CST20113RS CST20154 CST20154AS CST20154ES CST20154GS CST20154OS CST20154RS DRS3376 EAA-121528 GP-S2006-A JS776 LRS01198 S13-289 S13-289A S13-89 S13-89A S13-89B S13-89C S13-89D STR72063
S8315 240-22105
Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 230 mm |
| Mount Hole Center - Center (O.1) | 120 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 95 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| THERMO KING | 30 MAX | 01.1979- | |
| THERMO KING | Super | 01.1993- | |
| THERMO KING | Various Models | 01.1993- |
Reference Information
| 003-U110 | ASHIKA |
| 003-U111 | ASHIKA |
| 110820 | CARGO |
| 12948677011 | YANMAR |
| 18067N | WAI / TRANSPO |
| 20445311BN | REAL |
| 20445311OE | REAL |
| 20776 | KUHNER |
| 22.0776 | LAUBER |
| 25-1250 | ELSTOCK |
| 335626 | LOGISTIK |
| 33765 | EAI |
| 3U110 | JAPKO |
| 3U111 | JAPKO |
| 6020113 | SANDO |
| 6020154 | SANDO |
| 8413 | CEVAM |
| 88213280 | POWERMAX |
| 8880280 | FRIESEN |
| 8941475492 | ISUZU |
| 8944299770 | ISUZU |
| 894429-9770 | ISUZU |
| 8944299771 | ISUZU |
| 894429-9771 | ISUZU |
| 8944299772 | ISUZU |
| 8971185420 | ISUZU |
| 8971839130 | ISUZU |
| 8972286640 | ISUZU |
| 8EA732661-001 | HELLA |
| ANM15596X | ANDEL |
| C11H382684 | YANMAR |
| CGB-23000 | AINDE |
| CST20113 | CASCO |
| CST20113AS | CASCO |
| CST20113ES | CASCO |
| CST20113GS | CASCO |
| CST20113OS | CASCO |
| CST20113RS | CASCO |
| CST20154 | CASCO |
| CST20154AS | CASCO |
| CST20154ES | CASCO |
| CST20154GS | CASCO |
| CST20154OS | CASCO |
| CST20154RS | CASCO |
| DRS3376 | DELCO |
| F032110820 | CARGO |
| GP-S2006-A | GPARTS |
| JS776 | HC PARTS |
| LRS01198 | LUCAS |
| LRS1198 | LUCAS |
| MAV221540 | SIOM |
| MAV5020 | SIOM |
| MTU110 | JAPANPARTS |
| MTU111 | JAPANPARTS |
| S1289 | HITACHI |
| S12-89 | HITACHI |
| S12HT0510A2 | SIDAT |
| S13207 | HITACHI |
| S13207A | HITACHI |
| S13-207A | HITACHI |
| S13207B | HITACHI |
| S13207C | HITACHI |
| S13-207C | HITACHI |
| S13211 | HITACHI |
| S13-211 | HITACHI |
| S13-289 | HITACHI |
| S13-289A | HITACHI |
| S13-89 | HITACHI |
| S13-89A | HITACHI |
| S13-89B | HITACHI |
| S13-89C | HITACHI |
| S13-89D | HITACHI |
| S2006 | AS-PL |
| STR3154 | ELECTROLOG |
| STR72063 | WOODAUTO |
| STRL263 | 3EFFE |
| STX200862 | STARDAX |
Video/Publications
