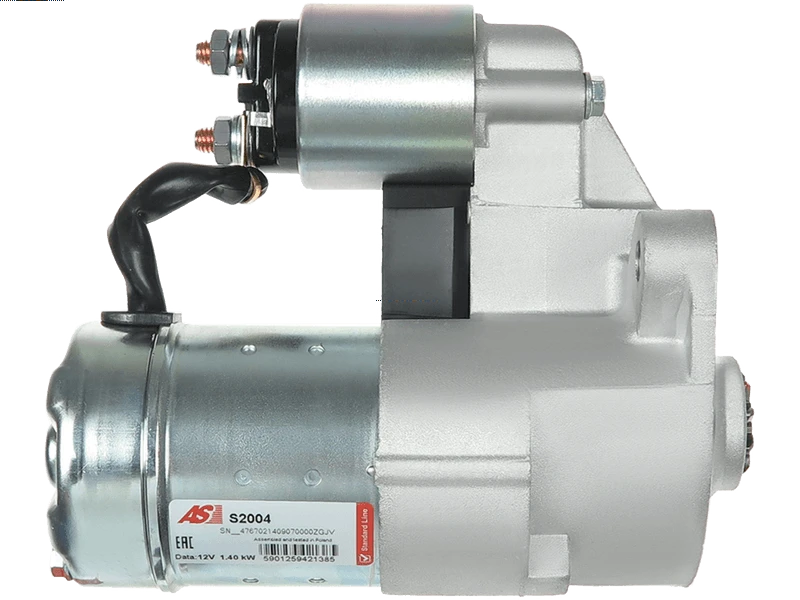

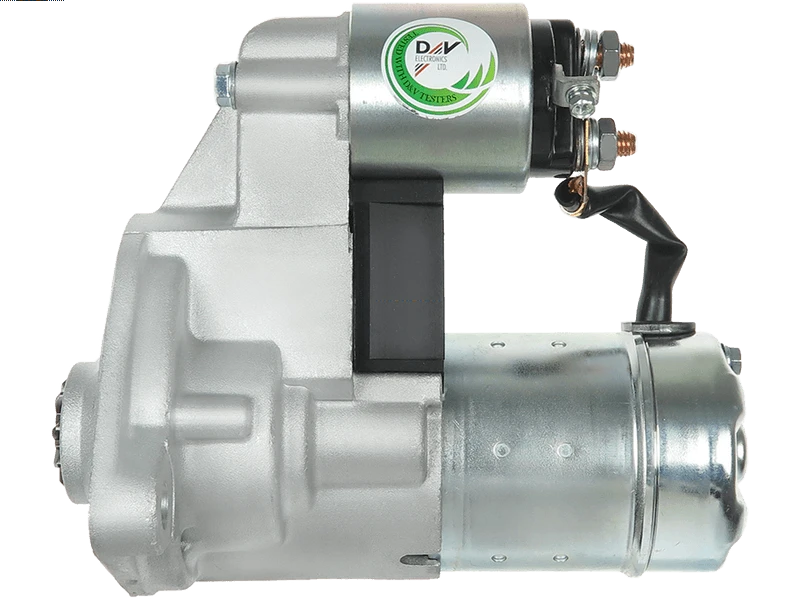

S2004 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 262.65 including GST

NZ$ 228.39 excluding GST
each
S2004
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0986018321 111534 11666 1202026 1202033 1202161 18279R 20445101BN 20445101OE 20500974 20651 20941 22.0941 22.0941M 25-2097 42114850 455886 455887 6020101 8080017 88212977 8971333690 8971333691 8971333692 8971502030 8EA011610-921 8EA737186-001 9119793 97133369 97150203 9742 AES9174 CST20101 CST20101AS CST20101ES CST20101GS CST20101OS CST20101RS DRS3394 DRS3394N EAA-121011 JS941 LRS00974 R1040032 RNLS114-850 S114-850 S114-850A S114-850B S114-850C S2004 SS715 STR72019 18279N
Kilowatt1.4 kW
Length (L.1)189 mm
Mount Hole Center - Center (O.1)118 mm
Mount Hole Diameter (C.1)M12x1.75 mm
Mount Hole Diameter (C.2)10.5 mm
No./Mount holes2 qty
No./Mount holes with thread1 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)19 mm
RotationCW
Spigot Diameter (A)78 mm
Unit TypeHITACHI
Voltage12 V
Make Model Type Year
OPEL Combo 1.7 Diesel [17D(4EE1)] 07.1994-10.2001
OPEL Combo 1.7 Diesel [X17D(4EE1)] 04.1996-10.2001
OPEL Corsa A 1.5 Diesel [15D(4EC1)] 06.1987-03.1993
OPEL Corsa B 1.5 Diesel [15D(4EC1)] 03.1993-09.2000
OPEL Corsa B 1.5 TD [15DT(T4EC1)] 03.1993-09.2000
OPEL Corsa B 1.5 TD [X15DT(T4EC1)] 04.1996-09.2000
OPEL Corsa B 1.7 Diesel [17D(4EE1)] 02.1996-09.2000
OPEL Corsa B 1.7 Diesel [17D(4EE1)] 08.1999-09.2000
OPEL Corsa B 1.7 Diesel [X17D(4EE1)] 02.1996-09.2000
VAUXHALL Belmont 1.5 DT [15DT] 01.1987-08.1989
VAUXHALL Combo 1.7 Diesel [17D(4EE1)] 07.1994-
VAUXHALL Combo 1.7 Diesel [X17D(4EE1)] 04.1996-
VAUXHALL Corsa B 1.5 Diesel [15D] 09.1994-09.2000
VAUXHALL Corsa B 1.5 TD [15DT(T4EC1)] 03.1993-10.1996
VAUXHALL Corsa B 1.5 TD [X15DT(T4EC1)] 04.1996-10.1996
VAUXHALL Corsa B 1.7 Diesel [17D] 09.1994-09.2000
VAUXHALL Corsa B 1.7 Diesel [X17D] 04.1996-09.2000
VAUXHALL Corsavan 1.7 Diesel [17D(4EE1)] 01.1994-09.2000
VAUXHALL Corsavan 1.7 Diesel [17D(4EE1)] 03.1993-09.2000
VAUXHALL Corsavan 1.7 Diesel [X17D(4EE1)] 01.1994-09.2000
VAUXHALL Corsavan 1.7 Diesel [X17D(4EE1)] 04.1996-09.2000
VAUXHALL Nova A 1.5 Diesel [15D] 09.1987-03.1993
VAUXHALL Novavan 1.5 Diesel [15D(4EC1)] 01.1991-10.1994
20445101BN CST20101OS 130.506.092.086 20651 SS715 130.506.092.080 9742 CST20101GS 8-91150-203-0 130.506.092.088 EAA-121011 S114-850B S114-850A S114-850E S114-890A 20445101OE S114-850D 8080017 S114-850C LRS00974 88212977 11666 42114850 3U954 MAV5100 CGB-23394 CST20101RS R1040024 22.0941M 6020101 18279N 130.506.092.550 1202026 20500974 20941 18279R 1202146 1202021 JS941 STR72019 CST20101AS 8EA011610-921 000986018321 S2004 STR3040 DRS3394 5020075 S114-890 111534 S114890 S114-850 CST20101ES 130.506.092.265 R1040032 2170 2506918 1202033 CST20101 8-91133-369-1 8971333690 DRS3394N 8971333692 8911333691 8971333691 22.0941 455887 25-2097 455886 ANM15614X 94454891 STA0121R RNLS114-850 SX MTU954 9512269 220048 S114912B 003-U954 8911502030 LRS974 STRL072 335791 1202161 986018321 9119797 8EA737186-001 AES9174 9119793 8971502030 97133369 97150203
003-U954 0986018321 111534 11666 1202026 1202033 1202161 18279N 18279R 20445101BN 20445101OE 20500974 20651 20941 22.0941 22.0941M 25-2097 3U954 42114850 455886 455887 6020101 8080017 88212977 8971333690 8971333691 8971333692 8971502030 8EA011610-921 8EA737186-001 9119793 9742 AES9174 CGB-23394 CST20101 CST20101AS CST20101ES CST20101GS CST20101OS CST20101RS DRS3394 DRS3394N EAA-121011 JS941 LRS00974 LRS974 MAV5100 MTU954 R1040032 RNLS114-850 S114-850A S114-850B S114-850C S2004 SS715 STR72019 STRL072 SX 2170 220048
