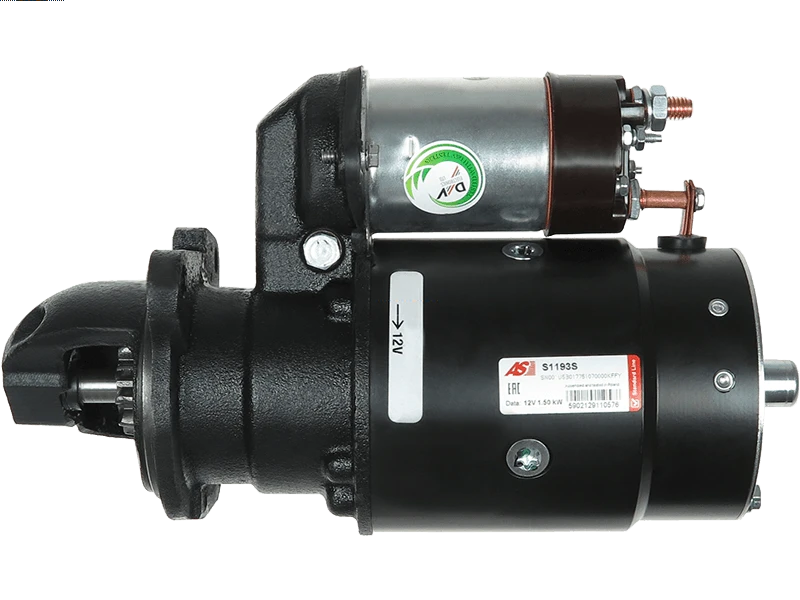

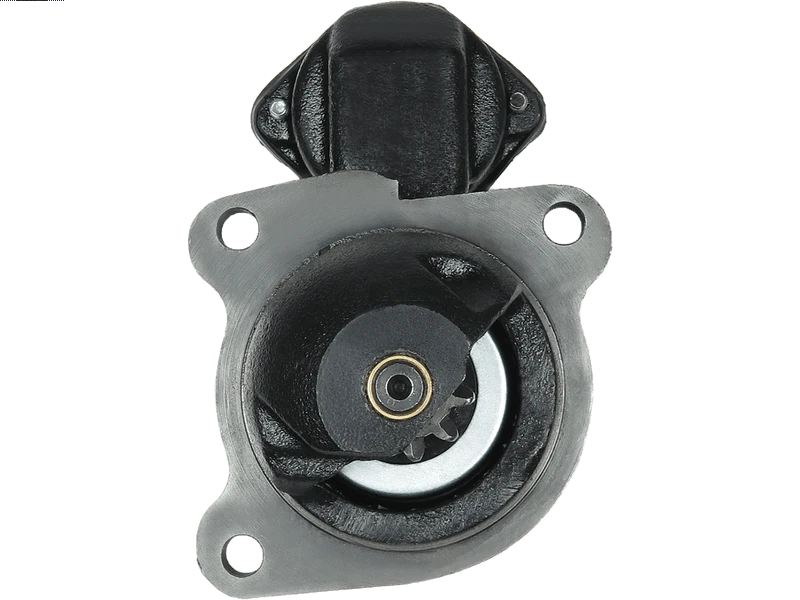

S1193S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 514.03 including GST

NZ$ 446.98 excluding GST
each
S1193S
No stock in NZ
No stock in NZ
1998207 1998208 1998325 1998326 1998485 UD16553S 7N7665 7N8064 140-10159 STD1872 TS-1557 201-10106
Kilowatt1.5 kW
Length (L.1)306 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
Pinion at Rest (B)22 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeDELCO
Voltage12 V
Make Model Type Year
CATERPILLAR T100C [1404] 01.1979-12.1981
CATERPILLAR T120C [1404] 01.1979-12.1981
CATERPILLAR T30B [1404] 01.1979-12.1981
CATERPILLAR T30C [1404] 01.1979-12.1981
CATERPILLAR T35B [1404] 01.1979-12.1981
CATERPILLAR T35C [1404] 01.1979-12.1981
CATERPILLAR T40B [1404] 01.1979-12.1981
CATERPILLAR T40C [1404] 01.1979-12.1981
CATERPILLAR T45B [1404] 01.1979-12.1981
CATERPILLAR T45C [1404] 01.1979-12.1981
CATERPILLAR T50B [1404] 01.1979-12.1981
CATERPILLAR T50C [1404] 01.1979-12.1981
CATERPILLAR T55B [1404] 01.1979-12.1981
CATERPILLAR T55C [1404] 01.1979-12.1981
CATERPILLAR T60B [1404] 01.1979-12.1981
CATERPILLAR T60C [1404] 01.1979-12.1981
CATERPILLAR T70C [1404] 01.1979-12.1981
CATERPILLAR T80C [1404] 01.1979-12.1981
CATERPILLAR T90C [1404] 01.1979-12.1981
CATERPILLAR TC60C [1404] 01.1979-12.1981
CATERPILLAR V30C [1404] 01.1979-12.1981
CATERPILLAR V35C [1404] 01.1979-12.1981
CATERPILLAR V40C [1404] 01.1979-12.1981
CATERPILLAR V41 [F-163] 01.1979-12.1981
CATERPILLAR V45C [1404] 01.1979-12.1981
CATERPILLAR V50C [1404] 01.1979-12.1981
CATERPILLAR V51 [F-227] 01.1979-12.1981
CATERPILLAR V55B [F-227] 01.1979-12.1981
CATERPILLAR V55C [1404] 01.1979-12.1981
CATERPILLAR V60B [F-163] 01.1979-12.1980
CATERPILLAR V60B [F-227] 01.1979-12.1981
TOWMOTOR T30B [1404] 01.1979-12.1980
TOWMOTOR T30B [1404] 01.1981-12.1981
TOWMOTOR T30C [1404] 01.1979-12.1980
TOWMOTOR T30C [1404] 01.1981-12.1981
TOWMOTOR T35B [1404] 01.1979-12.1980
TOWMOTOR T35B [1404] 01.1981-12.1981
TOWMOTOR T35C [1404] 01.1979-12.1980
TOWMOTOR T35C [1404] 01.1981-12.1981
TOWMOTOR T40B [1404] 01.1979-12.1980
TOWMOTOR T40B [1404] 01.1981-12.1981
TOWMOTOR T40C [1404] 01.1979-12.1980
TOWMOTOR T40C [1404] 01.1981-12.1981
TOWMOTOR T45B [1404] 01.1979-12.1980
TOWMOTOR T45B [1404] 01.1981-12.1981
TOWMOTOR T45C [1404] 01.1979-12.1980
TOWMOTOR T45C [1404] 01.1981-12.1981
TOWMOTOR T50B [1404] 01.1979-12.1980
TOWMOTOR T50B [1404] 01.1981-12.1981
TOWMOTOR T50C [1404] 01.1979-12.1980
TOWMOTOR T50C [1404] 01.1981-12.1981
TOWMOTOR T55B [1404] 01.1979-12.1980
TOWMOTOR T55B [1404] 01.1981-12.1981
TOWMOTOR T55C [1404] 01.1979-12.1980
TOWMOTOR T55C [1404] 01.1981-12.1981
TOWMOTOR T60B [1404] 01.1979-12.1980
TOWMOTOR T60B [1404] 01.1981-12.1981
TOWMOTOR T60C [1404] 01.1981-12.1981
TOWMOTOR TC60C [1404] 01.1979-12.1980
TOWMOTOR V30C [1404] 01.1979-12.1980
TOWMOTOR V30C [1404] 01.1981-12.1981
TOWMOTOR V35C [1404] 01.1979-12.1980
TOWMOTOR V35C [1404] 01.1981-12.1981
TOWMOTOR V40C [1404] 01.1979-12.1980
TOWMOTOR V40C [1404] 01.1981-12.1981
TOWMOTOR V41 [F-227] 01.1981-12.1981
TOWMOTOR V45C [1404] 01.1979-12.1980
TOWMOTOR V45C [1404] 01.1981-12.1981
TOWMOTOR V50C [1404] 01.1979-12.1980
TOWMOTOR V50C [1404] 01.1981-12.1981
TOWMOTOR V51 [F-227] 01.1981-12.1981
TOWMOTOR V55B [F-227] 01.1981-12.1981
TOWMOTOR V60B [F-227] 01.1981-12.1981
1998208 1998207 140-10159 1998326 201-10106 STRW310 7N7665 TS-1557 UD16553S 7N8064 STD1872 1998485 21925A 1998325
140-10159 1998207 1998208 1998325 1998326 1998485 201-10106 7N7665 7N8064 STD1872 STRW310 TS-1557 UD16553S
