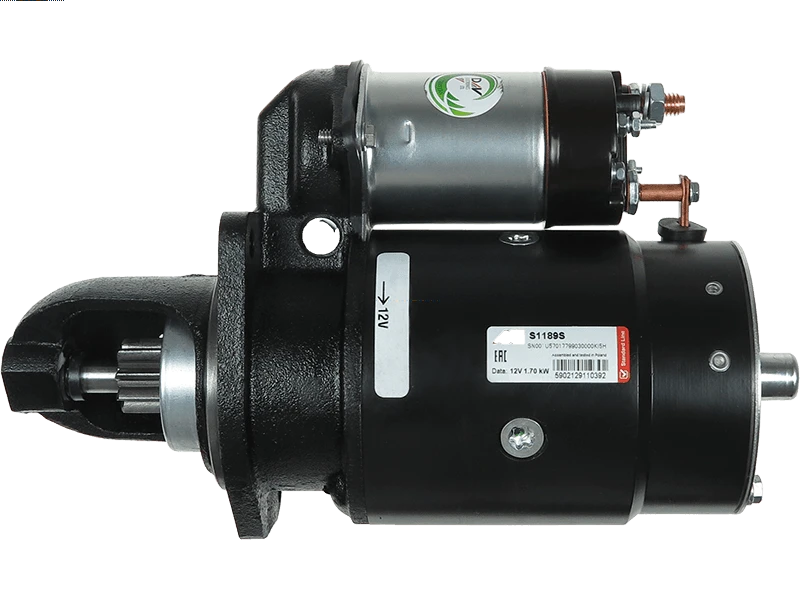

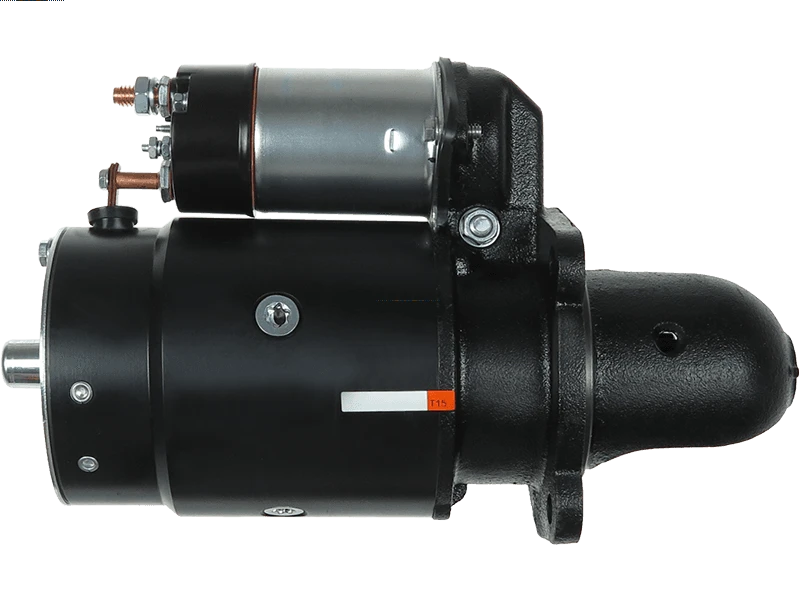

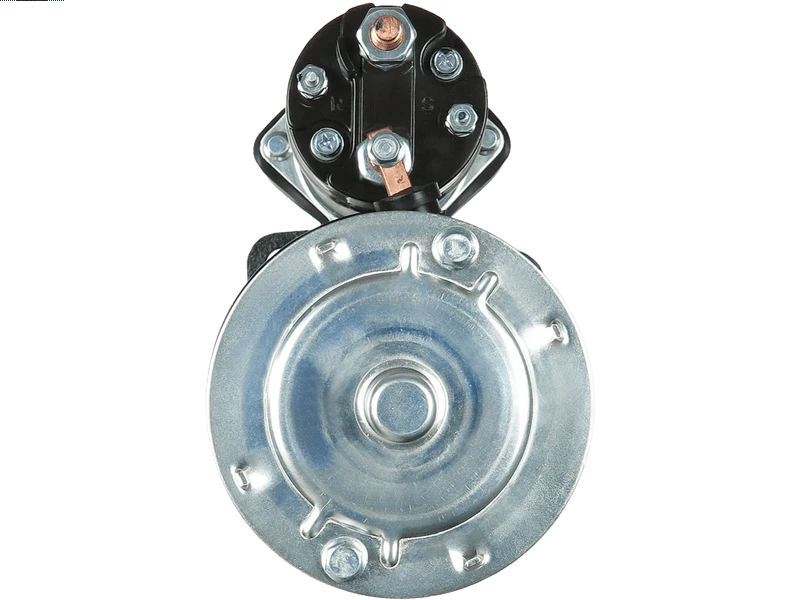

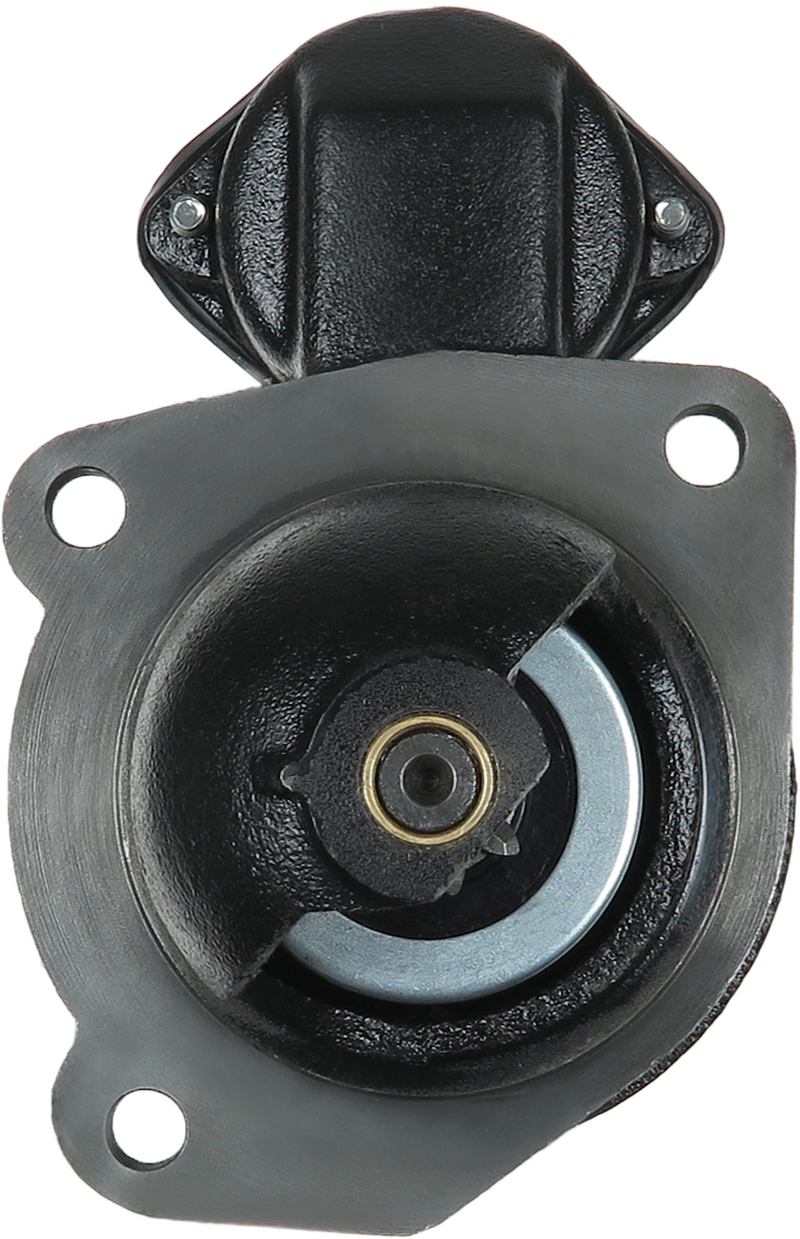

S1189S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	306 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	89.5 mm
Mount Hole Center - Center (O.3)	89.5 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	46 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BOBCAT	443 0.8	[D750]	01.1983-12.1993
BOBCAT	543 1.0	[D950]	01.1982-12.1993
BOBCAT	642	[KSG4161]	01.1981-12.1986

Reference Information

110469 2200073-47 10455304 10465431 10465352 335861 104557A1 STRL264 1998281 UD16549S 10455355 88212653 CST60119AS MAV621190 DZ6233 1108421 3042514 6060119 6671014 6599152 1335325 3033925 S1189S STD8833 25-1173 201-10113 1107203 2200073-67 140-10164 6658841 8EA730-311-001 LRS01173 DRZ5123 STR2209 STR20021 640.013.093 20409911BN 21921A 1998269 8484 LRS1173 1107350 338983 1109093 6658835 US833 TS-1631 3004562 3136105 1998270 3001018 91-01-4247 10455340

Video/Publications

10455304 10455340 10455355 104557A1 10465352 10465431 110469 1107203 1108421 1109093 1335325 140-10164 1998269 1998270 1998281 201-10113 20409911BN 21921A 2200073-47 2200073-67 25-1173 3001018 3004562 3033925 3042514 3136105 335861 6060119.0 640.013.093 6599152 6658835 6658841 6671014 8484 88212653 8EA730-311-001 91-01-4247 CST60119AS DRZ5123 DZ6233 LRS01173 LRS1173 MAV621190 STD8833 STR20021 STRL264 TS-1631 UD16549S US833
