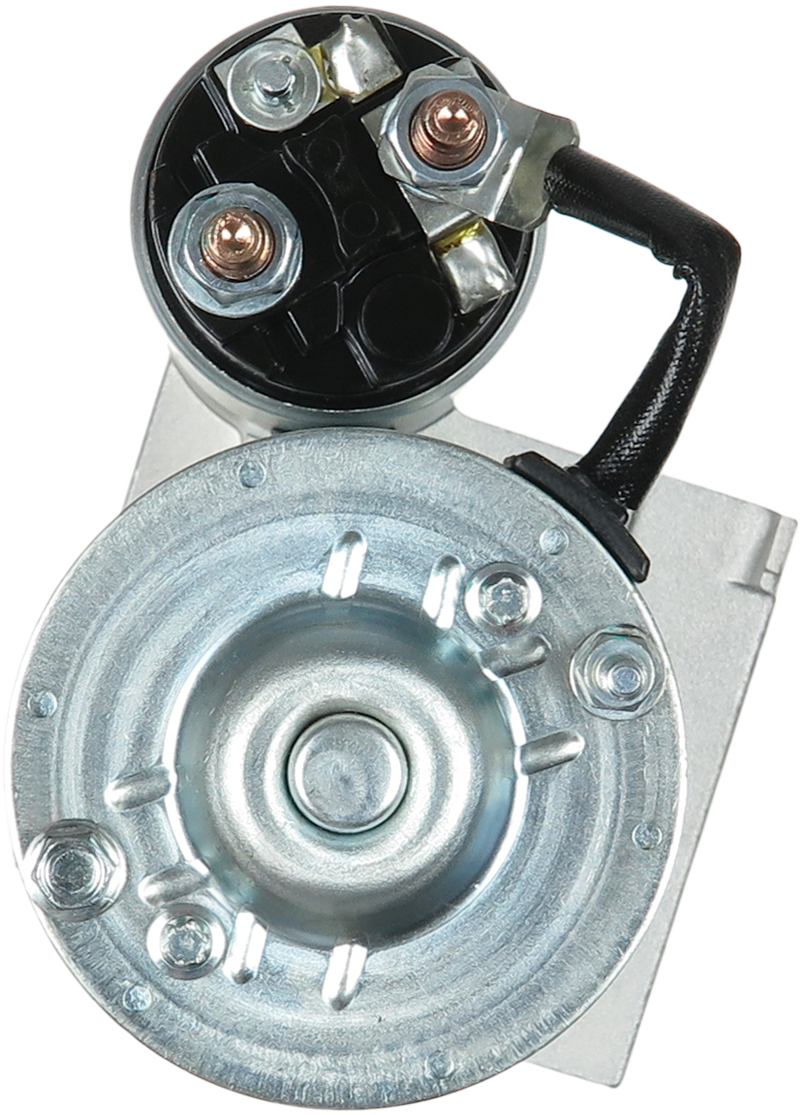

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 253.90 including GST
NZ$ 220.78 excluding GST
or four payments of $63.48
with
Learn More
each
S1183S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
10465578Associated Numbers
101258 10465578 12564108 12570823 140-10450 19136219 201-14104 601029 601240 6449N 6449R 9000879 91-01-4382 91-01-4382N S-1460 S1100R UD20513SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 232 mm |
| Mount Hole Center - Center (O.1) | 83 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 60.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Avalanche 2500 8.1 | 01.2002-12.2002 | |
| CHEVROLET | C3500 8.1 | 01.2002-12.2002 | |
| CHEVROLET | C3500 8.1 | 01.2003-12.2003 | |
| CHEVROLET | Express 1500 5.0 | 01.2002-12.2002 | |
| CHEVROLET | Express 1500 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Express 2500 5.0 | 01.2002-12.2002 | |
| CHEVROLET | Express 2500 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Express 3500 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Express 3500 8.1 | 01.2002-12.2002 | |
| CHEVROLET | P30 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Silverado 2500 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Silverado 2500 HD 8.1 | 01.2002-12.2002 | |
| CHEVROLET | Silverado 3500 8.1 | 01.2002-12.2002 | |
| CHEVROLET | Sonora 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Suburban 1500 5.7 | 01.2002-12.2002 | |
| CHEVROLET | Suburban 2500 8.1 | 01.2002-12.2002 | |
| GMC | Savana 1500 5.0 | 01.2002-12.2002 | |
| GMC | Savana 1500 5.7 | 01.2002-12.2002 | |
| GMC | Savana 2500 5.0 | 01.2002-12.2002 | |
| GMC | Savana 2500 5.7 | 01.2002-12.2002 | |
| GMC | Savana 3500 5.7 | 01.2002-12.2002 | |
| GMC | Savana 3500 8.1 | 01.2002-12.2002 | |
| GMC | Sierra 2500 HD 8.1 | 01.2002-12.2002 | |
| GMC | Sierra 3500 8.1 | 01.2002-12.2002 | |
| GMC | Yukon XL 2500 8.1 | 01.2002-12.2002 |
Reference Information
| 101258 | KUHNER |
| 10465578 | DELCO |
| 12564108 | DELCO |
| 12570823 | DELCO |
| 19136219 | DELCO |
| 201-14104 | DIXIE |
| 601029 | KUHNER |
| 6449N | WAI / TRANSPO |
| 6449NM | WAI / TRANSPO |
| 6449R | WAI / TRANSPO |
| S1100R | PRESTOLITE |
| S1183S | AS-PL |
| S-1460 | DIXIE |
| UD20513S | AS-PL |
Video/Publications
