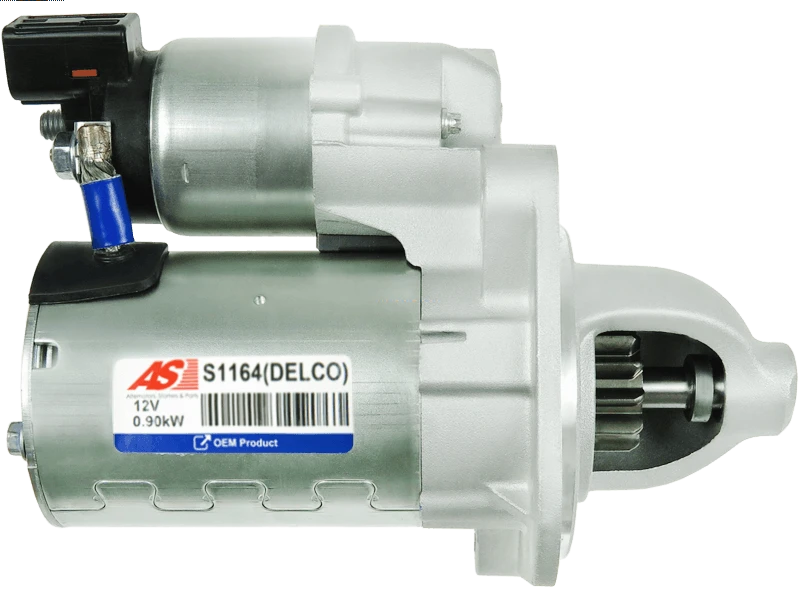

S1164(DELCO) - Brand new OEM DELCO Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	174 mm
Mount Hole Center - Center (O.1)	100 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	11 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Solaris		01.2010-12.2014
HYUNDAI	Solaris
KIA	Rio 1.4 CWT	[G4FA]	09.2011-
KIA	Rio 1.4 CWT	[G4FA]

Reference Information

8000528 CST46132AS M0TD0271ZE 8000708 CST46132GS UD03235S 6046132.1 20460231OE M000TD0271ZE 1204960 361002B110 M000TD0171ZE 36100-2B210 DRS1019 36100-2B220 M0TD0171ZE 36100-2B110 M000TD0271 STD5614 20460231BN 36100-2B604 36100-2B614 6046132 M0TD0271

Video/Publications

25-5013 36100-2B110 36100-2B210 36100-2B220 36100-2B604 36100-2B614 8000528 8000708 DRS1019 LRS03840 LRS3840 M000TD0171ZE M000TD0271 M000TD0271ZE M0TD0171ZE M0TD0271 M0TD0271ZE STD5614 STD5614LC UD03235S
