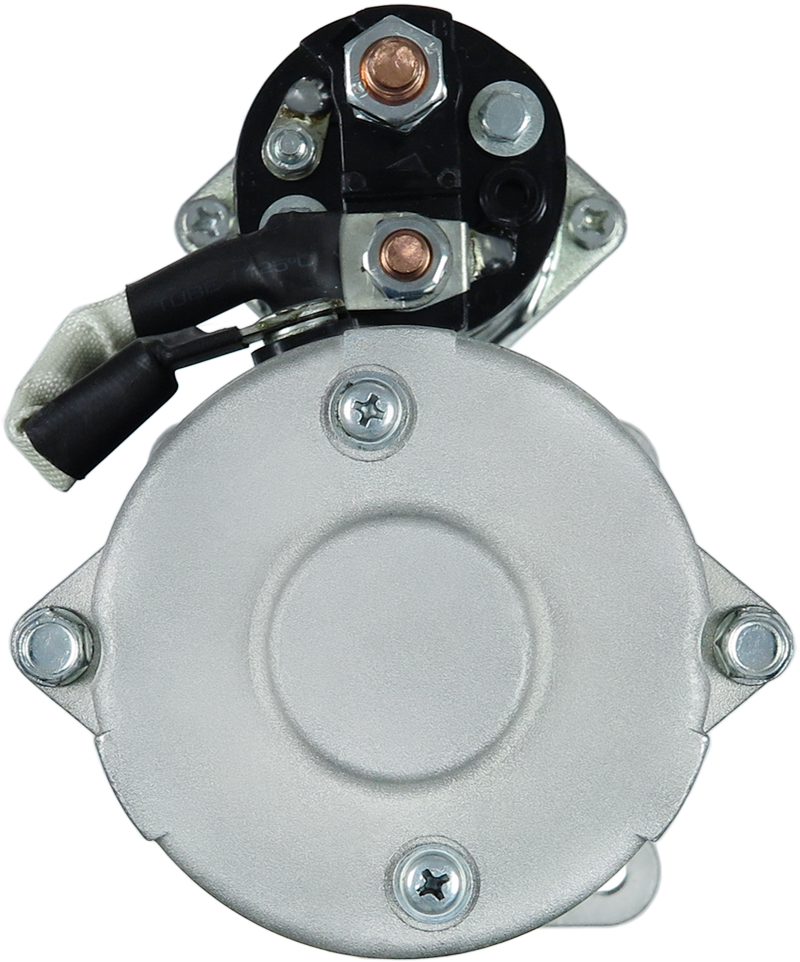

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 483.52 including GST
NZ$ 420.45 excluding GST
or four payments of $120.88
with
Learn More
UOM:
each
Product Code:
S1127
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001230004 0001359095 10465148 10465239 10607 10607D 1113289 35259630 50-8440 5000559361 5010306412 570.018.103 6602N 91-01-4378 TS-1582 UD12393SSpecifications
| Kilowatt | 3 kW |
| Length (L.1) | 338 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MACK | Midliner CS 5.5 | [E3] | 01.1990-12.1999 |
| MACK | Midliner CS 5.5 | E3 | 01.1984-12.1999 |
| MACK | Midliner CS 6.2 | [E3] | 01.1990-12.1999 |
| MACK | Midliner CS 6.2 | E3 | 01.1981-12.2003 |
| MACK | Midliner CS 8.8 | [E5] | 01.1991-12.1996 |
| MACK | Midliner CS 8.8 | E5 | 01.1983-12.1998 |
| MACK | Midliner CS 9.8 | [E5] | 01.1991-12.1996 |
| MACK | Midliner CS 9.8 | E5 | 01.1983-12.1998 |
| MACK | Midliner MS 5.5 | [E3] | 01.1991-12.1999 |
| MACK | MIDLineR MS 5.5 | E3 | 01.1991-12.1999 |
| MACK | Midliner MS 6.2 | [E3] | 01.1991-12.1999 |
| MACK | MIDLineR MS 6.2 | E3 | 01.1991-12.1999 |
| MACK | Midliner MS 8.8 | [E5] | 01.1991-12.1996 |
| MACK | MIDLineR MS 8.8 | E5 | 01.1991-12.1996 |
| MACK | Midliner MS 9.8 | [E5] | 01.1991-12.1996 |
| MACK | MIDLineR MS 9.8 | E5 | 01.1991-12.1996 |
| MACK | Midlum 210 | DCI6-AE | 07.2001-06.2003 |
| RENAULT TRUCKS | G G 170.11 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | G G 170.13 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | G G 170.15 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | G G 170.16 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | G G 170.17 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | G G 170.17 | MIDR06.02.12D | 05.1983-02.1990 |
| RENAULT TRUCKS | MIDLINER S 110.06/A | 797-21 | 06.1985-09.1990 |
| RENAULT TRUCKS | MIDLINER S 110.07/A | 797-21 | 06.1985-09.1990 |
| RENAULT TRUCKS | MIDLINER S 110.08/A | 797-21 | 06.1985-09.1990 |
| RENAULT TRUCKS | MIDLINER S 110.08/A | 797-21 | 06.1985-09.1990 |
| RENAULT TRUCKS | MIDLINER S 130.06 | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.06 | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.07 | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.07 | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/A | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/A | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/A,S 130.08/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/A,S 130.08/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/R | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.08/R | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.09/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.09/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.09/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.09/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11 | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11 | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.11/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.13/B | 797-20 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 130.13/B | 797.23 | 09.1983-01.1990 |
| RENAULT TRUCKS | MIDLINER S 150.08TI | 798-10 | 05.1983-07.1986 |
| RENAULT TRUCKS | MIDLINER S 150.08TI | 798-10 | 05.1983-07.1986 |
| RENAULT TRUCKS | MIDLINER S 150.08TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.08TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.08TI/R | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | 798-10 | 05.1983-07.1986 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | 798-10 | 05.1983-07.1986 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.09TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.11TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.11TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.11TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.11TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.13TI | MIDS06.02.12B | 04.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.13TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.13TI | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 150.14TI BOM | MIDS06.02.12B | 05.1986-09.1990 |
| RENAULT TRUCKS | MIDLINER S 170.11TI | MIDR06.02.12D | 10.1987-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.11TI/R | MIDR06.02.12D | 10.1987-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.11TI/R | MIDR06.02.12D | 10.1987-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.13TI | MIDR06.02.12D | 10.1983-03.1993 |
| RENAULT TRUCKS | MIDLINER S 170.13TI,S 170.13TI/R | MIDR06.02.12D | 10.1983-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.13TI,S 170 SP | MIDR06.02.12D | 10.1983-03.1993 |
| RENAULT TRUCKS | MIDLINER S 170.13TI/T | MIDR06.02.12D | 10.1984-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.14TI | MIDR06.02.12D | 10.1983-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.14TI | MIDR06.02.12D | 10.1983-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.14TI/R | MIDR06.02.12D | 10.1987-05.1989 |
| RENAULT TRUCKS | MIDLINER S 170.15TI | MIDR06.02.12D | 10.1982-09.1993 |
| RENAULT TRUCKS | MIDLUM 180.08/B | MIDR06.02.26V/4 | 01.2000- |
| RENAULT TRUCKS | MIDLUM 180.08/B | MIDR06.02.26V/4 | 01.2000- |
| RENAULT TRUCKS | MIDLUM 180.09/B | MIDR06.02.26V/4 | 01.2000- |
| RENAULT TRUCKS | MIDLUM 180.10/B | MIDR06.02.26V/4 | 01.2000- |
| RENAULT TRUCKS | MIDLUM 180.10/B | MIDR06.02.26V/4 | 01.2000- |
| RENAULT TRUCKS | MIDLUM 180.12/B | MIDR06.02.26V/4 | 01.2000- |
Reference Information
| 0001230004 | BOSCH |
| 0001359095 | BOSCH |
| 10465148 | DELCO |
| 10465239 | DELCO |
| 10607 | KUHNER |
| 10607D | KUHNER |
| 1113289 | DELCO |
| 20419442BN | REAL |
| 220308 | ERA |
| 35259630 | PRESTOLITE |
| 5000559361 | RENAULT |
| 5010306412 | RENAULT |
| 50-8440 | WAI |
| 570.018.103 | WAI |
| 6021244.0 | SANDO |
| 6602N | WAI |
| 91-01-4378 | WILSON |
| CST21244AS | CASCO |
| S133.718 | WAI |
| STR2067 | ELECTROLOG |
| STRF173 | 3EFFE |
| STX200791 | STARDAX |
| TS-1582 | DIXIE |
| UD104850S | AS-PL |
| UD12393S | AS-PL |
