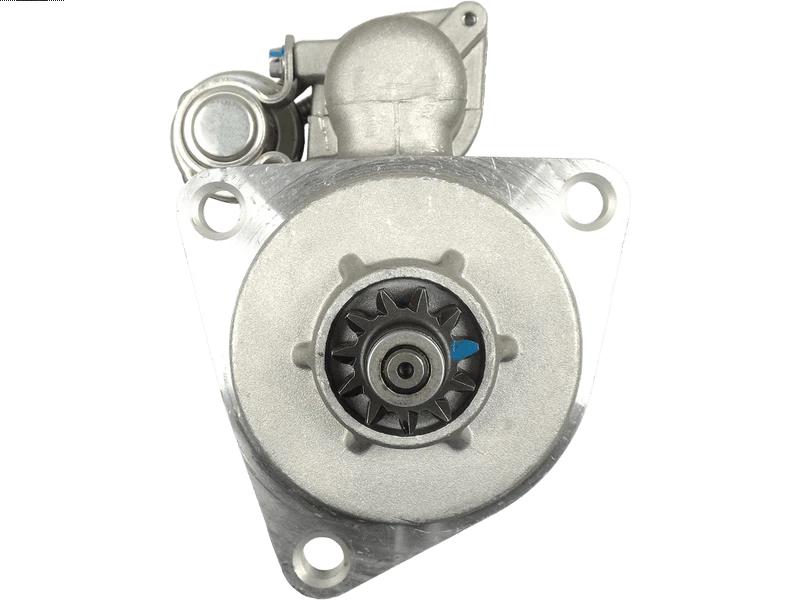

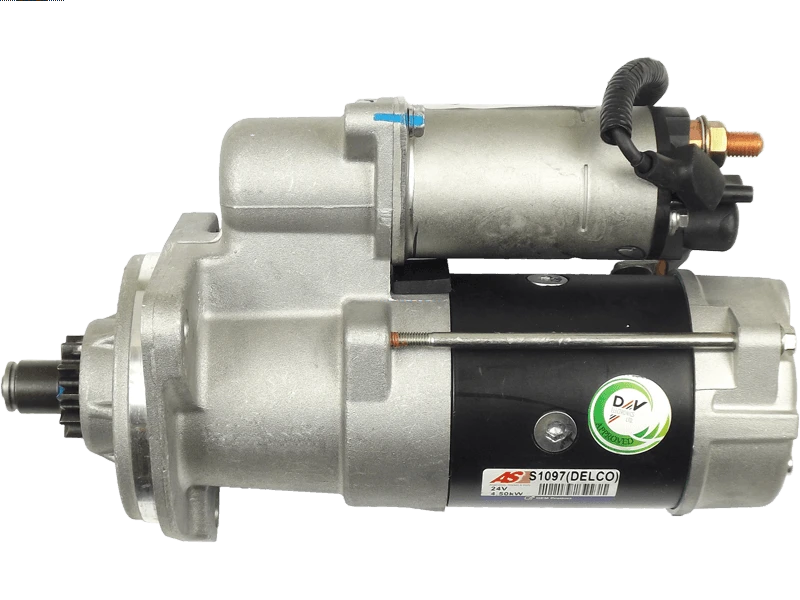

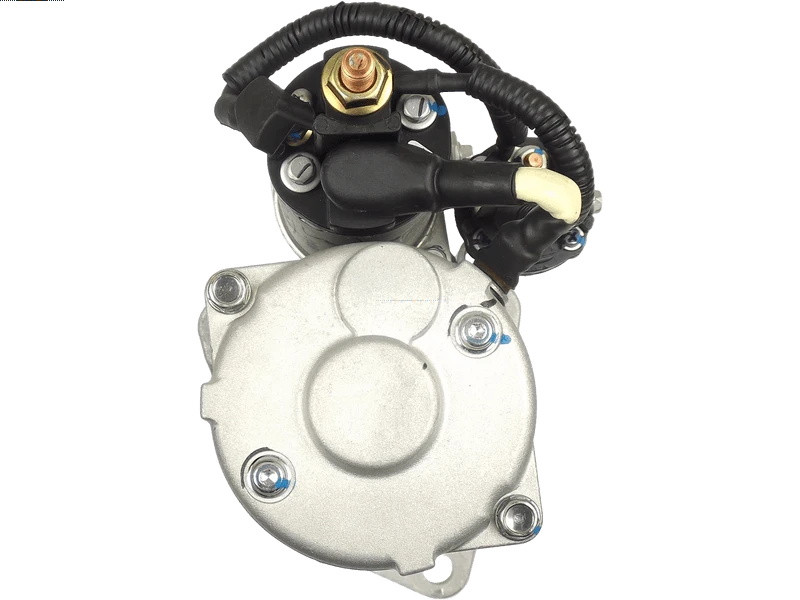

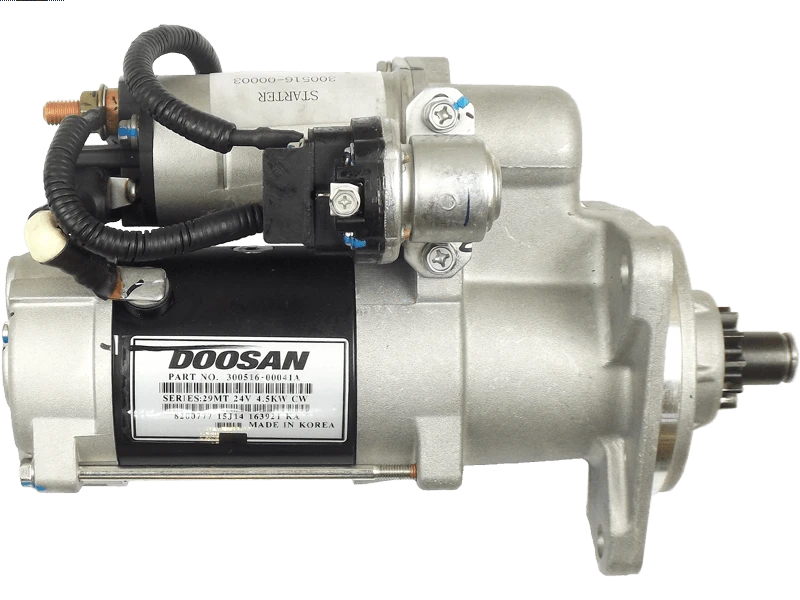

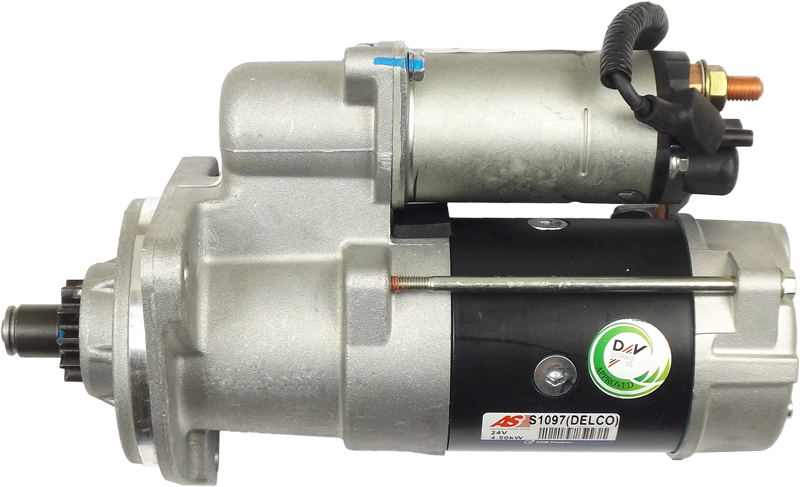

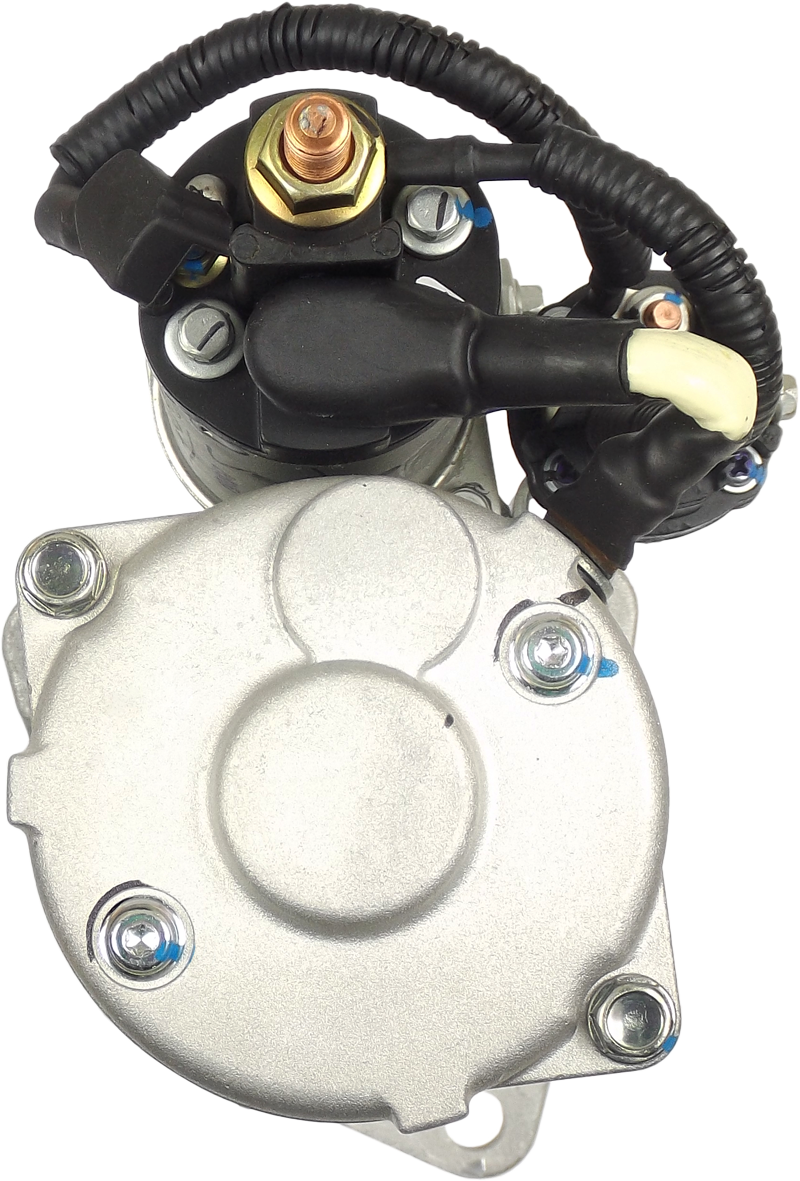

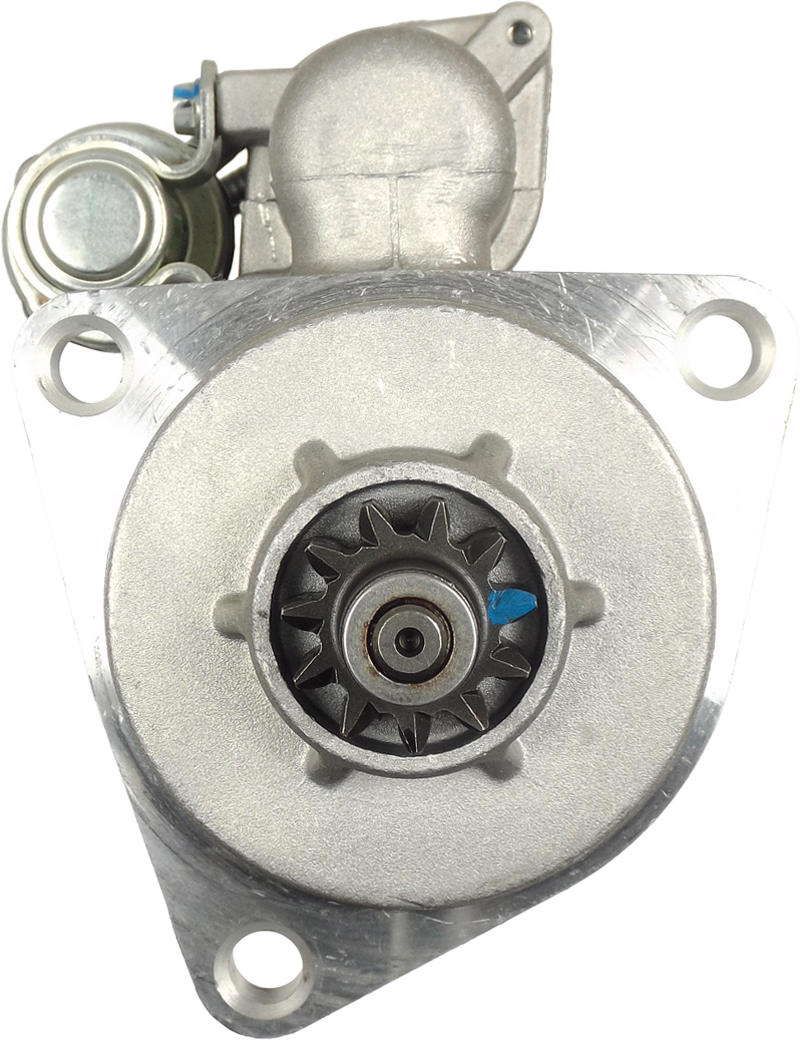

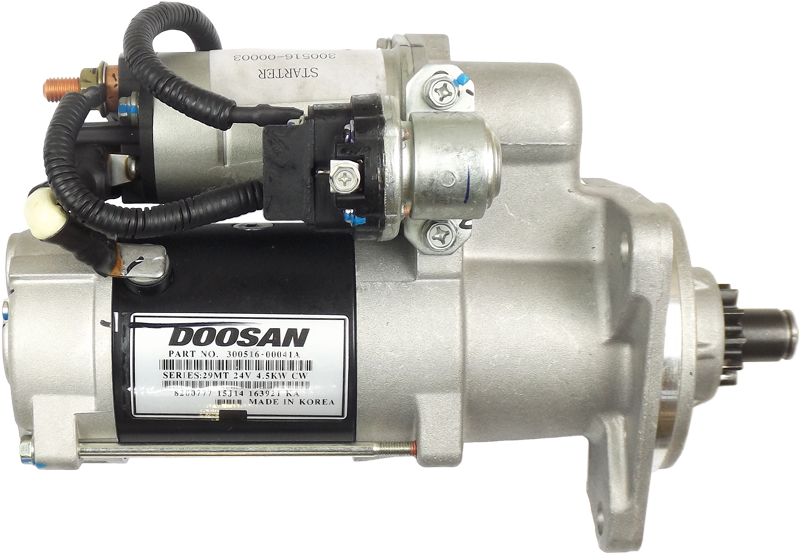

S1097(DELCO) - Brand new OEM DELCO Starter motor

Specifications

Kilowatt	4.5 kW
Length (L.1)	306 mm
Mount Hole Center - Center (O.1)	135 mm
Mount Hole Center - Center (O.2)	111 mm
Mount Hole Center - Center (O.3)	111 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
Mount Hole Diameter (C.3)	12.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	41 mm
Rotation	CW
Spigot Diameter (A)	105 mm
Unit Type	DELCO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CRAWLER	D355S-5
CRAWLER	DH220-5
CRAWLER	DX150
CRAWLER	Solar 140LC-V
CRAWLER	Solar 175LC-V
CRAWLER	Solar 225LC-V
CRAWLER	Solar 255LC-V
DOOSAN	200-V
DOOSAN	250-V YT
DOOSAN	DH215-9
DOOSAN	DX140W TIER-II
DOOSAN	DX225
DOOSAN	Kraan
DOOSAN	Solar 140W-V
DOOSAN	Solar 160W-V
DOOSAN	Solar 180W-V
DOOSAN	Solar 210W-V

Reference Information

S-80294 DS1742 300516-00041 65.26201-7076 STA0013 65.26201-7077 CST46601AS 140-29126 300516-00003 300516-00041A DRS0632N STR80199 65.26201-7077B 200-25201 65.26201-7077D STD5013 254761 6046601 STA5013 65.26201-7077A DRS0632 231.004.113 UD02086S 6046601.1 STM0013 65.26201-7063 254761V 300516-00015 STD7013 STR2717 65.26201-7076A 20460106OE 8200734 STD0013 8200777 CST46601GS STR2197 254761D 19080032 20460106BN

Video/Publications

140-29126 19080032 200-25201 20460106BN 20460106OE 231.004.113 254761 254761D 254761V 300516-00003 300516-00015 300516-00041 300516-00041A 6046601.0 6046601.1 65.26201-7063 65.26201-7076 65.26201-7076A 65.26201-7077 65.26201-7077A 65.26201-7077B 65.26201-7077D 8200734 8200777 CST46601AS CST46601GS DRS0632 DRS0632N DS1742 S-80294 STA0013 STA5013 STD0013 STD5013 STD7013 STM0013 STR80199 UD02086S
