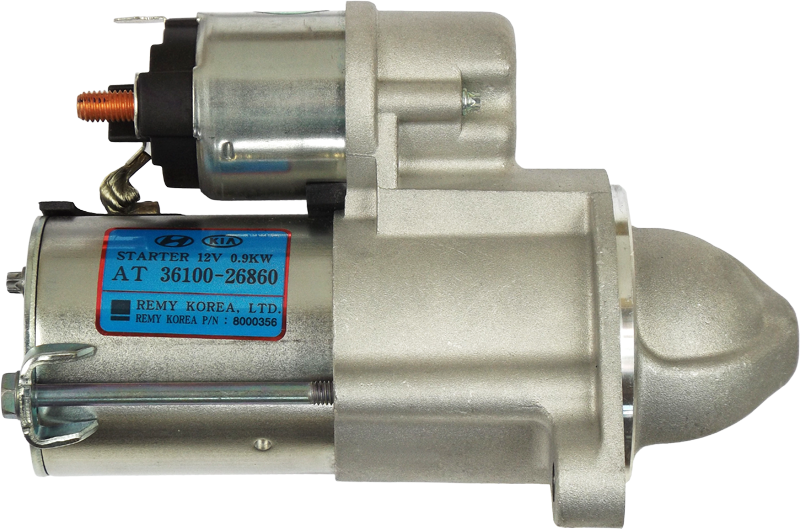

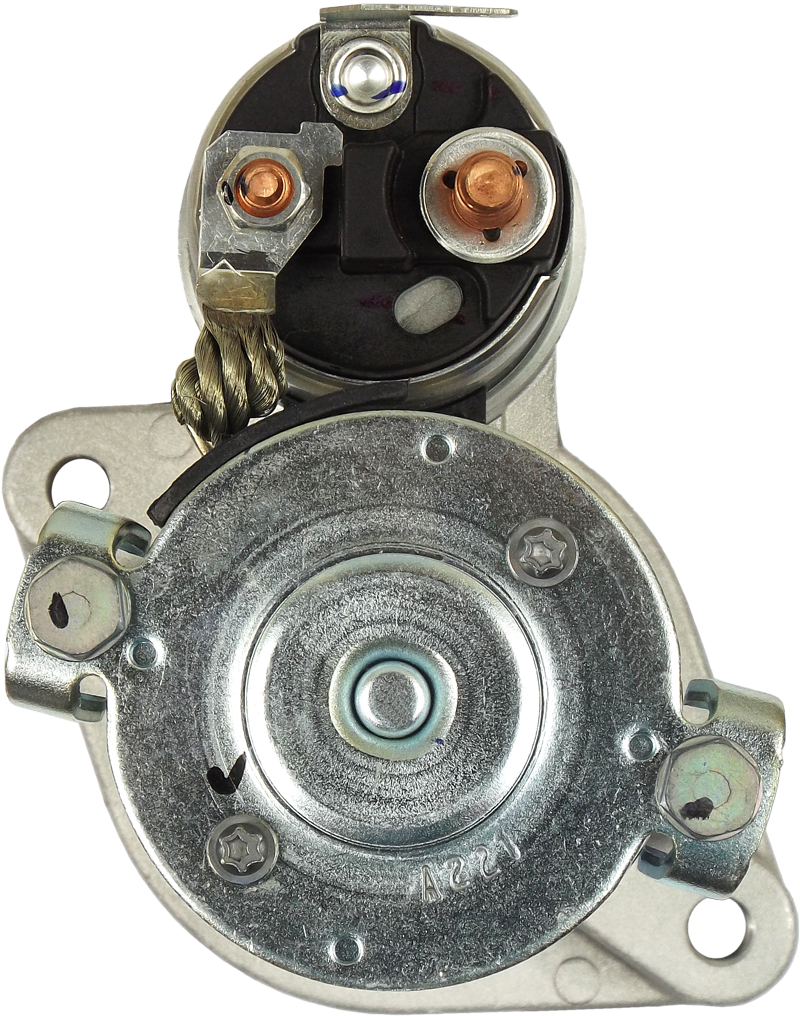

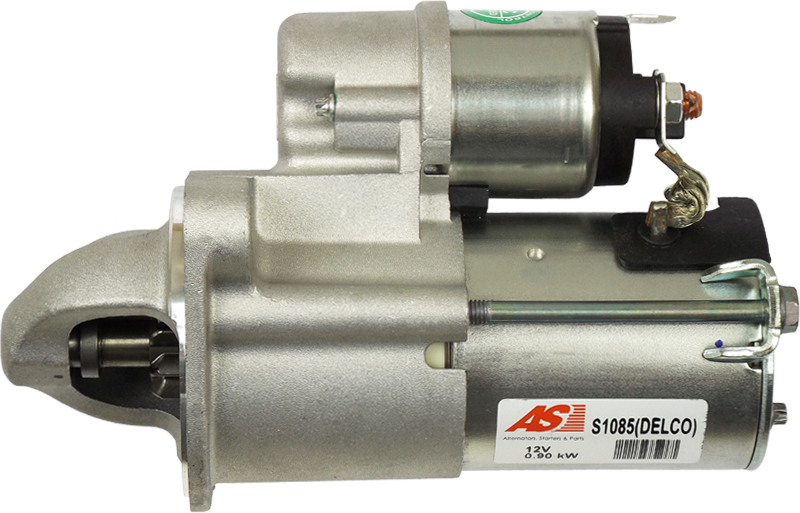

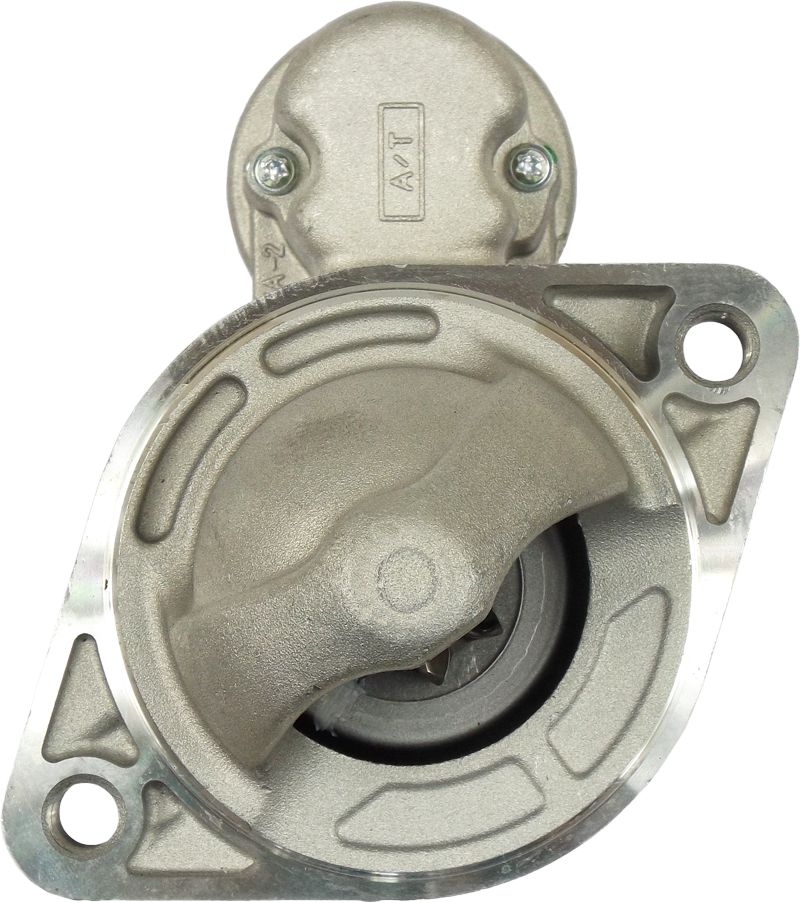

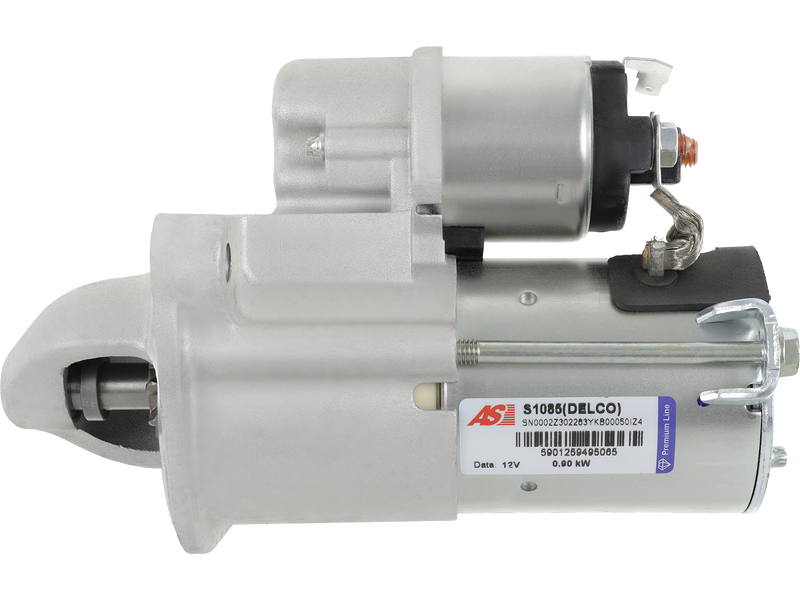

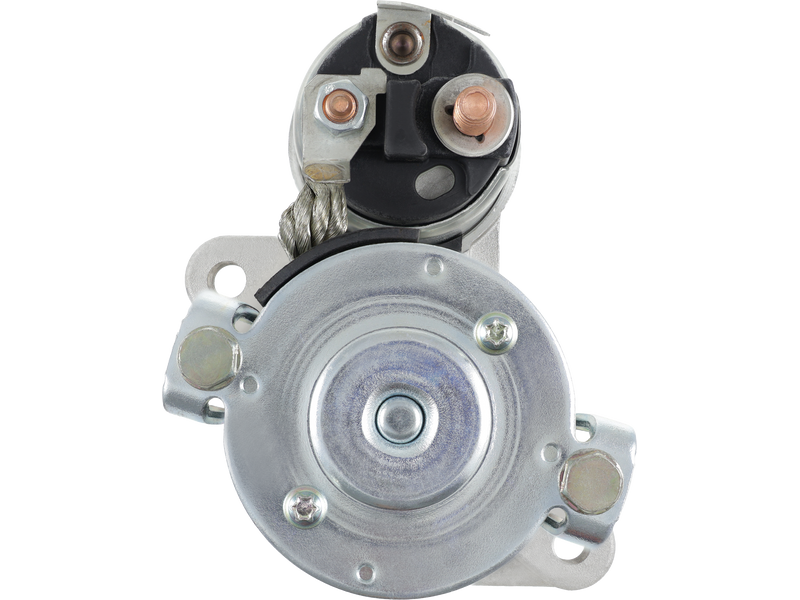

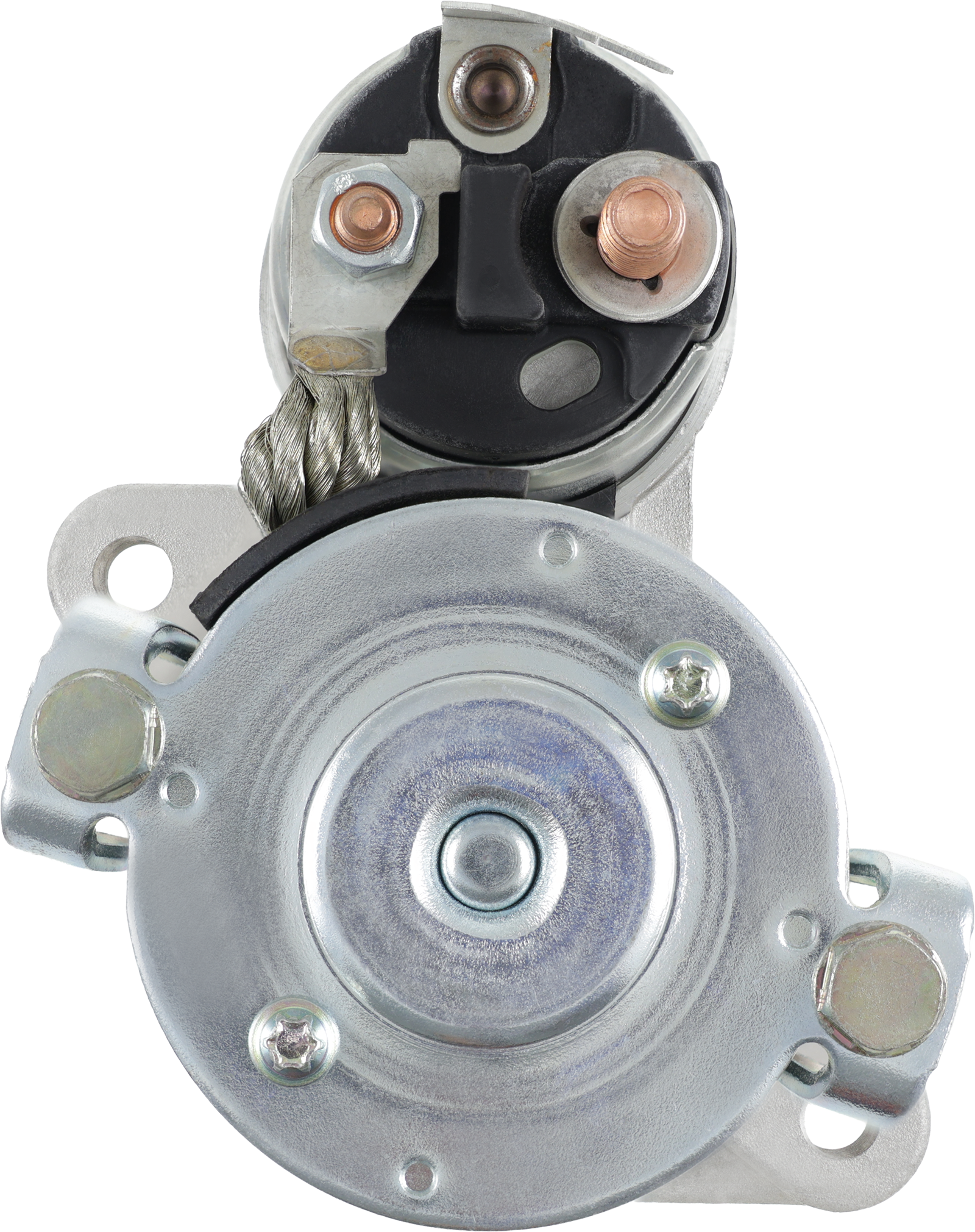

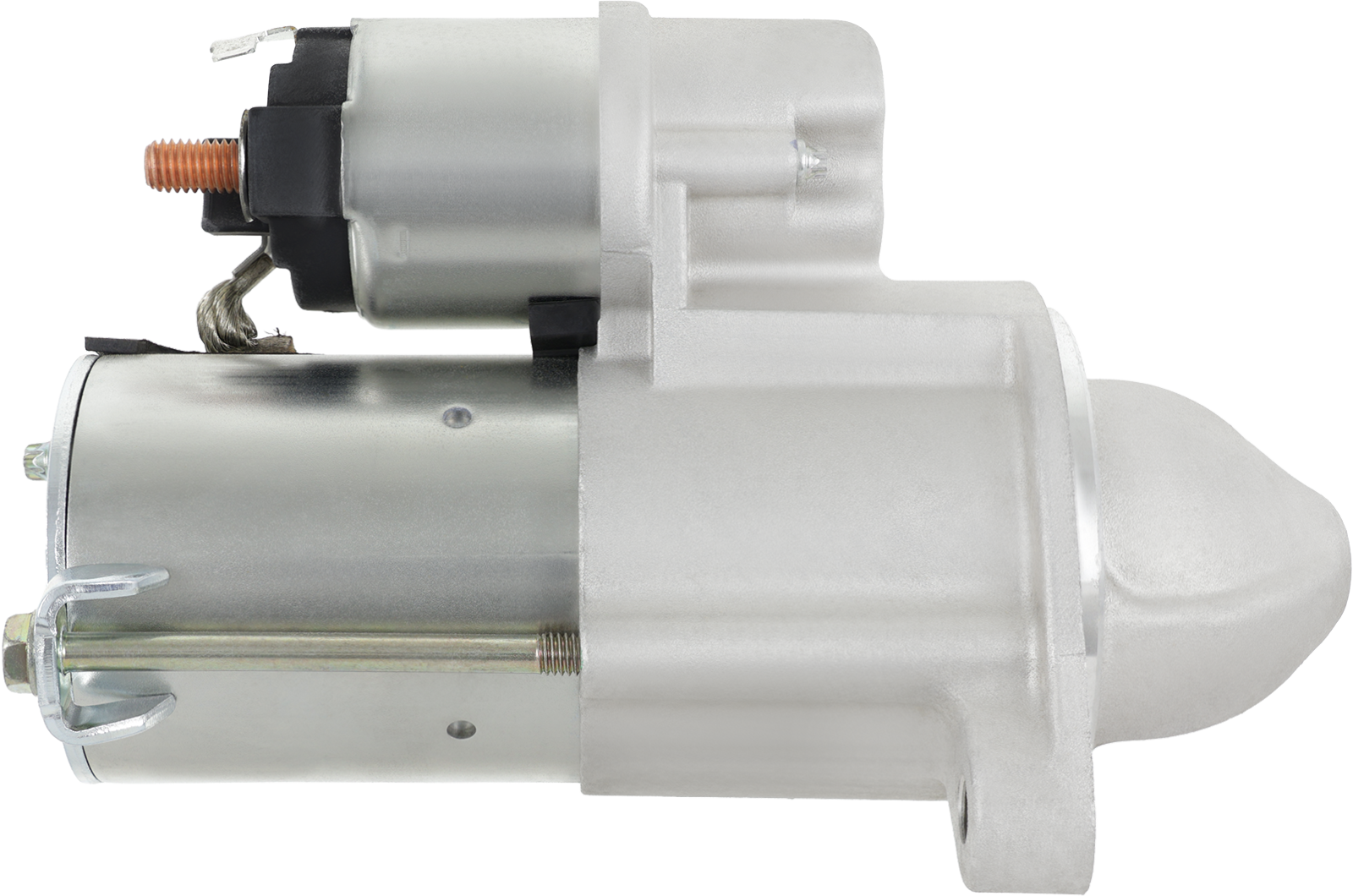

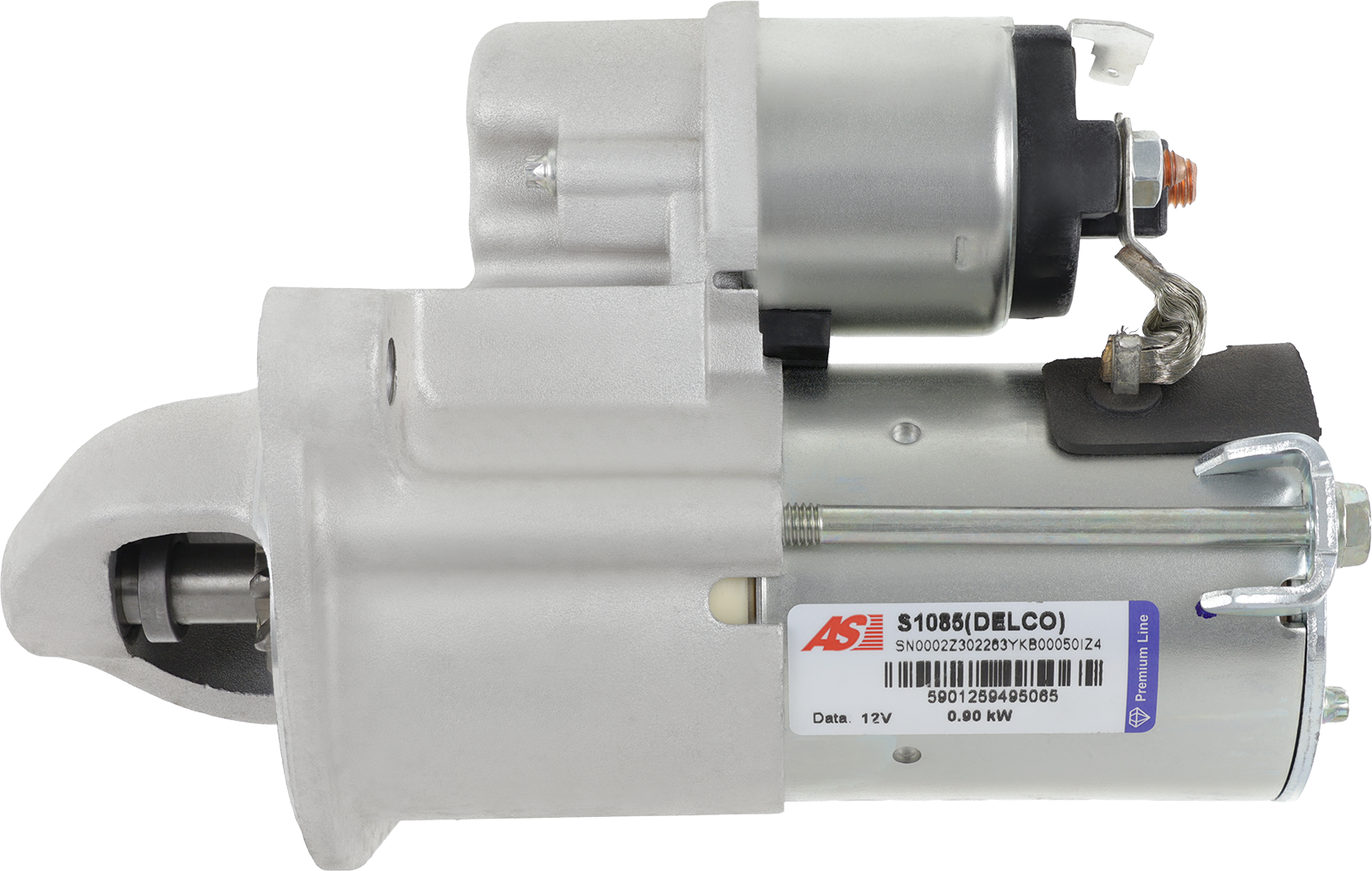

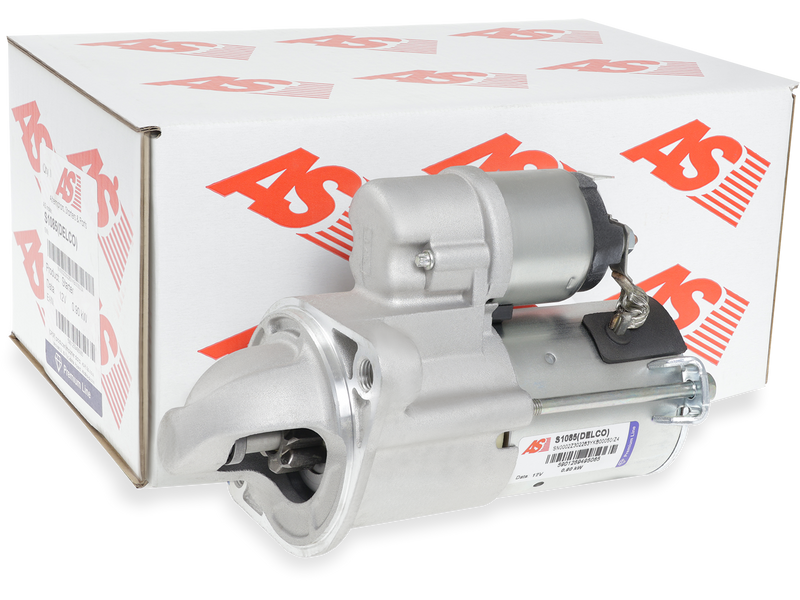

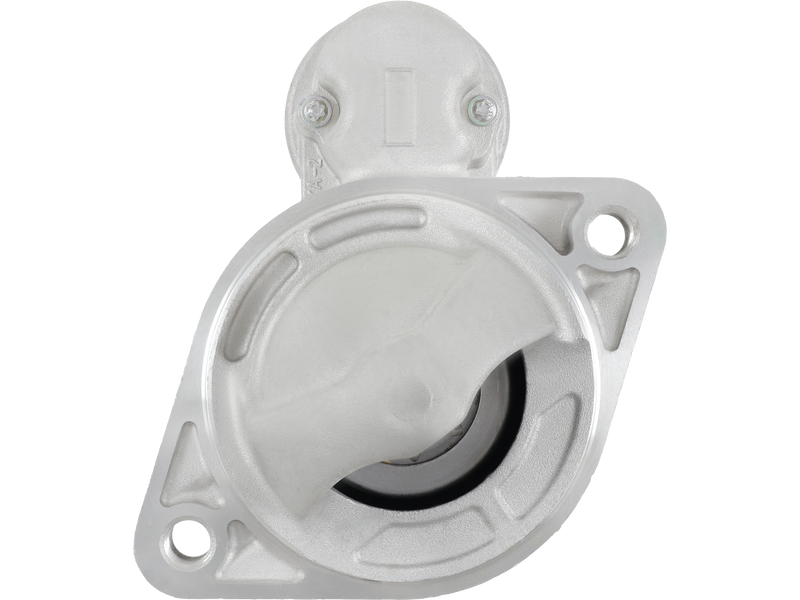

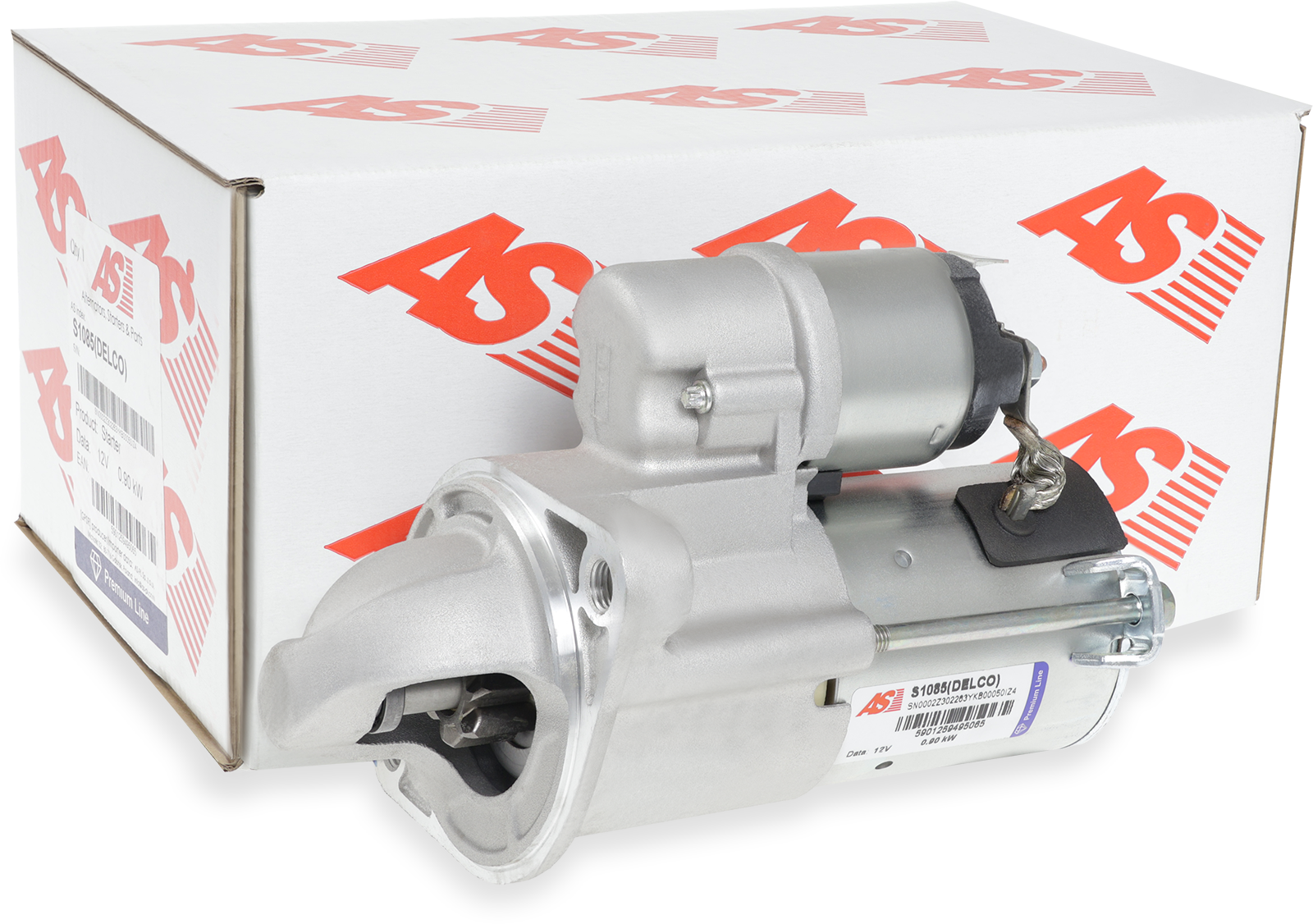

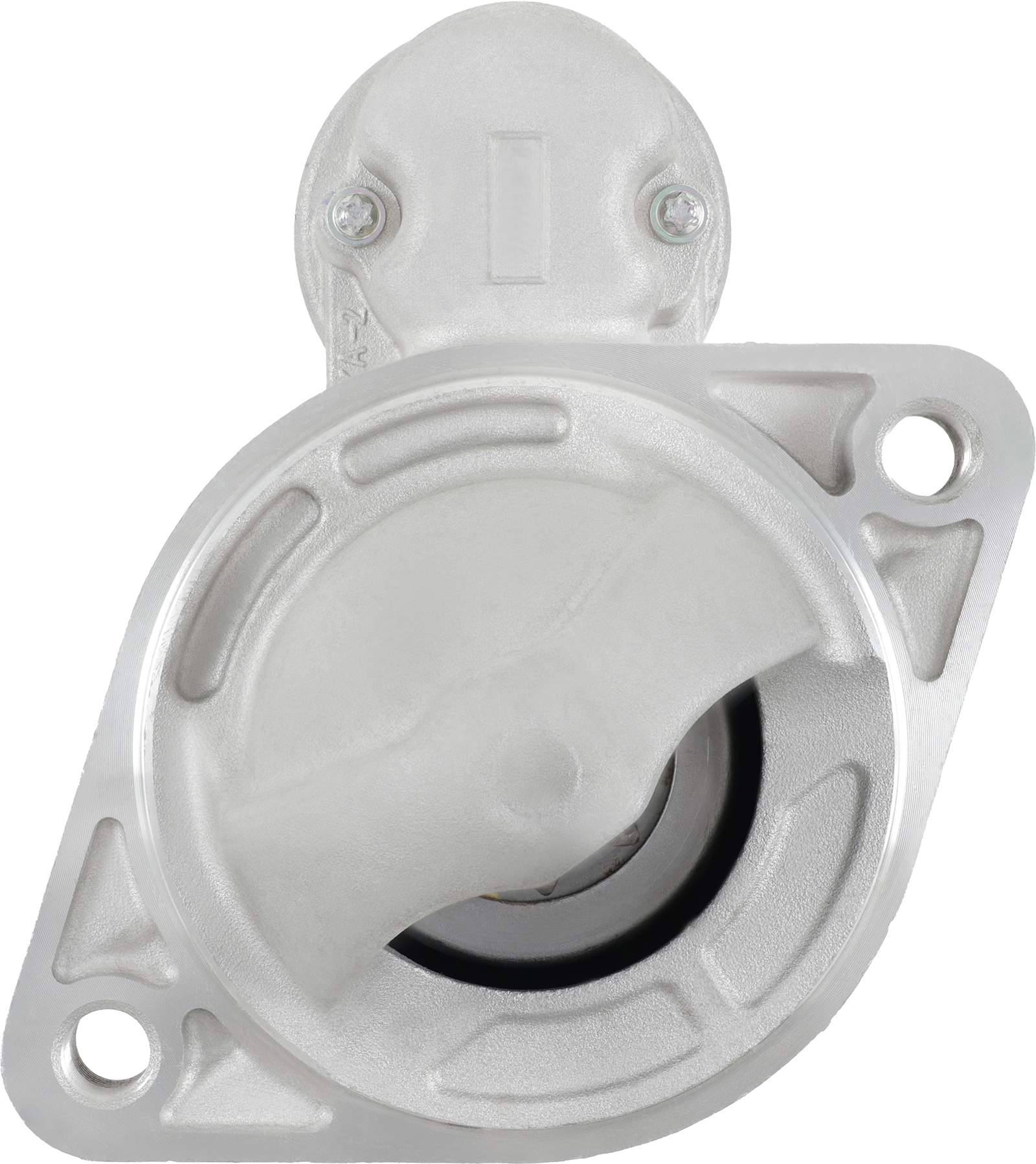

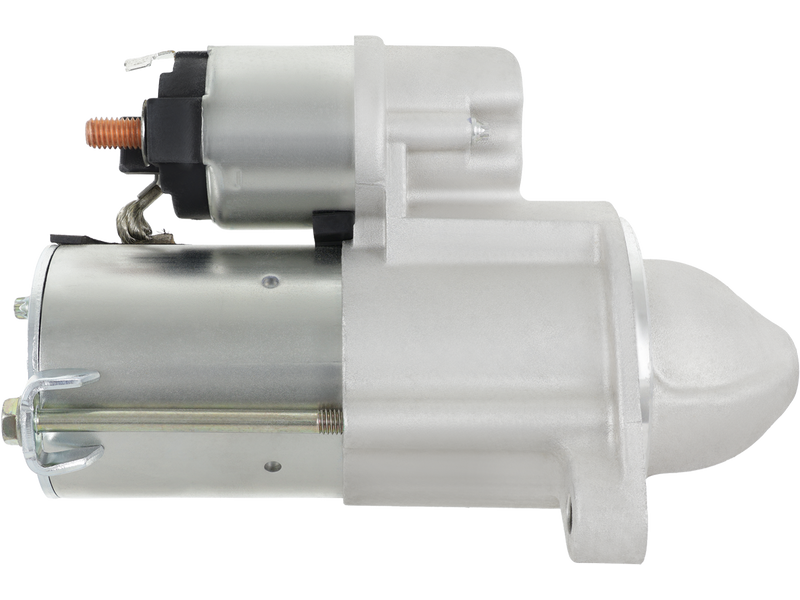

Brand new OEM DELCO Starter motor
PREMIUM LINE
Delco
DELCO
Price:
NZ$ 395.20 including GST
NZ$ 343.65 excluding GST
or four payments of $98.80
with
Learn More
each
SAM-C8001
S1085(DELCO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
201312 250.509.082 254680V 25915 36100-25860 36100-26850 36100-26860 6945N 8000175 8000356 8212847 91-01-4733 DRS0619 F00E100559 JS1312 PXPSB-008 S-80455 S1085(DELCO) S1119M STR80189 TA000A37301 TM000A27601 UD02056S
201312 250.509.082 254680V 25915 36100-25860 36100-26850 36100-26860 6945N 8000175 8000356 8212847 91-01-4733 DRS0619 F00E100559 JS1312 PXPSB-008 S-80455 S1085(DELCO) S1119M STR80189 TA000A37301 TM000A27601 UD02056S 70-6240 MSX361
Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 191 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 10 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIA | Cerato 1.6 | [G4ED] | 07.2004- |
| KIA | Cerato Saloon 1.6 | [G4ED] | 04.2004- |
| KIA | Rio 1.4 16V | [G4EE] | 03.2005- |
| KIA | Rio 1.4 16V | 01.2005- |
Reference Information
| 17826N | WAI / TRANSPO |
| 201312 | KUHNER |
| 20460331OE | REAL |
| 220504 | ERA |
| 220612 | ERA |
| 250.509.082 | PSH |
| 254680V | KUHNER |
| 25915 | DELCO |
| 36100-25860 | HYUNDAI / KIA |
| 36100-26850 | HYUNDAI / KIA |
| 36100-26860 | HYUNDAI / KIA |
| 6046133.1 | SANDO |
| 6945N | WAI / TRANSPO |
| 8000175 | DELCO |
| 8000356 | DELCO |
| 8212847 | POWERMAX |
| 91-01-4733 | WILSON |
| CST46133GS | CASCO |
| DRS0619 | DELCO |
| F00E100559 | BOSCH |
| JS1312 | HC PARTS |
| N3A118400 | MAZDA |
| PXPSB-008 | PARTS MALL |
| S1085(DELCO) | AS-PL |
| S1119M | PRESTOLITE |
| S131.785 | PSH |
| S-80455 | DIXIE |
| STR2086 | ELECTROLOG |
| STR80189 | WOODAUTO |
| TA000A37301 | VALEO |
| TM000A27601 | VALEO |
| UD02056S | AS-PL |
