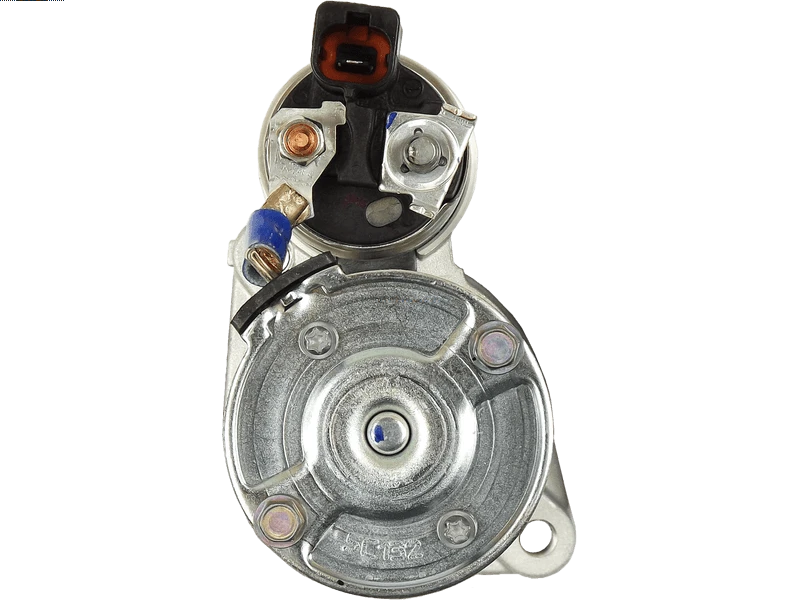

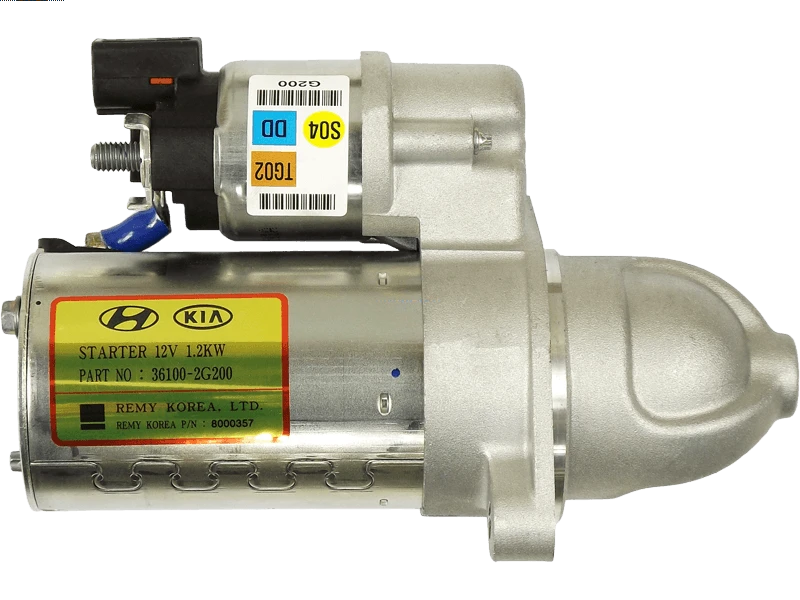

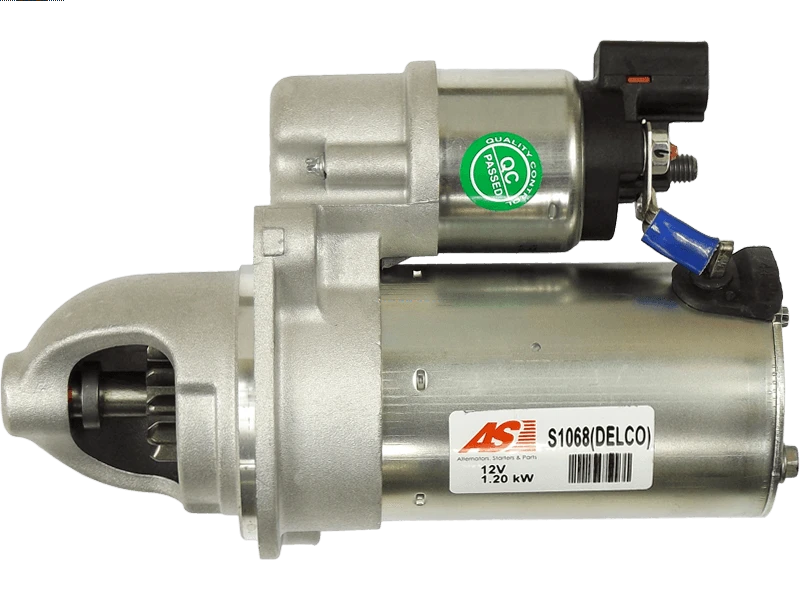

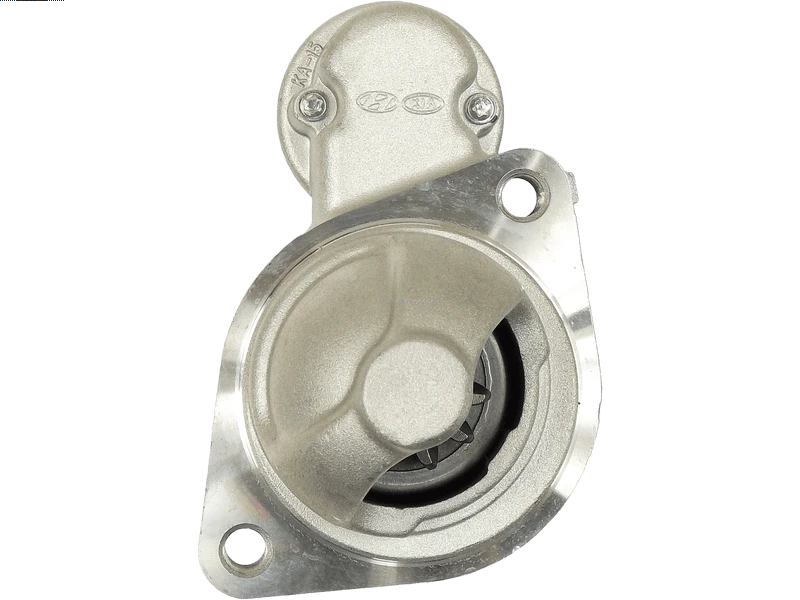

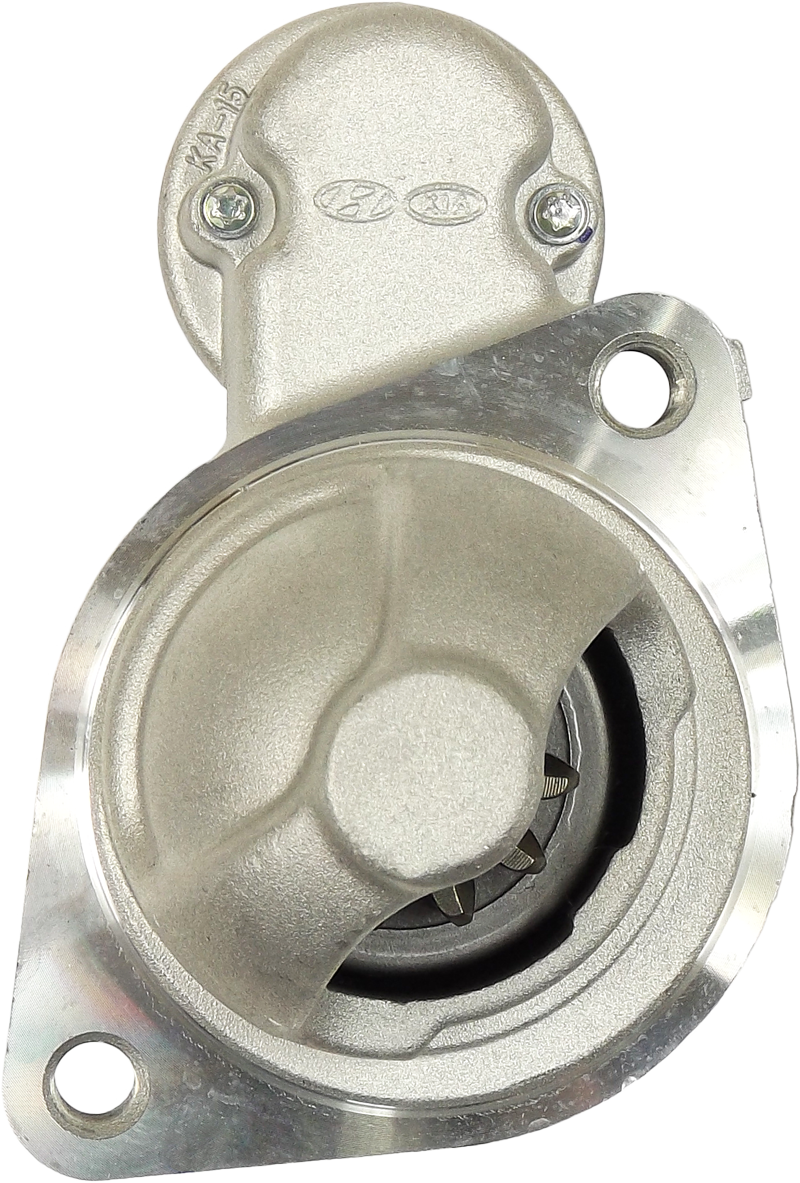

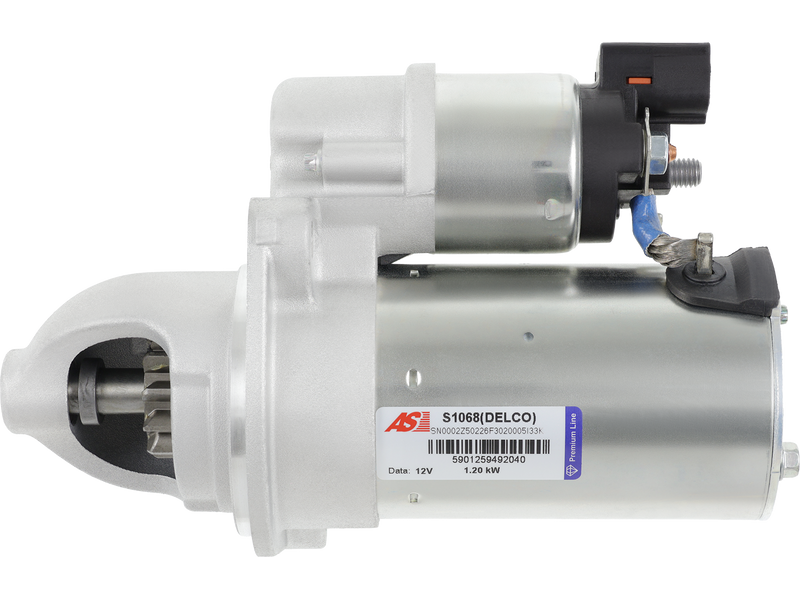

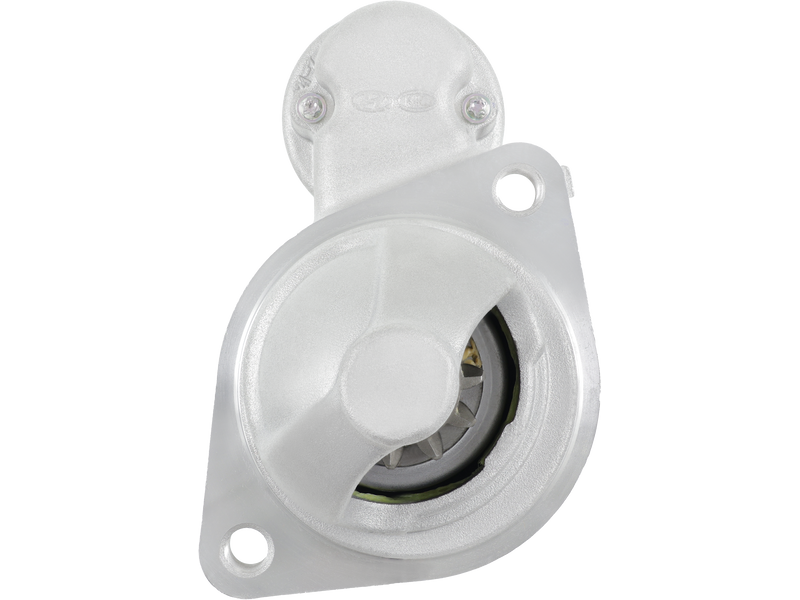

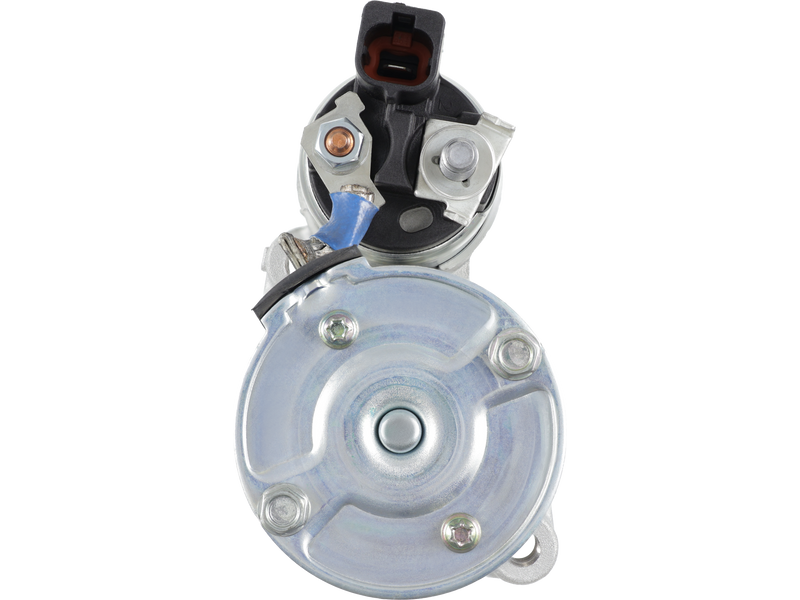

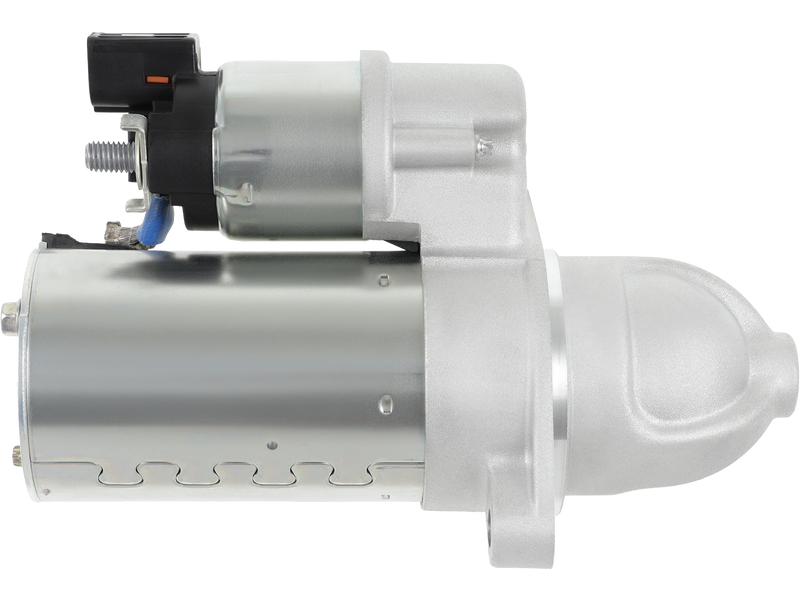

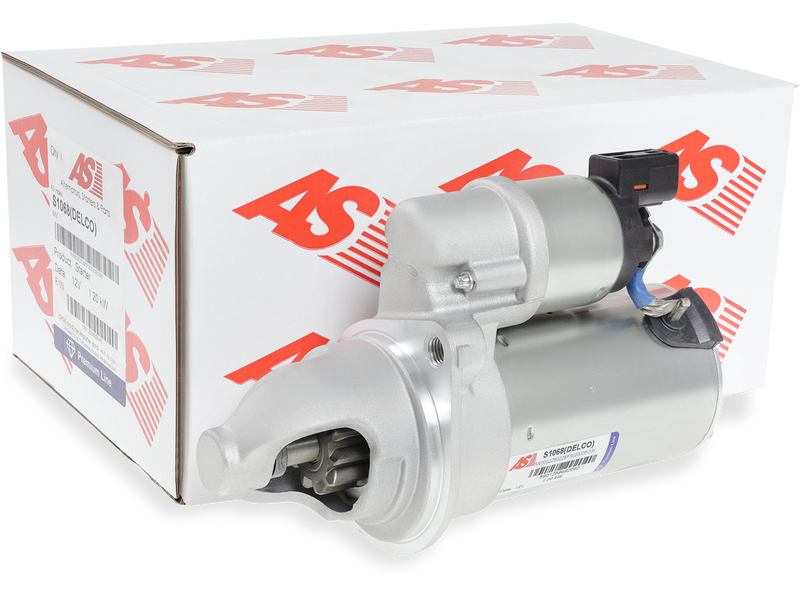

Brand new OEM DELCO Starter motor
PREMIUM LINE
Delco
DELCO
Price:
NZ$ 398.71 including GST
NZ$ 346.70 excluding GST
or four payments of $99.68
with
Learn More
each
S9245
S1068(DELCO)
1
Associated Numbers
115758 1209422 25-4314 250.508.082 254849 36100-2G000 36100-2G200 36100-2G300 6032123 6975N 6975R 8000285 8000357 91-01-4740 9790 CST32123 CST32123AS CST32123ES CST32123GS CST32123OS CST32123RS LRS02641 LRS2641 S-1513 S1075R STR80178 UD02058SSpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 198 mm |
| Mount Hole Center - Center (O.1) | 94 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 29 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | ix35 2.0 | [G4KD] | 01.2010- |
| HYUNDAI | ix35 2.4 4x4 | [G4KE] | 01.2010-12.2013 |
| HYUNDAI | Santa Fe 2.4 | [G4KE] | 01.2010- |
| HYUNDAI | Santa Fe 2.4 4x4 | [G4KE] | 01.2010- |
| HYUNDAI | Sonata 2.4 | [G4KC] | 01.2009- |
| KIA | Sorento 2.4 CVVT | [G4KE] | 01.2009- |
| KIA | Sorento 2.4 CVVT 4x4 | [G4KE] | 01.2009- |
| KIA | Sportage 2.0 CVVT | [G4KD] | 01.2010- |
| KIA | Sportage 2.0 CVVT AWD | [G4KD] | 01.2010- |
Reference Information
| 115758 | CARGO |
| 1209422 | VALEO |
| 250.508.082 | PSH |
| 25-4314 | ELSTOCK |
| 254849 | KUHNER |
| 3610025020 | HYUNDAI / KIA |
| 36100-2G000 | HYUNDAI / KIA |
| 36100-2G200 | HYUNDAI / KIA |
| 36100-2G250 | HYUNDAI / KIA |
| 36100-2G300 | HYUNDAI / KIA |
| 36100-2G400 | HYUNDAI / KIA |
| 6032123 | SANDO |
| 6974N | WAI / TRANSPO |
| 6975N | WAI / TRANSPO |
| 6975R | WAI / TRANSPO |
| 8000285 | DELCO |
| 8000357 | DELCO |
| 91-01-4740 | WILSON |
| 9790 | CEVAM |
| CST32123 | CASCO |
| CST32123AS | CASCO |
| CST32123ES | CASCO |
| CST32123GS | CASCO |
| CST32123OS | CASCO |
| CST32123RS | CASCO |
| F032115758 | CARGO |
| LRS02641 | LUCAS |
| LRS2641 | LUCAS |
| S1075R | PRESTOLITE |
| S-1513 | DIXIE |
| STR2093 | ELECTROLOG |
| STR80178 | WOODAUTO |
| STX210279 | STARDAX |
| STX210279R | STARDAX |
| UD02058S | AS-PL |
Video/Publications
