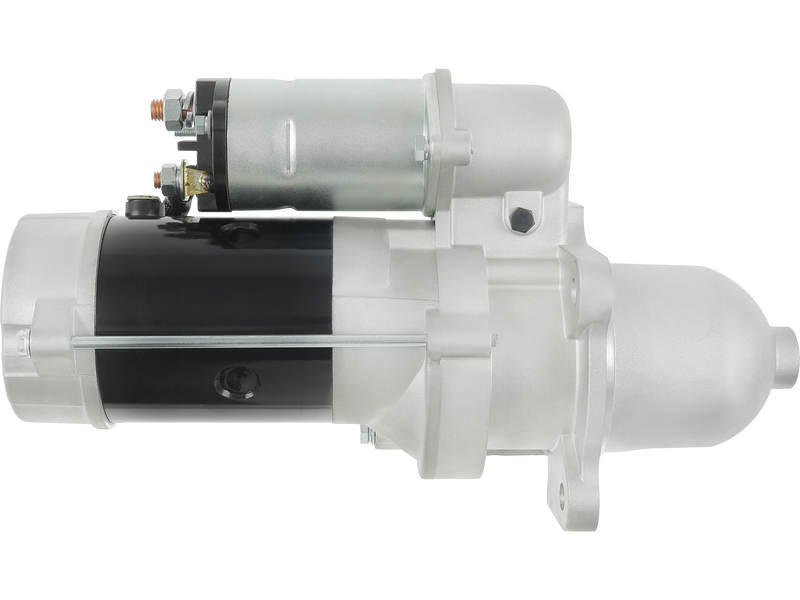

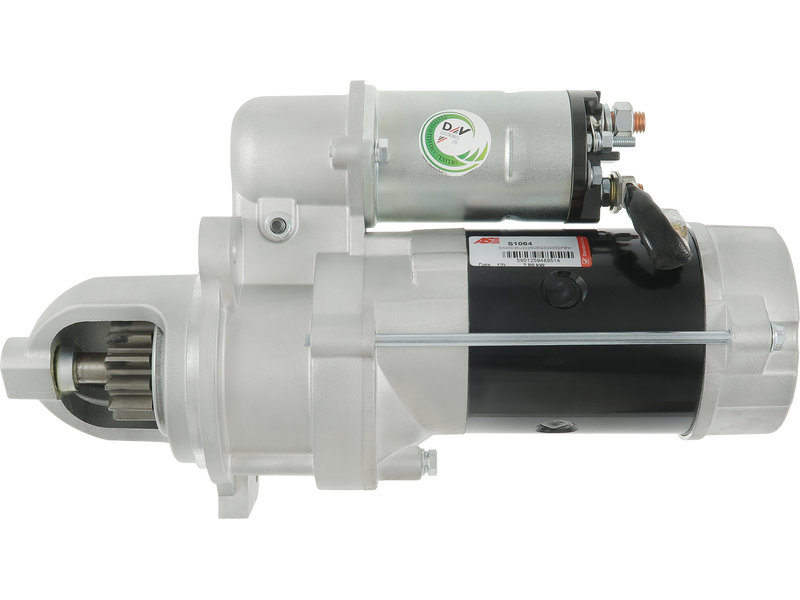

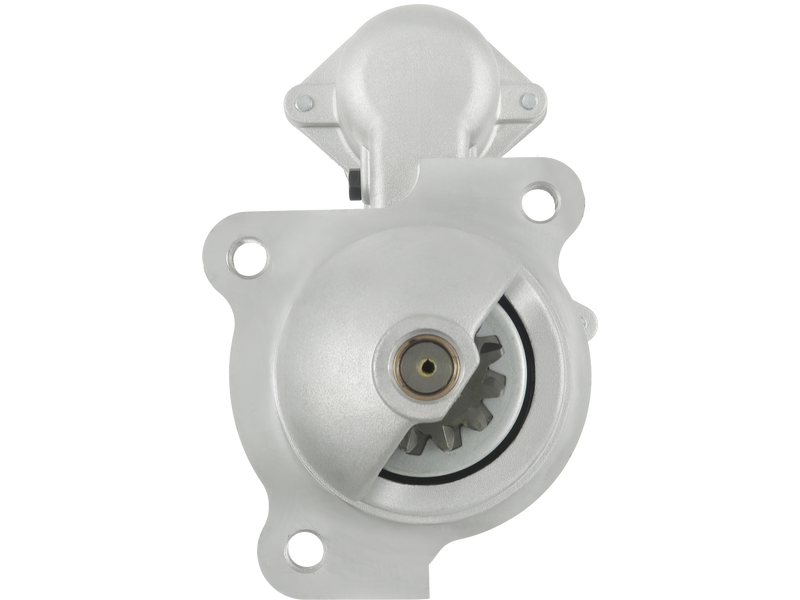

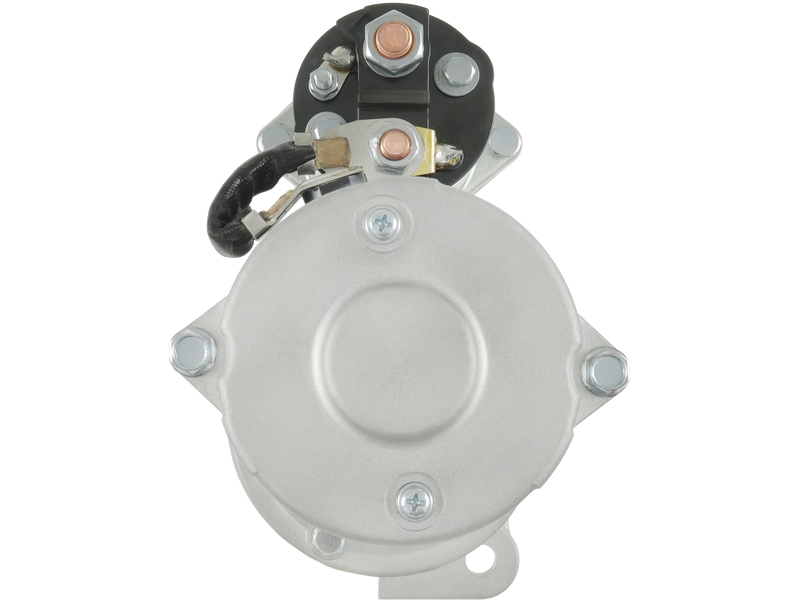

S1064 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.8 kW
Length (L.1)	338 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
No./Teeth (Replaces)	12 qty
Pinion at Rest (B)	46 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BOBCAT	Skid Steers 980	[4BT3.9]	01.1989-12.1993
BOBCAT	Skid Steers 995		01.1990-12.1993
CARRIER TRANSICOLD	NDB-40	[4.108]
CARRIER TRANSICOLD	NDE-40	[4.108]
CARRIER TRANSICOLD	NDJ-40	[4.108]
CARRIER TRANSICOLD	NDS-40	[4.108]
CARRIER TRANSICOLD	NDT-40	[4.108]
CARRIER TRANSICOLD	UDE Series	[4.108]
CARRIER TRANSICOLD	UDG Series	[4.108]
INGERSOLL RAND	DD-90	[4BTA3.9]
INGERSOLL RAND	SD100	[4BTA3.9]	01.1996-
INGERSOLL RAND	SD100D	[4BTA3.9]	01.1996-
PERKINS	Engine	[4.108]	01.1989-
PERKINS	Engine	[4.154]	01.1989-

Reference Information

1107587 0-23000-1880 6575N CST60107AS 1107567 35259650 6575 8699 1998409 CST60107ES 6651636 254231 CST60107GS 110604 6060107 STR80112 1113280 10465048 20409701BN TS-1580 201-28108 CST60107RS 110570 10461448 STRS819 10461449 91-01-4314 STR2040 CST60107 MAV621070 110334 1998338 0-23000-1890 339174 71-01-6575 1109272 50-8410 1113279 10465047 CST60107OS 1998394 STRS642 STRJ675 UD02201S 1998334 1998378

Video/Publications

0-23000-1880 0-23000-1890 10461448 10461449 10465047 10465048 110334 110570 110604 1107567 1107587 1109272 1113279 1113280 1998334 1998338 1998378 1998394 1998409 201-28108 20409701BN 254231 35259650 50-8410 6060107 6575 6575N 71-01-6575 8699 91-01-4314 CST60107 CST60107AS CST60107ES CST60107GS CST60107OS CST60107RS MAV621070 STR80112 STRJ675 STRS642 STRS819 TS-1580 UD02201S
