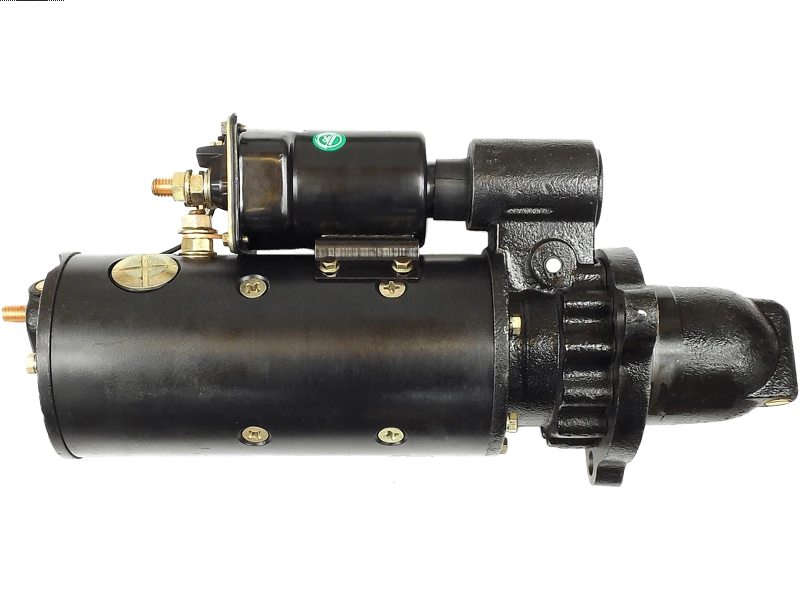

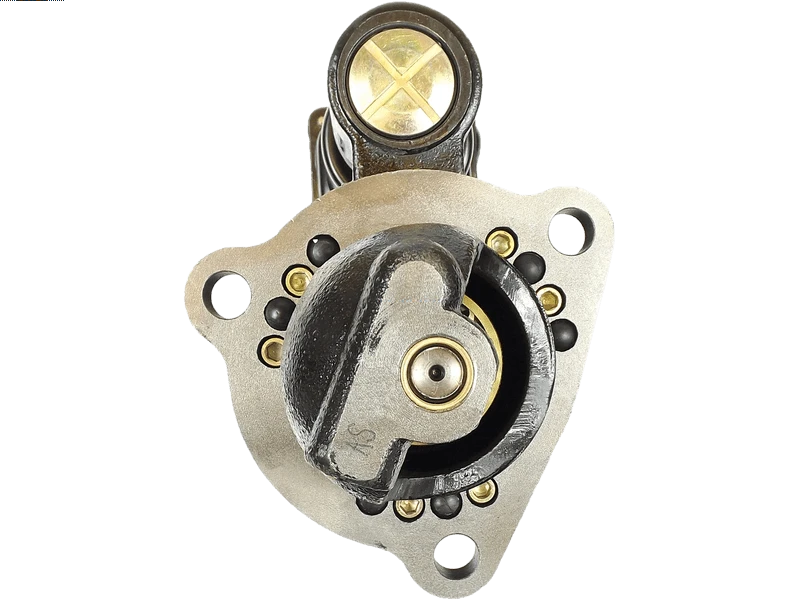

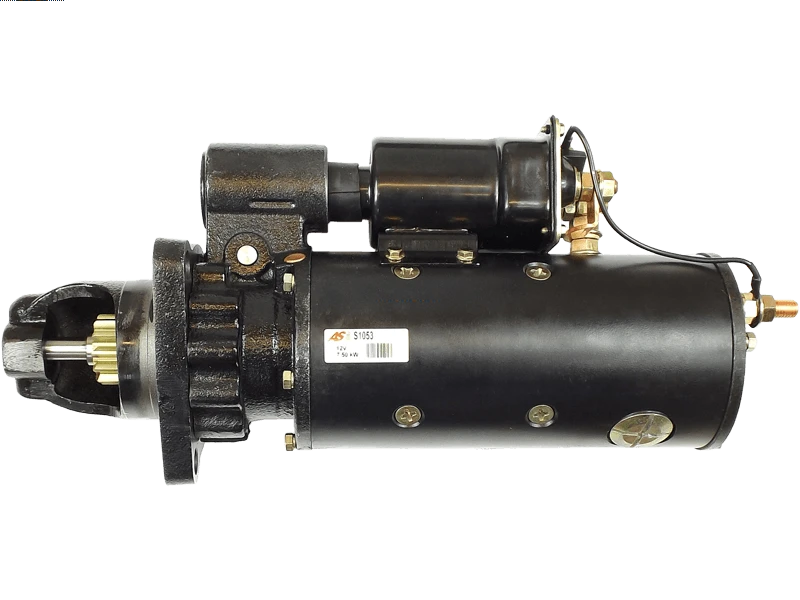

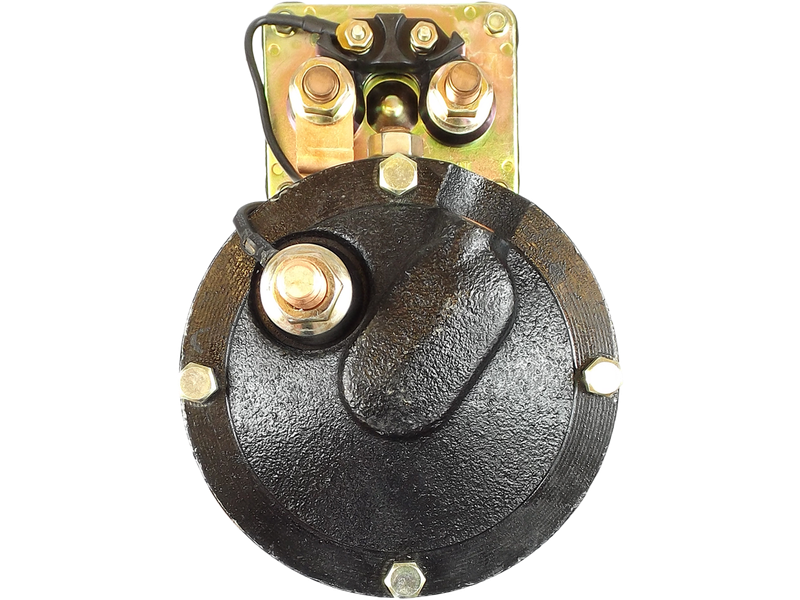

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 961.15 including GST
NZ$ 835.78 excluding GST
or four payments of $240.29
with
Learn More
each
S1053
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
110436 1114109 1114129 1114883 1990379 20409321BN 20409321OE 3339N 50-100 50-150-1 601025 601025K 6060123 6371N 6371R 640.003.123 6410N-PT 6907N 6919N 8810 88212867 CST60123 CST60123AS CST60123ES CST60123GS CST60123OS CST60123RS M0017276ME M105R2502SE UD02182S UD12382SSpecifications
| Kilowatt | 7.50 kW |
| Length (L.1) | 510 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Various Models | ||
| CLARK | Various Models | 01.1968- | |
| MACK | Various Models | ||
| VARIOUS | Various Models |
Reference Information
| 0R2189 | CATERPILLAR |
| 0R4260 | CATERPILLAR |
| 0R4265 | CATERPILLAR |
| 0R5208 | CATERPILLAR |
| 0R5216 | CATERPILLAR |
| 0R5218 | CATERPILLAR |
| 110436 | CARGO |
| 1114109 | DELCO |
| 1114883 | DELCO |
| 1430540 | CATERPILLAR |
| 157579 | CUMMINS |
| 185617 | CUMMINS |
| 197125 | CUMMINS |
| 202386T91 | CASE |
| 20409321BN | REAL |
| 2N3538 | CATERPILLAR |
| 3102919 | CUMMINS |
| 3279496 | CUMMINS |
| 3339N | WAI / TRANSPO |
| 3603864RX | CUMMINS |
| 3604323RX | CUMMINS |
| 3907622 | CUMMINS |
| 3910645 | CUMMINS |
| 3E7864 | CATERPILLAR |
| 3R2657 | CATERPILLAR |
| 3T2655 | CATERPILLAR |
| 3T2657 | CATERPILLAR |
| 3T2659 | CATERPILLAR |
| 4N8253 | CATERPILLAR |
| 50-100 | WAI / TRANSPO |
| 50-150-1 | WAI / TRANSPO |
| 554560 | CUMMINS |
| 601025 | KUHNER |
| 601025K | KUHNER |
| 6371N | WAI / TRANSPO |
| 6371R | WAI / TRANSPO |
| 640.003.123 | PSH |
| 640.003.123.310 | PSH |
| 6907N | WAI / TRANSPO |
| 6919N | WAI / TRANSPO |
| 7N6503 | CATERPILLAR |
| 7T1081 | CATERPILLAR |
| 7T2265 | CATERPILLAR |
| 7T9254 | CATERPILLAR |
| 8810 | CEVAM |
| 88212867 | POWERMAX |
| 8C356 | CATERPILLAR |
| 8C3596 | CATERPILLAR |
| 8C3648 | CATERPILLAR |
| 8C5580 | CATERPILLAR |
| 8L5881 | CATERPILLAR |
| 9L3597 | CATERPILLAR |
| 9W0058 | CATERPILLAR |
| A145324 | CASE |
| A162578 | CASE |
| A186224 | CASE |
| A34442 | CASE |
| A47464 | CASE |
| A75864 | CASE |
| CGB-1500 | AINDE |
| F032110436 | CARGO |
| M0017276ME | PRESTOLITE |
| MAV621230 | SIOM |
| RE69590 | JOHN DEERE |
| S143.771 | PSH |
| STR2630 | ELECTROLOG |
| STRL868 | 3EFFE |
| UD02182S | AS-PL |
| UD12382S | AS-PL |
Video/Publications
