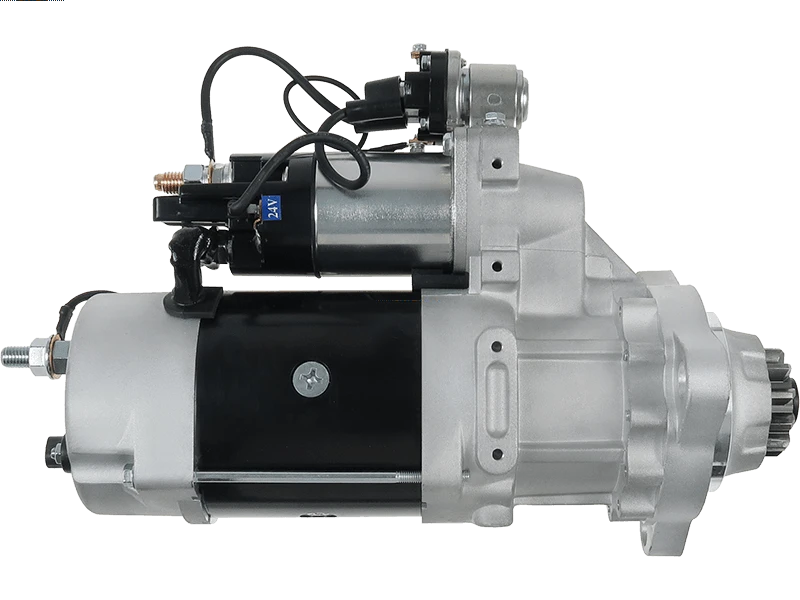

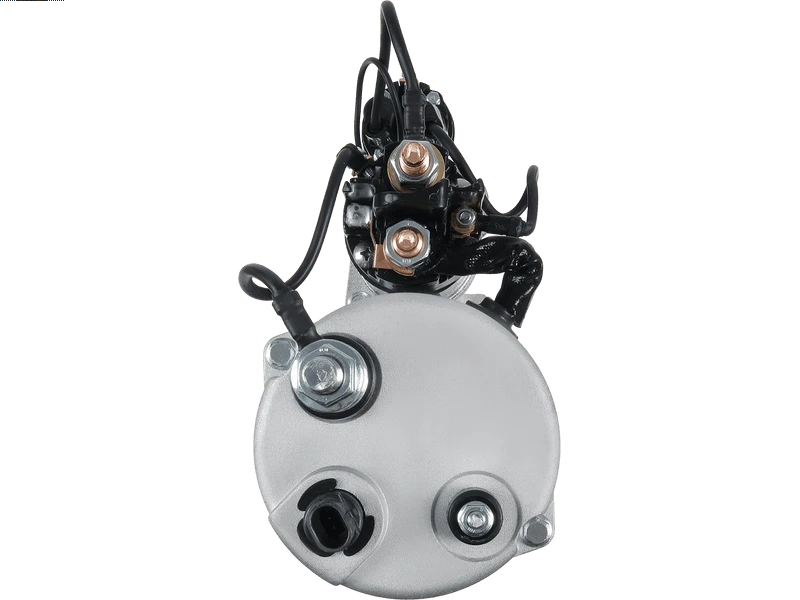

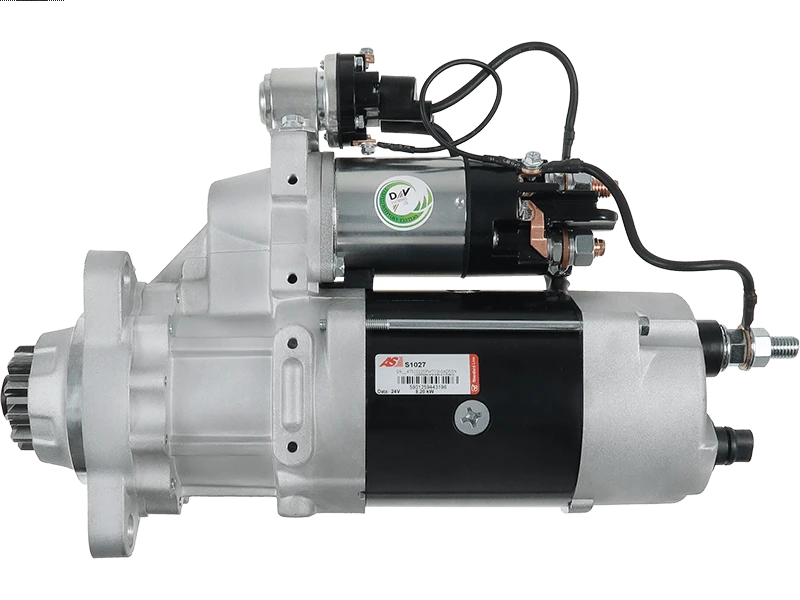

S1027 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S1027
Price: 1200.78 NZD
Availability: OutOfStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 1,200.78 including GST

NZ$ 1,044.16 excluding GST

UOM:

each

Product Code:

S1027

Quantity In Stock:

No stock in NZ

Availability:

No stock in NZ

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

141734 255385 255385D 255385M 255385P 6837 8200330 M105R3502SE M105R3532SE

Kilowatt	7.8 kW
Length (L.1)	418 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	16.5 mm
Mount Hole Diameter (C.2)	16.5 mm
Mount Hole Diameter (C.3)	16.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	46 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	DELCO
Voltage	24 V

Make	Model	Type	Year
CASE	921E	[M11]	01.2007-12.2010
CASE	STX375	[QSX15]	01.2001-12.2005
CASE	STX425	[QSX15]	01.2001-12.2005
CASE	STX450	[QSX15]	01.2002-12.2005
CASE	STX480	[QSX15]	01.2006-12.2007
CASE	STX500	[QSX15]	01.2001-12.2006
CASE	STX530	[QSX15]	01.2006-12.2007
CASE	Steiger 480 14.9	[QSX15]	01.2007-12.2008
CASE	Steiger 530 14.9	[QSX15]	01.2007-12.2008
CASE	Steiger 535 15.0	[QSX15]	01.2008-12.2012
CAT	Engine	[C12]
CAT	Engine	[C13]
CAT	Engine	[C15]
CUMMINS	CFP11E-F10 10.8	[QSM11]	01.2004-12.2020
CUMMINS	CFP11E-F20 10.8	[QSM11]	01.2004-12.2020
CUMMINS	Engine	[ISM]
CUMMINS	Engine	[ISX]
CUMMINS	Engine	[N14]
DETROIT	Engine	[S50]
DETROIT	Engine	[S60]
KENWORTH	K500	[C13]	01.2008-12.2016
KENWORTH	K500	[ISX15]	01.2008-12.2016
KENWORTH	K500 15.2	[C15]	01.2008-12.2016
MACK	CH Series	[E7]	01.2003-12.2007
MACK	CH Series	[EM7]	01.2003-12.2007
MACK	CL Series	[E7]	01.2003-12.2006
MACK	CV Series	[E7]	01.2003-12.2007
MACK	CV Series	[EM7]	01.2003-12.2007
MACK	DM	[E7]	01.2003-12.2006
MACK	DM Series	[EM7]	01.2003-12.2006
MACK	DMM Series	[E7]	01.2003-12.2006
MACK	DMM Series	[EM7]	01.2003-12.2006
MACK	Engine	[E7]
MACK	FCM Series	[E7]	01.2003-12.2006
MACK	FCM Series	[EM7]	01.2003-12.2006
MACK	FDM Series	[E7]	01.2003-12.2006
MACK	FDM Series	[EM7]	01.2003-12.2006
MACK	Granite Series	[E7]	01.2003-12.2006
MACK	LE Series	[E7G]	01.2003-12.2006
MACK	LE Series	[E7]	01.2003-12.2006
MACK	RD Series	[E7]	01.2003-12.2006
MACK	RD Series	[EM7]	01.2003-12.2006
MACK	RL Series	[E7]	01.2003-12.2006
MACK	RL Series	[EM7]	01.2003-12.2006
MACK	RM Series	[E7]	01.2003-12.2006
MACK	RM Series	[EM7]	01.2003-12.2006
MACK	RS Series	[E7]	01.2003-12.2006
MACK	RS Series	[EM7]	01.2003-12.2006
MACK	RW Series	[E7]	01.2003-12.2006
MACK	RW Series	[EM7]	01.2003-12.2006
MCI	Engine	[ISX]	01.1998-12.2003
MCI	Engine 10.8	[M11]	01.2004-12.2007
MCI	Engine 14.0	[N14]	01.1998-12.2003
NEW HOLLAND	T9030 12.9		01.2006-12.2012
NEW HOLLAND	T9040 12.9		01.2006-12.2012
NEW HOLLAND	T9050 12.9		01.2006-12.2012
NEW HOLLAND	T9060 15.0	[QSX]	01.2006-12.2012
NEW HOLLAND	TJ375 15.0	[QSX]	01.2002-12.2006
NEW HOLLAND	TJ425 15.0	[QSX]	01.2002-12.2006
NEW HOLLAND	TJ450 15.0	[QSX]	01.2002-12.2005
NEW HOLLAND	TJ480 15.0	[QSX]	01.2006-12.2007
NEW HOLLAND	TJ500 15.0	[QSX]	01.2004-12.2005
NEW HOLLAND	TJ530 15.0	[QSX]	01.2006-12.2007
PREVOST	Engine 14.0		01.2001-12.2010
PREVOST	Engine 15.8	[C16]	01.1999-12.2007

3103305 STR80175 255385M 20446756OE 255385 641.020.113.208 LRS04040 255385D 641.020.113.310 2871253 CST50657GS 255385P 641.020.113.391 641.020.113.030 91-01-4763N 0-61000-0370 STR80029 3103916 6050657.1 45-5203 641.020.113.710 140-39170 M39330 91-01-4763 LRS4040 140-39170NOE

141734 255385 255385D 255385M 255385P 6837 8200330 M105R3532SE
