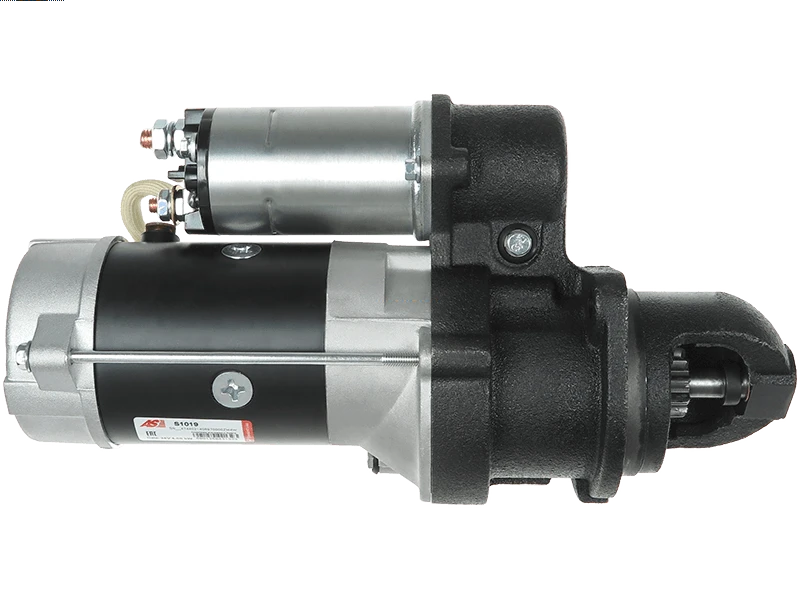

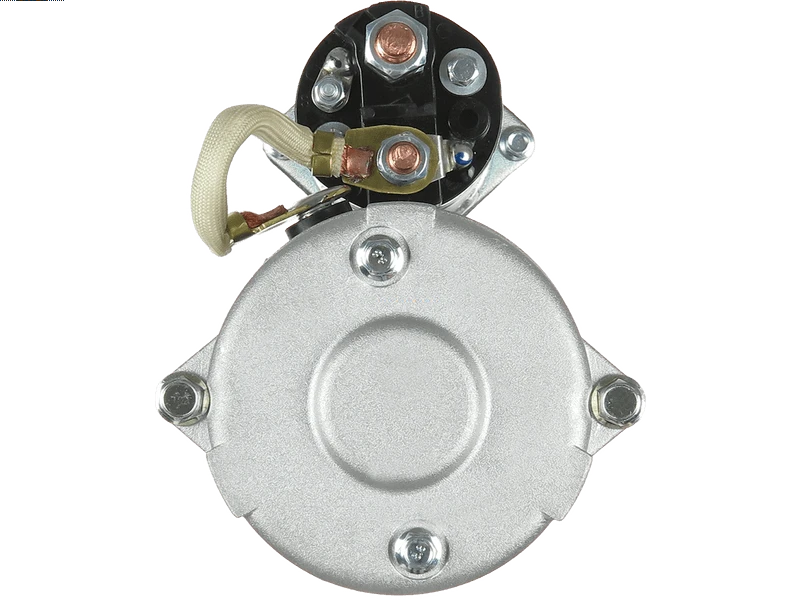

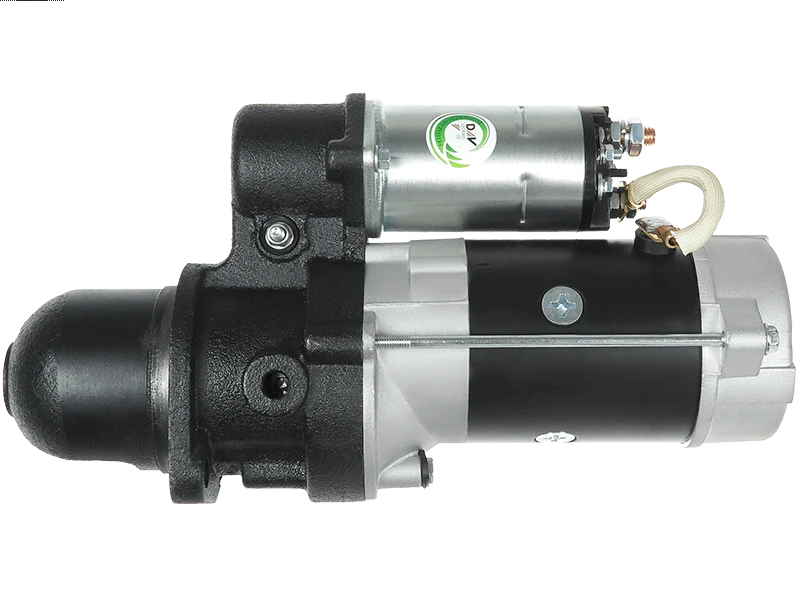

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 433.25 including GST
NZ$ 376.74 excluding GST
or four payments of $108.31
with
Learn More
each
S1019
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001368059 10461444 1113272 113007 1998519 255200 35259650 6010666 6010708 6596N 8477R CST10666 CST10666AS CST10666ES CST10666GS CST10666OS CST10666RS CST10708 CST10708AS CST10708ES CST10708GS CST10708OS CST10708RS RE51725 RE52150 RE522738 S5007L STR20034Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Various Models |
Reference Information
35259650 CST10666RS RE52150 6010708 RE503118 MAV123600 RE522738 CST10666AS 10461444 S5007L CST10666ES STRL842 8477R CST10666OS 113007 6596N CST10708OS 1998519 MAV127080 STR10314 CST10666 CST10666GS CST10708 CST10708ES 6000734 RE67086 CST10708GS CST10708AS 1113272 STR20034 RE51725 255200 STRJ675 STR2076 0001368059 CST10708RS 6010666 STRJ314Video/Publications
