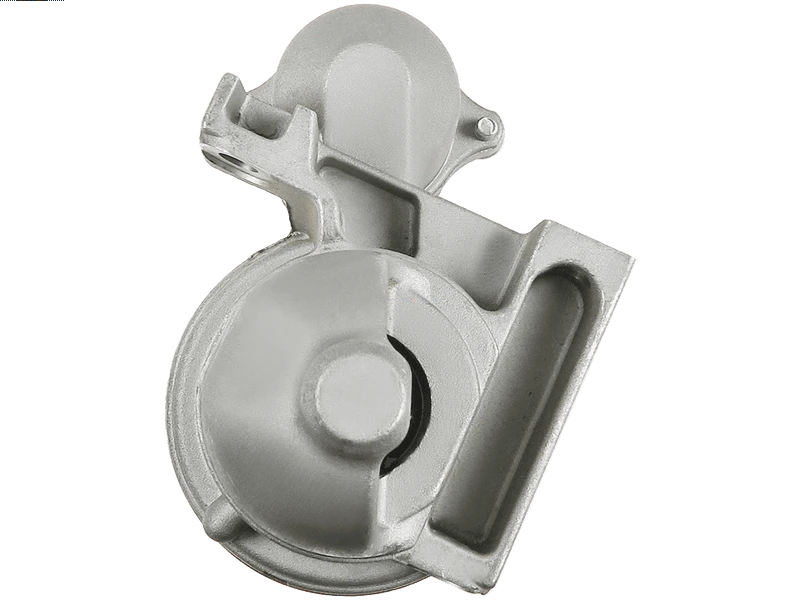

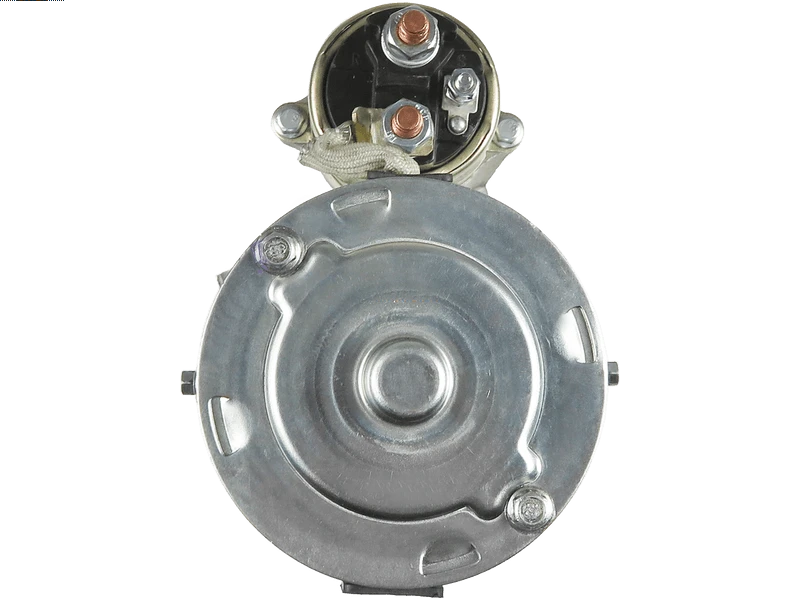

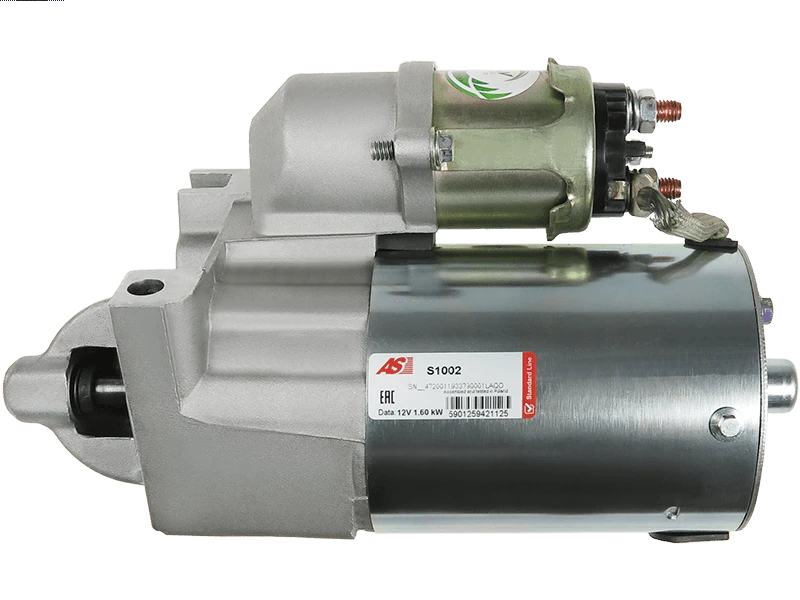

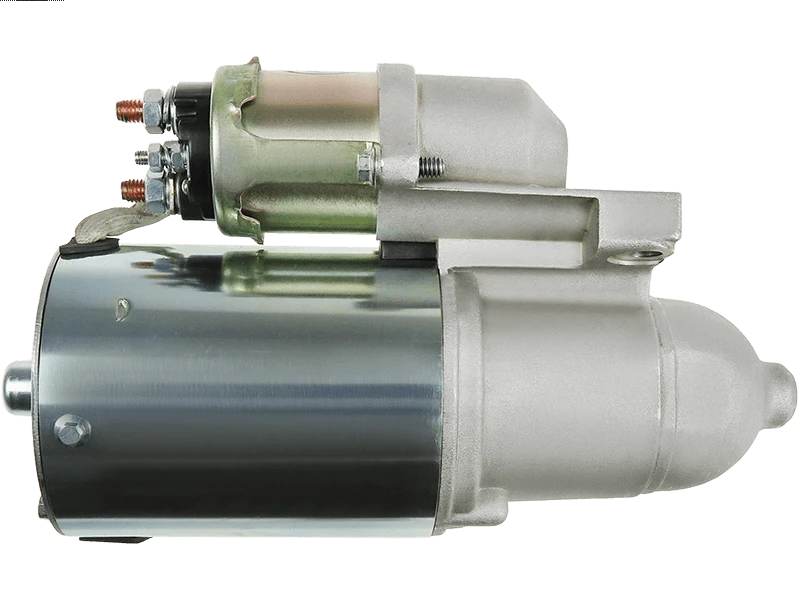

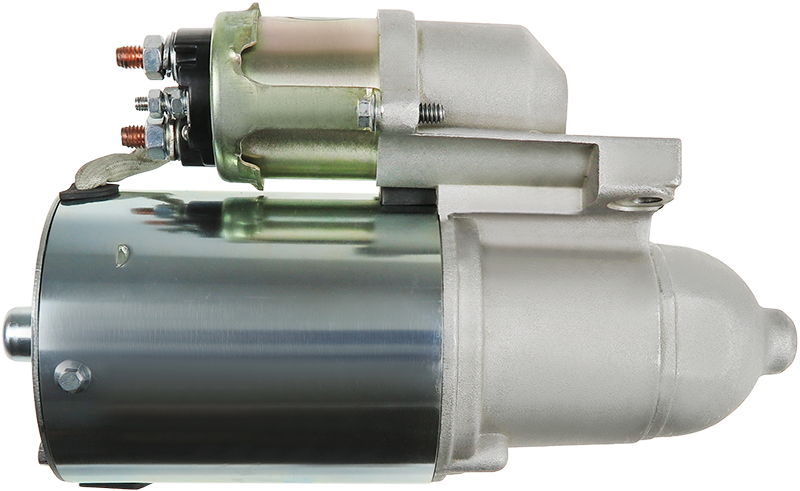

S1002 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.6 kW
Length (L.1)	266 mm
Mount Hole Center - Center (O.1)	82 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	16 mm
Rotation	CW
Spigot Diameter (A)	69 mm
Unit Type	DELCO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CHEVROLET	Beretta 3.1	[LHO]	01.1991-12.1995
OLDSMOBILE	Cutlass Supreme 3.1		01.1991-12.1993
PONTIAC	Bonneville 3.8 V6		01.1987-12.1995
PONTIAC	Grand Prix 3.1 V6		01.1991-12.1995
PONTIAC	Sunfire 3.1 V6	[LG6]	01.1991-12.1994
PONTIAC	Trans Sport 3.1 V6	[LG6]	01.1990-12.1997
PONTIAC	Trans Sport 3.8 V6		01.1992-12.1997

Reference Information

10465490 88212880 10465098 10465096 S-1395 60810 10462312 DZ6262 S1002 1109526 10455053 10455010 830.003.092 6415R LRS1398 8104550250 8104550530 DRZ5152 338960 US810 STR80167 LRS01398 STRW304 10455025 10455048 STD0810 25-2284 6415N 91-01-3932

Video/Publications

10455010 10455025 10455048 10455053 10462312 10465096 10465098 10465490 25-2284 60810 6415N 6415R 8104550250 8104550530 830.003.092 88212880 91-01-3932 DRZ5152 DZ6262 LRS01398 LRS1398 S-1395 S1002 STD0810 STR80167 STRW304 US810
