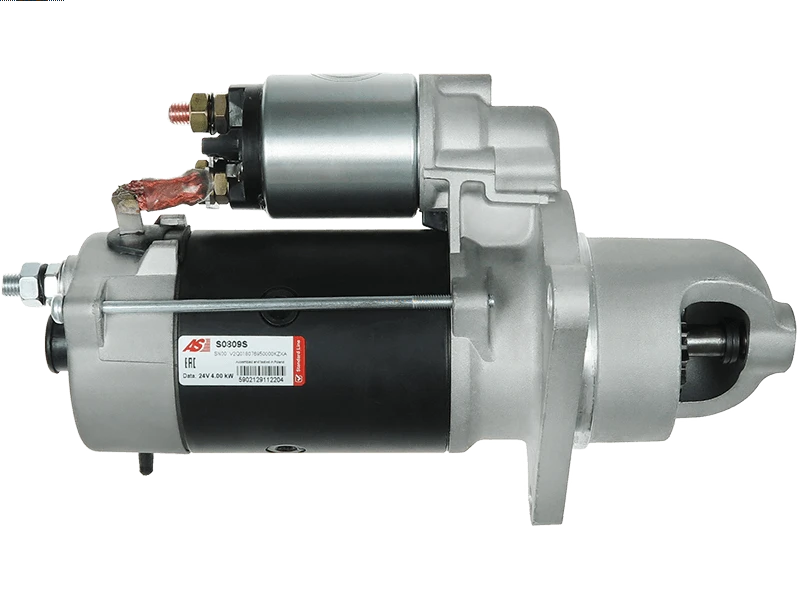

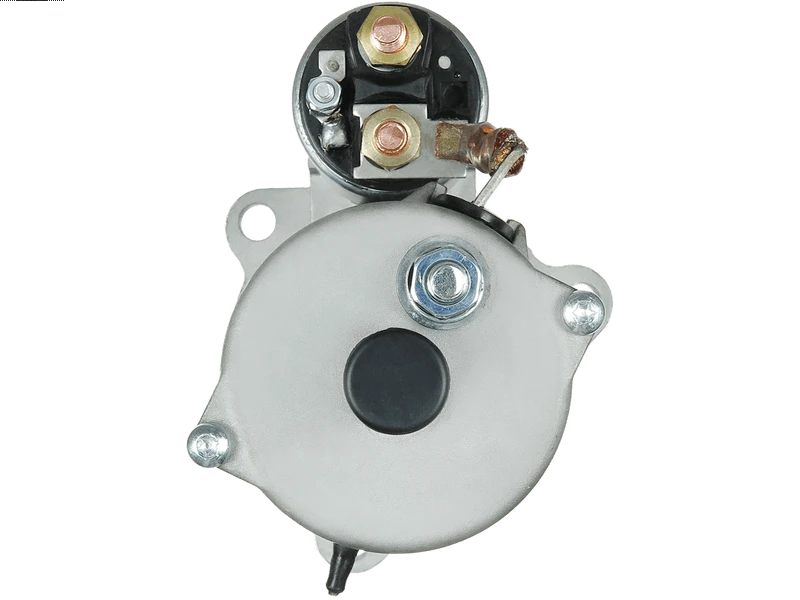

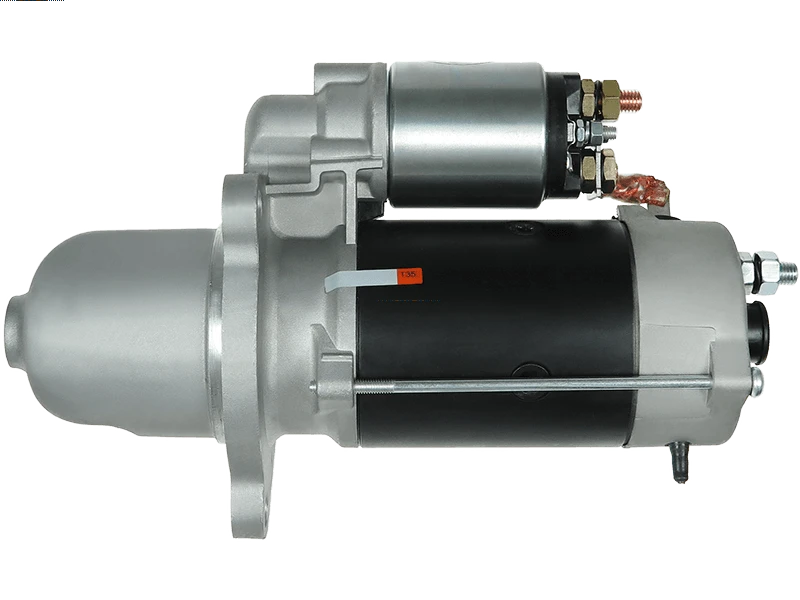

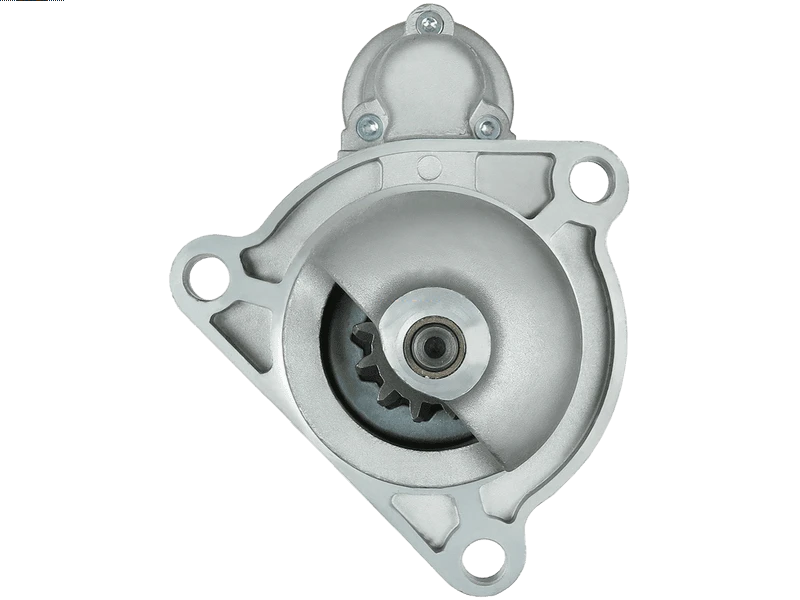

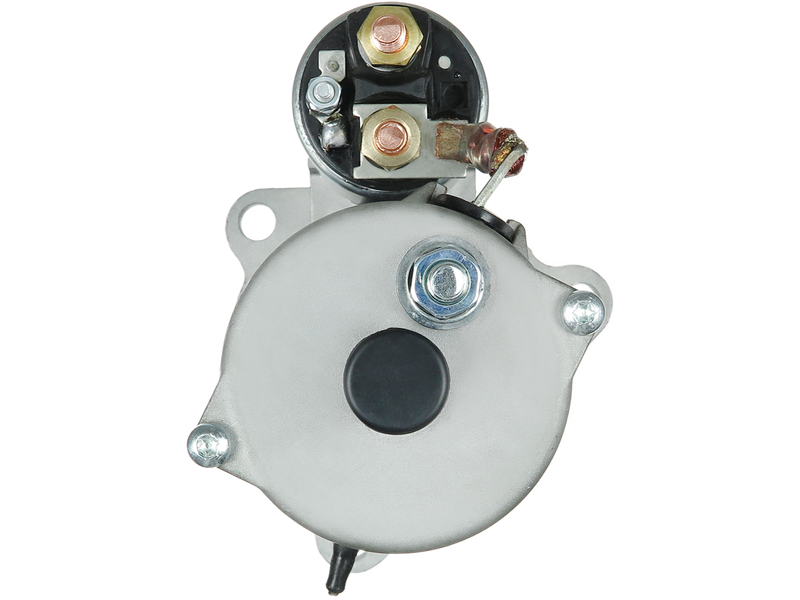

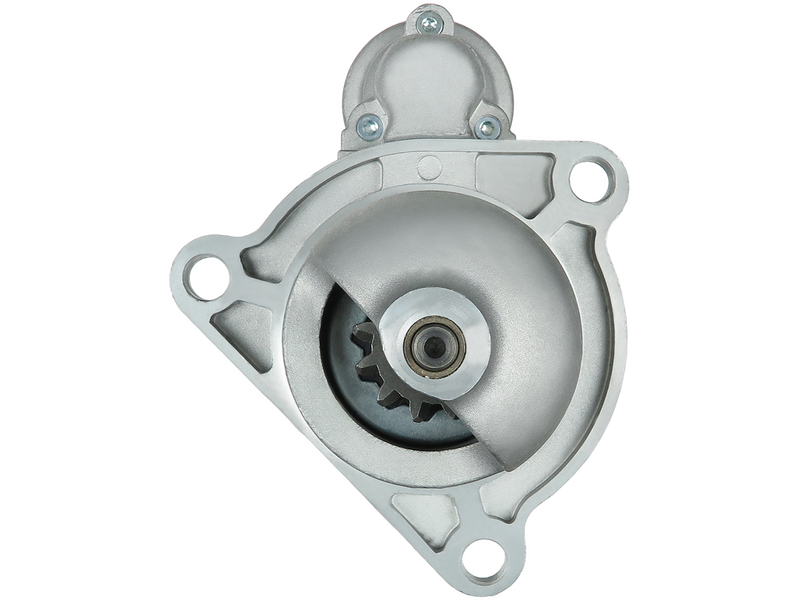

S0809S - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	334 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	13.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
Pinion at Rest (B)	50 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
VOLVO	FM 7/250 7.3	[D7C250]	08.1998-12.2001
VOLVO	FM 7/290 7.3	[D7C290]	08.1998-12.2001

Reference Information

8093 8EA012586-481 105071 331410 03.42.058 33897 6010656.1 000F032114033 S24BH0105A2 WG2333498 WG2310411 6010656 CGB-23898 SBO656A SBO656 638038124 101285 19084217 PRSS732 3978710 85003304 986019830 MAV126560A 8EA738113-001 860618 CST10656GS DS5008 WG2013294 EAA-121313 811.501.123.380 S510116 85000447 ANM16118X BOS0001231004 20401656OE 18956N 106779 0001986S10121 811.501.123.016 2-0749 811.501.123.017 49006 1986S10121 45-3067 811.501.123.010 811.501.123.011 000BX1983 2.22008 A19830 LRS1939 19084031 0001231004 000986019830 0001263011 0001263012 1263011 CMA-621313 1263012 10010656OV MAV126560 S0809S STM941 8113230 STRS732 UD16921S 8192965 114033 10439821 28.1285 88212570 STR1268 811.501.123 3125683 3125684 3125685 3125686 LRS01939 ST02630 AC-CBS1285 39.029 CS1285 21477586 101285P 120-20148 11019830 5110022 WOOSTR22098 20401656BN STR22098 SM2807 WG2192608 10010656AV 1231004 88-02062-SX 220726A F032114033 220726 811.501.123.215 H5110022 STB1285 811.501.123.210 CST10656AS BX1983 30503N DRS3898

Video/Publications

0001263011 0001263012 19084217 30503N 811.501.123 DRS3898 DS5008 MAV126560 UD16921S 85003304 220726
