Associated Numbers
0001261015 551.549.113 UD16562SSpecifications

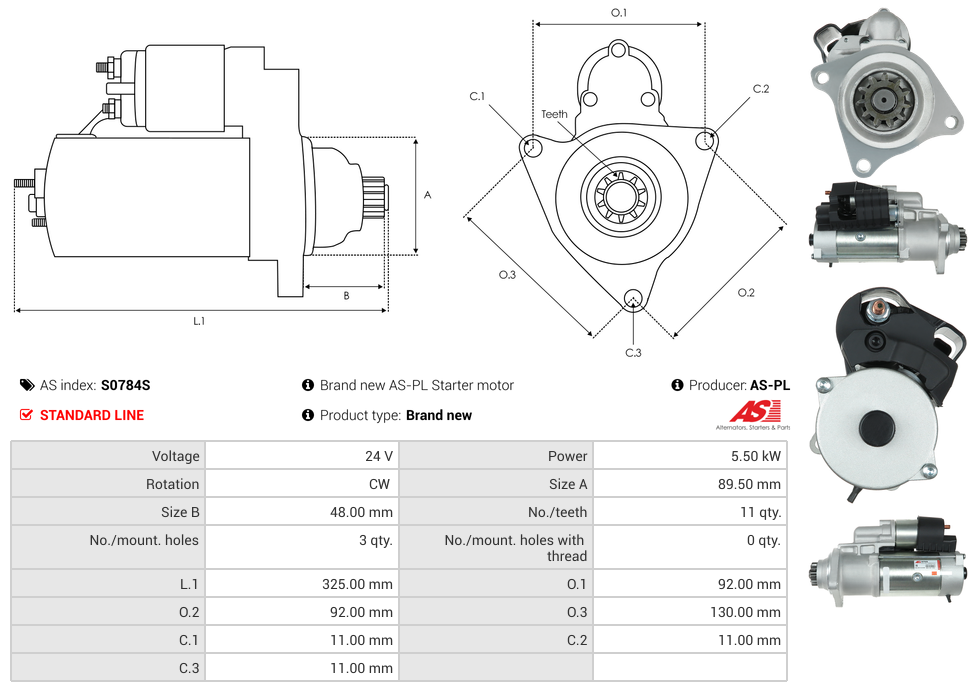

Kilowatt | 5.5 kW |
Length (L.1) | 325 mm |
Mount Hole Center - Center (O.1) | 92 mm |
Mount Hole Center - Center (O.2) | 92 mm |
Mount Hole Center - Center (O.3) | 130 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | 11 mm |
Mount Hole Diameter (C.3) | 11 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 11 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 89.5 mm |
Unit Type | BOSCH |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
WEICHAI | Various Models |
Reference Information
551.549.113 1261015 UD16562S STRF695 0001261015Video/Publications
0001261015 551.549.113 STRF695 UD16562SAdd Your Number
