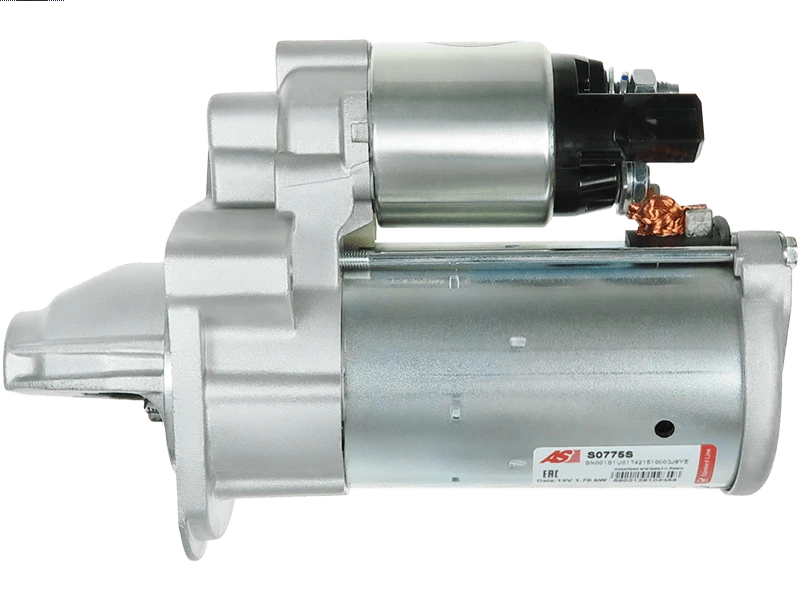

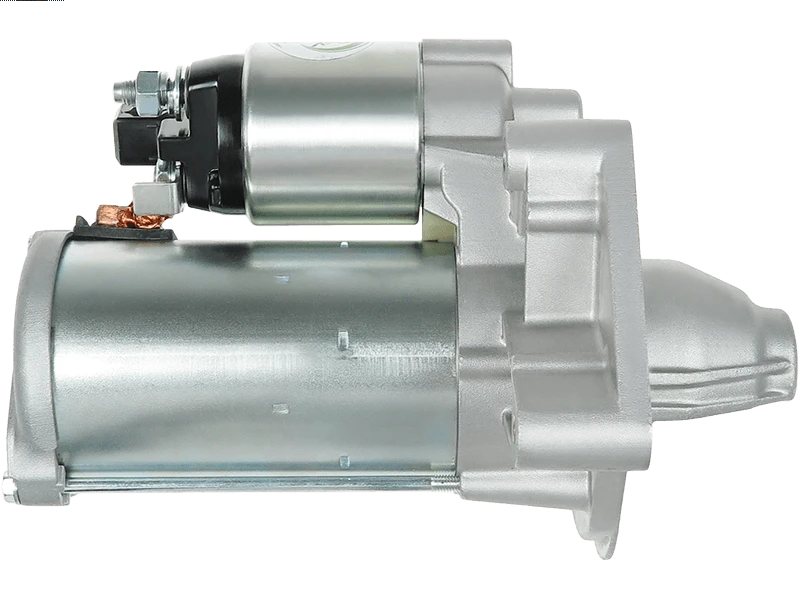

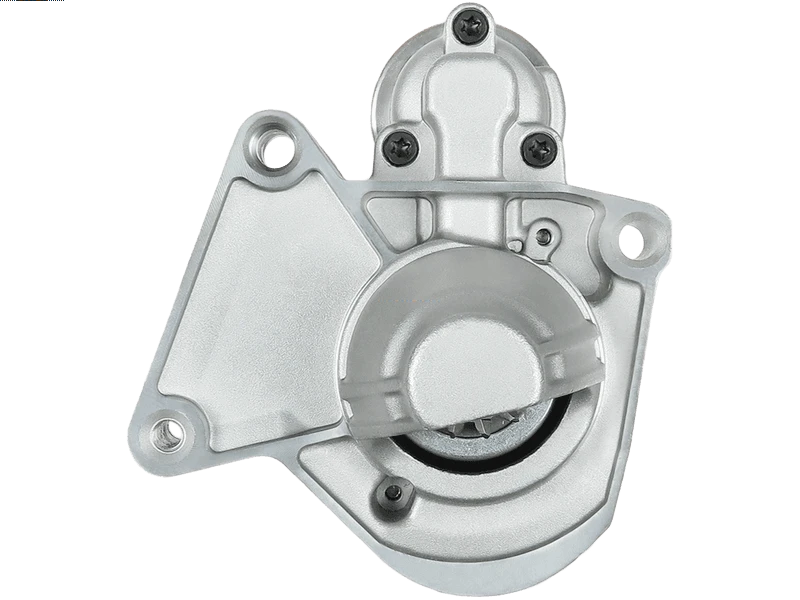

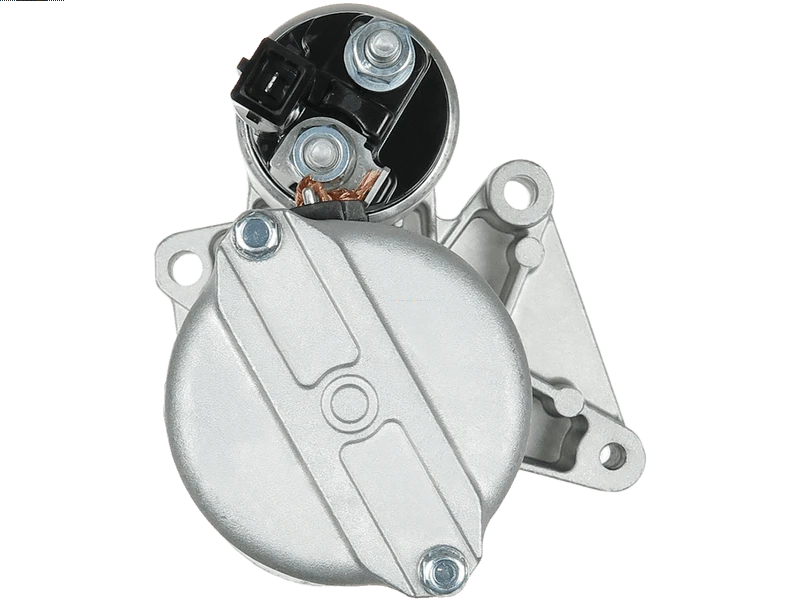

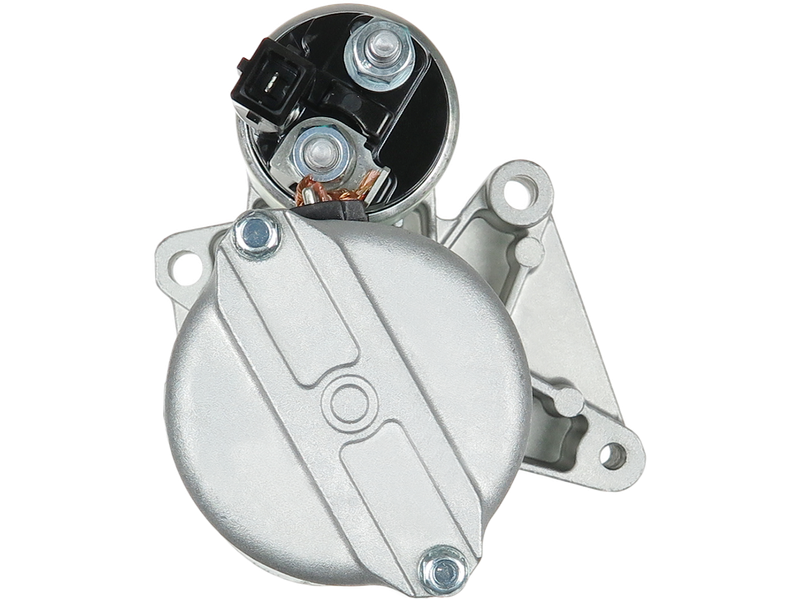

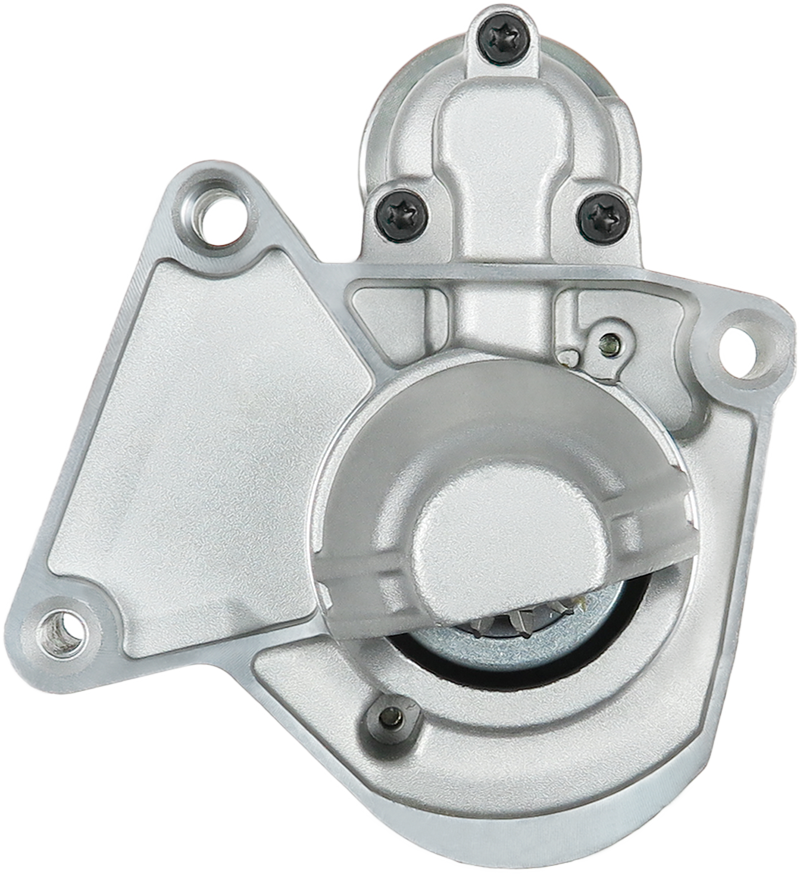

S0775S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	217 mm
Mount Hole Center - Center (O.1)	124 mm
Mount Hole Center - Center (O.2)	75 mm
Mount Hole Center - Center (O.3)	92 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	9.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	1 qty
No./Teeth	12 qty
Pinion at Rest (B)	14 mm
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	Berlingo 1.6 BlueHDi 120	[BHZ(DV6FC)]	12.2014-
CITROEN	C4 1.6 BlueHDi 120	[BHZ(DV6FC)]	02.2015-
CITROEN	C4 Cactus 1.6 BlueHDi 100	[BHY(DV6FD)]	09.2014-
CITROEN	C4 Grand Picasso 1.6 BlueHDi 100	[BHY(DV6FD)]	01.2015-
CITROEN	C4 Picasso 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-
CITROEN	DS3 1.6 BlueHDi 100	[BHY(DV6FD)]	07.2014-07.2015
CITROEN	DS3 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-07.2015
CITROEN	DS3 1.6 BlueHDi 120	[BHZ(DV6FC)]	10.2013-07.2015
CITROEN	DS3 1.6 HDi 115	[BHX(DV6FC)]	10.2013-07.2015
CITROEN	DS4 1.6 BlueHDi 115	[BHX(DV6FC)]	07.2014-07.2015
CITROEN	DS4 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-07.2015
CITROEN	DS5 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-07.2015
CITROEN	DS5 1.6 HDi	[BHX(DV6FC)]	11.2013-07.2015
PEUGEOT	2008 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-
PEUGEOT	208 1.6 BlueHDi 100	[BHY(DV6FD)]	01.2015-
PEUGEOT	208 1.6 BlueHDi 120	[BHZ(DV6FC)]	11.2013-
PEUGEOT	208 1.6 BlueHDi 75	[9HK(DV6ETEDM)]	01.2013-
PEUGEOT	208 1.6 BlueHDi 75	[BHW(DV6FE)]	01.2013-
PEUGEOT	208 1.6 HDi	[9HK(DV6ETEDM)]	01.2013-
PEUGEOT	208 1.6 HDi	[BHW(DV6FE)]	01.2013-
PEUGEOT	3008 1.6 BlueHDi 120	[BHZ(DV6FC)]	05.2014-08.2016
PEUGEOT	308 1.6 BlueHDi 120	[BHZ(DV6FC)]	11.2013-
PEUGEOT	308 SW 1.6 BlueHDi 120	[BHZ(DV6FC)]	03.2014-
PEUGEOT	5008 1.6 BlueHDi 120	[BHZ(DV6FC)]	05.2014-03.2017
PEUGEOT	508 1.6 BlueHDi 120	[BHZ(DV6FC)]	03.2014-
PEUGEOT	508 SW 1.6 BlueHDi 120	[BHZ(DV6FC)]	03.2014-
PEUGEOT	Partner 1.6 BlueHDi 120	[BHZ(DV6FC)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 120 Tepee	[BHZ(DV6FC)]	12.2014-

Reference Information

3640268 STM1438 111111 95525946 30839N 0001174600 STB1791 0001174601 6.7039.1 332174 1174601 255823B 1174600 CST10587RS 6010587.2 12397 SU001-A4921 20401785RC 220.544.123 DRS1087 DS2197 STRE455 LRS3952 UD15504S RNL174601 255823R 0000001A01305 BOS0001174600 9675660680 LRS03952 25-5114 S0775S 1627650980 STR10263 0001A01305 116282

Video/Publications

0001174600 0001174601 0001A01305 116282 12397 1627650980 20401785RC 220.544.123 25-5114 255823B 255823R 3640268 6.7039.1 6010587.2 95525946 9675660680 BOS0001174600 CST10587RS DRS1087 DS2197 LRS03952 LRS3952 RNL174601 S0775S STB1791 STRE455 UD15504S
