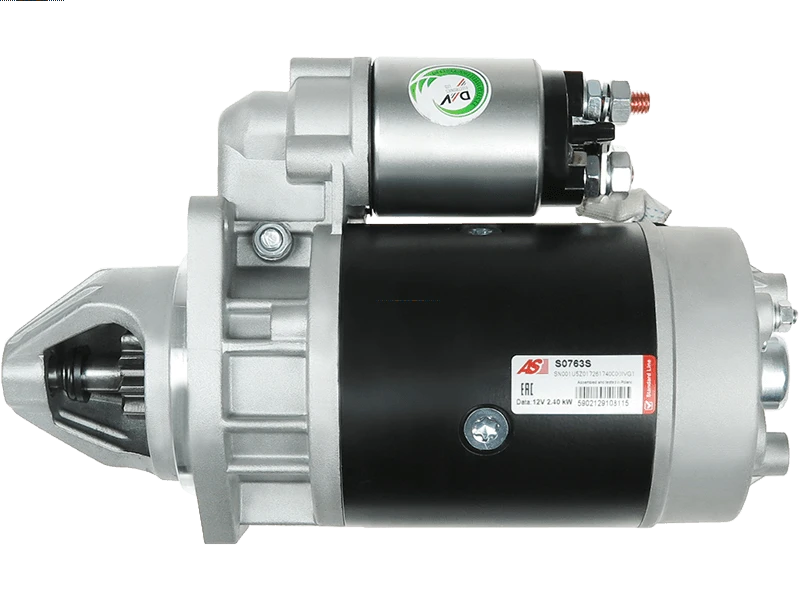

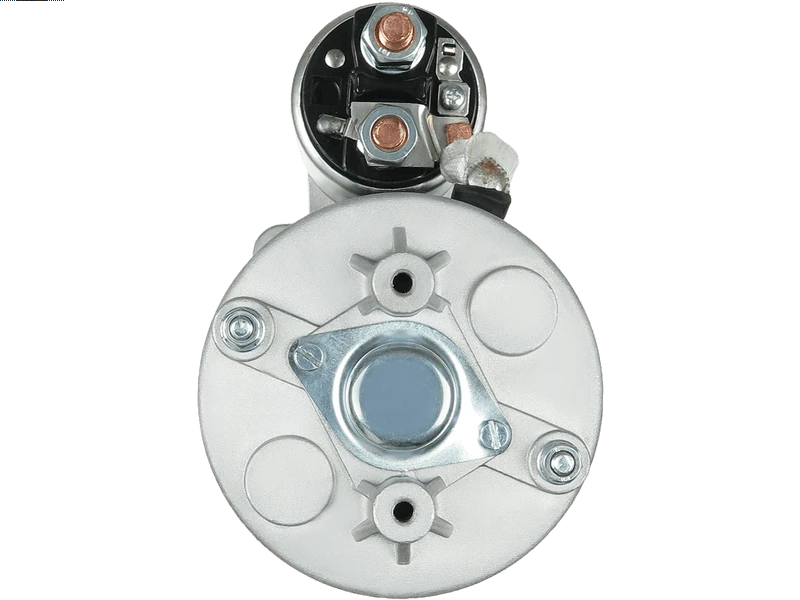

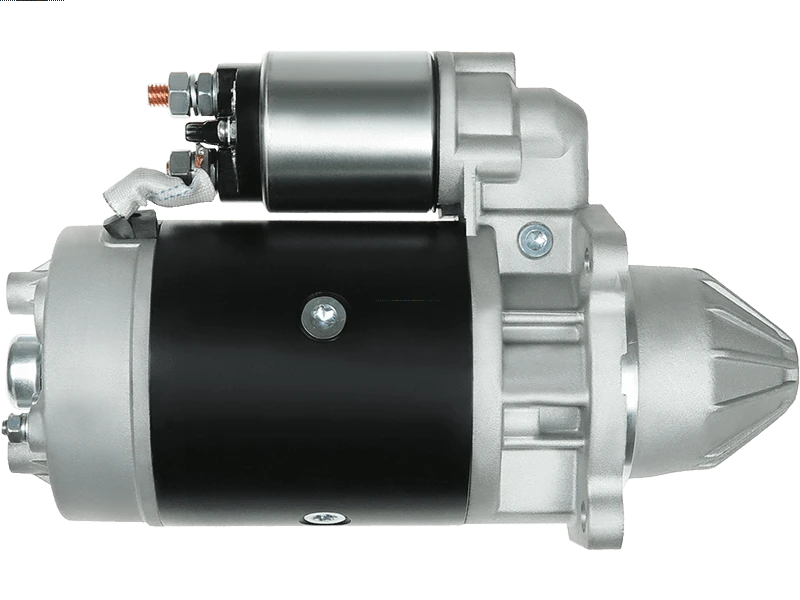

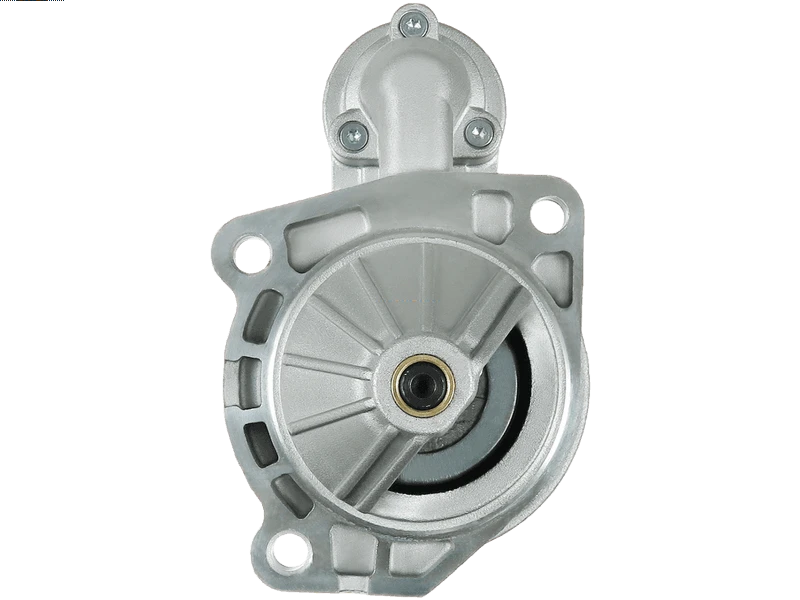

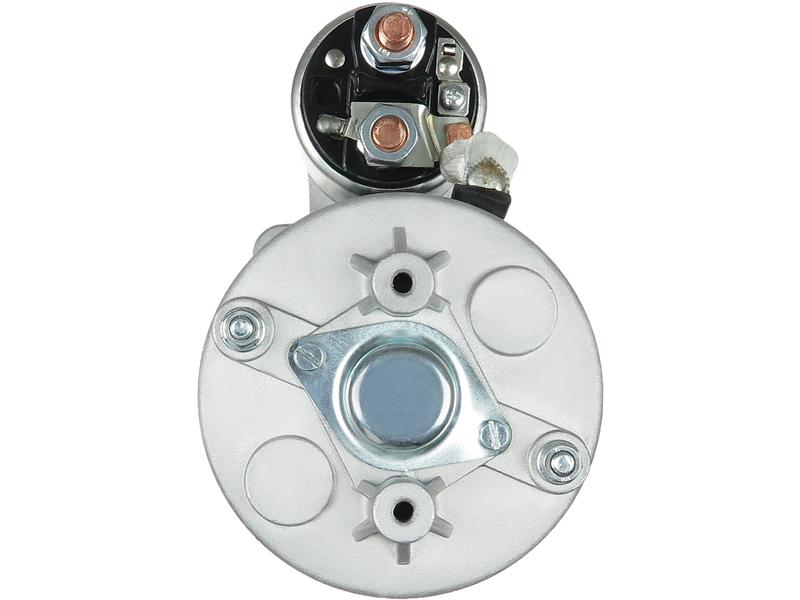

S0763S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.4 kW
Length (L.1)	293.5 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	28 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
IVECO	110-13 A	[BF6L913T]	01.1983-12.1991
IVECO	110-13 A	[F6L913]	01.1983-12.1991
IVECO	110-13 AH	[BF6L913T]	01.1983-12.1985
IVECO	110-13 AH	[F6L913]	01.1983-12.1985
IVECO	130-13 A	[BF6L913T]	01.1983-12.1991
IVECO	130-13 A	[F6L913]	01.1983-12.1991
IVECO	130-13 AH	[BF6L913T]	01.1983-12.1991
IVECO	130-13 AH	[F6L913]	01.1983-12.1991
IVECO	75-9 A	[BF4L913T]	01.1983-05.1989
IVECO	75-9 A	[F4L913]	01.1983-05.1989
IVECO	75-9 H	[F4L913]	01.1983-08.1985
IVECO	80-13 A	[BF6L913T]	01.1983-12.1991
IVECO	80-13 A	[F6L913]	01.1983-12.1991
IVECO	80-13 AH	[BF6L913T]	01.1983-12.1991
IVECO	80-13 AH	[F6L913]	01.1983-12.1991
IVECO	80-13 AT	[BF6L913T]	01.1983-12.1991
IVECO	80-13 AT	[F6L913]	01.1983-12.1991
IVECO	80-13 AW	[BF6L913T]	01.1983-12.1989
IVECO	80-13 AW	[BF6L913T]	01.1983-12.1991
IVECO	80-13 AW	[F6L913]	01.1983-12.1989
IVECO	80-13 AW	[F6L913]	01.1983-12.1991
IVECO	80-9 A	[F4L913]	01.1983-02.1986
IVECO	80-9 AH	[F4L913]	01.1983-02.1986
IVECO	90-13 A	[BF6L913T]	01.1983-12.1991
IVECO	90-13 AH	[BF6L913T]	01.1983-12.1991

Reference Information

0001362091 1362091 1178026 G380900060010 UD16577S 1161384 X830100001 B28R12X4H7622 B15R12X3H762 277 STM706 5710923 6.0572E+11 1164668 17075N MAV3320 6005003156 MS 6005003155 91-15-6896 110536 220227 120-30108 IS0551 LRS01057 33884 1175726 42498132 1164994 1175886 1164995 260-26104 B13R12X4H7622 25-0282 1301833 1178686 1163669 B23R12X3H7622 B15R12X3H7622 220011 TS-6022 V941501EX 1358046 5710905 STB0114 11.130.551 5710901 DRS0990 1174166 10430 STR50590 1516652R 6107108 AZJ3169 LRS1057 6005016395 CS114 0001358046 5710917 1516667R 1170052 6005001146 STR1161 6000102394 5710992 5710991 42522733 6000102270 1173240

Video/Publications

0001358046 0001362091 11.130.551 110536 120-30108 17075N 220011 25-0282 260-26104 33884 91-15-6896 AZJ3169 CS114 DRS0990 IS0551 LRS01057 LRS1057 MAV3320 MS 277 STB0114 STM706 STR50590 TS-6022 UD16577S 220227
