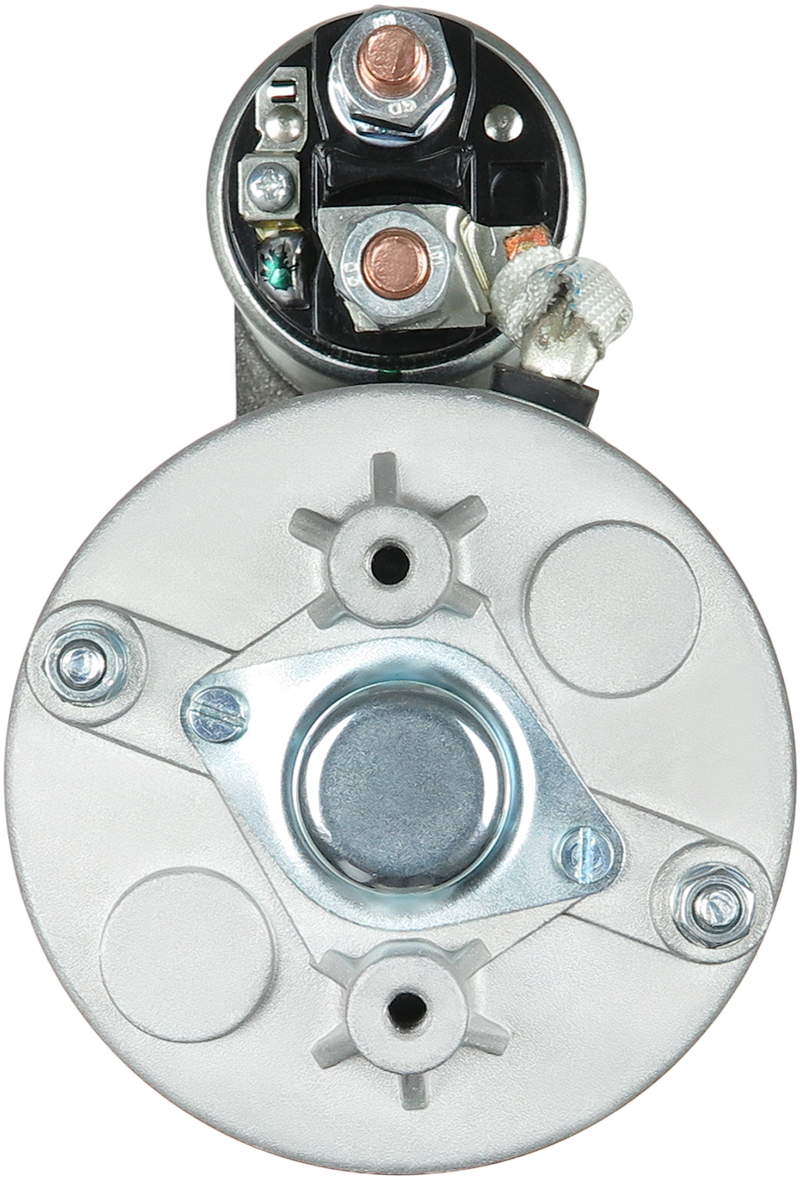

S0757S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.4 kW
Length (L.1)	293 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
GOLDONI	1055 1.8	[VM-RA394]
GOLDONI	3050 1.8	[VM-RA394]	04.1986-06.1991
GOLDONI	3050 2.1	[VM-HR394HP]	06.1991-
GOLDONI	3070 2.0	[VM-RA394HPT]	06.1990-06.1991
GOLDONI	3070 2.1	[VM-HR394HP]	06.1991-
GOLDONI	55 2.0	[VM-HR394HP]	09.1991-
GOLDONI	Cingolato 2.0	[VM-RA394]	04.1991-
GOLDONI	Transcar 2.0	[VM-RA394]	11.1990-
VM	20KVA 1.5	[HR392A]	01.1978-01.1986
VM	392RA 1.8		01.1984-06.1985
VM	HR 294 HP 1.4		09.1986-12.1990
VM	HR 394 H 2.0
VM	HR 394 HP 2.0
VM	HR 394 HT 2.0
VM	HR 492 H9 2.4
VM	HR 492 HI9 2.4
VM	HR 492 HT9 2.4		09.1980-
VM	HR 492 HT9 2.4
VM	HR 492 HTA 2.4
VM	HR 494 H10 2.1
VM	HR 494 H 2.1
VM	HR 494HPT 2.1		06.1988-
VM	HR 494 HT10 2.1
VM	HR 494 HT 2.1
VM	HR 588HTT 2.5		06.1988-07.1989
VM	RA 392 1.8
VM	RA 394 2.0		01.1986-

Reference Information

0001362092 AZJ3554 1362092 730.008.112.016 MS393 CST21100RS 6021100 CST21100AS 730.008.112.010 1358027 393 PRC5669 0001358027 0001358013 220186 STRS057 CS1073 1362011 1362059 260-62119 CGB-26200 035530050A 331704 MS PRSS057 UD16568S 35530050A CST21100 11.130.250 GS362059-A UD16574S 1358013 CST21100GS MAV231000 CST21100ES S0757S 254767M STR79008 0001362011 CST21100OS 20419001 0001362059 IS0250
