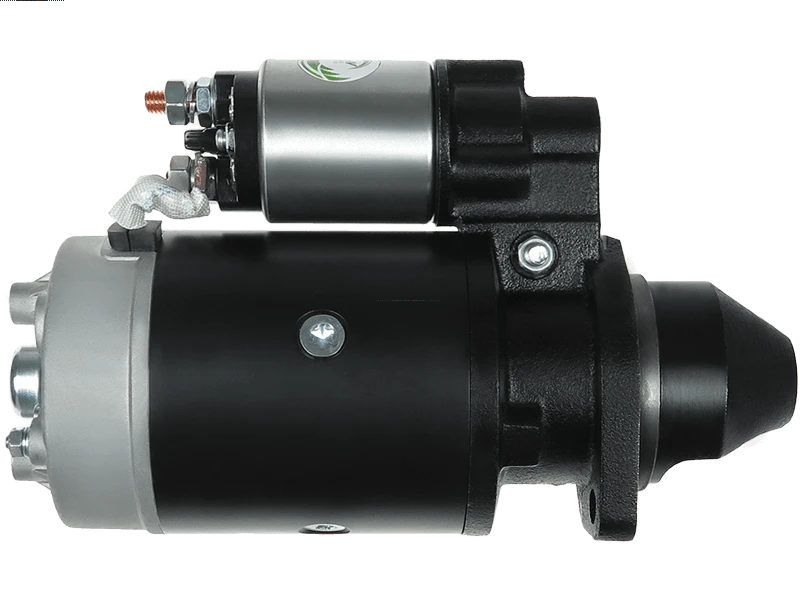

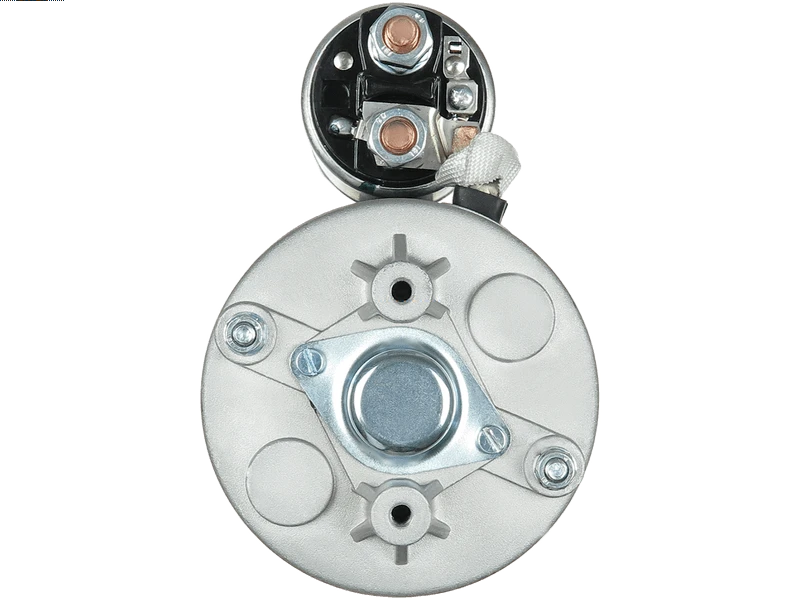

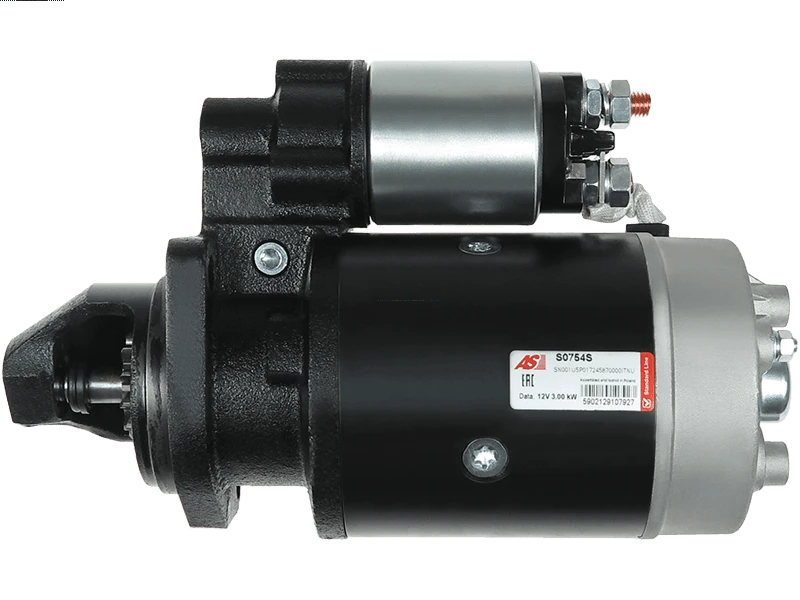

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 424.48 including GST
NZ$ 369.11 excluding GST
or four payments of $106.12
with
Learn More
each
S0754S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362009Associated Numbers
0001354010 0001354014 0001354033 0001354090 0001362009 0001362022 0001362035 10996 10996B 10996I 10996M 17114N 20401451 25-1444 260-62106 6010154 610.001.112 63217163 8770 91-15-7059 CST10154 CST10154AS CST10154ES CST10154GS CST10154OS CST10154RS EAA-111129 EAA-141530 LRS02050 MT71F MT71FA MT71FB STR50170 UD16567SSpecifications
| Kilowatt | 3 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAMBORGHINI | R513 DT | [983L] | 01.1983-12.1985 |
| LAMBORGHINI | R583 | [100-3P] | 01.1983-12.1986 |
| LAMBORGHINI | R683 DT | [105.3P] | 01.1982-12.1986 |
| LAMBORGHINI | R684 | [984P] | 01.1982-12.1985 |
| SAME | Aurora 45 | 01.1973-12.1982 | |
| SAME | Centurion 75 | [1054P] | 01.1978-12.1980 |
| SAME | Delfino 35 | [952L] | 01.1972-12.1980 |
| SAME | Falcon | 01.1975-12.1982 | |
| SAME | Jaguar 95 | [1055P] | 01.1978-12.1980 |
| SAME | Leopard 85 | [1054P] | 01.1978-12.1980 |
| SAME | Minitauro 60 | [1053L] | 01.1974-12.1980 |
| SAME | Saturno 80 | [1054L] | 01.1976-12.1977 |
| SAME | Taurus 60 | [1053P] | 01.1978-12.1984 |
Reference Information
| 0001354010 | BOSCH |
| 0001354014 | BOSCH |
| 0001354033 | BOSCH |
| 0001354090 | BOSCH |
| 0001362009 | BOSCH |
| 0001362022 | BOSCH |
| 0001362035 | BOSCH |
| 10996 | KUHNER |
| 10996B | KUHNER |
| 10996I | KUHNER |
| 10996M | KUHNER |
| 111284 | CARGO |
| 11750 | EFEL |
| 12153835 | KHD |
| 20401451 | REAL |
| 220228 | ERA |
| 25-1444 | ELSTOCK |
| 260-62106 | DIXIE |
| 3123482 | HENKEL PARTS |
| 3123484 | HENKEL PARTS |
| 331148 | LOGISTIK |
| 33371 | EAI |
| 371ST33 | STARTCAR |
| 605720100063 | MWM |
| 610.002.112.010 | PSH |
| 610.002.112.016 | PSH |
| 610.002.112.311 | PSH |
| 63217163 | MAGNETI MARELLI |
| 8770 | CEVAM |
| 91-15-7059 | WILSON |
| BREF032110530 | CARWOOD GROUP |
| CGB-23325 | AINDE |
| F032111284 | CARGO |
| LRS02050 | LUCAS |
| LRS2050 | LUCAS |
| MT71F | MAGNETI MARELLI |
| MT71FA | MAGNETI MARELLI |
| MT71FB | MAGNETI MARELLI |
| PL9038 | SNRA |
| S0754S | AS-PL |
| S12BH0287A2 | SIDAT |
| S134.225 | PSH |
| S145.168 | PSH |
| STR10024 | ELECTROLOG |
| STR50170 | WOODAUTO |
| UD16567S | AS-PL |
Video/Publications
