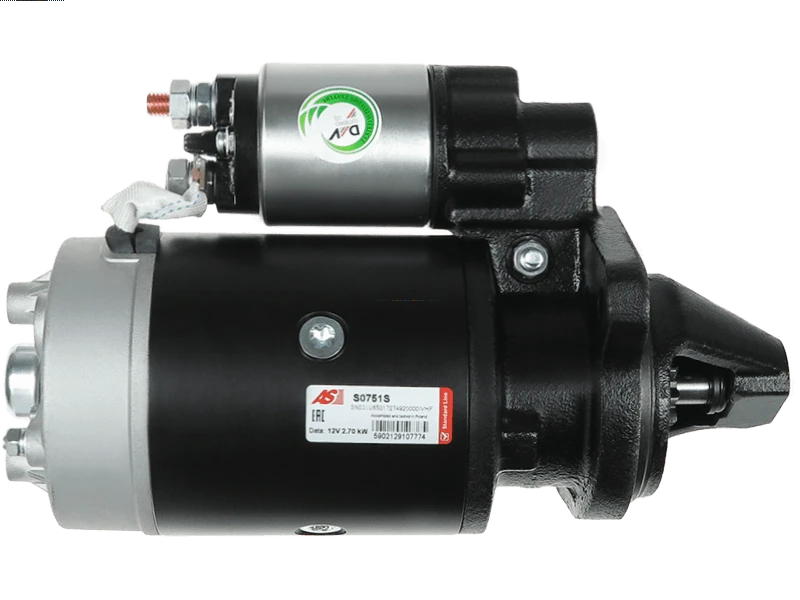

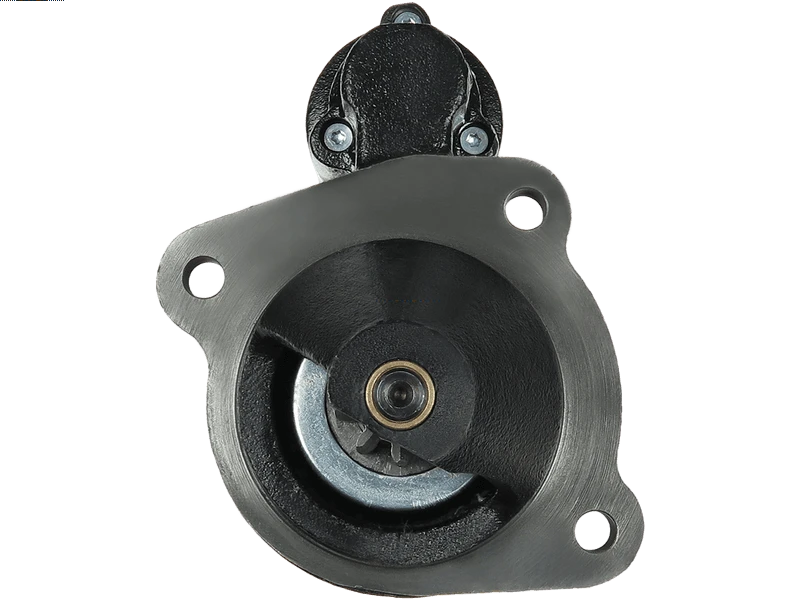

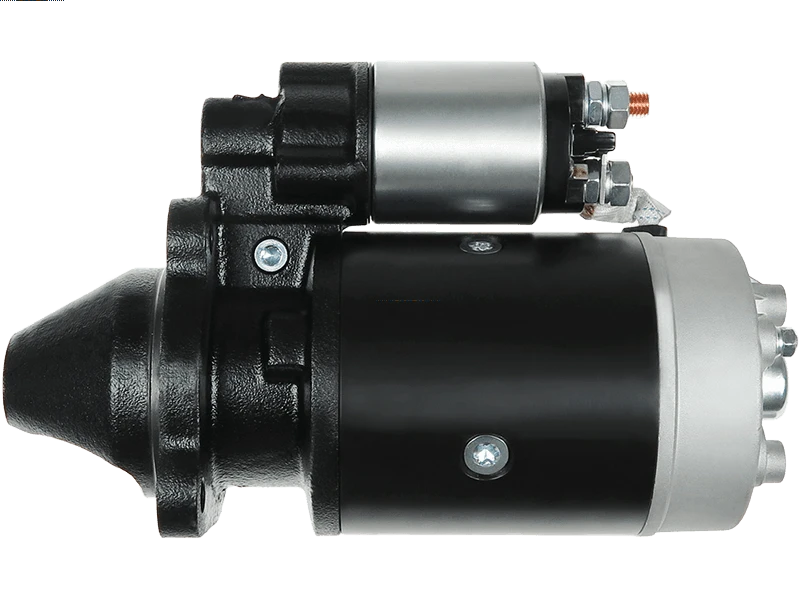

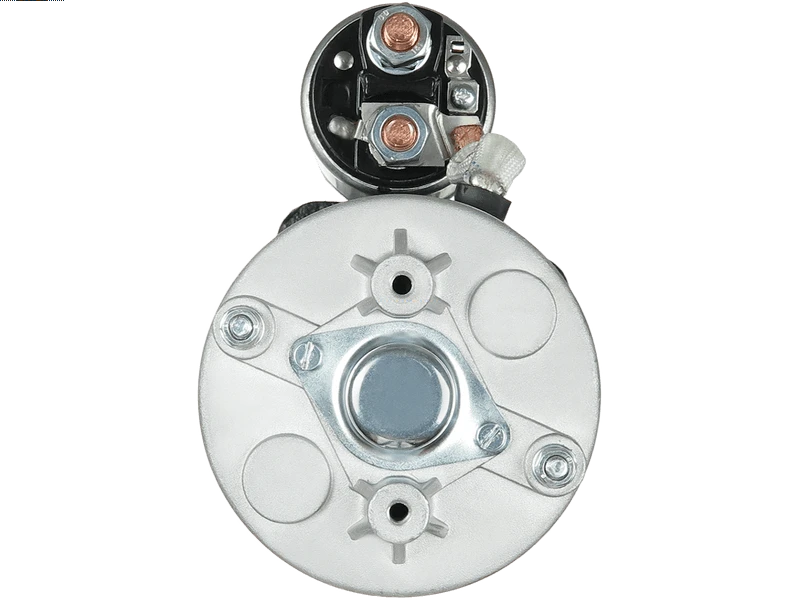

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 512.90 including GST
NZ$ 446.00 excluding GST
or four payments of $128.23
with
Learn More
each
S0751S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001362320Associated Numbers
0001362315 0001362320 01178297 1178297 12153849 520.005.093 605720100103 STR50408 UD16583S UNIT BOM 920-982Specifications

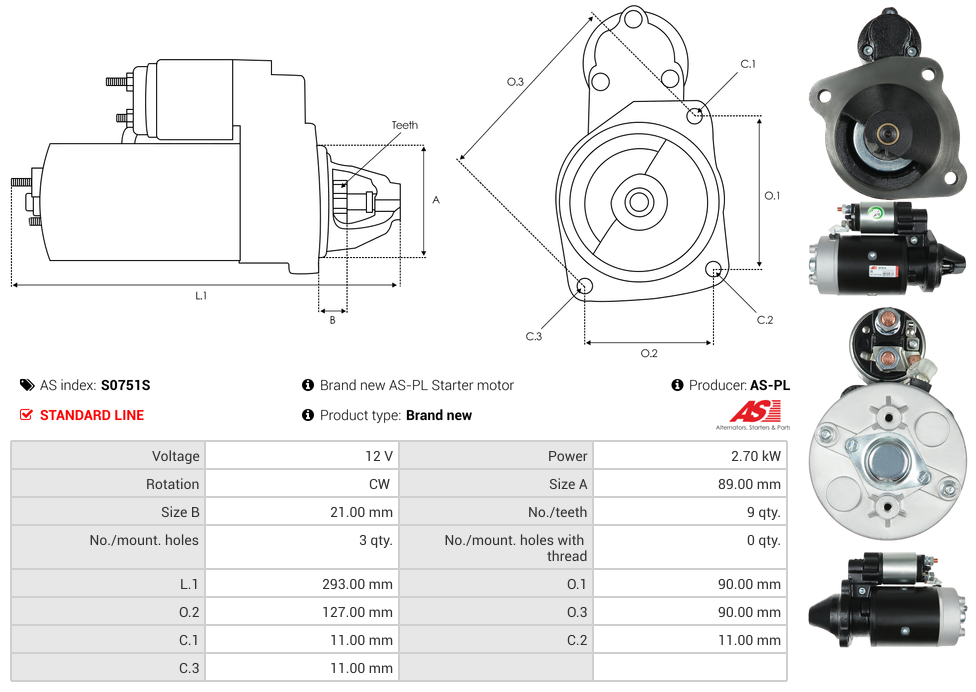

| Kilowatt | 2.70 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MWM | Engine |
Reference Information
| 0001362315 | BOSCH |
| 0001362320 | BOSCH |
| 01178297 | KHD |
| 1178297 | KHD |
| 12153849 | KHD |
| 520.005.093 | PSH |
| 520.005.093.460 | PSH |
| 605720100103 | MWM |
| S0751S | AS-PL |
| S133.428 | PSH |
| STR1716 | ELECTROLOG |
| STR50408 | WOODAUTO |
| UD16583S | AS-PL |
| UNIT BOM 920-982 | WAI / TRANSPO |
