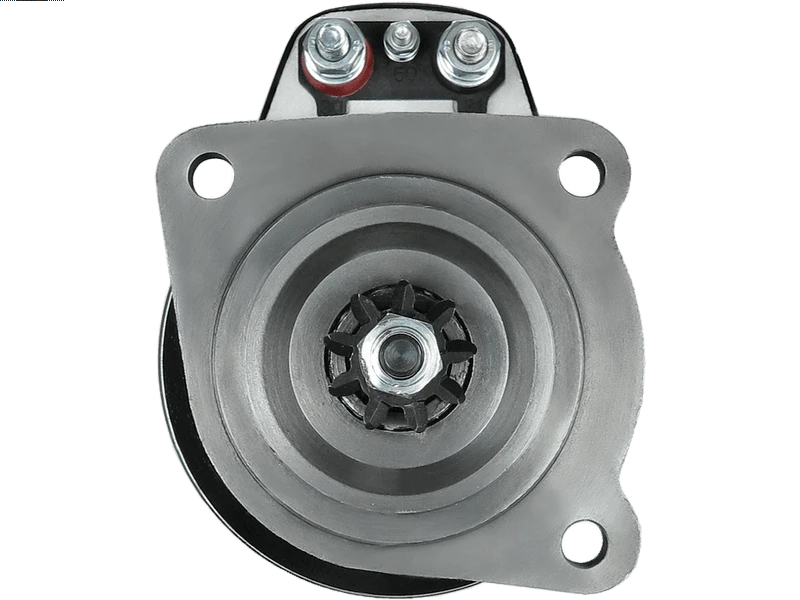

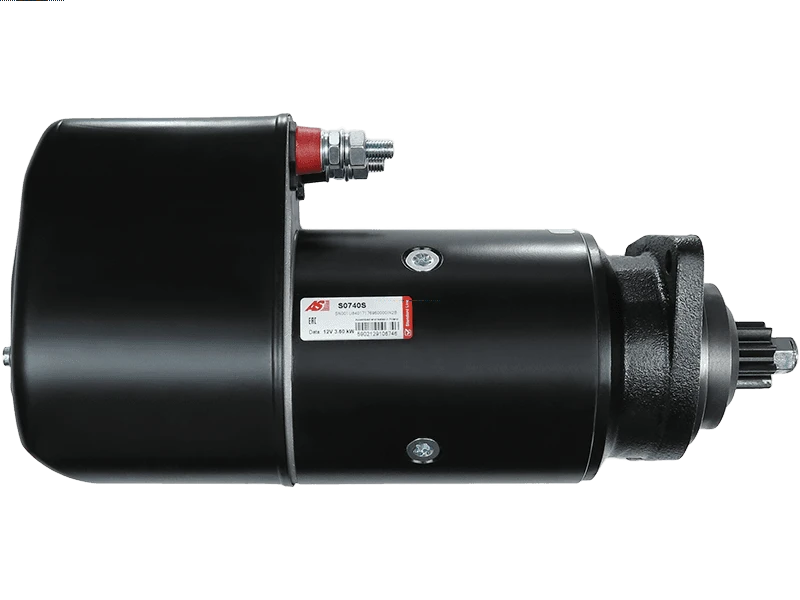

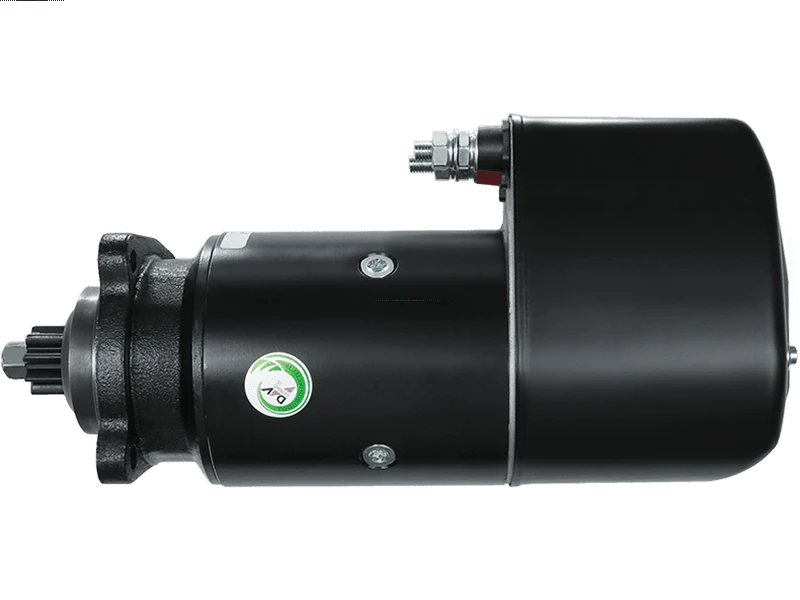

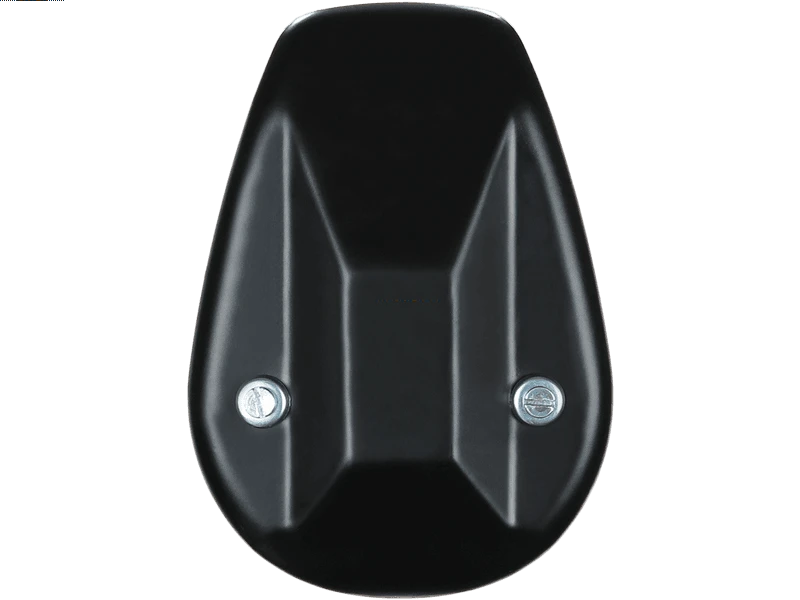

S0740S - Brand new AS-PL Starter motor

Associated Numbers

0001401012 0001413010 0001418003 05710906 05710993 10956 10956D 10956L 10956M 11.139.092 11.139.530 19024175 20401571 22804 240500 260-46101 33653 51262017008 51262019008 6010175 6643669 72411472 790.101.093 860542 861067 88262016002 8EA737102-001 AZK5444 AZK5569 CS956 CST10175 CST10175AS CST10175ES CST10175GS CST10175OS CST10175RS EAA-121535 EAA-121735 EAA-122651 IS9083 MS578 MS716 REM19024175 SG9090 STR50556 UD16654S UNIT BOM 120-6193B

Specifications

Kilowatt	3.60 kW
Length (L.1)	387 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Oil Sealed	Yes
Pinion at Rest (B)	47.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BOMAG	BW 4A 2.8	[KHD-F3L912]	01.1973-09.1984
BOMAG	BW 6A 2.8	[KHD-F3L912]	01.1973-
VOLVO	B 705 4.7	[D47B]	01.1962-04.1964
VOLVO	F 84 5.0	[D50B]	01.1972-12.1974
VOLVO	F 84T 5.0	[TD50B]	01.1972-10.1978
VOLVO	F 85 5.0	[D50B]	01.1972-12.1974
VOLVO	F 85T 5.0	[TD50B]	01.1972-10.1978
VOLVO	F 86 6.7	[D70B]	06.1970-12.1974
VOLVO	F 86T 6.7	[TD70B]	08.1970-09.1974
VOLVO	FB 84 5.0	[D50B]	01.1972-12.1974
VOLVO	FB 84T 5.0	[TD50B]	01.1972-10.1978
VOLVO	FB 85T 5.0	[TD50B]	01.1972-10.1978
VOLVO	FB 86 6.7	[D70B]	06.1970-12.1974
VOLVO	FB 86T 6.7	[TD70B]	08.1970-09.1974
VOLVO	L 375 Strake 4.7	[D47A]	01.1959-12.1961
VOLVO	L 465 4.7	[D47B]	06.1961-05.1965
VOLVO	L 4751 4.7	[D47B]	10.1964-12.1965
VOLVO	L 4751 4.7	[TD47B]	10.1964-12.1965
VOLVO	L 475 4.7	[D47B]	06.1961-05.1965
VOLVO	L 475 4.7	[TD47B]	06.1961-05.1965
VOLVO	N 7 6.7	[TD70B]	09.1973-07.1978
VOLVO	N 84 5.0	[D50B]	01.1972-08.1973
VOLVO	N 86T 6.7	[TD70B]	08.1970-08.1973
VOLVO	NB 84 5.0	[D50B]	01.1972-08.1973
VOLVO	NB 86 6.7	[D70B]	06.1970-08.1973
VOLVO	NB 86T 6.7	[TD70B]	08.1970-08.1973
VOLVO BM	S950 5.0	[D50A]	02.1966-12.1970
VOLVO BM	T800 5.0	[D50A]	01.1967-12.1975
VOLVO BM	T810 5.0	[TD50A]	03.1969-12.1975
VOLVO BM	T814 5.0	[TD50A]	03.1969-06.1979

Reference Information

0001401012	BOSCH
0001401052	BOSCH
0001413010	BOSCH
0001418003	BOSCH
0031514401	MERCEDES
0041514001	MERCEDES
01304445	KHD
05710906	BOMAG
05710993	BOMAG
111217	CARGO
11.139.530	ISKRA / LETRIKA
120-6193B	WAI / TRANSPO
1304445	KHD
240500	VOLVO
240524	VOLVO
240847	VOLVO
3109	EFEL
331181	LOGISTIK
33653	EAI
5010314	MEAT & DORIA
51.26201-7008	MAN
51.26201-9008	MAN
6643669	VOLVO
6643900	VOLVO
7240524	VOLVO
790.101.093.010	PSH
790.101.093.016	PSH
790.101.093.311	PSH
790.101.093.380	PSH
861067	PRESTOLITE
88213065	POWERMAX
88.26201-6002	MAN
8882	CEVAM
A0031514401	MERCEDES
A0041514001	MERCEDES
CS956	HC PARTS
F032111217	CARGO
MS716	MAHLE
S135.191	PSH
S145.185	PSH
STB0151	KRAUF
STR10320	ELECTROLOG
STR50556	WOODAUTO
STR79525	ELECTROLOG
STR79526	ELECTROLOG
UD16654S	AS-PL

Video/Publications

S0740S
