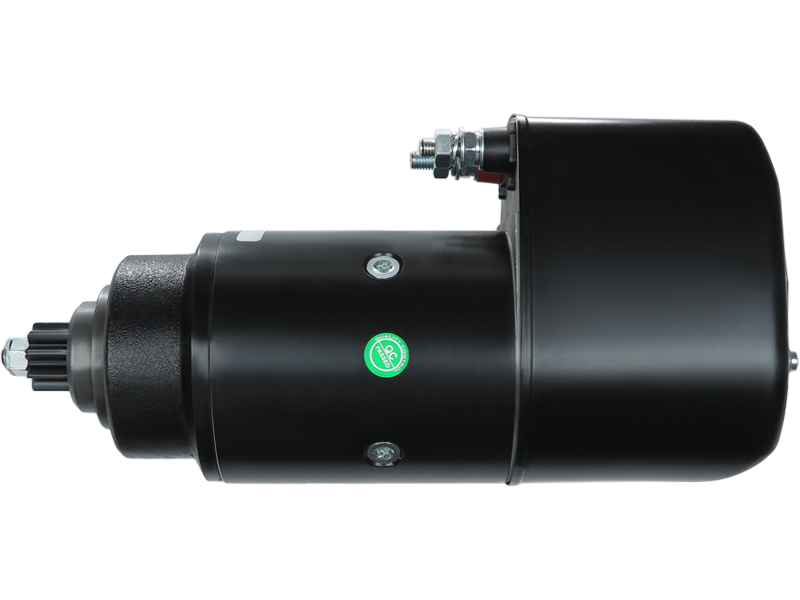

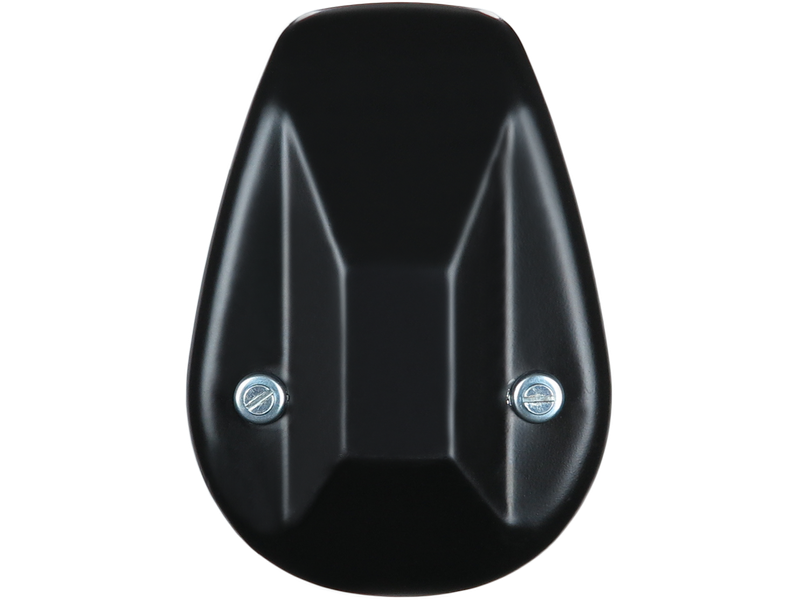

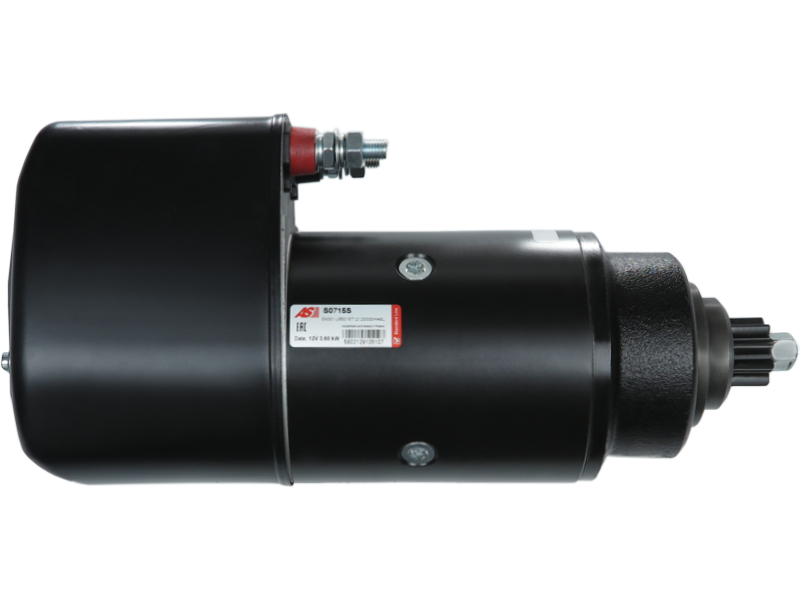

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 747.80 including GST
NZ$ 650.26 excluding GST
or four payments of $186.95
with
Learn More
each
S0715S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001418005Associated Numbers
0001418005 11.139.093 11.139.540 116510 19024002 254392 33654 550.103.090 6010A03 72492700 72736143 AZK5533 AZK5581 CST10A03 CST10A03AS CST10A03ES CST10A03GS CST10A03OS CST10A03RS IS9084 MS515 STR50557 TS-6135 UD16655S UNIT BOM 904-313Specifications
| Kilowatt | 3.60 kW |
| Length (L.1) | 386.50 mm |
| No./Mount holes | 0 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 45 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 72 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HANOMAG | A-L28 2.8 | [D28ALA] | 12.1962-03.1967 |
| HANOMAG | HA4000 2.8 | [D28CKL] | 12.1962-12.1966 |
| HANOMAG | HA4000 2.8 | [D28CL] | 12.1962-12.1966 |
| HANOMAG | K5B 2.8 | [D28CKB] | 11.1965-12.1968 |
| HANOMAG | Kurier 2.8 | [D28CKL] | 12.1962-12.1966 |
| HANOMAG | Kurier 2.8 | [D28CL] | 12.1962-12.1966 |
Reference Information
| 0000008814 | FIAT |
| 0001418005 | BOSCH |
| 01207140 | KHD |
| 01287137 | KHD |
| 11.139.093 | ISKRA / LETRIKA |
| 11.139.540 | ISKRA / LETRIKA |
| 116510 | CARGO |
| 1207140 | KHD |
| 1287137 | KHD |
| 19024002 | DELCO |
| 220321 | ERA |
| 254392 | KUHNER |
| 313T090031 | STEYR |
| 33654 | EAI |
| 4127580 | FIAT |
| 550.103.090 | PSH |
| 6010A03 | SANDO |
| 605720100001 | MWM |
| 72492700 | MAHLE |
| 72736143 | MAHLE |
| AZK5533 | ISKRA / LETRIKA |
| AZK5581 | ISKRA / LETRIKA |
| CST10A03 | CASCO |
| CST10A03AS | CASCO |
| CST10A03ES | CASCO |
| CST10A03GS | CASCO |
| CST10A03OS | CASCO |
| CST10A03RS | CASCO |
| F032116510 | CARGO |
| IS9084 | ISKRA / LETRIKA |
| MS515 | MAHLE |
| MS 515 | MAHLE |
| S12BH0777A2 | SIDAT |
| S133.066 | PSH |
| S144.716 | PSH |
| STR50557 | WOODAUTO |
| STR79527 | ELECTROLOG |
| STR79528 | ELECTROLOG |
| TS-6135 | DIXIE |
| UD16655S | AS-PL |
| UNIT BOM 904-313 | WAI / TRANSPO |
Video/Publications
S0715SView your shopping basket or Browse other items in Starter Motors.
