Associated Numbers
0001416025 255679 260-46226 45-2434 4881031 811.206.093 9004881031 91-15-7005 DRS0169 DS1279 EAA-111542 LRS01927 TS-6115 UD16618S UNIT BOM 120-6070Specifications

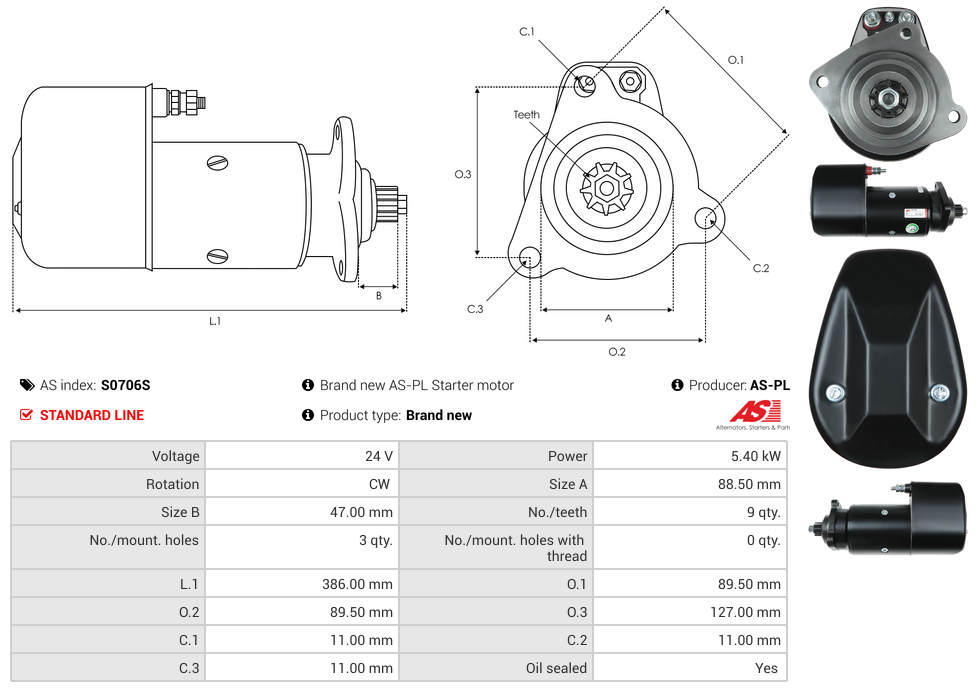

| Kilowatt | 5.4 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 89.5 mm |
| Mount Hole Center - Center (O.2) | 89.5 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.5 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | 4200 Loader | [D39L] | 01.1978-12.1986 |
| VOLVO BM | Various Models |
Reference Information
DS1279 BOM CGB-11525 UNIT STR10106 LRS01927 45-2434 91-15-7005 TS-6115 811.206.093 4881031 255679 0001416025 UD16618S 1416025 ANM12389X DRS0169 LRS1927 MAV1205 STRL694 260-46226 120-6070 EAA-111542 9004881031Video/Publications
0001416025 255679 260-46226 45-2434 4881031 811.206.093 9004881031 91-15-7005 CGB-11525 DRS0169 DS1279 EAA-111542 LRS01927 LRS1927 MAV1205 STRL694 TS-6115 UD16618S UNIT BOM 120-6070Add Your Number
