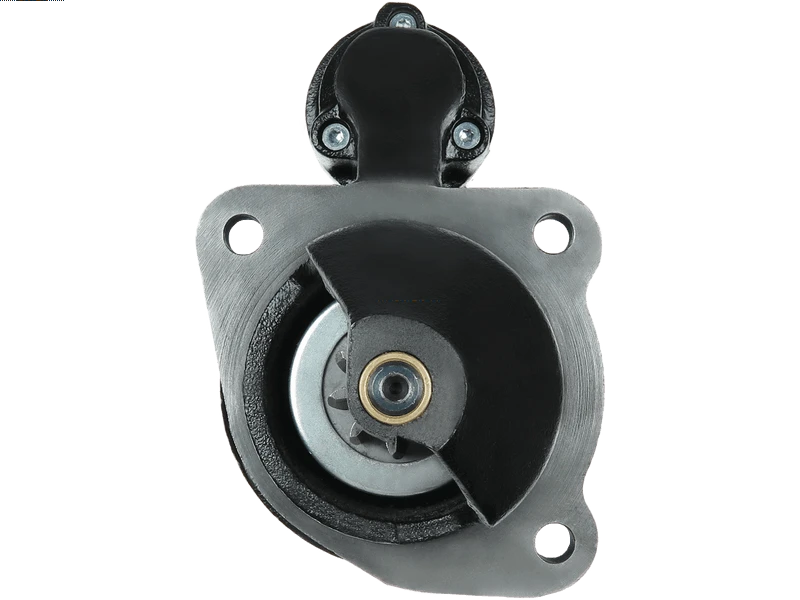

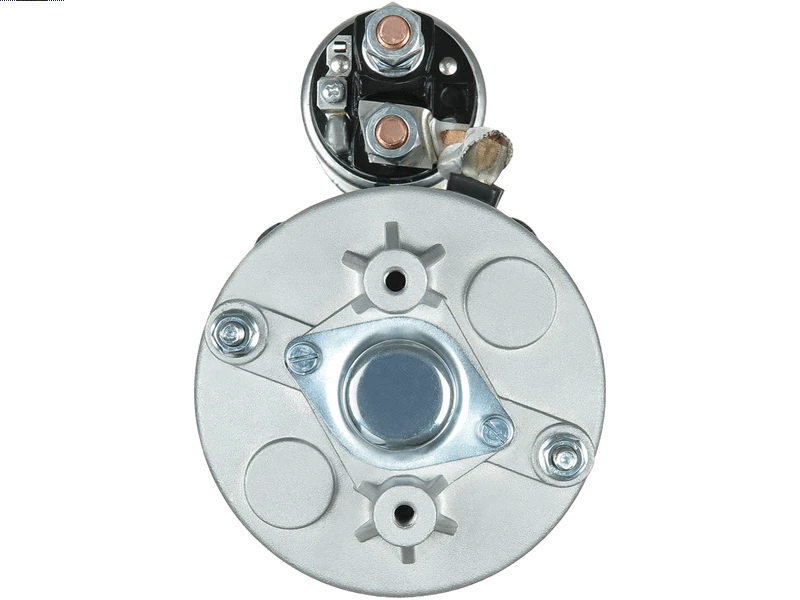

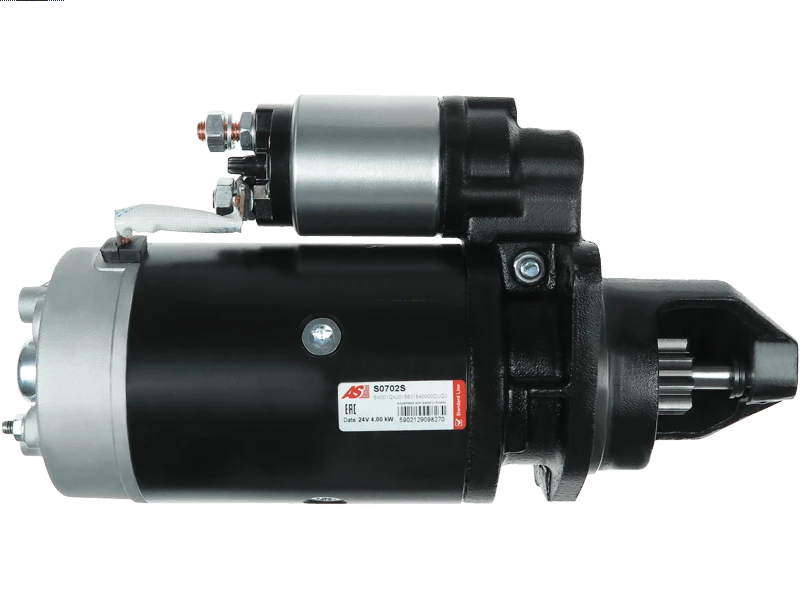

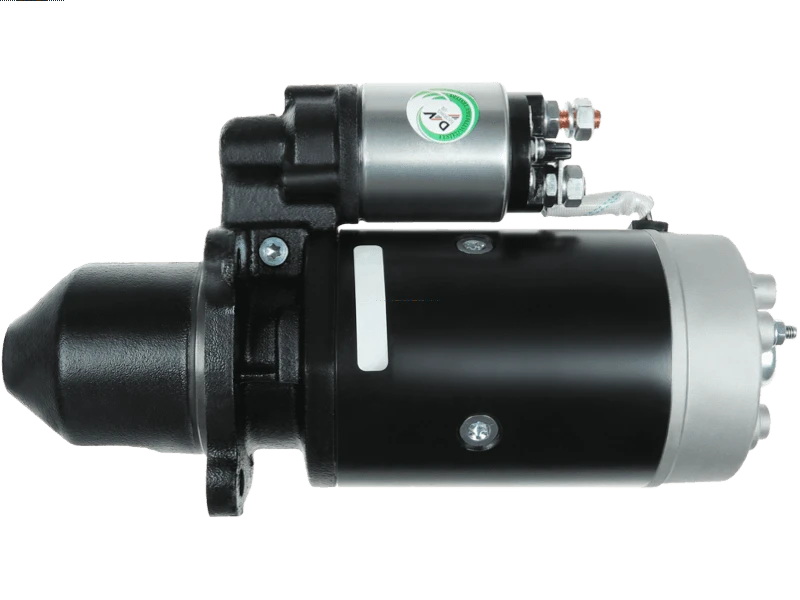

S0702S - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	341 mm
Mount Hole Center - Center (O.1)	89.5 mm
Mount Hole Center - Center (O.2)	89.5 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	48.5 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CASE	1080	[6T-590	01.1985-12.1994
CASE	1088	[6T-590]	01.1990-12.1992
CASE	688	[4T-390]	01.1987-12.1992
CASE	888		01.1987-12.1992
CASE	988	[6T-590]	01.1996-12.2005

Reference Information

CST10697 CST10697GS 17307N CST10697ES 45-2401 S24BH0144A2 CST10697OS EAA-121531 STR50139 P941519Q 254249 UD03448S 6010697 LRS1923 LRS01923 STR10091 113184 8563 20401796 254249B A186142 0001368069 CGB-28069 1368069 331846 A187597 Q941519 CST10697RS STRS284 72735797 MAV126970 541.002.093 91-15-7089 260-67214 88213576 CST10697AS

Video/Publications

0001368069 113184 17307N 20401796 254249 254249B 260-67214 45-2401 541.002.093 6010697 72735797 8563 88213576 91-15-7089 A186142 CGB-28069 CST10697 CST10697AS CST10697ES CST10697GS CST10697OS CST10697RS EAA-121531 LRS01923 LRS1923 MAV126970 P941519Q Q941519 STR50139 STRS284 UD03448S
