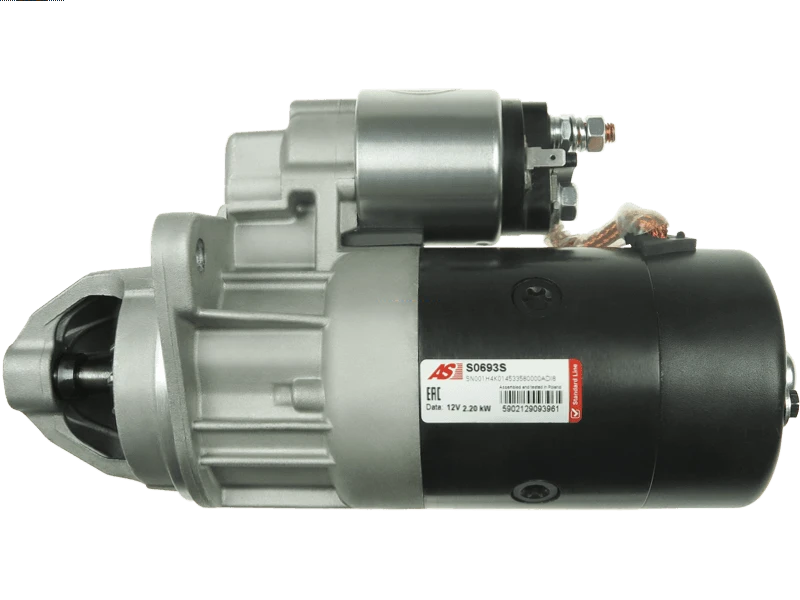

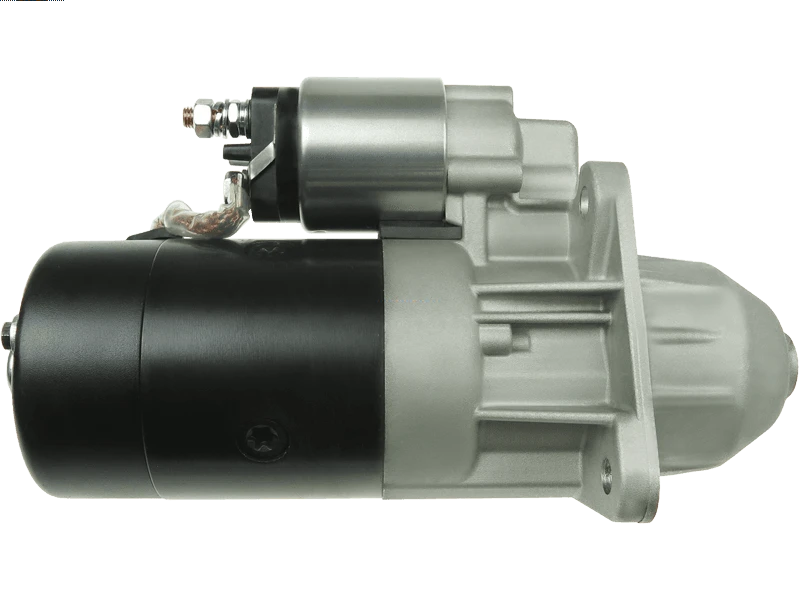

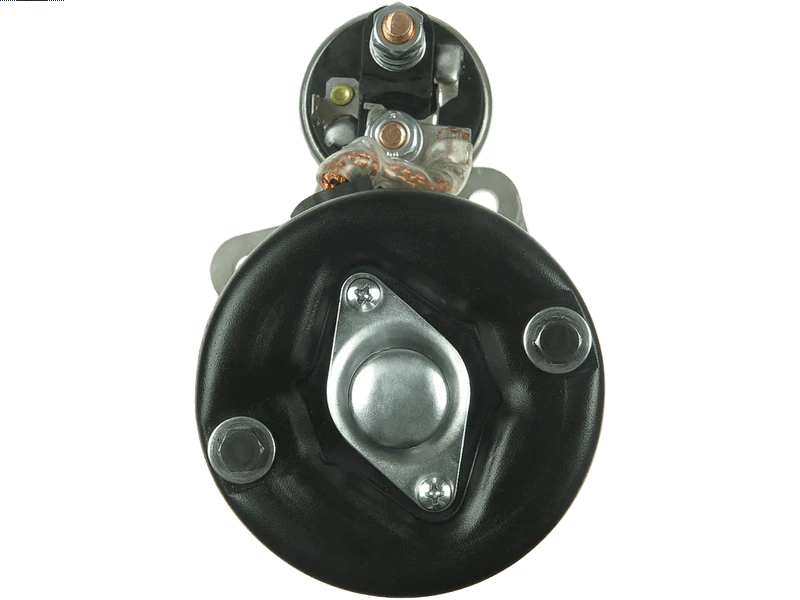

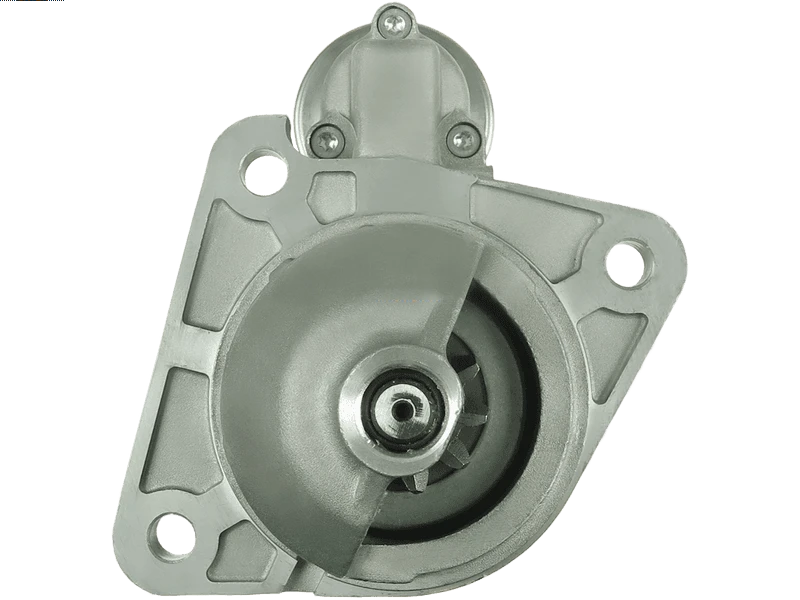

S0693S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 420.62 including GST

NZ$ 365.76 excluding GST
each
S0693S
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001218812 063522188120 160.560.103 25-2134 254093B 6010257 772000120 9000331417 9000331423 9592 BOS0001218812 CST10257 CST10257AS CST10257ES CST10257GS CST10257OS CST10257RS LRS01334 MSN2033 STR50339 UD15215S
Kilowatt2.2 kW
Length (L.1)279 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
Pinion at Rest (B)30 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
NISSAN L35.09 [B4-40] 01.1988-12.1989
NISSAN L50.09 [B4-40] 01.1988-12.1989
NISSAN L60.09 [B4-40] 01.1988-12.1989
NISSAN L80.09 [B4-40] 01.1988-12.1989
NISSAN Trade 2.8 D [A428] 01.1987-
CST10257ES MSN2033 CST10257GS BOS0001218812 CST10257 STR1773 0009000331423 CST10257OS 25-2134 254093B STR50339 6010257 S0693S 1218812 0001218812 9000331423 160.560.103 CST10257RS STRL291 9592 MAV122570 0009000331417 LRS01334 UD15215S CST10257AS 772000120 9000331417 63522188120 LRS1334
0001218812 063522188120 160.560.103 25-2134 254093B 6010257 772000120 9000331417 9000331423 9592 BOS0001218812 CST10257 CST10257AS CST10257ES CST10257GS CST10257OS CST10257RS LRS01334 LRS1334 MAV122570 MSN2033 STR50339 STRL291 UD15215S
