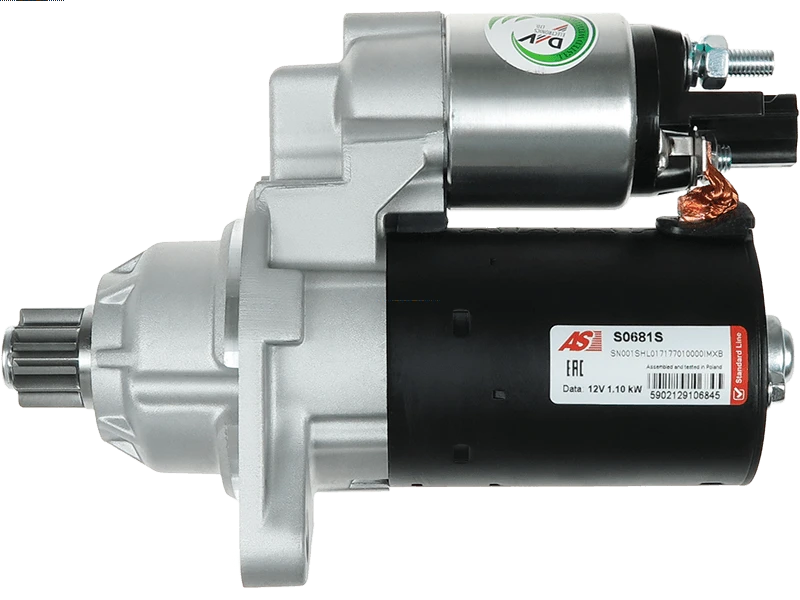

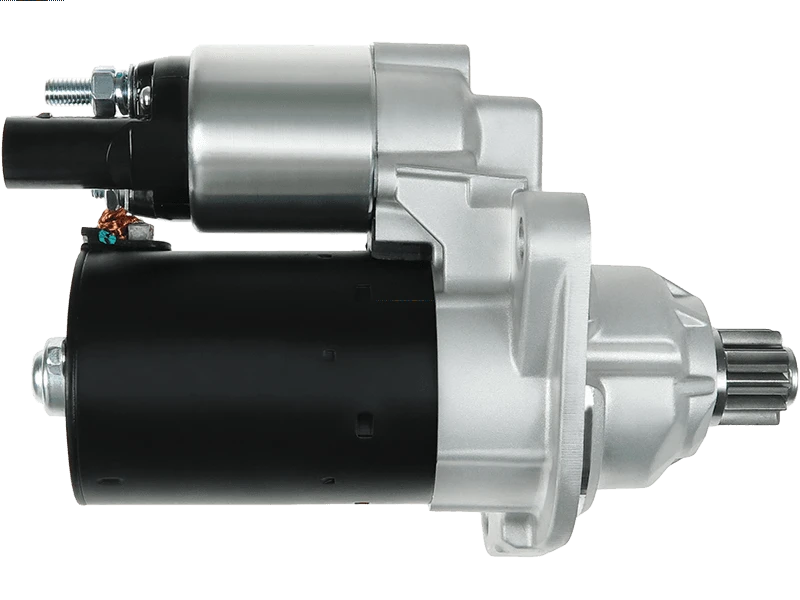

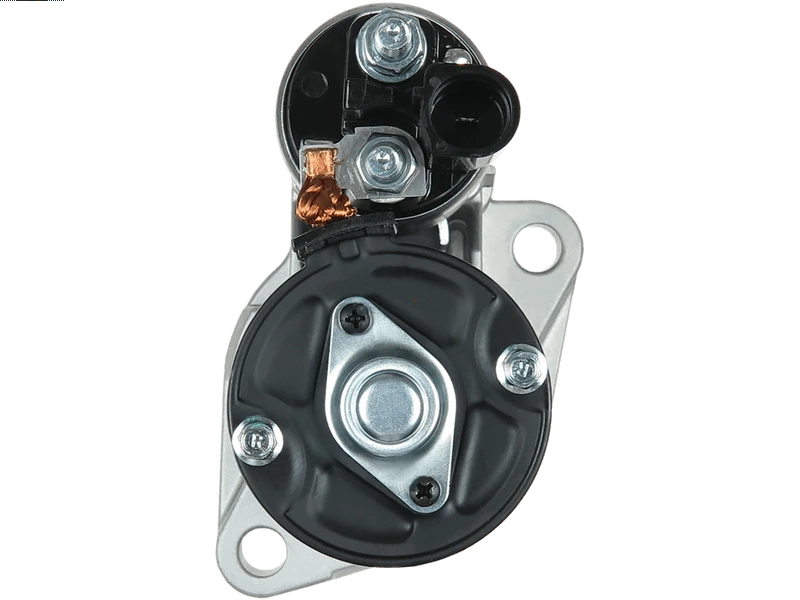

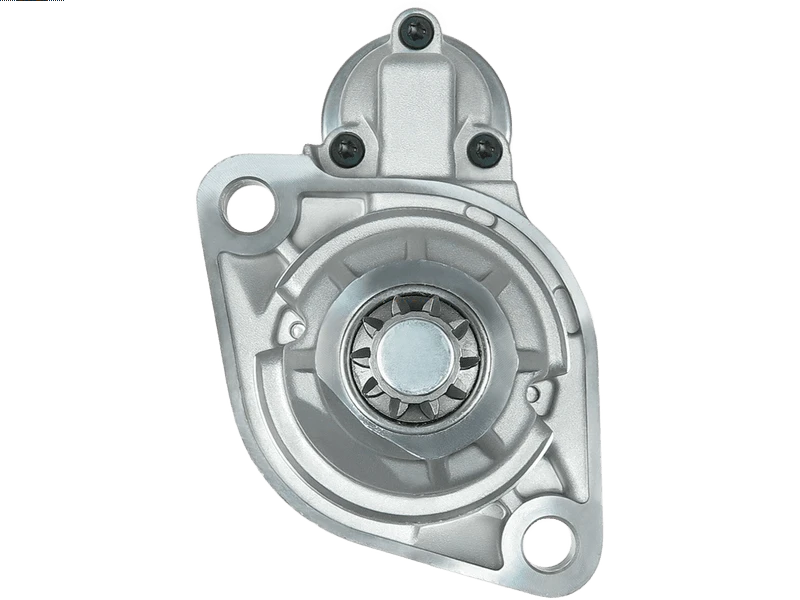

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 302.38 including GST

NZ$ 262.94 excluding GST
UOM:
each
S3037
S0681S
5+
Purchase Qty:
each


1986S00788 SNB041 70-1074-1g 0001121402 0001121403 02M911021B 02M911021BX 02M911023E 02M911023G 02M911023GX 02M911023M 02M911023MX 063521214020 063721347010 0986020230 101347 101347V 113773 17970N 20401592 20479212 220448 220448A 25-3348 300.574.102 3037 42020230 438174 458216 6010295 6015212 726136 88212280 8EA012527-551 8EA738258-011 943213471010 944280202300 CST10295 CST10295AS CST10295ES CST10295GS CST10295OS CST10295RS CST15212 CST15212AS CST15212ES CST15212GS CST15212OS CST15212RS DRT0230 EAA-121357 LRS02174 M1202E S-6268 STB1347 STB9347 STQ1347 STR54070 STV1347 STV9347 UD20360S 12010 17970R 8212280 91-20-3569 AEY2174 CS1347 D6GS14 D6GS14M DT1340 M1202 MQS1347 MRS20230 S3037 SG0672 VALD6GS14M ASPLList AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO S6268 DIXIE EAA121357 EAA EAI 253348 ELSTOCK ERA GHIBAUDI HC PARTS 8EA012527551 HELLA 8EA738258011 HERTH+BUSS KRAUF LUCAS MAGNETI MARELLI POWERMAX PRESTOLITE PSH SANDO VALEOList VW WAI / TRANSPO 91203569 WILSON WOODAUTO 7010711g snb041 Bosch ruil 11020230 EuroTec 11090150 Cargo 120449 PIC 17970 Lester 17970NVA 17970RVA 202152 Valeo Elstock 300574102 442011 4810SP Spidan 8020230F Friesen 920230 EDR A20230 ATL Remy DSN3005 Denso F042200000 F042200068 HCS1347 Lucas OSM11352 Optimum STM679 Rolling Components STR0087SA Electrolog STR1245sa

Kilowatt1.1 kW
Length (L.1)214.5 mm
Mount Hole Diameter (C.1)12.5 mm
Mount Hole Diameter (C.2)12.5 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
O.1111 mm
Pinion at Rest (B)61 mm
RotationACW
Spiggot Diameter (A)76 mm
Voltage12 V
AUDI A1 2.0 TFSi Quattro [CDLH] 03.2012-
AUDI A3 1.6 [BGU] 05.2003-08.2012
AUDI A3 1.6 [BSE] 06.2005-08.2012
AUDI A3 1.6 [BSF] 06.2005-08.2012
AUDI A3 1.6 FSi [BAG] 08.2003-09.2007
AUDI A3 1.6 FSi [BLF] 01.2005-09.2007
AUDI A3 1.6 FSi [BLP] 08.2003-12.2004
AUDI A3 1.6 FSi Sportback [BLF] 01.2005-09.2007
AUDI A3 1.6 FSi Sportback [BLP] 09.2004-09.2007
AUDI A3 1.6 Sportback [BGU] 09.2004-03.2013
AUDI A3 1.6 Sportback [BSE] 06.2005-03.2013
AUDI A3 1.6 Sportback [BSF] 06.2005-03.2013
AUDI A3 1.8 TFSi [BYT] 11.2006-08.2012
AUDI A3 1.8 TFSi [BZB] 06.2007-06.2008
AUDI A3 1.8 TFSi [CDAA] 07.2008-
AUDI A3 1.8 TFSi Sportback [BYT] 11.2006-06.2007
AUDI A3 1.8 TFSi Sportback [BZB] 06.2007-06.2008
AUDI A3 1.8 TFSi Sportback [CDAA] 07.2008-03.2013
AUDI A3 1.8 Turbo [BPU] 08.2006-08.2012
AUDI A3 1.8 Turbo [BVZ] 08.2006-08.2012
AUDI A3 2.0 FSi [AXW] 05.2003-06.2008
AUDI A3 2.0 FSi [BLR] 05.2003-06.2008
AUDI A3 2.0 FSi [BLX] 05.2003-06.2008
AUDI A3 2.0 FSi [BLY] 05.2003-06.2008
AUDI A3 2.0 FSi [BMB] 05.2003-06.2008
AUDI A3 2.0 FSi [BVY] 05.2003-06.2008
AUDI A3 2.0 FSi [BVZ] 05.2003-06.2008
AUDI A3 2.0 FSi Sportback [AXW] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLR] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLX] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BLY] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BMB] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BVY] 09.2004-06.2008
AUDI A3 2.0 FSi Sportback [BVZ] 09.2004-06.2008
AUDI A3 2.0 TFSi [AXX] 09.2004-08.2012
AUDI A3 2.0 TFSi [BWA] 09.2005-08.2012
AUDI A3 2.0 TFSi [CAWB] 02.2008-08.2012
AUDI A3 2.0 TFSi [CCZA] 07.2008-08.2012
AUDI A3 2.0 TFSi Quattro [AXX] 09.2004-08.2012
AUDI A3 2.0 TFSi Quattro [BWA] 09.2005-08.2012
AUDI A3 2.0 TFSi Quattro [CCTA] 09.2005-08.2012
AUDI A3 2.0 TFSi Quattro Sportback [AXX] 09.2004-03.2013
AUDI A3 2.0 TFSi Quattro Sportback [BPY] 09.2005-
AUDI A3 2.0 TFSi Quattro Sportback [BWA] 09.2005-
AUDI A3 2.0 TFSi Quattro Sportback [CCZA] 07.2008-
AUDI A3 2.0 TFSi Sportback [AXX] 09.2004-10.2005
AUDI A3 2.0 TFSi Sportback [BWA] 11.2005-05.2007
AUDI A3 2.0 TFSi Sportback [CAWB] 09.2005-03.2013
AUDI A3 2.0 TFSi Sportback [CBFA] 02.2008-
AUDI A3 2.0 TFSi Sportback [CCZA] 07.2008-
AUDI Q3 2.0 TFSi Quattro [CCZC] 06.2011-
AUDI S3 2.0 Quattro [BHZ] 06.2008-03.2013
AUDI S3 2.0 Quattro [CDLA] 06.2008-03.2013
AUDI S3 2.0 TFSi Quattro [BHZ] 11.2006-08.2012
AUDI S3 2.0 TFSi Quattro [CDLA] 11.2006-08.2012
AUDI TT 2.0 Quattro [CDLA] 05.2008-
AUDI TT 2.0 Quattro [CDMA] 05.2008-
AUDI TT 2.0 TFSi [BWA] 03.2007-06.2010
AUDI TT 2.0 TFSi [CESA] 05.2010-
AUDI TT 2.0 TFSi Quattro [BWA] 06.2008-06.2010
AUDI TT 2.0 TFSi Quattro [CCZA] 06.2008-06.2010
AUDI TT 2.0 TFSi Quattro [CDLB] 05.2008-
AUDI TT 2.0 TFSi Quattro [CESA] 05.2010-
AUDI TT 2.0 TFSi Quattro [CETA] 05.2010-
SEAT Altea 1.6 [BGU] 03.2004-
SEAT Altea 1.6 [BSE] 03.2004-
SEAT Altea 1.6 [BSF] 03.2004-
SEAT Altea 1.6 [CCSA] 03.2004-
SEAT Altea 1.6 [CMXA] 03.2004-
SEAT Altea 1.6 MultiFuel [BSE] 10.2006-
SEAT Altea 1.6 MultiFuel [BSF] 10.2006-
SEAT Altea 1.6 MultiFuel [CCSA] 10.2006-
SEAT Altea 2.0 FSi [BLR] 05.2004-
SEAT Altea 2.0 FSi [BLY] 05.2004-
SEAT Altea 2.0 FSi [BVY] 05.2004-
SEAT Altea 2.0 FSi [BVZ] 05.2004-
SEAT Altea 2.0 TFSi [BWA] 04.2006-
SEAT Altea XL 1.2 TSi [CBZB] 04.2010-
SEAT Altea XL 1.6 [BSE] 10.2006-
SEAT Altea XL 1.6 [BSF] 10.2006-
SEAT Altea XL 1.6 [CCSA] 10.2006-
SEAT Altea XL 1.6 [CMXA] 10.2006-
SEAT Altea XL 2.0 FSi [BVY] 10.2006-
SEAT Altea XL 2.0 FSi [BVZ] 10.2006-
SEAT Altea XL 2.0 TFSi 4WD [BWA] 06.2007-
SEAT Ibiza 1.6 16V (6L1)[BTS] 11.2006-
SEAT Leon 1.6 [BSE] 09.2005-
SEAT Leon 1.6 [BSF] 09.2005-
SEAT Leon 1.6 [CCSA] 09.2005-
SEAT Leon 1.6 [CMXA] 09.2005-
SEAT Leon 1.6 MultiFuel [CMXA] 11.2010-
SEAT Leon 2.0 FSi [BLR] 09.2005-
SEAT Leon 2.0 FSi [BLY] 09.2005-
SEAT Leon 2.0 FSi [BVY] 09.2005-
SEAT Leon 2.0 FSi [BVZ] 09.2005-
SEAT Leon 2.0 TFSi [BWA] 09.2005-
SEAT Leon 2.0 TFSi [BWJ] 11.2006-
SEAT Leon 2.0 TFSi [CDLD] 11.2006-
SEAT Toledo 1.6 [BGU] 10.2004-
SEAT Toledo 1.6 [BSE] 10.2004-
SEAT Toledo 1.6 [BSF] 10.2004-
SEAT Toledo 1.6 [CCSA] 12.2007-
SEAT Toledo 2.0 FSi [BLR] 10.2004-
SEAT Toledo 2.0 FSi [BLY] 10.2004-
SEAT Toledo 2.0 FSi [BVY] 11.2005-
SEAT Toledo 2.0 FSi [BVZ] 11.2005-05.2006
SEAT Toledo 2.0 TFSi [BWA] 11.2005-02.2006
SKODA Octavia 1.6 [BGU] 06.2004-
SKODA Octavia 1.6 [BSE] 06.2004-
SKODA Octavia 1.6 [BSF] 06.2004-
SKODA Octavia 1.6 [CCSA] 06.2004-
SKODA Octavia 1.6 [CMXA] 06.2004-
SKODA Octavia 1.6 FSi [BLF] 06.2004-
SKODA Octavia 1.8 TSi 4x4 [CDAB] 03.2009-
SKODA Octavia 2.0 FSi [BLR] 11.2004-11.2005
SKODA Octavia 2.0 FSi [BLY] 11.2004-11.2005
SKODA Octavia 2.0 FSi [BVX] 11.2005-
SKODA Octavia 2.0 FSi [BVY] 11.2005-
SKODA Octavia 2.0 FSi [BVZ] 11.2005-
SKODA Octavia 2.0 FSi 4x4 [BLX] 11.2004-11.2005
SKODA Octavia 2.0 FSi 4x4 [BLY] 11.2004-11.2005
SKODA Octavia 2.0 FSi 4x4 [BVX] 11.2005-
SKODA Octavia 2.0 RS [BWA] 01.2006-
SKODA Octavia 2.0 RS [CCZA] 01.2006-
SKODA Roomster 1.6 [BTS] 09.2006-
SKODA Roomster 1.6 [CFNA] 09.2006-
SKODA Superb 3.6 4x4 (3T)[CDVA] 11.2008-
SKODA Yeti 1.8 TSi [CDAB] 05.2009-
SKODA Yeti 1.8 TSi 4x4 [CDAA] 05.2009-
SKODA Yeti 1.8 TSi 4x4 [CDAB] 11.2009-
VW CC 2.0 TSi [CCZB] 11.2011-
VW Eos 2.0 TFSi [BWA] 03.2006-
VW Eos 2.0 TFSi [CAWB] 05.2008-
VW Eos 2.0 TFSi [CCZA] 05.2009-
VW Eos 2.0 TSi [CCZB] 11.2009-
VW Golf IIII 2.0 10.2007-
VW Golf Plus 1.6 [BSE] 05.2005-
VW Golf Plus 1.6 [BSF] 05.2005-
VW Golf Plus 1.6 [CCSA] 11.2007-
VW Golf Plus 1.6 [CMXA] 05.2005-
VW Golf Plus 2.0 FSi [BLR] 05.2005-
VW Golf Plus 2.0 FSi [BLY] 05.2005-
VW Golf Plus 2.0 FSi [BVY] 05.2005-
VW Golf Plus 2.0 FSi [BVZ] 05.2005-
VW Golf V 1.4 FSi [BKG] 10.2003-
VW Golf V 1.4 FSi [BLN] 10.2003-
VW Golf V 1.6 [BGU] 06.2007-07.2009
VW Golf V 1.6 [BSE] 06.2007-07.2009
VW Golf V 1.6 [BSF] 06.2007-07.2009
VW Golf V 1.6 [CCSA] 06.2007-07.2009
VW Golf V 1.6 FSi [BAG] 10.2003-
VW Golf V 1.6 FSi [BLF] 01.2005-
VW Golf V 1.6 FSi [BLP] 10.2003-
VW Golf V 2.0 [BWA] 06.2007-07.2009
VW Golf V 2.0 [CAWB] 06.2007-07.2009
VW Golf V 2.0 [CBPA] 08.2006-
VW Golf V 2.0 FSi [AXW] 01.2004-
VW Golf V 2.0 FSi [BLR] 01.2004-
VW Golf V 2.0 FSi [BLX] 01.2004-
VW Golf V 2.0 FSi [BLY] 01.2004-
VW Golf V 2.0 FSi [BVX] 01.2004-
VW Golf V 2.0 FSi [BVY] 01.2004-
VW Golf V 2.0 FSi [BVZ] 01.2004-
VW Golf V 2.0 FSi 4-Motion [BLX] 08.2004-
VW Golf V 2.0 FSi 4-Motion [BVX] 08.2004-
VW Golf V 2.0 GTi [AXX] 10.2004-
VW Golf V 2.0 GTi [BWA] 10.2004-
VW Golf V 2.0 GTi [BYD] 09.2006-
VW Golf V 2.0 GTi [CAWB] 10.2004-
VW Golf VI 2.0 [CCZA] 07.2009-07.2013
VW Golf VI 2.0 [CDLF] 11.2009-11.2012
VW Golf VI 2.0 4-Motion [CDLC] 11.2009-11.2013
VW Golf VI 2.0 4-Motion [CRZA] 11.2009-11.2013
VW Golf VI 2.0 Gti [CCZB] 02.2009-11.2012
VW Golf VI 2.0 TSi [CCZB] 06.2011-
VW Golf VI 2.0 TSi R 4-Motion [CDLF] 11.2009-11.2012
VW Jetta 1.4 TSi [CAXA] 05.2007-
VW Jetta 1.6 [BSE] 10.2005-
VW Jetta 1.6 [BSF] 10.2005-
VW Jetta 1.6 [CCSA] 10.2005-
VW Jetta 1.6 Bifuel [BSF] 07.2009-12.2010
VW Jetta 1.6 FSi [BLF] 09.2005-
VW Jetta 2.0 [CBPA] 06.2010-
VW Jetta 2.0 [CKJA] 06.2010-
VW Jetta 2.0 FSi [BLR] 08.2005-
VW Jetta 2.0 FSi [BLY] 08.2005-
VW Jetta 2.0 FSi [BVY] 08.2005-
VW Jetta 2.0 FSi [BVZ] 08.2005-
VW Jetta 2.0 TFSi [BPY] 10.2005-
VW Jetta 2.0 TFSi [BWA] 10.2005-
VW Jetta 2.0 TFSi [CAWB] 10.2005-
VW Jetta 2.0 TFSi [CBFA] 10.2005-
VW Jetta 2.0 TFSi [CCTA] 02.2008-
VW Jetta 2.0 TFSi [CCZA] 10.2005-
VW Jetta 2.0 TSi [CBFA] 12.2010-
VW Jetta 2.0 TSi [CCTA] 12.2010-
VW Jetta 2.0 TSi [CCZA] 12.2010-
VW New Beetle 2.0 TSi [CBFA] 12.2012-
VW New Beetle 2.0 TSi [CCTA] 12.2012-
VW New Beetle 2.0 TSi [CCZA] 12.2012-
VW Passat 1.6 FSi [BLF] 08.2005-
VW Passat 1.8 TFSi [CDAA] 08.2010-12.2014
VW Passat 2.0 FSi [BLR] 08.2005-11.2005
VW Passat 2.0 FSi [BLY] 08.2005-11.2005
VW Passat 2.0 FSi [BVY] 11.2005-
VW Passat 2.0 FSi [BVZ] 11.2005-
VW Passat 2.0 FSi 4-Motion [BLX] 09.2005-
VW Passat 2.0 FSi 4-Motion [BLY] 09.2005-
VW Passat 2.0 FSi 4-Motion [BVX] 09.2005-
VW Passat 2.0 TFSi [AXX] 08.2005-
VW Passat 2.0 TFSi [BPY] 08.2005-
VW Passat 2.0 TFSi [BWA] 08.2005-
VW Passat 2.0 TFSi [CAWB] 05.2008-
VW Passat 2.0 TFSi [CBFA] 05.2008-
VW Passat 2.0 TFSi [CCTA] 05.2008-
VW Passat 2.0 TFSi [CCZA] 11.2009-
VW Passat 2.0 TFSi 11.2010-12.2014
VW Passat 2.0 TSi [CCZB] 11.2010-
VW Passat 2.0 TSi 4-Motion [CCZB] 01.2012-
VW Passat CC 2.0 TSi (357)[CCZB] 11.2010-01.2012
VW Passat CC 2.0 TSi [CAWB] 06.2008-11.2009
VW Passat CC 2.0 TSi [CCTA] 06.2008-01.2012
VW Passat CC 2.0 TSi [CCZA] 11.2009-01.2012
VW Polo 1.4 Bifuel [BUD] 05.2006-11.2009
VW Polo 1.6 [CFNB] 11.2010-
VW Polo 1.6 16V [BTS] 05.2006-
VW Scirocco 2.0 R [CDLK] 05.2014-
VW Scirocco 2.0 TFSi [CCZB] 11.2009-05.2014
VW Scirocco 2.0 TSi [CCZB] 11.2009-
VW Scirocco 2.0 TSi [CDLC] 11.2009-
VW Tiguan 1.4 TSi [BWK] 11.2008-
VW Tiguan 1.4 TSi [CAVA] 11.2008-
VW Tiguan 1.4 TSi [CAVD] 05.2011-
VW Tiguan 1.4 TSi [CTHA] 11.2008-
VW Tiguan 1.4 TSi [CTHD] 05.2011-
VW Tiguan 1.4 TSi 4-Motion [CAVD] 05.2011-
VW Tiguan 1.4 TSi 4-Motion [CTHD] 05.2011-
VW Tiguan 2.0 TFSi [CAWA] 09.2007-
VW Tiguan 2.0 TFSi [CAWB] 09.2007-
VW Tiguan 2.0 TFSi [CCTA] 11.2009-
VW Tiguan 2.0 TFSi [CCZA] 09.2007-
VW Tiguan 2.0 TFSi [CCZC] 09.2007-
VW Tiguan 2.0 TSi 4-Motion [CCZB] 05.2011-
VW Tiguan 2.0 TSi 4-Motion [CCZD] 05.2011-
VW Touran 1.6 [BGU] 07.2003-
VW Touran 1.6 [BSE] 07.2003-
VW Touran 1.6 [BSF] 07.2003-
VW Touran 1.6 FSi [BAG] 02.2003-
VW Touran 1.6 FSi [BLF] 02.2003-
VW Touran 1.6 FSi [BLP] 02.2003-
VW Touran 2.0 FSi [AXW] 10.2003-
VW Touran 2.0 FSi [BLR] 10.2003-
VW Touran 2.0 FSi [BLX] 10.2003-
VW Touran 2.0 FSi [BLY] 10.2003-
VW Touran 2.0 FSi [BVY] 10.2003-
VW Touran 2.0 FSi [BVZ] 10.2003-
VW Up 1.0 EcoFuel [CPGA] 11.2012-
VW Vento 1.6 [CWVA] 05.2015-
0001121402 0001121403 02M911021B 02M911021BX 02M911023E 02M911023G 02M911023GX 02M911023M 02M911023MX 063521214020 063721347010 0986020230 101347 101347V 113773 17970N 20401592 20479212 220448 220448A 25-3348 300.574.102 3037 42020230 438174 458216 6010295 6015212 726136 88212280 8EA012527-551 8EA738258-011 943213471010 944280202300 CS1347 CST10295 CST10295AS CST10295ES CST10295GS CST10295OS CST10295RS CST15212 CST15212AS CST15212ES CST15212GS CST15212OS CST15212RS DRT0230 EAA-121357 LRS02174 LRS2174 M1202E MAV122950 MAV172120 S-6268 STB1347 STB9347 STQ1347 STR54070 STV1347 STV9347 UD20360S
