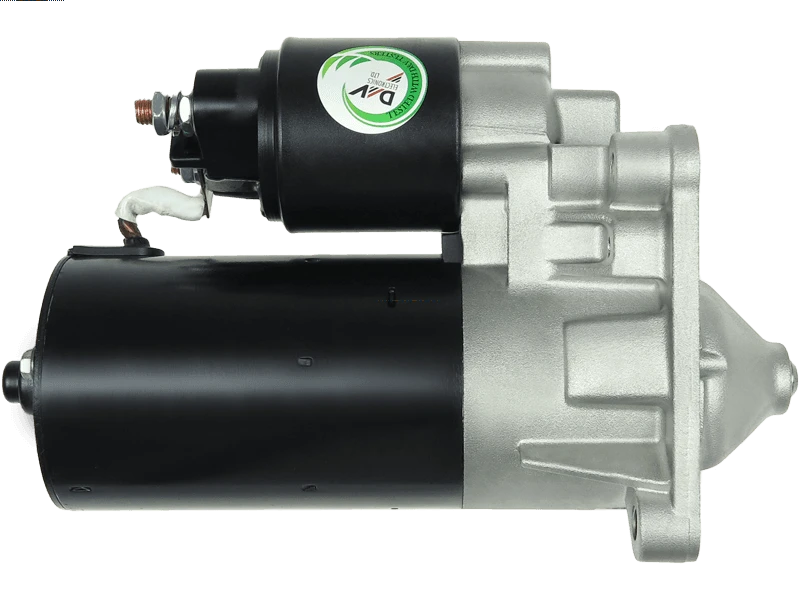

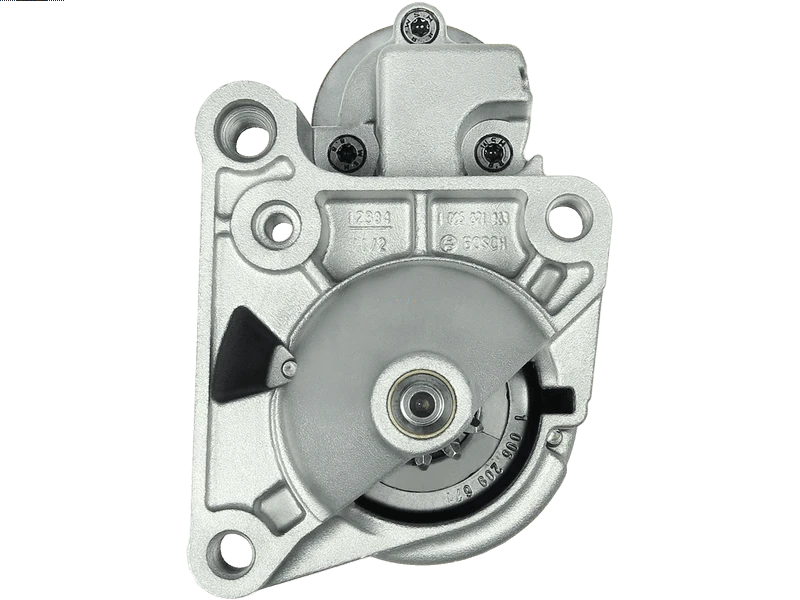

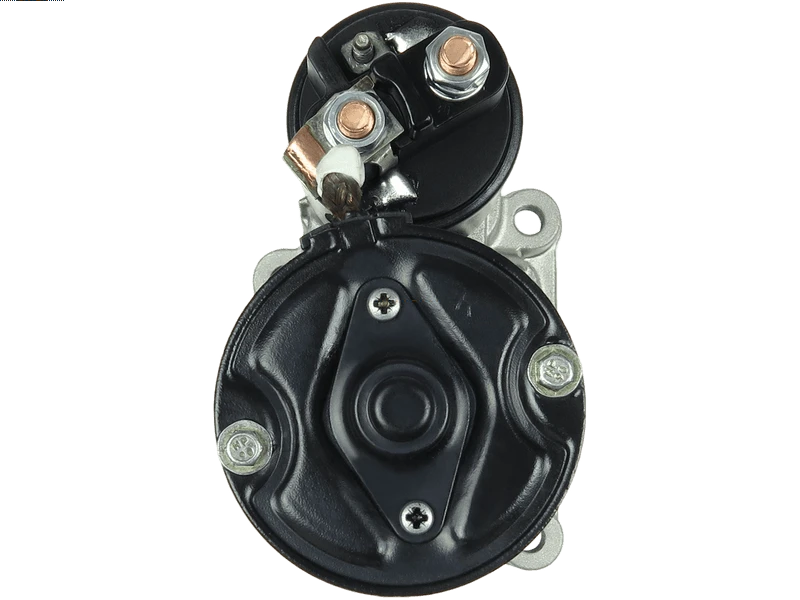

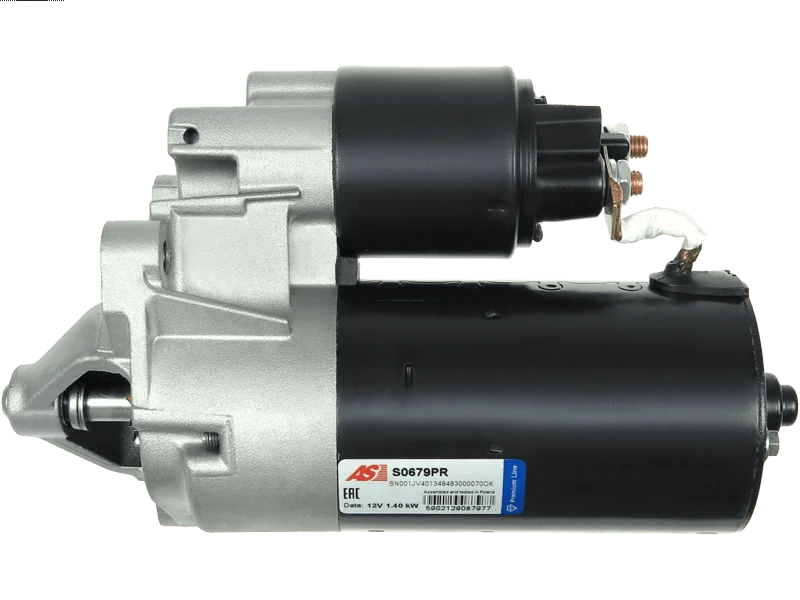

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 184.52 including GST
NZ$ 160.45 excluding GST
or four payments of $46.13
with
Learn More
each
S0679PR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001108186 063521081860 0986013200 10354 10684 10684K 10784 10784V 11866 25-3054 35258720 570.502.113 726009 7700113207 8200466763 8200724823 8EA731774-001 943251305010 AES7135 AZD3523 BOS0001108186 LRS01559 LRS1559 MSN2135 S-6153 S1073R UNITBOM120-452ASpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 230 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 93 mm |
| Mount Hole Center - Center (O.3) | 23 mm |
| Mount Hole Center - Center (O.4) | 65 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| Mount Hole Diameter (C.4) | 6.50 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 4 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | -1 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | 19 1.9 D | [F8Q744] | 05.1992-11.1995 |
| RENAULT | 19 1.9 Dt | [F8Q744] | 04.1992-12.1995 |
| RENAULT | Clio 1.9 D | [F8Q632] | 02.2000-05.2001 |
| RENAULT | Clio 1.9 D | [F8Q662] | 03.1999-01.2000 |
| RENAULT | Kangoo 1.9 RXED | [F8Q632] | 09.1999-06.2001 |
| RENAULT | Megane 1.9 D Eco | [F8Q620] | 01.1996-08.2003 |
Reference Information
| 0001108182 | BOSCH |
| 0001108185 | BOSCH |
| 0001108186 | BOSCH |
| 0001108186-R | BOSCH |
| 063521081860 | MAGNETI MARELLI |
| 0986013200 | BOSCH |
| 0986601657 | BOSCH |
| 18213M68KA000 | SUZUKI |
| 25-3054 | ELSTOCK |
| 330047112 | DRI |
| 3475866 | VOLVO |
| 570.589.113.010 | PSH |
| 570.589.113.215 | PSH |
| 570.589.113.340 | PSH |
| 570.589.113.390 | PSH |
| 6001040105 | RENAULT |
| 6001546655 | RENAULT |
| 7700113207 | RENAULT |
| 7700700188 | RENAULT |
| 7700735712 | RENAULT |
| 7700761416 | RENAULT |
| 7700777478 | RENAULT |
| 7700852853 | RENAULT |
| 7700861013 | RENAULT |
| 7700866505 | RENAULT |
| 7701351391 | RENAULT |
| 7701499229 | RENAULT |
| 7701499477 | RENAULT |
| 7701499601 | RENAULT |
| 7702146495 | RENAULT |
| 8200466763 | RENAULT |
| 8200724823 | RENAULT |
| 8EA011610-521 | HELLA |
| 8EA731774-001 | HELLA |
| 9031303 | VOLVO |
| 9110411 | VAUXHALL |
| 9110411 | OPEL |
| 943251305010 | MAGNETI MARELLI |
| AC-CBS0784 | ACAUTO |
| ANM99475 | ANDEL |
| AZD3523 | ISKRA / LETRIKA |
| BOS0001108186 | WOODAUTO |
| DRS3738 | DELCO |
| DRS3738N | DELCO |
| JS784 | HC PARTS |
| LRS01559 | LUCAS |
| LRS1559 | LUCAS |
| MS8 | MAHLE |
| MSN2135 | MAGNETI MARELLI |
| S12BH0690A2 | SIDAT |
| S133.771 | PSH |
| STR1493 | ELECTROLOG |
| STR50377 | WOODAUTO |
| WG2470922 | WILMINK GROUP |
| WOOSTR50377 | WOODAUTO |
| WST00284 | WALKER |
