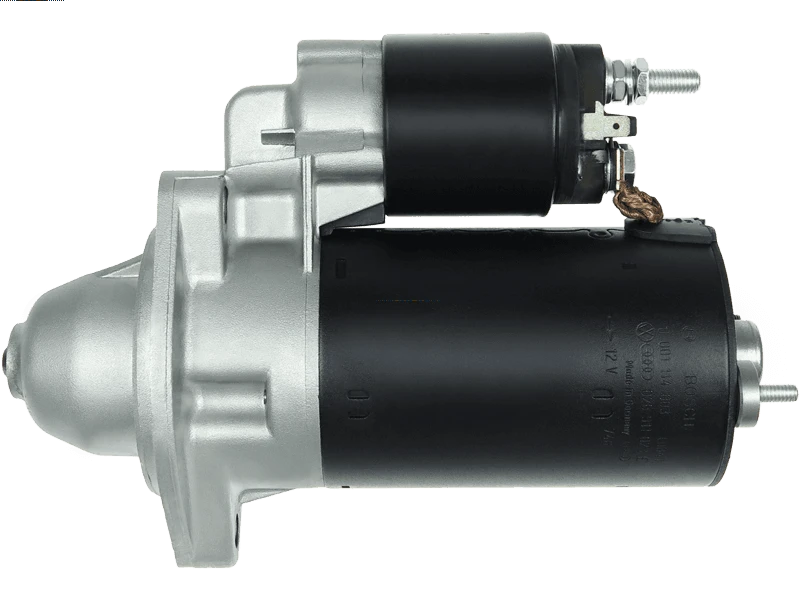

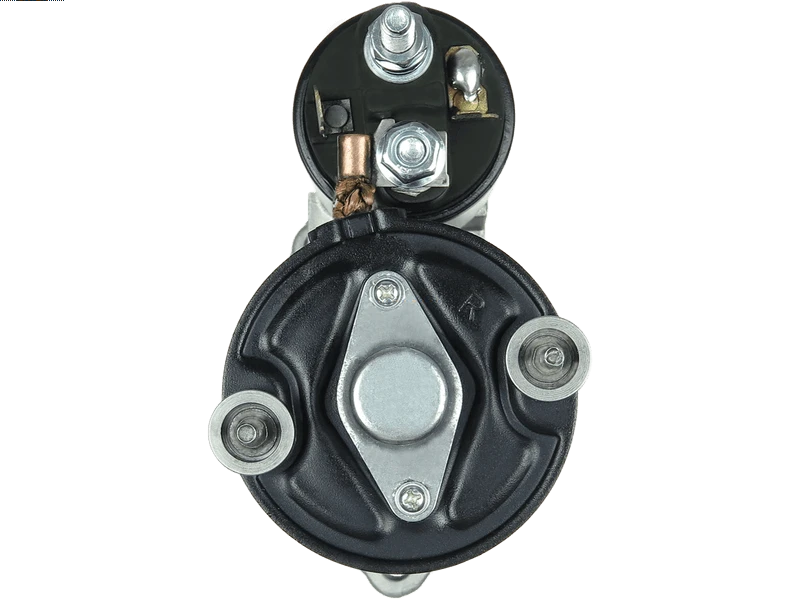

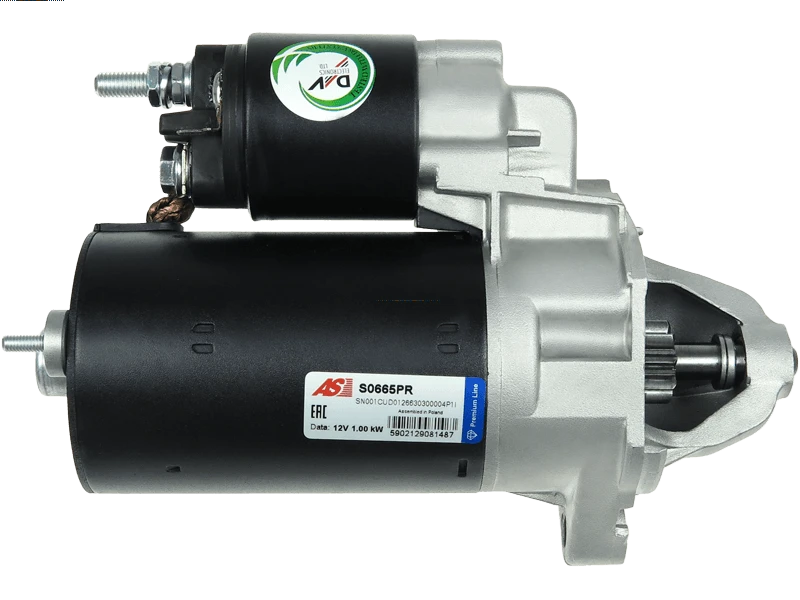

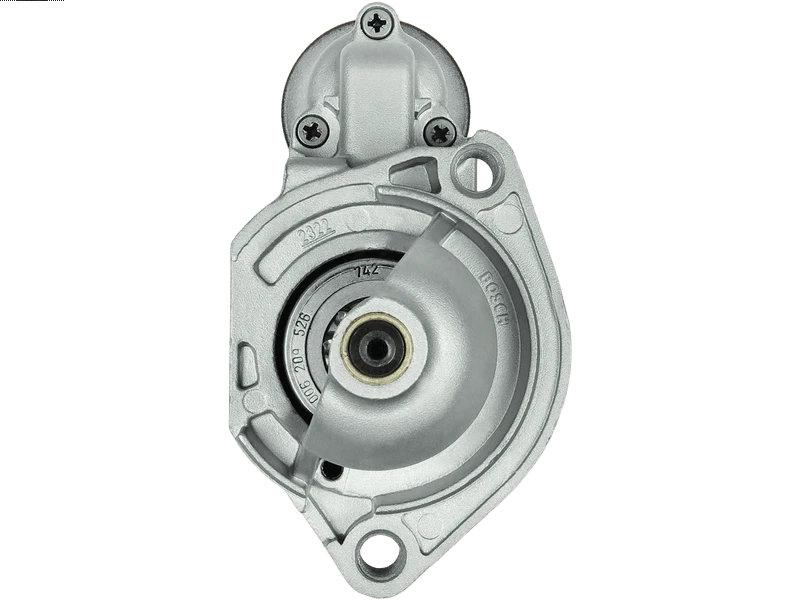

S0665PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1 kW
Length (L.1)	233 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	15 mm
Product Line	Premium Line
Product Type	Remanufactured
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	100 1.8		01.1987-12.1990
AUDI	100 1.8 Quattro		01.1988-12.1990
AUDI	100 2.0	[AAD]	01.1990-12.1991
AUDI	100 2.0	[AAE]	01.1990-12.1991
AUDI	100 2.0		01.1990-12.1991
AUDI	80 1.8		01.1986-12.1991
AUDI	80 1.8 E Quattro	[DZ]	01.1986-12.1991
AUDI	80 1.8 E Quattro	[NE]	01.1986-12.1991
AUDI	80 1.8 E Quattro	[SD]	01.1986-12.1991
AUDI	80 1.8 Quattro		01.1986-12.1991
AUDI	80 1.9 E	[SD]	01.1987-12.1988
AUDI	80 1.9 E Quattro	[SD]	01.1986-12.1988
AUDI	80 2.0	[AAD]	01.1988-12.1991
AUDI	80 2.0		01.1990-12.1991
AUDI	80 2.0 Quattro	[AAD]	01.1988-12.1991
AUDI	80 2.0 Quattro		01.1990-12.1991
AUDI	Coupe 2.0		01.1989-12.1991

Reference Information

110865 STR1136 23300-V4171 200.509.092.210 S1013B 063521070680 10612 STX200264 M3T80571 CST10220RS STRS971 200.509.092.462 200.509.092.500 CST10220GS 0001114003 CST10220OS MAV122200 0001114004 42016330 LRS00680 026911023BX 6010220 10509 CS297 STX200195 CST10220 S0665PR DRS4640 200.509.092.390 8EA012526-461 STX200677 026911023 049911023G 049911023H 48764 026911023FX 049911023GX 0269110233 0001114015 M003T80571 0001114016 026911023E 026911023F 026911023B STX200264R LRS680 200.509.092.000 88213087 026911023X CST10220AS 26-1168 CST10220ES 026911023EX 8213087 220004 8EA726157-001 ZBC911023 200.509.092.010 622727 AES6180
