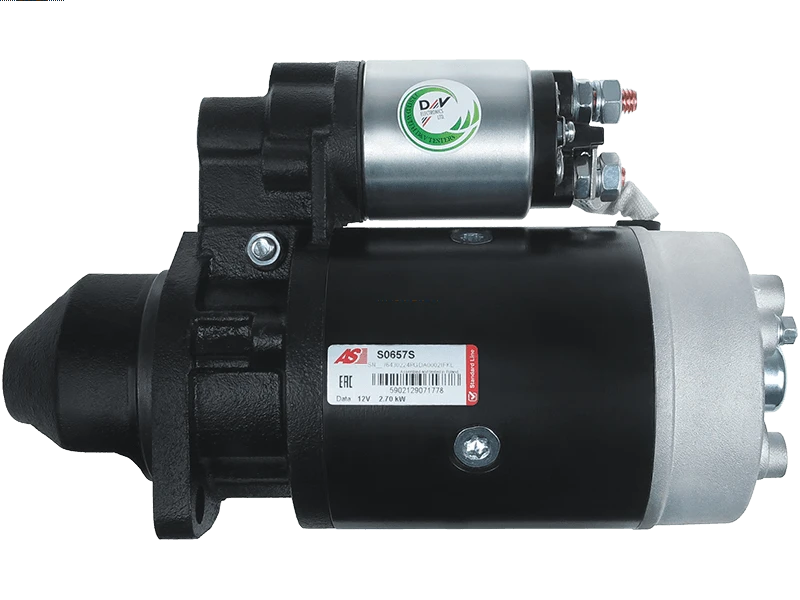

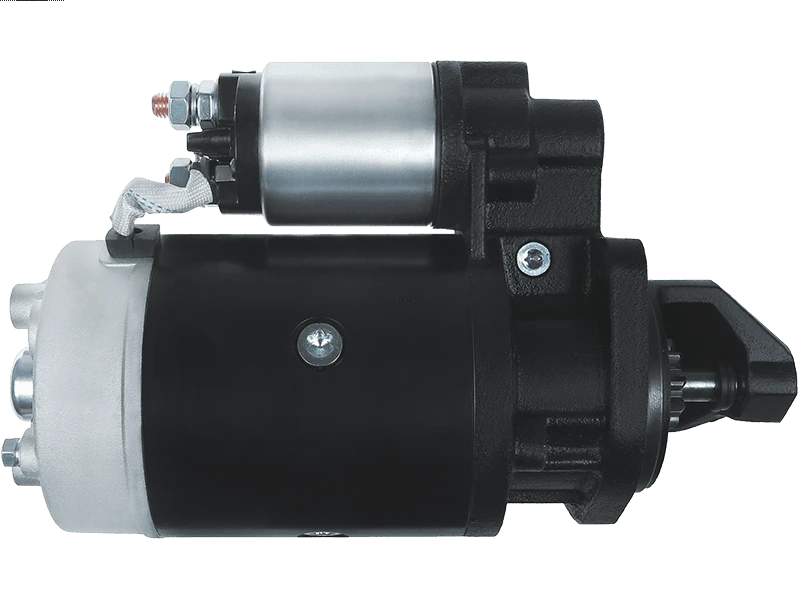

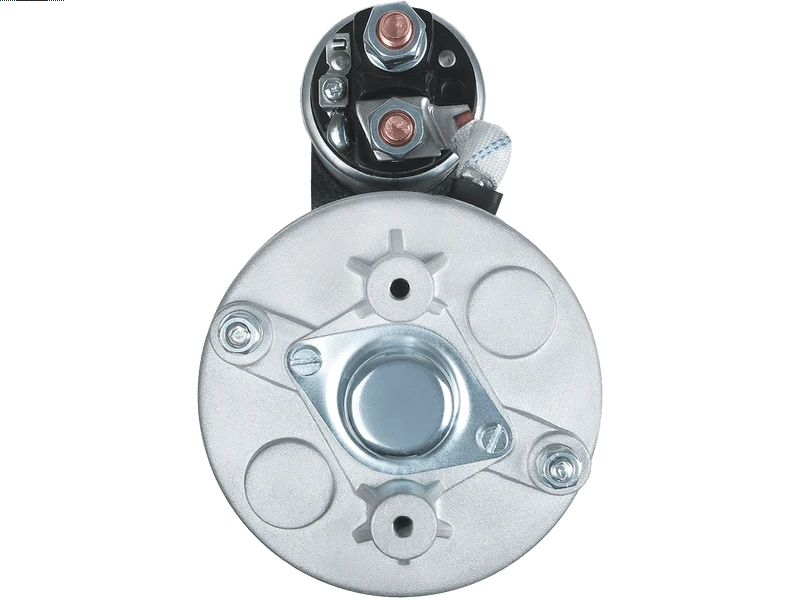

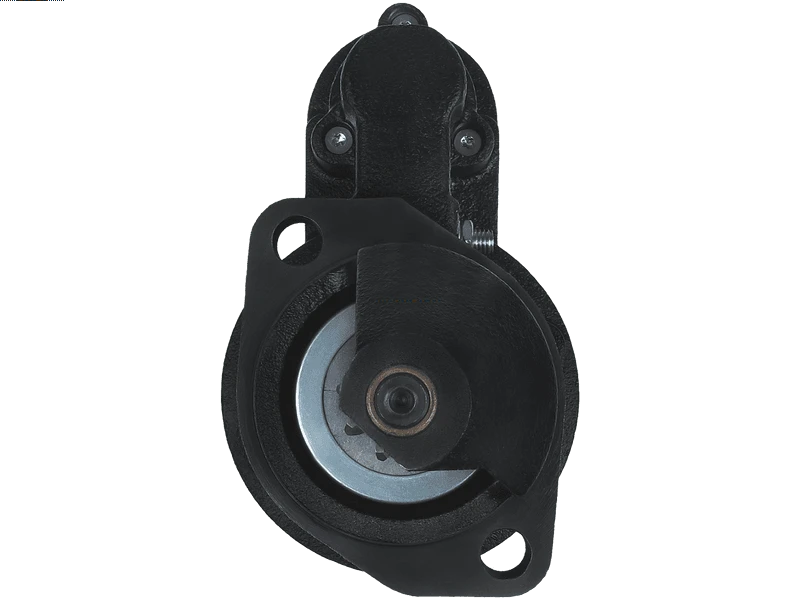

S0657S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.7 kW
Length (L.1)	294 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	14 mm
Mount Hole Diameter (C.2)	14 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AGRIA	6900 D 1.2	[RW270]	06.1982-
ARONA	AD 295 1.4		02.1976-
ARONA	AD 395 2.0		02.1976-
ARONA	AD 4100M		09.1982-
ARONA	AD 495M 2.0		02.1976-
ARONA	AD 952PM		02.1976-
ARONA	AD 953		02.1976-
ARONA	AD 954PM		02.1976-
BAUTZ	Commodore		01.1968-12.1972
BAUTZ	T600		01.1968-12.1972
BERTOLINI	740 1.8	[DVA1750]	01.1987-
CARRARO	Supertigre 625 L		01.1969-09.1978
CARRARO	Supertigre 635 1.4	[LDA672]	01.1970-09.1978
CARRARO	Supertigre 650 2.0	[LDA673]	01.1973-09.1978
CARRARO	Supertigre 835 1.4	[LDA672]	01.1973-09.1978
CARRARO	Supertigre 850 2.0	[LDA673]	01.1973-09.1978
CARRARO	Tigrone Atlas 750 2.0	[LDA673]	01.1972-09.1978
CARRARO	Tigrone Tropical 750 2.0	[LDA673]	01.1972-09.1978
FERRARI	76 2.0	[LDA673]	06.1980-
FERRARI	85	[LDA673]	06.1980-
FERRARI	86	[LDA833]	06.1980-
FERRARI	933 1.8	[DVA1750]	01.1982-12.1989
FERRARI	94SLT 1.8	[DVA1750]	09.1989-12.1991
FERRARI	95 1.5	[DVA1750]	06.1980-09.1984
GOLDONI	1038 1.7	[5LD825.2]	03.1982-12.1985
GOLDONI	1039 1.6	[LDA832]	03.1982-12.1985
GOLDONI	1040 1.9	[DVA1750]	06.1979-12.1988
GOLDONI	230	[LDA672]	01.1982-12.1984
GOLDONI	236 1.5	[DVA1550]	06.1978-12.1984
GOLDONI	238 1.6	[5LD825.2]	02.1982-
GOLDONI	240 1.8	[DVA1750]	06.1979-10.1988
GOLDONI	245 1.9	[11LD625.3]	01.1989-
GOLDONI	336 1.5	[DVA1550]	06.1974-11.1990
GOLDONI	3445 1.9	[11LD625.3]	10.1988-
GOLDONI	40 B 1.6	[11LD535]	06.1991-
GOLDONI	45 B 1.6	[LDA832]	06.1991-12.1991
GOLDONI	50 B 1.9	[11LD626.3]	06.1991-
GOLDONI	834 1.5	[DVA1550]	09.1977-12.1984
GOLDONI	938 1.3	[5LD825.2L]	09.1988-04.1990
GOLDONI	945 RS 1.9	[11LD625.3]	04.1990-
GOLDONI	Transporter 336 1.5	[DVA1550]	01.1974-06.1986
GOLDONI	Universal 224
GOLDONI	Universal 226
GOLDONI	Universal 230 1.4	[LDA672]	06.1982-12.1984
GUTBROD	2500 D 0.7	[1071DRT]	03.1973-03.1984
HANOMAG	F 20		01.1971-12.1973
HANOMAG	F 25		01.1971-07.1978
HANOMAG	F 30		01.1971-12.1973
HANOMAG	F 35		01.1971-12.1973
KHD	Engine	[F1L410]	03.1968-06.1973
KHD	Engine	[F1L411D]	07.1973-12.1975
KHD	Engine	[F1L411W]	07.1973-12.1975
KHD	Engine	[F2L410]	03.1968-06.1973
LAMBORGHINI	R 503	[47HP]	03.1971-12.1982
LAMBORGHINI	R 603		03.1971-
LANZ	NF		01.1972-03.1977
LANZ	NI R		01.1972-03.1977
LANZ	NO		01.1972-03.1977
LANZ	RA		01.1972-03.1977
LOMBARDINI	5LD 825/2
LOMBARDINI	5LD 825/3
LOMBARDINI	5LD 825/4
LOMBARDINI	5LD 826/2
LOMBARDINI	5LD 930/3		04.1983-
LOMBARDINI	5LD 930/4		04.1983-
LOMBARDINI	832		04.1977-
LOMBARDINI	834		07.1976-
LOMBARDINI	L 27		03.1977-
LOMBARDINI	L 40		03.1972-
LOMBARDINI	L 54		03.1972-
LOMBARDINI	LADM 833		07.1976-
LOMBARDINI	LADM 834		07.1976-
LOMBARDINI	LDA 674		07.1976-12.1981
LOMBARDINI	LDA 833		07.1976-
LOMBARDINI	LDAL 674		07.1976-12.1981
LOMBARDINI	LDAM 672		04.1977-
LOMBARDINI	LDAM 673		04.1977-12.1979
LOMBARDINI	LDAM 674		07.1976-12.1981
LOMBARDINI	LDAM 832		04.1977-12.1979
LOMBARDINI	LDAM 833		07.1976-12.1979
LOMBARDINI	LDAM 834		07.1976-12.1979
MAG-MOTOSACOCHE	1067 DRT		02.1973-03.1975
MWM	D225-2		03.1968-12.1976
MWM	D280-2		03.1968-12.1973
MWM	D280-3		03.1968-12.1973
MWM	D280-4		03.1968-12.1973
MWM	D308-2		03.1968-12.1973
MWM	D308-3		03.1968-12.1973
MWM	D308-4		03.1968-12.1973
MWM	TD208-4		03.1968-12.1973
O&K	Motrak S10	[F1L411D]	01.1974-05.1976
REFORMWERKE BAUER	Metrac 3000		03.1977-12.1978
SCHANZLIN	Gigant 300		10.1976-03.1944
SCHANZLIN	Gigant 300 K		10.1976-03.1977
SCHILTER	TR 1000	[LDA90]	03.1966-12.1977
SCHILTER	TR 1500	[LDA90]	03.1966-12.1977
SCHILTER	TR 2000		03.1966-12.1977
SLANZI	DVA 1500 1.5		11.1968-10.1987
SLANZI	DVA 1550 1.5		04.1974-11.1983
SLANZI	DVA 1550 S 2 1.5		10.1983-12.1991
SLANZI	DVA 1750 1.8		01.1978-12.1991
SLANZI	DVA 2001 2.0		06.1985-03.1987
SLANZI	DVA 2350 2.3		01.1984-12.1991
STEYR	30

Reference Information

220912 520.003.092.018 STG2039BW 520.003.092.017 91-15-6847 190 520.003.092.010 58400450 1362017 STB2039 6010166.3 1362018 254007 1354064 SG0553 6010166.1 16008N 11.130.612 17112N 6.0572E+11 2130090013 5840067 S12BH0801A2 STB5039LC 112039 TS-6012 25-1415 1354079 1354078 CST10166GS 720534 STR22114 0001354064 STR50407 STRL059 11511301 WOOSTR50407 STB9039UL STR50000 MT71GB 520.003.092.312 520.003.092.311 58400670 MS313 A0021519501 0001354055 0001354052 11.130.432 RNL362040 UD101804S STB9039LC 20401661BN 7232 0001366022 331742 255177 A0011511301 STB5039MN F139900060011 0001362054 1354091 72735941 8059 PRSL059 LETIS0432 11516001 CST10166AS SG0590 88213705 550.015.092.016 6005706625 120-30114 1362054 72735818 AZJ3192 LRS1007 MAHMS190 33339 0001366004 STB2039LC CGB-27310 1142566685 0001362040 1362040 MS 1303920 520.003.092 STB2039TJ 220268 MSN232 IS0432 855159400 1366004 000986017310 MAV2300 MS190 63217158 7664 20401661EL CGB-28176 8EA015642-511 58400070 16562N 855787900 0001354091 25-0072 LRS01007 CGB-50072 AZJ3123 1366022 8643 254007B MAV122700 S0657S A0011516001 IS0612 CST10166ES 0001354078 0001354079 986017310 UD101801S 21519501 0001362018 0001362017 1354055 20401661OE 1354052 6010166 8757 260-62105

Video/Publications

0001354091 0001362017 0001362018 0001362040 0001366004 07664 11.130.432 112039 16562N 17112N 254007 254007B 260-62105 520.003.092 58400450 6005706625 63217158 720534 72735818 8059 8643 8757 AZJ3123 CST10166AS IS0432 LETIS0432 MAHMS190 MAV122700 MAV2300 MS 190 MSN232 MT71GB RNL362040 SG0590 STB2039 STB2039LC STB2039TJ STB5039LC STB5039MN STB9039LC STB9039UL STG2039BW STR22114 STRL059 TS-6012 IS0612 AZJ3192 72735941 11.130.612 MS313 5840067 58400670 PRSL059 220268 220912
