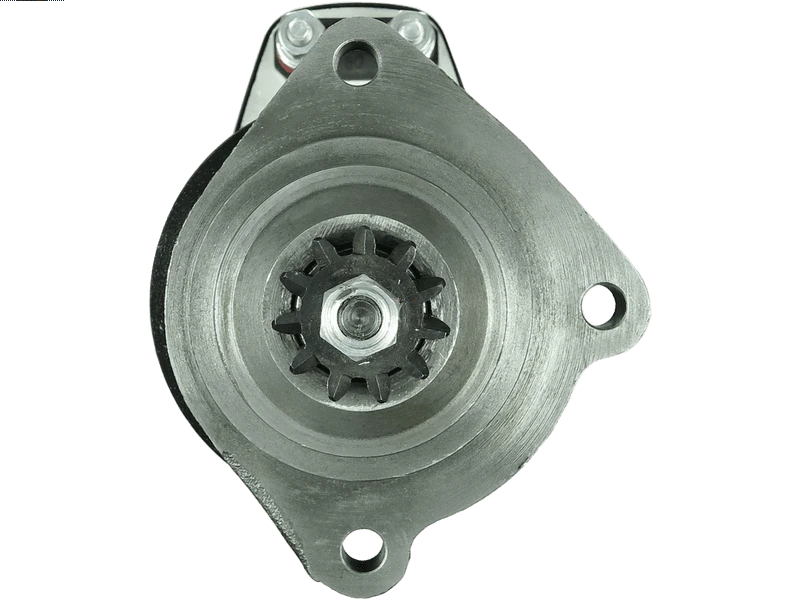

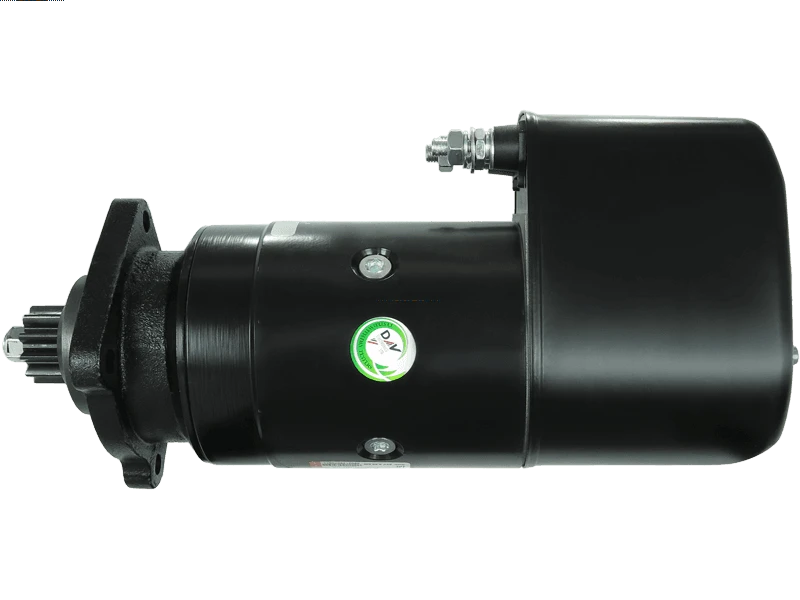

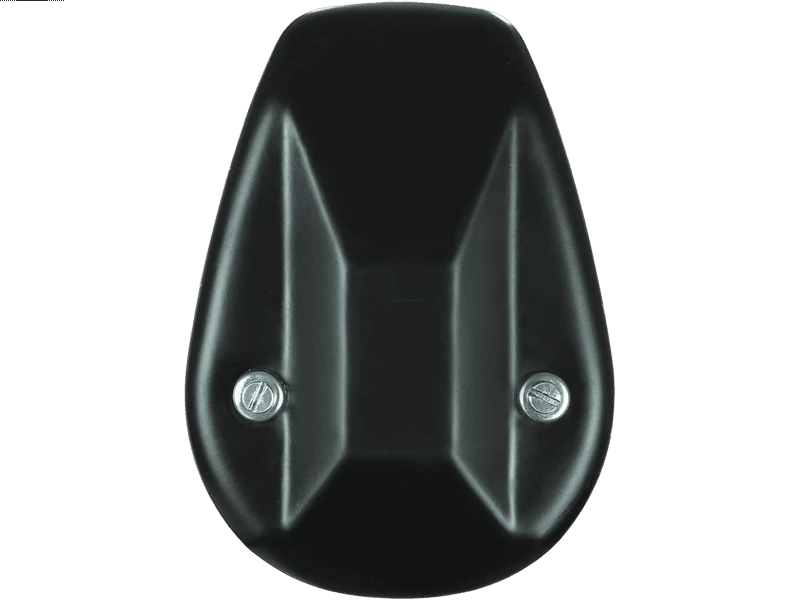

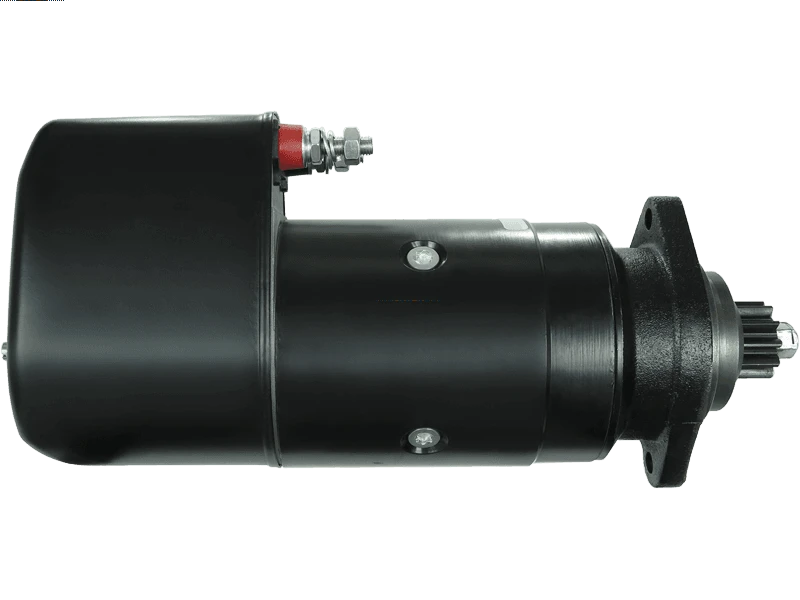

S0654S - Brand new AS-PL Starter motor

Associated Numbers

0001417068 11.139.529 19024157 1986S00521 254448 260-47293 6290040 701.201.113 8123 AZK5568 IS9139 MS501 MS676 STR50548 UD14660S 70-1806 Bosch show 0001417068SEL +line 11139153 Mahle 11139529 11371669 Liebherr 120828 PIC 18123 Lester Remy 701201113 PSH 72736129 72740757 AZK5499 IM668

Specifications

Kilowatt	6.6 kW
Length (L.1)	405 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
OEM Product	No
Oil Sealed	Yes
Pinion at Rest (B)	47.5 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
DEUTZ-FAHR	Various Models
KHD	Various Models
LIEBHERR	Engine 10.0	[D926TI]

Reference Information

260-47293 10010772AV S0654S 11.139.132 3042527 701.201.113.016 CST10772AS 01178255 WG2045343 20401277BN AZK5463 701.201.113.010 254448 0001417056 IS9139 19024157 PTC-4041 6010772.0 0001417055 1986S00521 TT16892 STR1660 UD14660S STR50606 561.203.113.010 8EA012586-191 103816 MS569 AZK5479 1174637 254448P 182-30399 SBO772A 11.139.529 254448M WOOSTR50606 A72430 103814 88213019 11.139.114 MAV127720A STR79580 STR79581 72740757 MS676 S510311 MS554 561.203.113.211 IS9119 561.203.113.018 SG0498 AZK5568 UD102334S 8123 STR10113 6290040 3121386 8401 MS501 0001417068 STR50548 WOOSTR50548 11371668 11371669 IS9101 000133AF11

Video/Publications

S0654S
