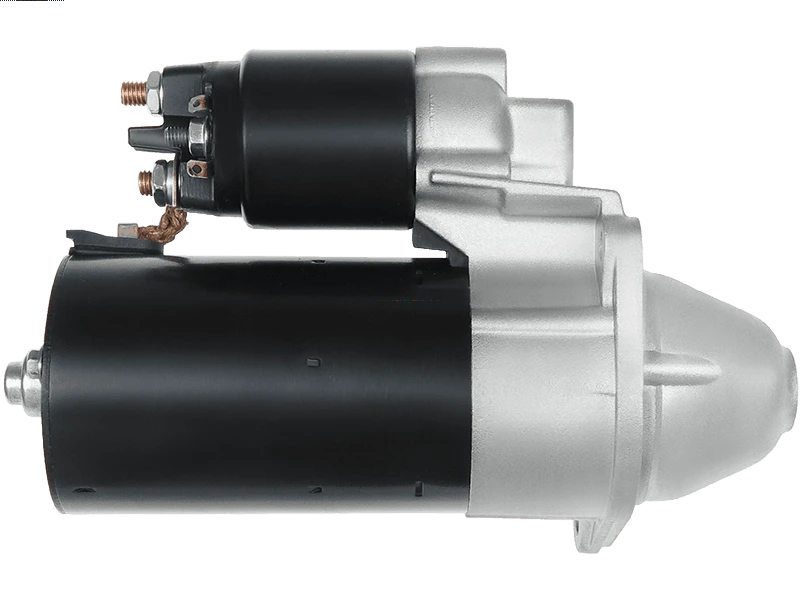

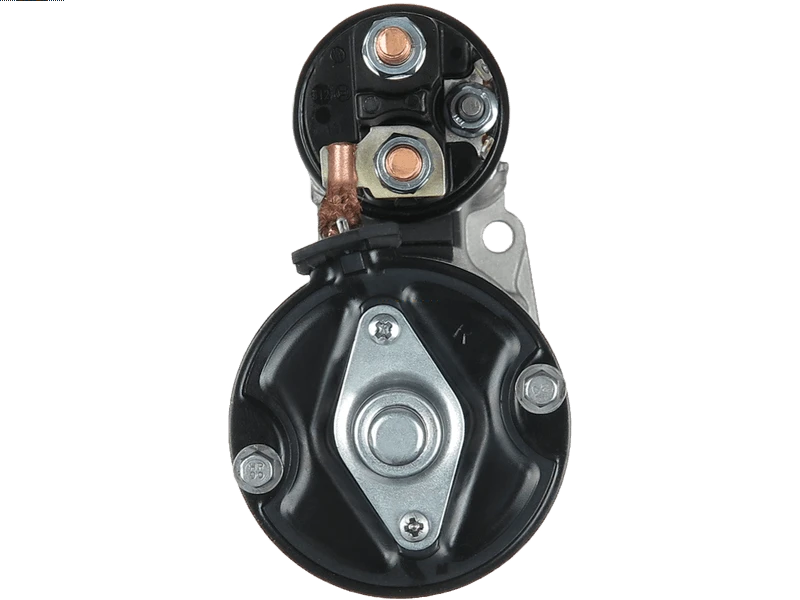

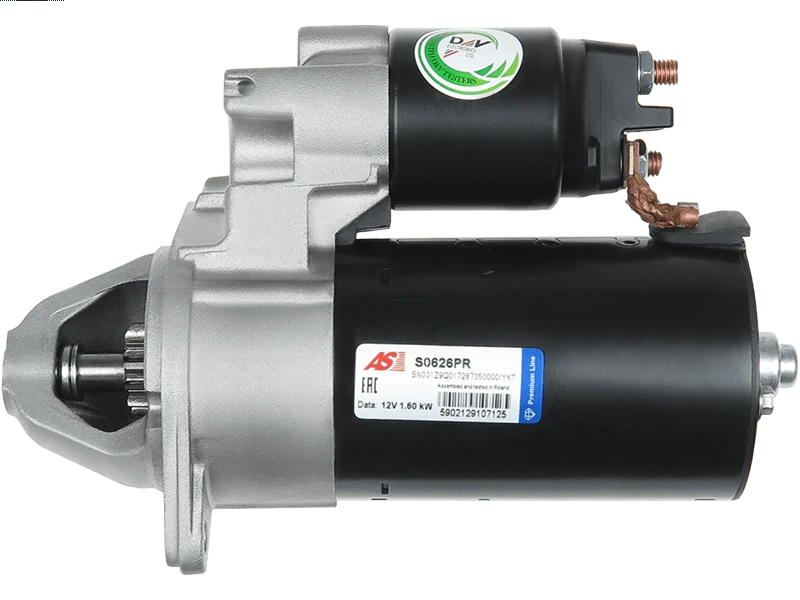

S0626PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.6 kW
Length (L.1)	226 mm
Mount Hole Center - Center (O.1)	99 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	14.5 mm
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MERCEDES BENZ	A 160 2.0 CDi	(W169)[OM640.942]	01.2004-
MERCEDES BENZ	A 180 2.0 CDi	(W169)[OM640.940]	01.2004-
MERCEDES BENZ	A 200 2.0 CDi	(W169)[OM640.941]	01.2004-
MERCEDES BENZ	B 180 2.0 CDi	(W245)[OM640.940]	01.2005-
MERCEDES BENZ	B 200 2.0 CDi	(W245)[OM640.941]	01.2005-
MERCEDES BENZ	Vaneo 1.7 CDi	(414)[OM668.914]	01.2002-12.2005

Reference Information

CST10273AS LRS1440 88213234 5151740180 CST10273ES STR1496 EAA-121258 0001115008 A0051511601 25-3329 8EA737708-001 1115008 25-2358 CS1172 MAV123290 LRS1967 986021260 S12BH0100A2 CST10273 331324 220146 20401372 DT2370 101172B 9.4428E+11 32439N CST10273RS SG0581 STR50362 51517401 550.513.102 458642 MRS18180 8EA012526-341 0001108217 101172 CST10273GS STB1172 MAV122730 A0051517401 A005151740180 CST10273OS LRS01440 S12BH0100 6010273 BOS0001108217 42018180 LRS01967 MSN2081 63521082170 1108217 32440R 000986021260 6.7024.1 3870 DRT1260 42021260 STRL152 11937 51511601

Video/Publications

0001108217 0001115008 0051517401 005151740180 063521082170 0986021260 101172 101172B 11937 20401372 220146 25-2358 25-3329 32439N 32440R 3870 42018180 42021260 458642 550.513.102 6.7024.1 6010273 88213234 8EA012526-341 8EA737708-001 944280181800 A0051517401 A005151740180 BOS0001108217 CS1172 CST10273 CST10273AS CST10273ES CST10273GS CST10273OS CST10273RS DRT1260 DT2370 EAA-121258 LRS01440 LRS01967 LRS1440 LRS1967 MAV122730 MAV123290 MRS18180 MSN2081 SG0581 STB1172 STR50362 STRL152
