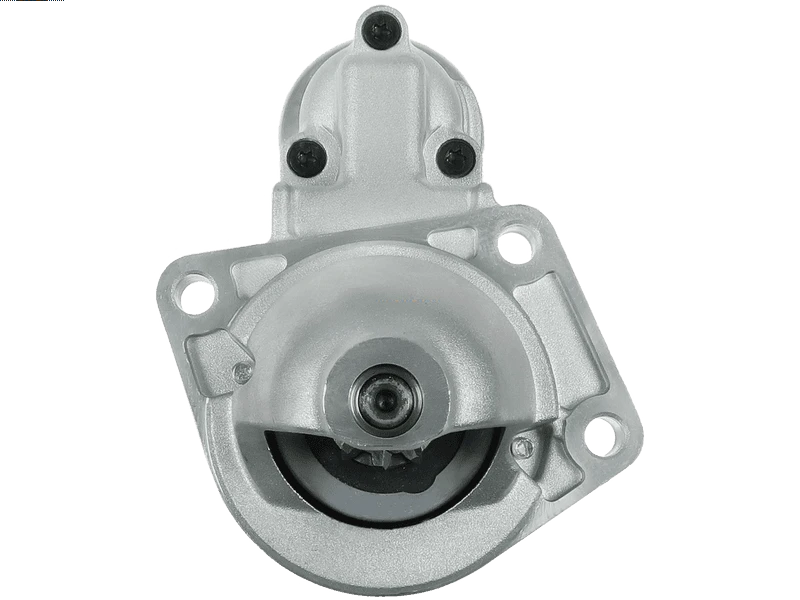

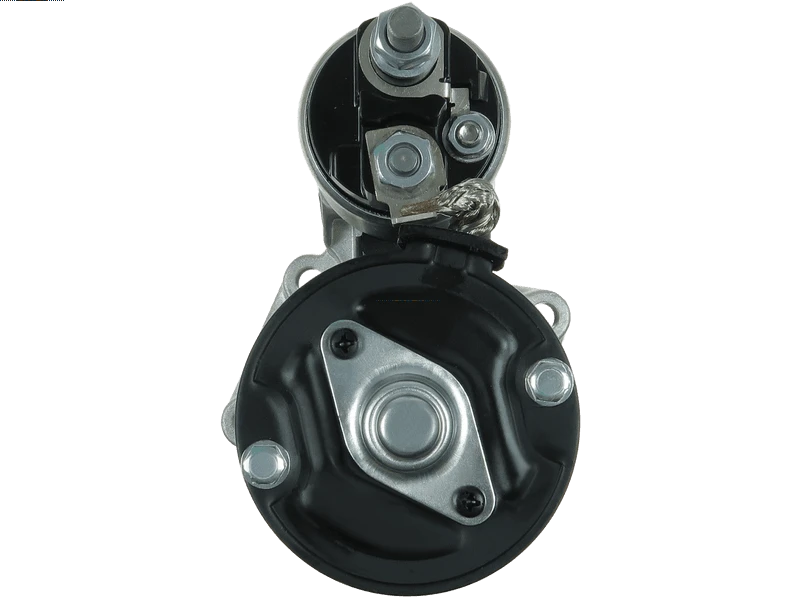

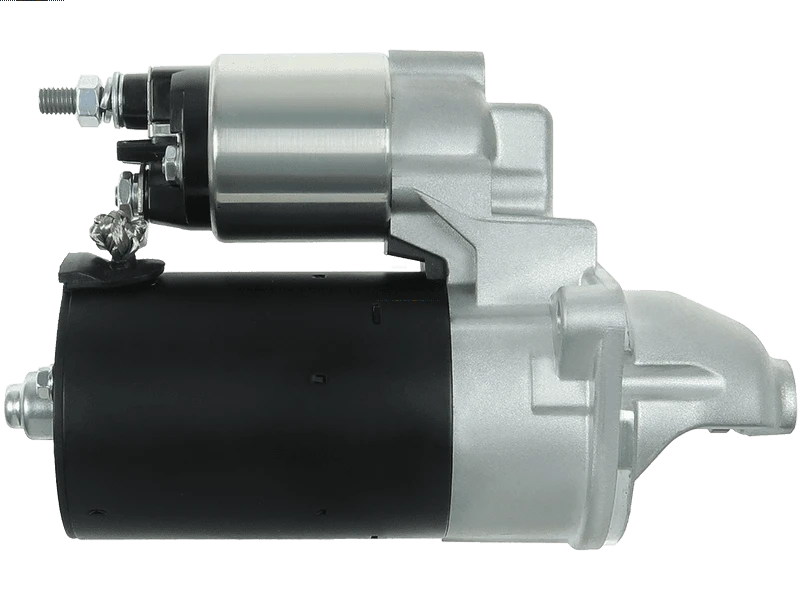

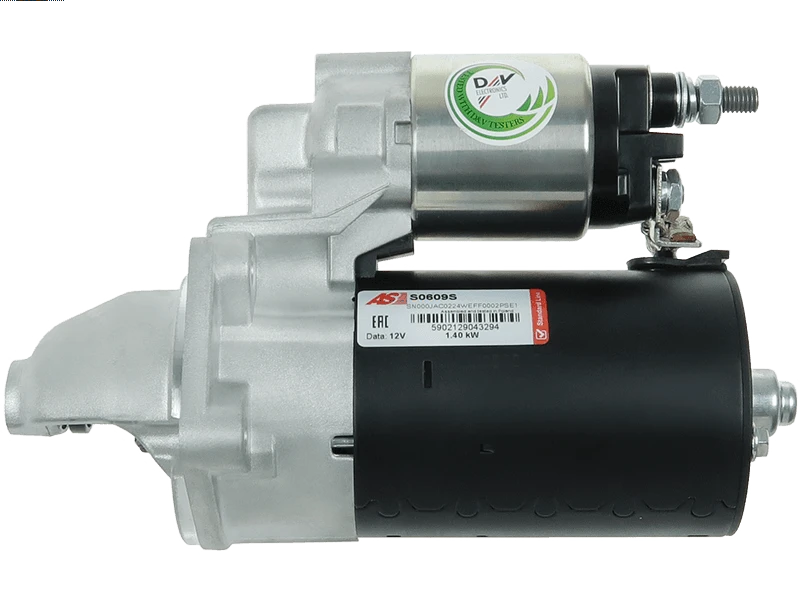

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 346.38 including GST
NZ$ 301.20 excluding GST
or four payments of $86.60
with
Learn More
UOM:
each
Product Code:
S0609S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001137004Associated Numbers
0001137003 0001137004 063280086010 0986029150 116024 12225 220672 25-4178 254621B 254621D 254896 254896B 254896D 31249N 3139 428000-7470 500.567.103 51829380 51872564 6010526 6040351 AEY2506 CST10526 CST10526AS CST10526ES CST10526GS CST10526OS CST10526RS CST40351 CST40351AS CST40351ES CST40351GS CST40351OS CST40351RS DENDSN975 DRS0656 DSN975 LRS02506 STR70423 UD13169S UNIT BOM 120-911Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 218 mm |
| Mount Hole Center - Center (O.1) | 46 mm |
| Mount Hole Center - Center (O.2) | 96 mm |
| Mount Hole Center - Center (O.3) | 72 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| Mount Hole Diameter (C.3) | 8.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | MITO (955_) 0.9 TwinAir (955.AXW1B) | 312A2.000 | 07.2011-12.2013 |
| ALFA ROMEO | MITO (955_) 0.9 TwinAir (955AXY1B) | 199B6.000 | 04.2013-08.2018 |
| ALFA ROMEO | MITO (955_) 0.9 TwinAir (955AXY1B, 955AXZ1B) | 199B7.000 | 12.2013-08.2018 |
| FIAT | 500 0.9 | [199B6000] | 01.2010- |
| FIAT | 500 0.9 | [312A2.000] | 01.2010- |
| FIAT | 500 0.9 | [312A4.000] | 01.2013- |
| FIAT | 500 (312_) 0.9 (312AXG1A, 312.AXG11) | 312A2.000 | 07.2010- |
| FIAT | 500 (312_) 0.9 (312AXH1A) | 312A4.000 | 09.2012- |
| FIAT | 500 (312_) 0.9 (312AXM1B) | 199B6.000 | 10.2013- |
| FIAT | 500 (312_) 0.9 (312AXN1A) | 312A5.000 | 12.2013- |
| FIAT | 500 (312_) 0.9 (312AXP1A) | 312A4.000 | 12.2013- |
| FIAT | 500 (312_) 0.9 (312AXP1A) | 312A6.000 | 12.2013- |
| FIAT | 500 C 0.9 | [199B6000] | 01.2009- |
| FIAT | 500 C 0.9 | [312A2.000] | 01.2009- |
| FIAT | 500 C 0.9 | [312A4.000] | 01.2012- |
| FIAT | 500 C (312_) 0.9 (312AG1A) | 312A2.000 | 09.2009- |
| FIAT | 500 C (312_) 0.9 (312AXH1A) | 312A4.000 | 09.2012- |
| FIAT | 500 C (312_) 0.9 (312AXM1B) | 199B6.000 | 12.2013- |
| FIAT | 500 C (312_) 0.9 (312AXN1A, 312AXN11) | 312A5.000 | 12.2013- |
| FIAT | 500 C (312_) 0.9 (312AXP1A) | 312A6.000 | 12.2013- |
| FIAT | 500L (351_, 352_) 0.9 (199LYC1B) | 199B6.000 | 09.2012- |
| FIAT | 500L (351_, 352_) 0.9 Natural Power (199LYC1B) | 312A2.000 | 03.2013- |
| FIAT | 500L (351_, 352_) 0.9 Natural Power (199LYC1B) | 312A2.000 | 04.2017- |
| FIAT | Panda 0.9 | [199B6000] | 01.2012- |
| FIAT | Panda 0.9 | [312A2.000] | 01.2012- |
| FIAT | Panda 0.9 | [312A4.000] | 01.2012- |
| FIAT | Panda 0.9 4x4 | [199B6000] | 01.2012- |
| FIAT | Panda 0.9 4x4 | [312A2.000] | 01.2012- |
| FIAT | Panda 0.9 Natural Power | [199B6000] | 01.2012- |
| FIAT | Panda 0.9 Natural Power | [312A2.000] | 01.2012- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXG1A) | 312A2.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXH1A) | 312A4.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXN1A, 312PXN11) | 312A2.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXN1A, 312PXN11) | 312A5.000 | 12.2013- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXN1A, 312PXN11) | 312A7.000 | 02.2012- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXP1A) | 312A4.000 | 12.2013- |
| FIAT | PANDA (312_, 319_) 0.9 (312PXP1A) | 312A6.000 | 12.2013- |
| FIAT | PANDA (312_, 319_) 0.9 4x4 (312PXG1A) | 312A2.000 | 09.2012- |
| FIAT | PANDA (312_, 319_) 0.9 4x4 (312PXR2B) | 312A2.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 0.9 4x4 (312PXR2B) | 312A7.000 | 06.2014- |
| FIAT | PANDA (312_, 319_) 0.9 Natural Power (312PXG1A, 312PYC1A) | 312A2.000 | 07.2012- |
| FIAT | PANDA (312_, 319_) 0.9 Natural Power (312PXG1A, 312PYC1A) | 46337566 | 07.2012- |
| FIAT | PANDA (312_, 319_) 0.9 Natural Power (312PXN1A) | 312A2.000 | 01.2015- |
| FIAT | PANDA (312_, 319_) 0.9 Natural Power (312PXN1A) | 46337566 | 03.2019- |
| FIAT | PANDA VAN (312_, 519_) 0.9 (312CXH1A, 312DXH1A) | 312A4.000 | 02.2012- |
| FIAT | PANDA VAN (312_, 519_) 0.9 (312DXG1A) | 312A2.000 | 02.2012- |
| FIAT | PANDA VAN (312_, 519_) 0.9 (312.PXN1A) | 312A2.000 | 11.2013- |
| FIAT | PANDA VAN (312_, 519_) 0.9 4x4 (312CXG2B) | 312A2.000 | 09.2012- |
| FIAT | PANDA VAN (312_, 519_) 0.9 Natural Power (312DXG1A) | 312A2.000 | 07.2012- |
| FIAT | Punto 0.9 | [199B6000] | 01.2012- |
| FIAT | Punto 0.9 | [312A2.000] | 01.2012- |
| FIAT | PUNTO (199_) 0.9 | 199B6.000 | 07.2013- |
| FIAT | PUNTO (199_) 0.9 | 199B6.000 | 12.2013- |
| FIAT | PUNTO (199_) 0.9 | 199B7.000 | 12.2013- |
| FIAT | PUNTO (199_) 0.9 Bifuel | 312A2.000 | 03.2012- |
| FIAT | PUNTO (199_) 0.9 Twinair Turbo | 312A2.000 | 03.2012- |
| LANCIA | Ypsilon 0.9 | [312A2.000] | 01.2011- |
| LANCIA | Ypsilon 1.2 8V | [169A4.000] | 01.2011- |
| LANCIA | YPSILON (312_) 0.9 CNG (312.YXG1A) | 312A2.000 | 05.2011- |
| LANCIA | YPSILON (312_) 0.9 TwinAir (312.PXG11, 312.PXG1A, 312.YXG11, 312.YXG1A) | 312A2.000 | 05.2011-12.2018 |
| LANCIA | YPSILON (312_) 0.9 TwinAir (312.YXN11, 312.YXN1A) | 312A2.000 | 12.2013-12.2018 |
| LANCIA | YPSILON (312_) 0.9 TwinAir (312.YXN11, 312.YXN1A) | 312A5.000 | 12.2013-12.2018 |
Reference Information
| 0001137003 | BOSCH |
| 0001137004 | BOSCH |
| 0001170406 | BOSCH |
| 0001170407 | BOSCH |
| 0001170407-R | BOSCH |
| 021500 | DA SILVA |
| 021504 | DA SILVA |
| 063280086010 | MAGNETI MARELLI |
| 0986029150 | BOSCH |
| 10010526AV | ITAB AUTOMOTIVE |
| 10010526OV | ITAB AUTOMOTIVE |
| 10040351AV | ITAB AUTOMOTIVE |
| 10040351OV | ITAB AUTOMOTIVE |
| 107640 | FARCOM |
| 11029150 | EUROTEC |
| 115828 | CARGO |
| 116024 | CARGO |
| 12225 | EAI |
| 1680415580 | EUROREPAR |
| 1986S00647 | BOSCH |
| 1986S00826 | BOSCH |
| 20401625BN | REAL |
| 20401625OE | REAL |
| 20432153BN | REAL |
| 20432153OE | REAL |
| 220672 | ERA |
| 220672A | ERA |
| 225ST21 | STARTCAR |
| 25-4178 | ELSTOCK |
| 25-4178CT | AINDE |
| 25-4355 | ELSTOCK |
| 254621 | KUHNER |
| 254621B | KUHNER |
| 254621D | KUHNER |
| 254621S | KUHNER |
| 254896 | KUHNER |
| 254896B | KUHNER |
| 254896D | KUHNER |
| 254896S | KUHNER |
| 30-1227 | AIRSTAL |
| 3118864 | HENKEL PARTS |
| 3118866 | HENKEL PARTS |
| 31249N | WAI |
| 3129840 | HENKEL PARTS |
| 318224102 | DRI |
| 3460 | CEVAM |
| 42007000 | HERTH+BUSS |
| 428000-7470 | DENSO |
| 4799051 | NK |
| 500.567.103.010 | WAI |
| 500.567.103.281 | WAI |
| 500.568.103.050 | WAI |
| 500.568.103.260 | WAI |
| 500.568.103.340 | WAI |
| 500.568.103.440 | WAI |
| 500.568.103.461 | WAI |
| 5010506 | MEAT & DORIA |
| 5010506G | MEAT & DORIA |
| 5040150 | MEAT & DORIA |
| 51829380 | FIAT |
| 51872564 | FIAT |
| 51938439 | FIAT |
| 6010526.0 | SANDO |
| 6010526.1 | SANDO |
| 6040351.0 | SANDO |
| 6040351.1 | SANDO |
| 8080433 | FRIESEN |
| AC-CBS5901 | ACAUTO |
| AEY2506 | AUTOELECTRO |
| ANM99654 | ANDEL |
| AZMT-53-010-1542 | A.Z. MEISTERTEILE |
| BREF0320986029150 | CARWOOD GROUP |
| BREF032115828 | CARWOOD GROUP |
| BREF032116024 | CARWOOD GROUP |
| BREF0321986S00826 | CARWOOD GROUP |
| CST10526AS | CASCO |
| CST10526GS | CASCO |
| CST40351AS | CASCO |
| CST40351GS | CASCO |
| DENDSN975 | WOODAUTO |
| DRS0656 | DELCO |
| DSN975 | DENSO |
| F032115828 | CARGO |
| F032116024 | CARGO |
| FI9081 | SNRA |
| H5010506G | HOFFER |
| H5040150 | HOFFER |
| IR8435 | PROTECH |
| LRS02506 | LUCAS |
| LRS02683 | LUCAS |
| LRS2506 | LUCAS |
| LRS2683 | LUCAS |
| MAV125260 | SIOM |
| MAV125260A | SIOM |
| MAV423510 | SIOM |
| MAV423510A | SIOM |
| MSN8086 | MAGNETI MARELLI |
| RNL428000-7470 | RNL |
| S100436 | BTS TURBO |
| S101318 | BTS TURBO |
| S102277 | BTS TURBO |
| S103170 | BTS TURBO |
| S12BH0665 | SIDAT |
| S12BH0665A2 | SIDAT |
| S12DE0462 | SIDAT |
| S12DE0462A2 | SIDAT |
| SDN351 | AUTOTEAM |
| SG1132 | GHIBAUDI |
| SG1132RB | GHIBAUDI |
| ST01847 | TMI |
| STB7003 | KRAUF |
| STR10367 | ELECTROLOG |
| STR6444 | ELECTROLOG |
| STR70423 | WOODAUTO |
| STRJ790 | 3EFFE |
| STX210300 | STARDAX |
| STX210300R | STARDAX |
| SV36DE0462.1 | 7 SEVEN PARTS |
| UD13169S | AS-PL |
| WG1920258 | WILMINK GROUP |
| WG2174917 | WILMINK GROUP |
| WOOSTR70423 | WOODAUTO |
| WST00432 | WALKER |
